◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11123 - FSR(LHD) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#39221) — 109 parça

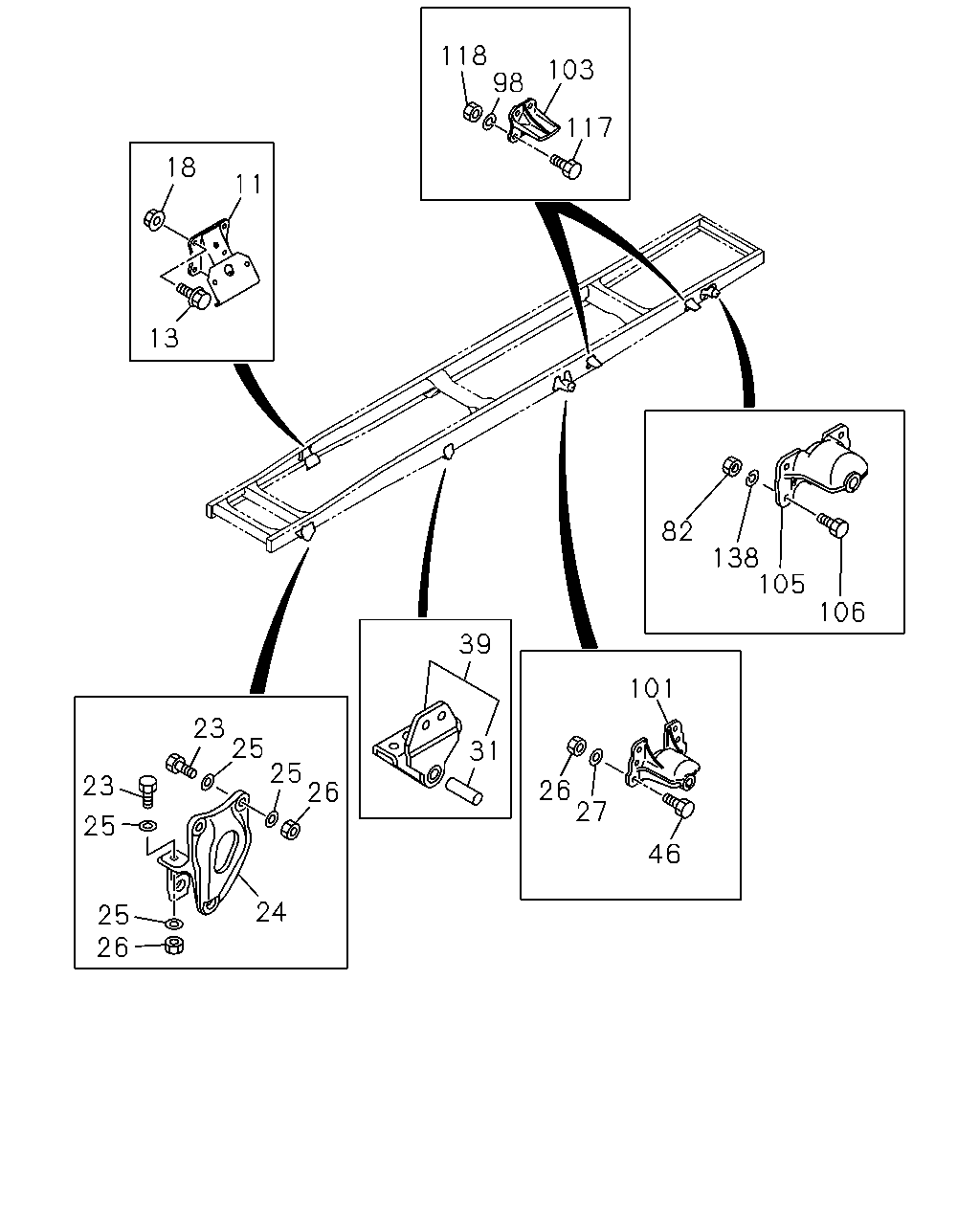

çizim 181374
118 98 103 117 18 11 13 82 138 105 106 39 101 23 25 25 26 31 23 26 27 25 46 24 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97604-129-0 02 1 1012- ● ● ●
11 BRACKET; ENG MTG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-502-0 02 1 0809-1011 ● ● ●
11 BRACKET; ENG MTG
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-502-0 02 1 1012- ● ● ●
11 BRACKET; ENG MTG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-830-0 02 1 0809-1011 ● ● ●
11 BRACKET; ENG MTG
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-830-0 02 1 1012- ● ● ●
11 BRACKET; ENG MTG
4HK1-TCS ENG(RJS) 		8-97604-129-0 02 1 1012- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0809- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0809- ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0809- ● ● ●
24 BRACKET; FRT SPR,FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-983-0 01 1 0809-1011 ● ● ●
24 BRACKET; FRT SPR,FRT
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-983-0 01 1 1012-1012 ● ● ●
24 BRACKET; FRT SPR,FRT
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-983-0 01 1 1012-1509 ● ● ●
24 BRACKET; FRT SPR,FRT
4HK1-TCS ENG(RJS) 		8-98018-983-0 01 1 1012-1509 ● ● ●
24 BRACKET; FRT SPR,FRT
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-983-0 01 1 1510- ● ● ●
24 BRACKET; FRT SPR,FRT
4HK1-TCS ENG(RJS) 		8-98018-983-0 01 1 1510- ● ● ●
24 BRACKET; FRT SPR,FRT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-984-0 01 1 0809-1011 ● ● ●
24 BRACKET; FRT SPR,FRT
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-984-0 01 1 1012-1012 ● ● ●
24 BRACKET; FRT SPR,FRT
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-984-0 01 1 1012-1509 ● ● ●
24 BRACKET; FRT SPR,FRT
4HK1-TCS ENG(RJS) 		8-98018-984-0 01 1 1012-1509 ● ● ●
24 BRACKET; FRT SPR,FRT
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98018-984-0 01 1 1510- ● ● ●
24 BRACKET; FRT SPR,FRT
4HK1-TCS ENG(RJS) 		8-98018-984-0 01 1 1510- ● ● ●
24 BRACKET; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-262-1 01 1 0809-1011 ● ● ●
24 BRACKET; FRT SPR,FRT
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-262-1 01 1 1012-1509 ● ● ●
24 BRACKET; FRT SPR,FRT
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-262-1 01 1 1510- ● ● ●
24 BRACKET; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-263-1 01 1 0809-1011 ● ● ●
24 BRACKET; FRT SPR,FRT
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-263-1 01 1 1012-1509 ● ● ●
24 BRACKET; FRT SPR,FRT
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53351-263-1 01 1 1510- ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 0809- ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0809- ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 0809- ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0809- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-126-2 02 1 0809- ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 0809- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 0809- ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0809- ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 0809- ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 0809- ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 0809- ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 0809- ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0809- ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0809- ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 0809- ● ● ●

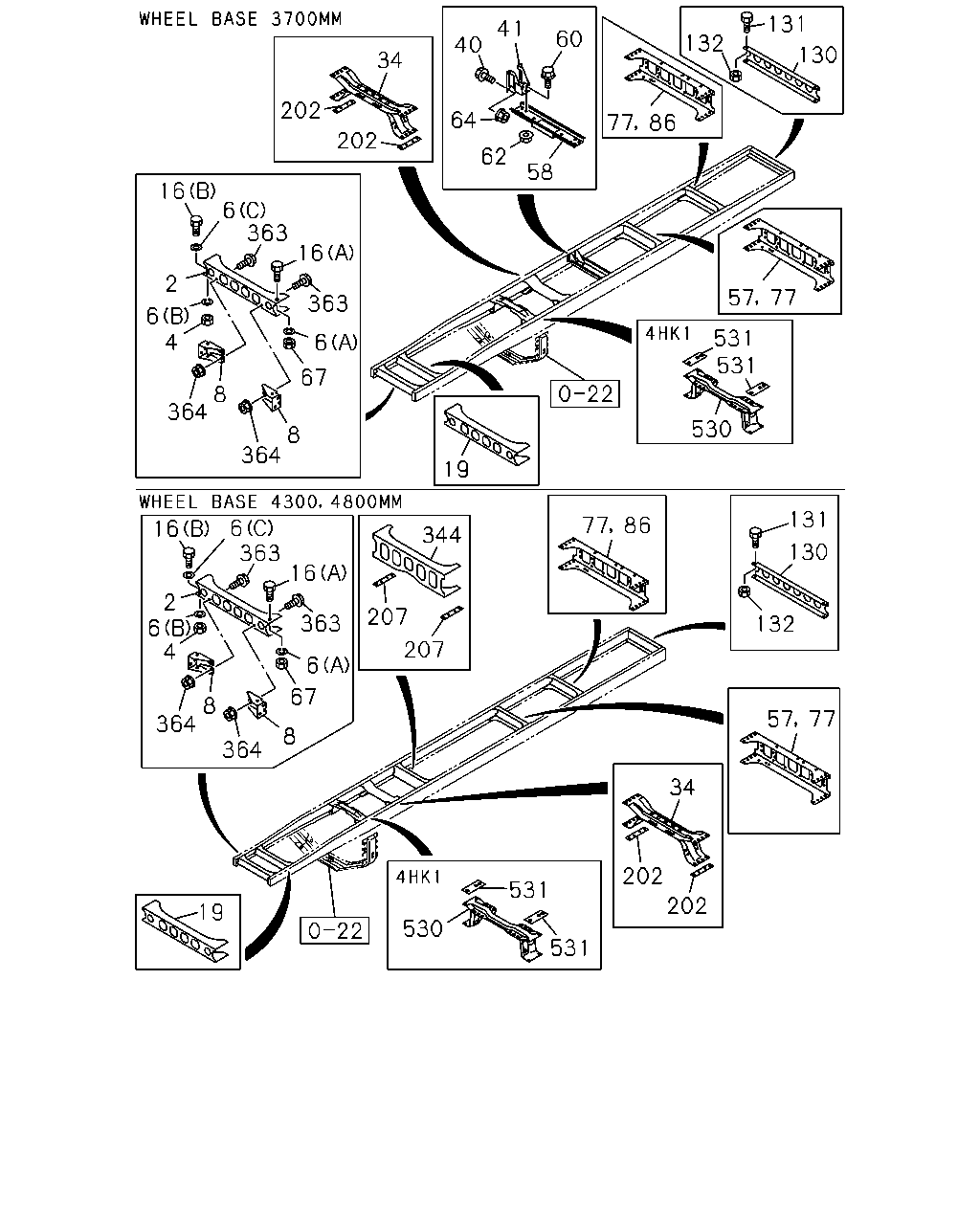

çizim 181394
131 41 60 132 40 130 34 202 64 77 86 62 58 16 6 363 16 2 57 77 363 6 4 531 531 6 67 8 364 530 8 364 19 6 363 131 77 86 16 344 130 16 2 6 4 207 363 132 207 6 67 8 364 57 77 8 364 34 202 531 202 19 530 531 202
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 0809- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 0809- ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 0809- ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 0809- ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 0809- ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97617-910-2 01 1 1012-1509 ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97617-910-2 01 1 1510- ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97617-911-3 01 1 1012-1509 ● ● ●
8 GUSSET; 1ST C/MBR
4HK1-TCS ENG(RJS) 		8-97617-911-3 01 1 1510- ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-912-1 01 1 0809-1011 ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97617-912-2 01 1 1012-1509 ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97617-912-2 01 1 1510- ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-913-2 01 1 0809-1011 ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97617-913-3 01 1 1012-1509 ● ● ●
8 GUSSET; 1ST C/MBR
6HK1-TCN ENG(82L) 		8-97617-913-3 01 1 1510- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 0809- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 0809- ● ● ●
19 MEMBER; CROSS,2ND 8-97620-866-6 01 1 0809- ● ● ●
34 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) 		8-97609-501-2 01 1 1012- ● ● ●
34 MEMBER; CROSS,3RD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-755-0 01 1 0809-1011 ● ● ●
34 MEMBER; CROSS,3RD
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-755-0 01 1 1012- ● ● ●
34 MEMBER; CROSS,3RD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-754-0 01 1 0809-1011 ● ● ●
34 MEMBER; CROSS,3RD
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-754-0 01 1 1012- ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 0809- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 0809-1509 ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 1510- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 0809-1509 ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 1510- ●
57 MEMBER; CROSS,RR SUSP FRT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-935-1 01 1 0809-1011 ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-935-1 01 1 1012- ● ● ●
58 MEMBER; CENTER BRG
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97629-975-0 01 1 0809-1011 ●
58 MEMBER; CENTER BRG
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97629-975-0 01 1 1012- ●
58 MEMBER; CENTER BRG
4HK1-TCS ENG(RJS) 		8-97629-975-0 01 1 1012- ●
58 MEMBER; CENTER BRG
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-113-0 01 1 0809-1011 ●
58 MEMBER; CENTER BRG
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-113-0 01 1 1012-1509 ●
58 MEMBER; CENTER BRG
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. VIN MODEL YEAR 2015<VZF>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-113-0 01 1 1510- ●
58 MEMBER; CENTER BRG
6HK1-TCN ENG(82L) MZX6P M/T(RSW) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97620-971-0 01 1 0809-0906 ●
58 MEMBER; CENTER BRG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97620-971-0 01 1 0907-1509 ●
58 MEMBER; CENTER BRG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. VIN MODEL YEAR 2015<VZF>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97620-971-0 01 1 1510- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 0809- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 0809- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 0809- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0809- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-481-4 02 1 0809-1011 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-481-4 02 1 1012-1012 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-481-4 02 1 1012- ● ● ●
77 MEMBER; CROSS,TRUNNION RR
4HK1-TCS ENG(RJS) 		8-97609-481-4 02 1 1012- ● ● ●
86 MEMBER; CROSS,RR SUSP RR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-935-1 01 1 0809-1011 ● ● ●
86 MEMBER; CROSS,RR SUSP RR
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-935-1 01 1 1012- ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0809- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0809- ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0809- ● ● ●
202 SPACER; 3RD C/MBR
4HK1-TCS ENG(RJS) 		8-97609-756-1 02 1 1012- ● ● ●
202 SPACER; 3RD C/MBR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-757-0 02 1 0809-1011 ● ● ●
202 SPACER; 3RD C/MBR
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-757-0 02 1 1012- ● ● ●
207 SPACER; 4TH C/MBR
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-758-0 02 1 0809-1011 ● ●
207 SPACER; 4TH C/MBR
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-758-0 02 1 1012- ● ●
207 SPACER; 4TH C/MBR
4HK1-TCS ENG(RJS) 		8-97609-758-0 02 1 1012- ● ●
344 MEMBER; CROSS,4TH
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-473-2 01 1 0809-1011 ● ●
344 MEMBER; CROSS,4TH
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-473-2 01 1 1012- ● ●
344 MEMBER; CROSS,4TH
4HK1-TCS ENG(RJS) 		8-97609-473-2 01 1 1012- ● ●
344 MEMBER; CROSS,4TH
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-472-2 01 1 0809-1509 ● ●
344 MEMBER; CROSS,4TH
6HK1-TCN ENG(82L) EXC. VIN MODEL YEAR 2015<VZF>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97609-472-2 01 1 1510- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0809- ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0809- ● ● ●
530 MEMBER; CROSS,T/M
4HK1-TCS ENG(RJS) 		8-97609-809-3 01 1 1012- ● ● ●
531 SPACER; C/MBR,T/M
4HK1-TCS ENG(RJS) 		8-97616-461-1 02 1 1012- ● ● ●
