◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11123 - FSR(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#39220) — 42 parça

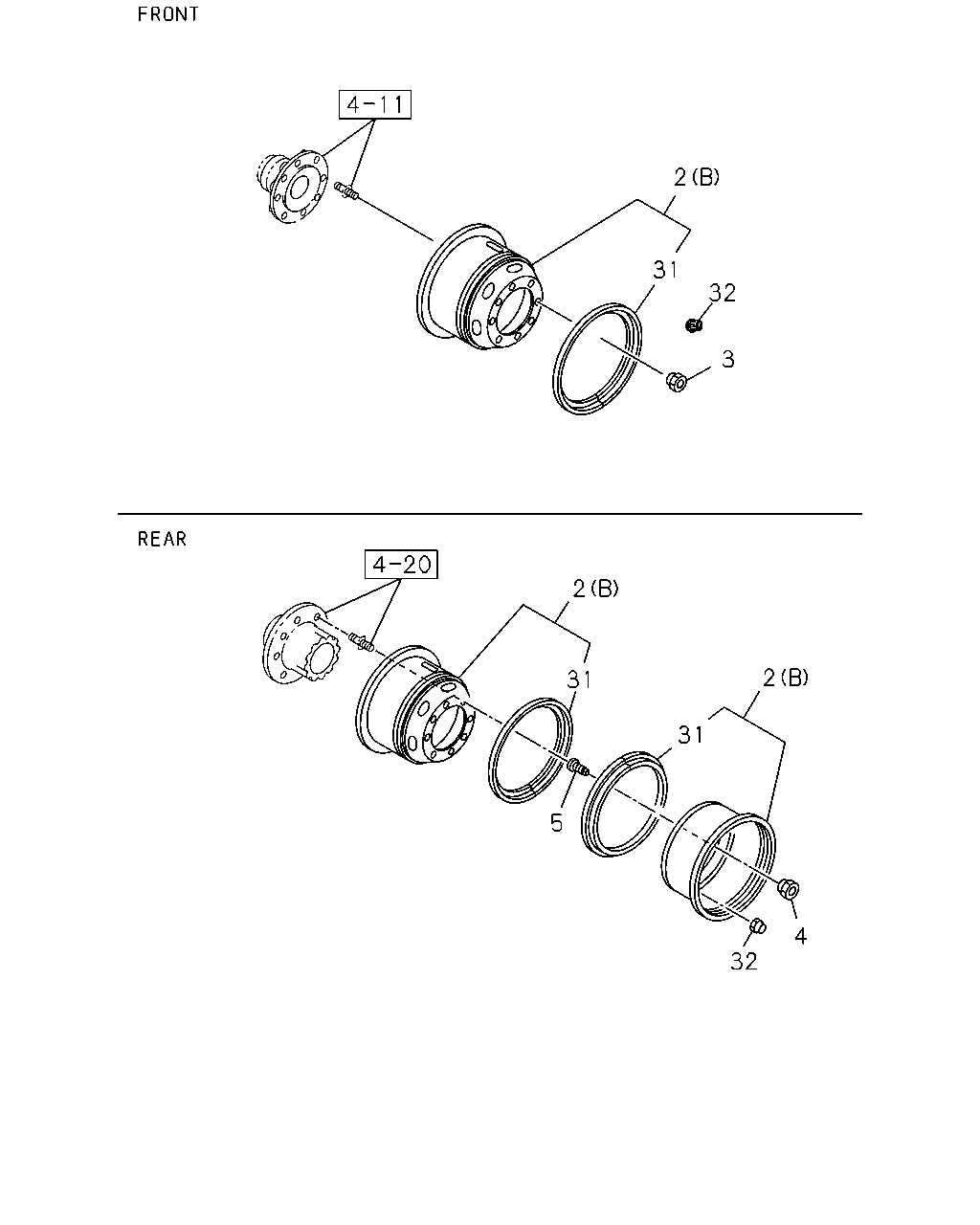

çizim 181380
2 31 32 3 2 2 31 31 5 4 32
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-761-1 01 1 0809-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-761-1 01 1 0809-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-641-0 01 1 0809-
2 WHEEL; DISC
WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-641-0 01 1 0809-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-407-1 01 1 0809-
2 WHEEL; DISC
WHEEL 8STUD 6.75X22.5 145-11(PT1) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-407-1 01 1 0809-
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) (A) FRONT,REAR 		1-42350-761-1 06 1 0809-
2 WHEEL; DISC
WHEEL 8STUD 6.50TX20 145-10(Q47) (B) FRONT,REAR 		1-42350-641-0 06 1 0809-
2 WHEEL; DISC
WHEEL 8STUD 6.75X22.5 145-11(PT1) (A) FRONT,REAR 		1-42350-407-1 06 1 0809-
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 08 1 0809-
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 08 1 0809-
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 08 1 0809-
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 08 1 0809-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 08 1 0809-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 08 1 0809-
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42355-012-1 01 1 0809-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-012-1 01 1 0809-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 6.50TX20 145-10(Q47) FRONT,REAR 		1-42355-012-1 06 1 0809-
32 CAP; VALVE
DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 0809-
32 CAP; VALVE
WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 0809-
32 CAP; VALVE
WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 06 1 0809-

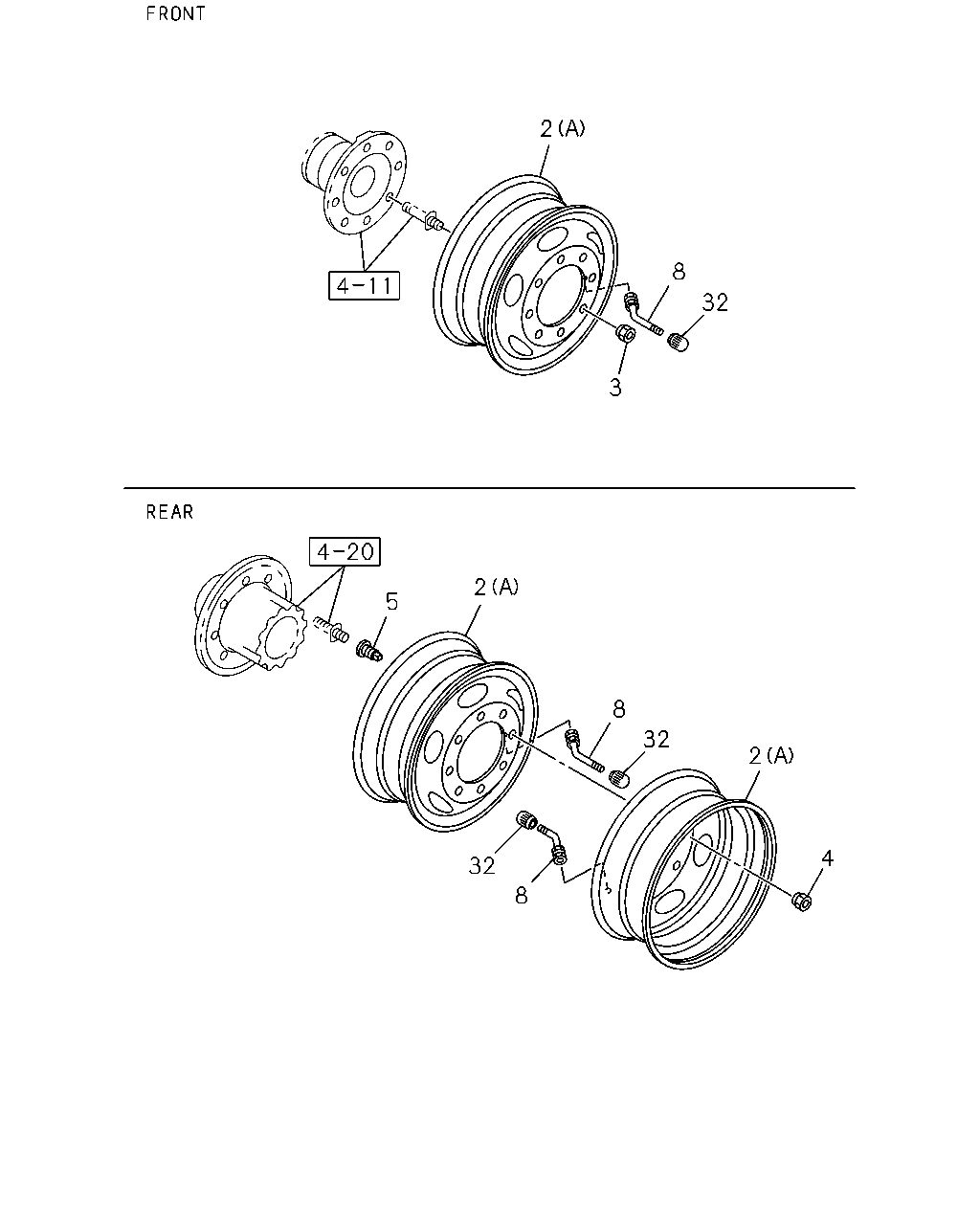

çizim 181392
2 8 32 3 2 5 8 32 2 4 32 8
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-761-1 01 1 0809-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-761-1 01 1 0809-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-641-0 01 1 0809-
2 WHEEL; DISC
WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-641-0 01 1 0809-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-407-1 01 1 0809-
2 WHEEL; DISC
WHEEL 8STUD 6.75X22.5 145-11(PT1) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-407-1 01 1 0809-
2 WHEEL; DISC
DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) (A) FRONT,REAR 		1-42350-761-1 06 1 0809-
2 WHEEL; DISC
WHEEL 8STUD 6.50TX20 145-10(Q47) (B) FRONT,REAR 		1-42350-641-0 06 1 0809-
2 WHEEL; DISC
WHEEL 8STUD 6.75X22.5 145-11(PT1) (A) FRONT,REAR 		1-42350-407-1 06 1 0809-
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 08 1 0809-
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 08 1 0809-
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 08 1 0809-
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 08 1 0809-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 08 1 0809-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 08 1 0809-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-020-3 01 1 0809-
8 VALVE; TIRE
WHEEL 8STUD 6.75X22.5 145-11(PT1),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-020-3 01 1 0809-
8 VALVE; TIRE
WHEEL 8STUD 6.75X22.5 145-11(PT1),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) FRONT,REAR 		1-42370-020-3 06 1 0809-
32 CAP; VALVE
DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 0809-
32 CAP; VALVE
WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 0809-
32 CAP; VALVE
WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),DISC WHEEL 8STUD 6.75X19.5 147-12(TEE) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 06 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
