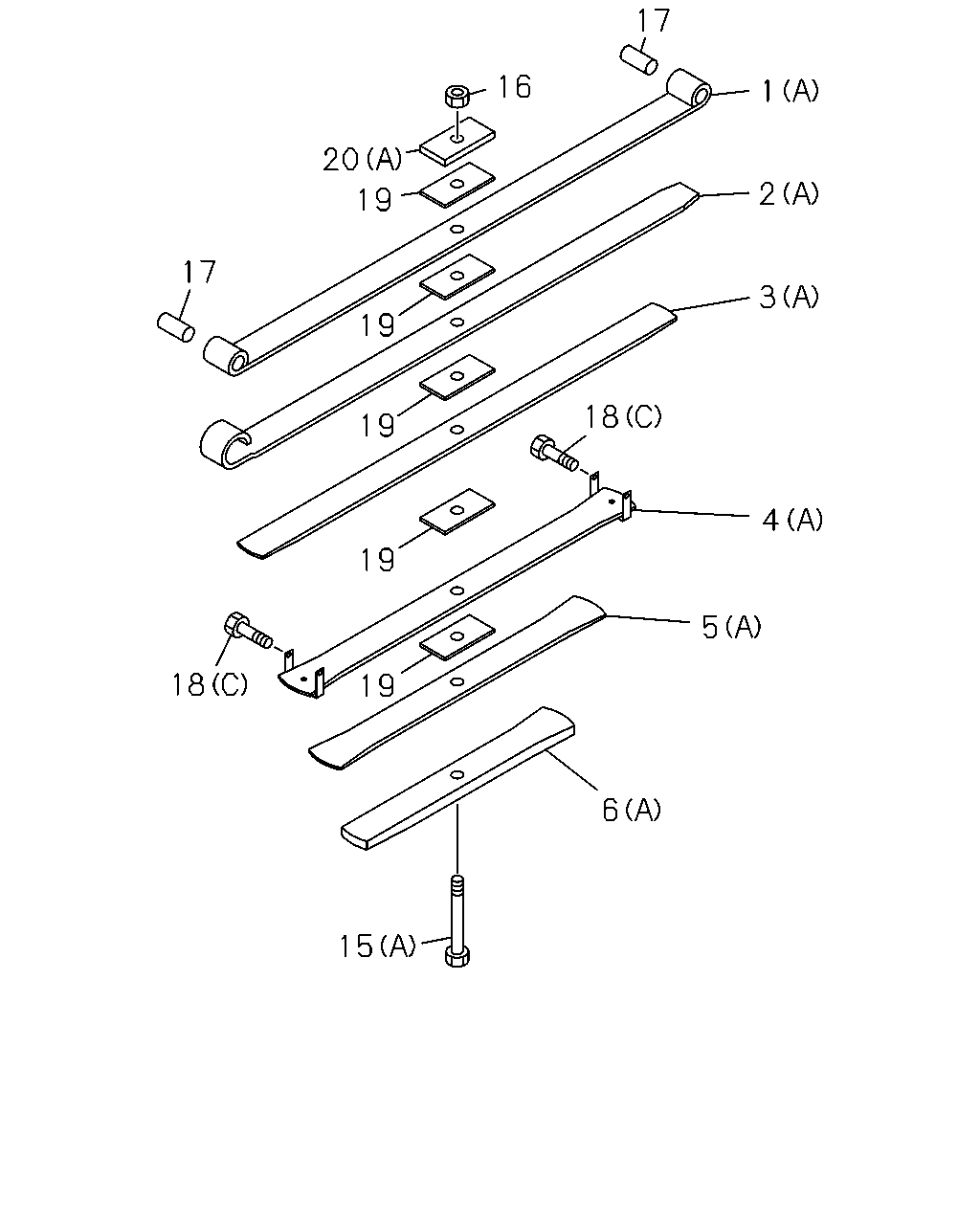

4-55 — FRONT LEAF SPRING (#39217) — 144 parça

16 1 17 24 20 19 2 24 19 18 17 24 3 19 20 24 18 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: C = 8-98017-558-0	8-98075-416-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: D = 8-98017-559-0	8-98075-423-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (C) ASM PART: E = 8-98063-483-0	8-98082-017-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (C) ASM PART: F = 8-98063-484-0	8-98082-018-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-98017-556-0	8-98085-209-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: B = 8-98017-557-0	8-98085-215-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: G = 8-98229-528-0	8-98232-171-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: H = 8-98229-529-0	8-98232-174-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (C) ASM PART: E = 8-98063-483-0	8-98073-498-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (C) ASM PART: F = 8-98063-484-0	8-98073-501-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: C = 8-98017-558-0	8-98075-417-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: D = 8-98017-559-0	8-98075-424-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-98017-556-0	8-98085-210-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: B = 8-98017-557-0	8-98085-216-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: G = 8-98229-528-0	8-98232-172-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: H = 8-98229-529-0	8-98232-175-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (C) ASM PART: E = 8-98063-483-0	8-98073-499-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (C) ASM PART: F = 8-98063-484-0	8-98073-502-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: C = 8-98017-558-0	8-98075-418-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: D = 8-98017-559-0	8-98075-425-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-98017-556-0	8-98085-211-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: B = 8-98017-557-0	8-98085-217-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: G = 8-98229-528-0	8-98232-173-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: H = 8-98229-529-0	8-98232-176-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=105 ASM PART: A = 8-98017-556-0, B = 8-98017-557-0	1-51156-323-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (C), L=100 ASM PART: E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	1-51156-341-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=120 ASM PART: C = 8-98017-558-0, D = 8-98017-559-0	1-51156-351-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M14 ASM PART: A = 8-98017-556-0, B = 8-98017-557-0, C = 8-98017-558-0, D = 8-98017-559-0, E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	9-99110-514-0	01	1	-
17	BUSHING; LEAF SPR,FRT ID=25 ASM PART: A = 8-98017-556-0, B = 8-98017-557-0, C = 8-98017-558-0, D = 8-98017-559-0, E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	9-51151-032-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M8X87 ASM PART: C = 8-98017-558-0, D = 8-98017-559-0	1-09000-335-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M8X97 ASM PART: E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	1-09000-570-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M8X89 ASM PART: E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	8-97129-689-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M8X89 ASM PART: A = 8-98017-556-0, B = 8-98017-557-0	8-97129-689-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	1-51177-263-0	03	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 8-98017-558-0, D = 8-98017-559-0	1-51177-263-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98017-556-0, B = 8-98017-557-0	1-51177-263-0	05	1	-
20	SEAT; LEAF SPR,FRT (B), T=7 ASM PART: E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	1-51172-270-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=8 ASM PART: C = 8-98017-558-0, D = 8-98017-559-0, E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	1-51177-331-0	02	1	-
20	SEAT; LEAF SPR,FRT (A), T=8 ASM PART: A = 8-98017-556-0, B = 8-98017-557-0	1-51177-331-0	01	1	-
24	LINER; LEAF SPR,FWD FRT ASM PART: E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	1-51159-025-0	04	1	-

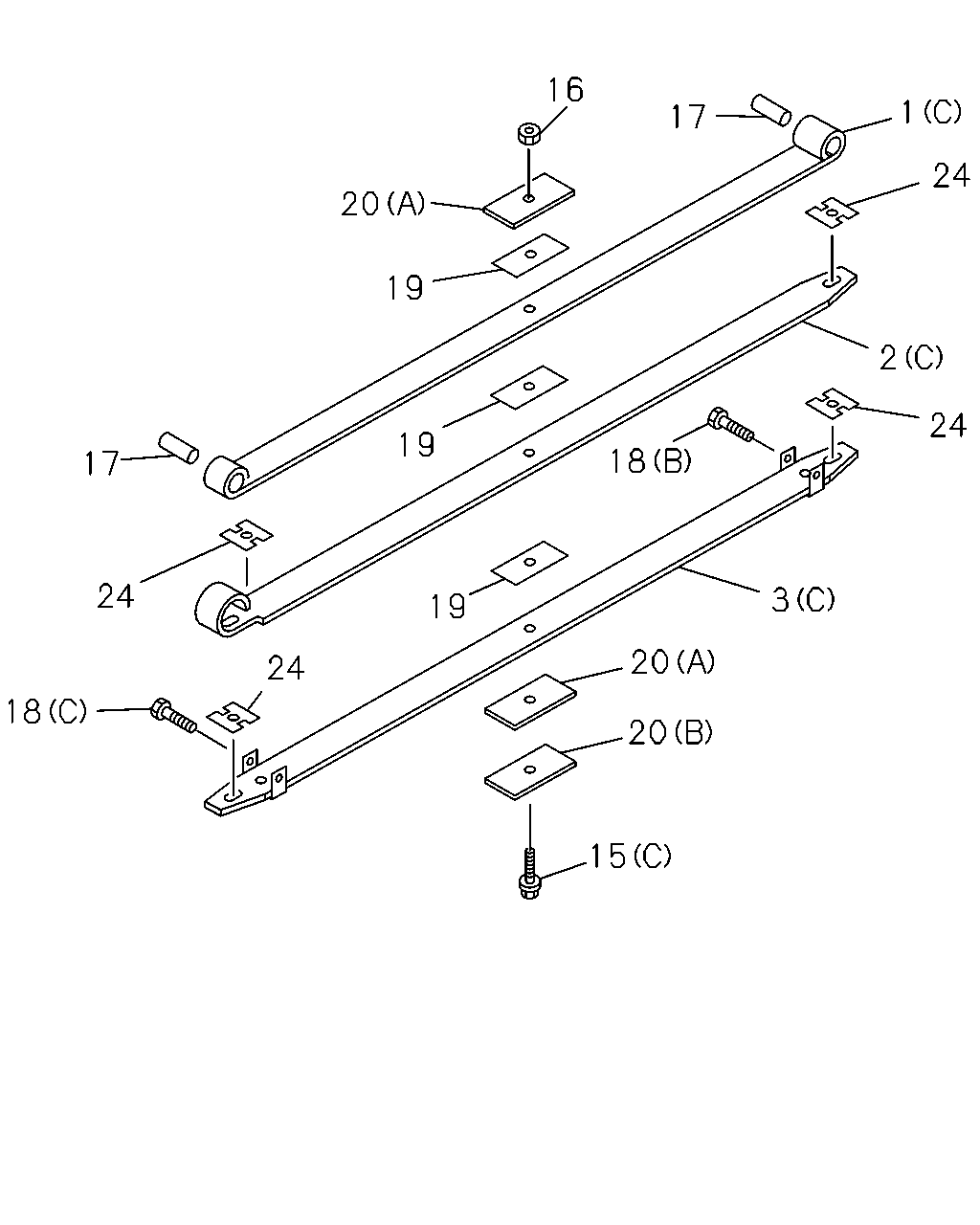

17 16 1 20 2 19 17 3 19 18 19 4 19 5 18 19 6 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: C = 8-98017-558-0	8-98075-416-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: D = 8-98017-559-0	8-98075-423-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (C) ASM PART: E = 8-98063-483-0	8-98082-017-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (C) ASM PART: F = 8-98063-484-0	8-98082-018-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-98017-556-0	8-98085-209-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: B = 8-98017-557-0	8-98085-215-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: G = 8-98229-528-0	8-98232-171-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: H = 8-98229-529-0	8-98232-174-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (C) ASM PART: E = 8-98063-483-0	8-98073-498-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (C) ASM PART: F = 8-98063-484-0	8-98073-501-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: C = 8-98017-558-0	8-98075-417-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: D = 8-98017-559-0	8-98075-424-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-98017-556-0	8-98085-210-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: B = 8-98017-557-0	8-98085-216-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: G = 8-98229-528-0	8-98232-172-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: H = 8-98229-529-0	8-98232-175-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (C) ASM PART: E = 8-98063-483-0	8-98073-499-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (C) ASM PART: F = 8-98063-484-0	8-98073-502-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: C = 8-98017-558-0	8-98075-418-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: D = 8-98017-559-0	8-98075-425-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-98017-556-0	8-98085-211-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: B = 8-98017-557-0	8-98085-217-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: G = 8-98229-528-0	8-98232-173-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: H = 8-98229-529-0	8-98232-176-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: C = 8-98017-558-0	8-98075-419-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: D = 8-98017-559-0	8-98075-426-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: A = 8-98017-556-0	8-98085-212-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: B = 8-98017-557-0	8-98085-218-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: C = 8-98017-558-0	8-98075-420-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: D = 8-98017-559-0	8-98075-427-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: A = 8-98017-556-0	8-98085-213-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: B = 8-98017-557-0	8-98085-219-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: C = 8-98017-558-0	8-98075-421-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: D = 8-98017-559-0	8-98075-428-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: A = 8-98017-556-0	8-98085-214-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: B = 8-98017-557-0	8-98085-220-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=105 ASM PART: A = 8-98017-556-0, B = 8-98017-557-0	1-51156-323-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (C), L=100 ASM PART: E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	1-51156-341-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=120 ASM PART: C = 8-98017-558-0, D = 8-98017-559-0	1-51156-351-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M14 ASM PART: A = 8-98017-556-0, B = 8-98017-557-0, C = 8-98017-558-0, D = 8-98017-559-0, E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	9-99110-514-0	01	1	-
17	BUSHING; LEAF SPR,FRT ID=25 ASM PART: A = 8-98017-556-0, B = 8-98017-557-0, C = 8-98017-558-0, D = 8-98017-559-0, E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	9-51151-032-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M8X87 ASM PART: C = 8-98017-558-0, D = 8-98017-559-0	1-09000-335-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M8X97 ASM PART: E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	1-09000-570-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M8X89 ASM PART: E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	8-97129-689-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M8X89 ASM PART: A = 8-98017-556-0, B = 8-98017-557-0	8-97129-689-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	1-51177-263-0	03	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 8-98017-558-0, D = 8-98017-559-0	1-51177-263-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98017-556-0, B = 8-98017-557-0	1-51177-263-0	05	1	-
20	SEAT; LEAF SPR,FRT (B), T=7 ASM PART: E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	1-51172-270-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=8 ASM PART: C = 8-98017-558-0, D = 8-98017-559-0, E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	1-51177-331-0	02	1	-
20	SEAT; LEAF SPR,FRT (A), T=8 ASM PART: A = 8-98017-556-0, B = 8-98017-557-0	1-51177-331-0	01	1	-

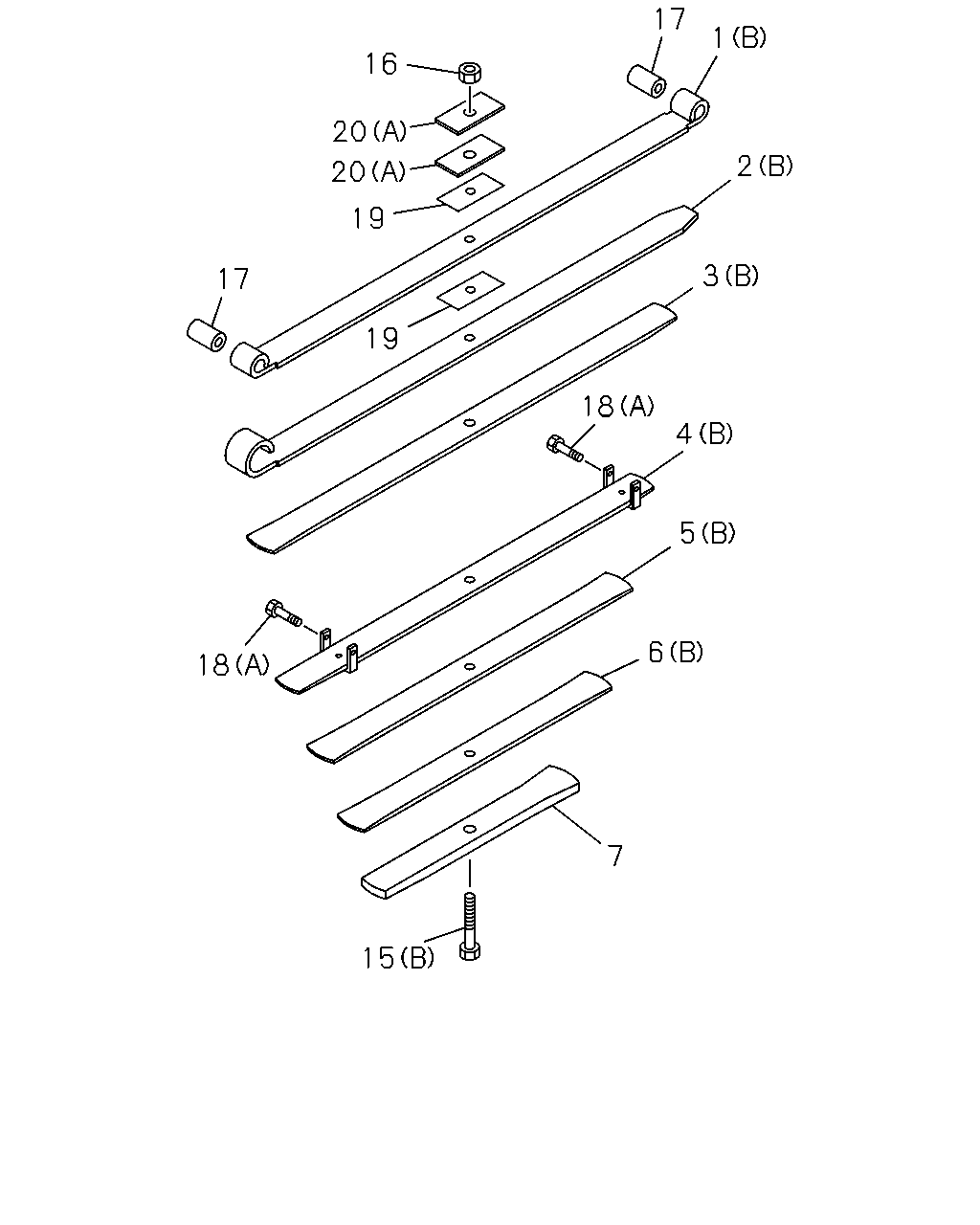

17 1 16 20 20 19 3 17 19 18 4 5 6 18 7 15 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: C = 8-98017-558-0	8-98075-416-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: D = 8-98017-559-0	8-98075-423-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (C) ASM PART: E = 8-98063-483-0	8-98082-017-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (C) ASM PART: F = 8-98063-484-0	8-98082-018-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-98017-556-0	8-98085-209-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: B = 8-98017-557-0	8-98085-215-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: G = 8-98229-528-0	8-98232-171-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: H = 8-98229-529-0	8-98232-174-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (C) ASM PART: E = 8-98063-483-0	8-98073-498-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (C) ASM PART: F = 8-98063-484-0	8-98073-501-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: C = 8-98017-558-0	8-98075-417-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: D = 8-98017-559-0	8-98075-424-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-98017-556-0	8-98085-210-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: B = 8-98017-557-0	8-98085-216-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: G = 8-98229-528-0	8-98232-172-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: H = 8-98229-529-0	8-98232-175-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (C) ASM PART: E = 8-98063-483-0	8-98073-499-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (C) ASM PART: F = 8-98063-484-0	8-98073-502-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: C = 8-98017-558-0	8-98075-418-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: D = 8-98017-559-0	8-98075-425-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-98017-556-0	8-98085-211-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: B = 8-98017-557-0	8-98085-217-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: G = 8-98229-528-0	8-98232-173-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: H = 8-98229-529-0	8-98232-176-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: C = 8-98017-558-0	8-98075-419-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: D = 8-98017-559-0	8-98075-426-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: A = 8-98017-556-0	8-98085-212-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: B = 8-98017-557-0	8-98085-218-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: C = 8-98017-558-0	8-98075-420-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (B) ASM PART: D = 8-98017-559-0	8-98075-427-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: A = 8-98017-556-0	8-98085-213-0	01	1	-
5	SPRING; LEAF,NO 5,FRT (A) ASM PART: B = 8-98017-557-0	8-98085-219-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: C = 8-98017-558-0	8-98075-421-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (B) ASM PART: D = 8-98017-559-0	8-98075-428-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: A = 8-98017-556-0	8-98085-214-0	01	1	-
6	SPRING; LEAF,NO 6,FRT (A) ASM PART: B = 8-98017-557-0	8-98085-220-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 8-98017-558-0	8-98075-422-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: D = 8-98017-559-0	8-98075-429-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=105 ASM PART: A = 8-98017-556-0, B = 8-98017-557-0	1-51156-323-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (C), L=100 ASM PART: E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	1-51156-341-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=120 ASM PART: C = 8-98017-558-0, D = 8-98017-559-0	1-51156-351-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M14 ASM PART: A = 8-98017-556-0, B = 8-98017-557-0, C = 8-98017-558-0, D = 8-98017-559-0, E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	9-99110-514-0	01	1	-
17	BUSHING; LEAF SPR,FRT ID=25 ASM PART: A = 8-98017-556-0, B = 8-98017-557-0, C = 8-98017-558-0, D = 8-98017-559-0, E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	9-51151-032-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M8X87 ASM PART: C = 8-98017-558-0, D = 8-98017-559-0	1-09000-335-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M8X97 ASM PART: E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	1-09000-570-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M8X89 ASM PART: E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	8-97129-689-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M8X89 ASM PART: A = 8-98017-556-0, B = 8-98017-557-0	8-97129-689-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	1-51177-263-0	03	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 8-98017-558-0, D = 8-98017-559-0	1-51177-263-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98017-556-0, B = 8-98017-557-0	1-51177-263-0	05	1	-
20	SEAT; LEAF SPR,FRT (B), T=7 ASM PART: E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	1-51172-270-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=8 ASM PART: C = 8-98017-558-0, D = 8-98017-559-0, E = 8-98063-483-0, F = 8-98063-484-0, G = 8-98229-528-0, H = 8-98229-529-0	1-51177-331-0	02	1	-
20	SEAT; LEAF SPR,FRT (A), T=8 ASM PART: A = 8-98017-556-0, B = 8-98017-557-0	1-51177-331-0	01	1	-
