◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11123 - FSR(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#39213) — 72 parça

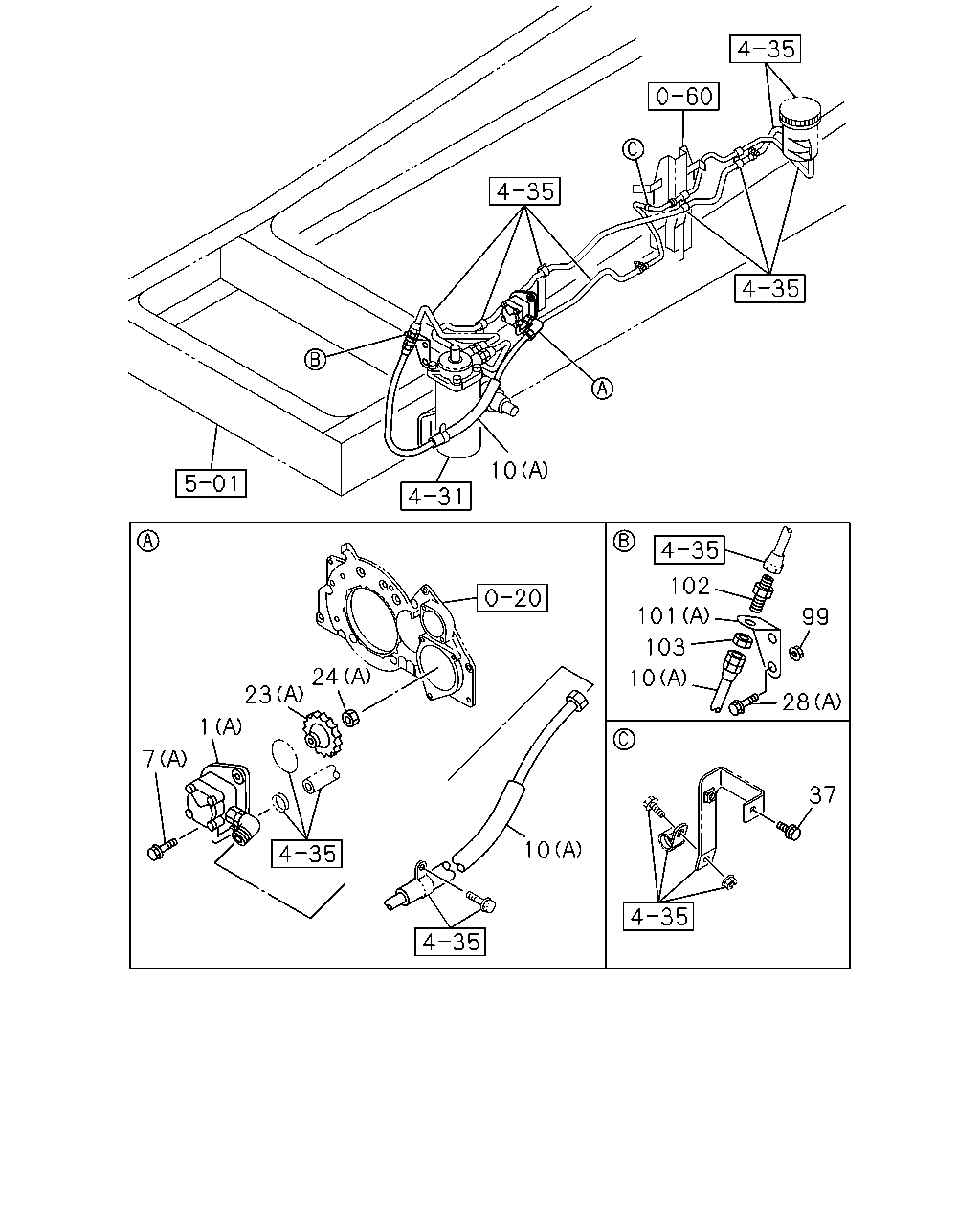

çizim 181398
10 102 101 99 103 24 10 23 28 1 7 37 10
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (B) 		1-19500-636-1 01 1 1103-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (B) 		1-19500-636-1 01 1 1012-1101
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-19500-628-1 01 1 0809-1011
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-19500-628-1 01 1 1012-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-19500-627-1 01 1 0809-1011
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-19500-627-1 01 1 1012-
7 BOLT; OIL PUMP,P/S
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28751-030-0 01 1 1012-
7 BOLT; OIL PUMP,P/S
(A) M10X55 FLANGE 		8-97365-449-0 02 1 0809-1011
7 BOLT; OIL PUMP,P/S
6HK1-TCN ENG(82L) (A) M10X55 FLANGE 		8-97365-449-0 02 1 1012-
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) (B) L=500 		1-09364-957-2 01 1 1012-
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) (C) 		1-21115-205-0 01 1 1012-
10 HOSE; FLEX,P/S OIL PUMP,INL
(A) L=820 		1-09365-224-0 01 1 0809-1011
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1-TCN ENG(82L) (A) L=820 		1-09365-224-0 01 1 1012-
23 GEAR; OIL PUMP
4HK1-TCS ENG(RJS) (B) Z=30 		8-94390-842-1 01 1 1103-
23 GEAR; OIL PUMP
4HK1-TCS ENG(RJS) (B) Z=30 		8-94390-842-1 01 1 1012-1101
23 GEAR; OIL PUMP
(A) Z=30 		8-94396-957-3 01 1 0809-1011
23 GEAR; OIL PUMP
6HK1-TCN ENG(82L) (A) Z=30 		8-94396-957-3 01 1 1012-
24 NUT; GEAR,P/S PUMP
4HK1-TCS ENG(RJS) (B) M12 FLANGE 		0-91180-112-0 01 1 1103-
24 NUT; GEAR,P/S PUMP
4HK1-TCS ENG(RJS) (B) M12 FLANGE 		0-91180-112-0 01 1 1012-1101
24 NUT; GEAR,P/S PUMP
(A) M14 FLANGE 		0-91180-114-0 01 1 0809-1011
24 NUT; GEAR,P/S PUMP
6HK1-TCN ENG(82L) (A) M14 FLANGE 		0-91180-114-0 01 1 1012-
28 BOLT; BRKT,FLEX HOSE,P/S
4HK1-TCS ENG(RJS) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1012-
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0809-1011
28 BOLT; BRKT,FLEX HOSE,P/S
6HK1-TCN ENG(82L) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1012-
37 BOLT; P/S PUMP
M8X25 FLANGE 		0-28650-825-0 01 1 0809-1011
37 BOLT; P/S PUMP
6HK1-TCN ENG(82L) M8X25 FLANGE 		0-28650-825-0 01 1 1012-
99 NUT; BRKT,FLEX HOSE,P/S
M8 FLANGE 		0-91180-108-0 02 1 0809-1011
99 NUT; BRKT,FLEX HOSE,P/S
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 02 1 1012-
101 BRACKET; UNION
4HK1-TCS ENG(RJS) (B) 		8-98076-297-0 01 1 1012-
101 BRACKET; UNION
(A) 		8-98050-832-0 01 1 0809-1011
101 BRACKET; UNION
6HK1-TCN ENG(82L) (A) 		8-98050-832-0 01 1 1012-
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 0809-
103 NUT; UNION
M22 		0-91111-522-0 01 1 0809-

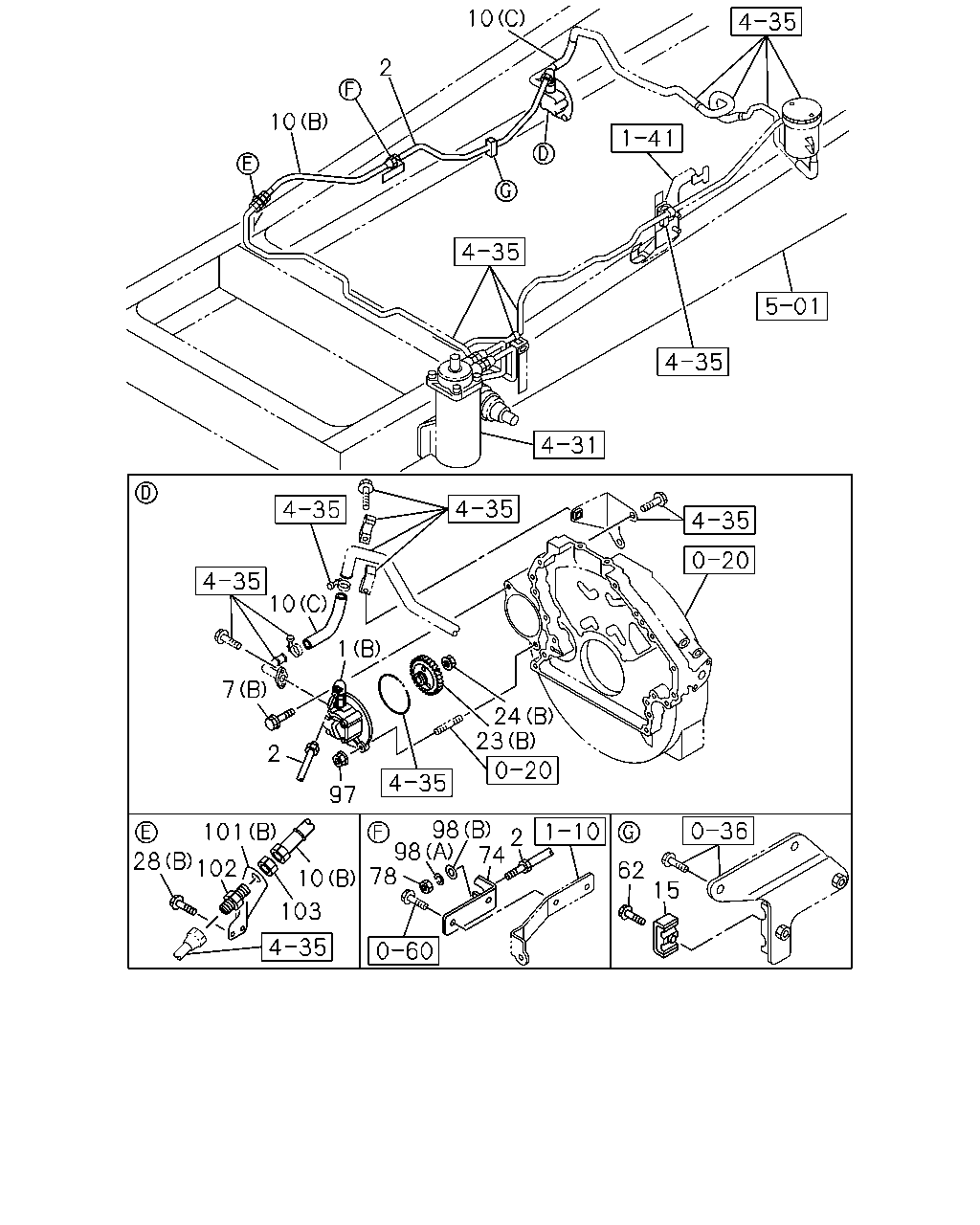

çizim 181625
10 2 10 10 1 7 24 23 2 97 98 2 98 74 78 101 28 102 62 10 15 103
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (B) 		1-19500-636-1 01 1 1103-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (B) 		1-19500-636-1 01 1 1012-1101
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-19500-628-1 01 1 0809-1011
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-19500-628-1 01 1 1012-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-19500-627-1 01 1 0809-1011
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-19500-627-1 01 1 1012-
2 PIPE ASM; OIL,SUCTION
4HK1-TCS ENG(RJS) 		8-98086-746-0 01 1 1102-
7 BOLT; OIL PUMP,P/S
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28751-030-0 01 1 1012-
7 BOLT; OIL PUMP,P/S
(A) M10X55 FLANGE 		8-97365-449-0 02 1 0809-1011
7 BOLT; OIL PUMP,P/S
6HK1-TCN ENG(82L) (A) M10X55 FLANGE 		8-97365-449-0 02 1 1012-
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) (B) L=500 		1-09364-957-2 01 1 1012-
10 HOSE; FLEX,P/S OIL PUMP,INL
4HK1-TCS ENG(RJS) (C) 		1-21115-205-0 01 1 1012-
10 HOSE; FLEX,P/S OIL PUMP,INL
(A) L=820 		1-09365-224-0 01 1 0809-1011
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1-TCN ENG(82L) (A) L=820 		1-09365-224-0 01 1 1012-
15 CLIP; OIL PIPE SUCTION
4HK1-TCS ENG(RJS) ID=9 & 9 L=25 		1-09701-212-2 01 1 1102-
15 CLIP; OIL PIPE SUCTION
4HK1-TCS ENG(RJS) ID=9 & 9 L=25 		1-09701-212-2 01 1 1012-
23 GEAR; OIL PUMP
4HK1-TCS ENG(RJS) (B) Z=30 		8-94390-842-1 01 1 1103-
23 GEAR; OIL PUMP
4HK1-TCS ENG(RJS) (B) Z=30 		8-94390-842-1 01 1 1012-1101
23 GEAR; OIL PUMP
(A) Z=30 		8-94396-957-3 01 1 0809-1011
23 GEAR; OIL PUMP
6HK1-TCN ENG(82L) (A) Z=30 		8-94396-957-3 01 1 1012-
24 NUT; GEAR,P/S PUMP
4HK1-TCS ENG(RJS) (B) M12 FLANGE 		0-91180-112-0 01 1 1103-
24 NUT; GEAR,P/S PUMP
4HK1-TCS ENG(RJS) (B) M12 FLANGE 		0-91180-112-0 01 1 1012-1101
24 NUT; GEAR,P/S PUMP
(A) M14 FLANGE 		0-91180-114-0 01 1 0809-1011
24 NUT; GEAR,P/S PUMP
6HK1-TCN ENG(82L) (A) M14 FLANGE 		0-91180-114-0 01 1 1012-
28 BOLT; BRKT,FLEX HOSE,P/S
4HK1-TCS ENG(RJS) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1012-
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0809-1011
28 BOLT; BRKT,FLEX HOSE,P/S
6HK1-TCN ENG(82L) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1012-
62 BOLT; CLIP
4HK1-TCS ENG(RJS) M6X30 FLANGE 		0-28650-630-0 01 1 1102-
62 BOLT; CLIP
4HK1-TCS ENG(RJS) M6X30 FLANGE 		0-28650-630-0 01 1 1012-
74 BRACKET; PIPE
4HK1-TCS ENG(RJS) 		8-98060-044-1 01 1 1102-
78 NUT; BRKT
4HK1-TCS ENG(RJS) M20 		0-91111-520-0 01 1 1102-
97 NUT; OIL PUMP,P/S
4HK1-TCS ENG(RJS) M10 FLANGE 		0-91180-110-0 01 1 1012-
98 WASHER; LK,BRKT
4HK1-TCS ENG(RJS) (A) ID=20.2 		0-91510-620-0 01 1 1102-
98 WASHER; LK,BRKT
4HK1-TCS ENG(RJS) (B) ID=21 		0-91610-520-0 01 1 1102-
101 BRACKET; UNION
4HK1-TCS ENG(RJS) (B) 		8-98076-297-0 01 1 1012-
101 BRACKET; UNION
(A) 		8-98050-832-0 01 1 0809-1011
101 BRACKET; UNION
6HK1-TCN ENG(82L) (A) 		8-98050-832-0 01 1 1012-
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 0809-
103 NUT; UNION
M22 		0-91111-522-0 01 1 0809-
