Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#39212) — 197 parça

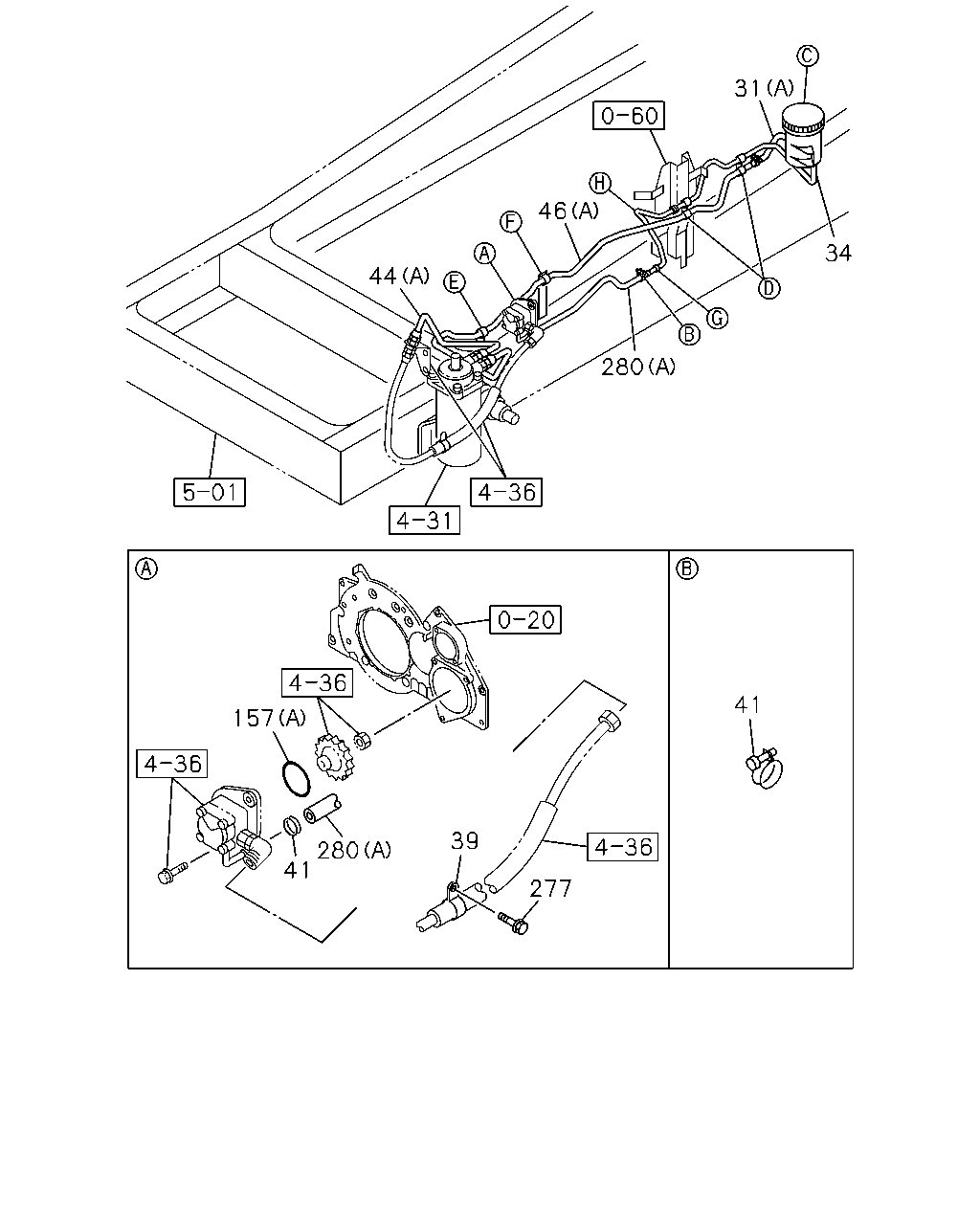

31 46 34 44 280 41 157 39 280 41 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	0-09814-080-0	01	1	1012-
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	0809-1011
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (A)	8-98093-500-0	01	1	1012-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0809-
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	0809-1011
39	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) ID=40	8-94226-553-0	01	1	1012-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0809-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) (B)	8-98173-341-0	01	1	1012-1206
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) (B)	8-98215-419-0	01	1	1207-
44	PIPE; OIL,P/S UNIT TO NIPPLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98089-889-1	01	1	0809-1011
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98089-889-1	01	1	1012-
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98112-952-0	01	1	0809-1011
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98112-952-0	01	1	1012-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=1999	8-98173-340-0	01	1	1012-
46	PIPE; OIL,P/S UNIT TO OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1885	8-98098-577-0	01	1	0809-1011
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1885	8-98098-577-0	01	1	1012-
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1878	8-98104-595-0	01	1	0809-1011
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1878	8-98104-595-0	01	1	1012-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	1012-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-467-0	01	1	0809-1011
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1012-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0809-1011
277	BOLT; HOSE CLIP 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	01	1	1012-
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98165-266-1	01	1	1012-
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	0809-1011
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1012-

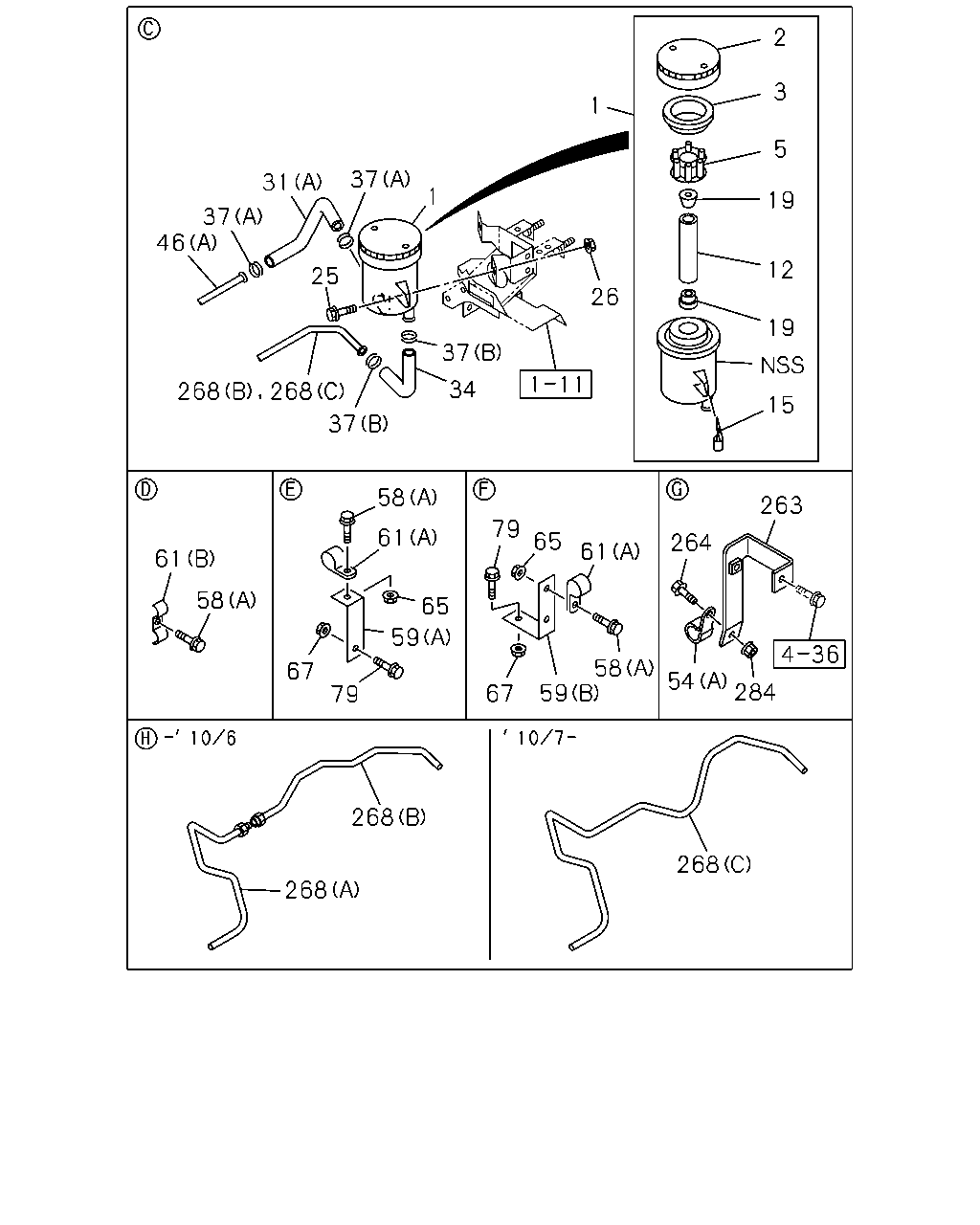

2 3 1 5 37 31 1 19 37 46 12 25 26 19 37 34 15 37 58 263 79 61 65 264 61 61 58 65 59 58 59 67 54 284 67 79 268 268 268 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0809-1006
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0809-1006
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0809-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0809-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0809-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0809-
19	SEAT; OIL TANK	1-21249-004-0	02	1	0809-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0809-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0809-
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	0-09814-080-0	01	1	1012-
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	0809-1011
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (A)	8-98093-500-0	01	1	1012-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0809-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0809-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0809-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=1999	8-98173-340-0	01	1	1012-
46	PIPE; OIL,P/S UNIT TO OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1885	8-98098-577-0	01	1	0809-1011
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1885	8-98098-577-0	01	1	1012-
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1878	8-98104-595-0	01	1	0809-1011
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1878	8-98104-595-0	01	1	1012-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1012-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1012-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1012-
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0809-1011
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1012-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	01	1	1012-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X25 FLANGE	0-28650-825-0	01	1	1012-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X45 FLANGE	0-28050-845-0	02	1	1012-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0809-1011
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-1011
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (C)	8-98064-809-1	01	1	1012-
59	BRACKET; CLIP,OIL PIPE (B)	1-21464-481-0	01	1	0809-1011
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (B)	1-21464-481-0	01	1	1012-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0809-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=16 L=20	0-95235-536-0	03	1	1012-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=13 H=18 L=20	1-09700-813-0	01	1	1012-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	02	1	0809-1011
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 L=20	0-95235-536-0	02	1	1012-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0809-1011
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	05	1	1012-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0809-1011
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1012-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0809-0906
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0907-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0809-
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	0809-1011
263	BRACKET; P/S PIPE 6HK1-TCN ENG(82L)	8-98079-444-0	01	1	1012-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0809-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (D)	8-98165-444-0	01	1	1012-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-961-0	01	1	0809-1006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98154-041-0	01	1	1007-1011
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (C)	8-98154-041-0	01	1	1012-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-962-0	01	1	0809-1006
284	NUT; PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1012-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0809-1011
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1012-

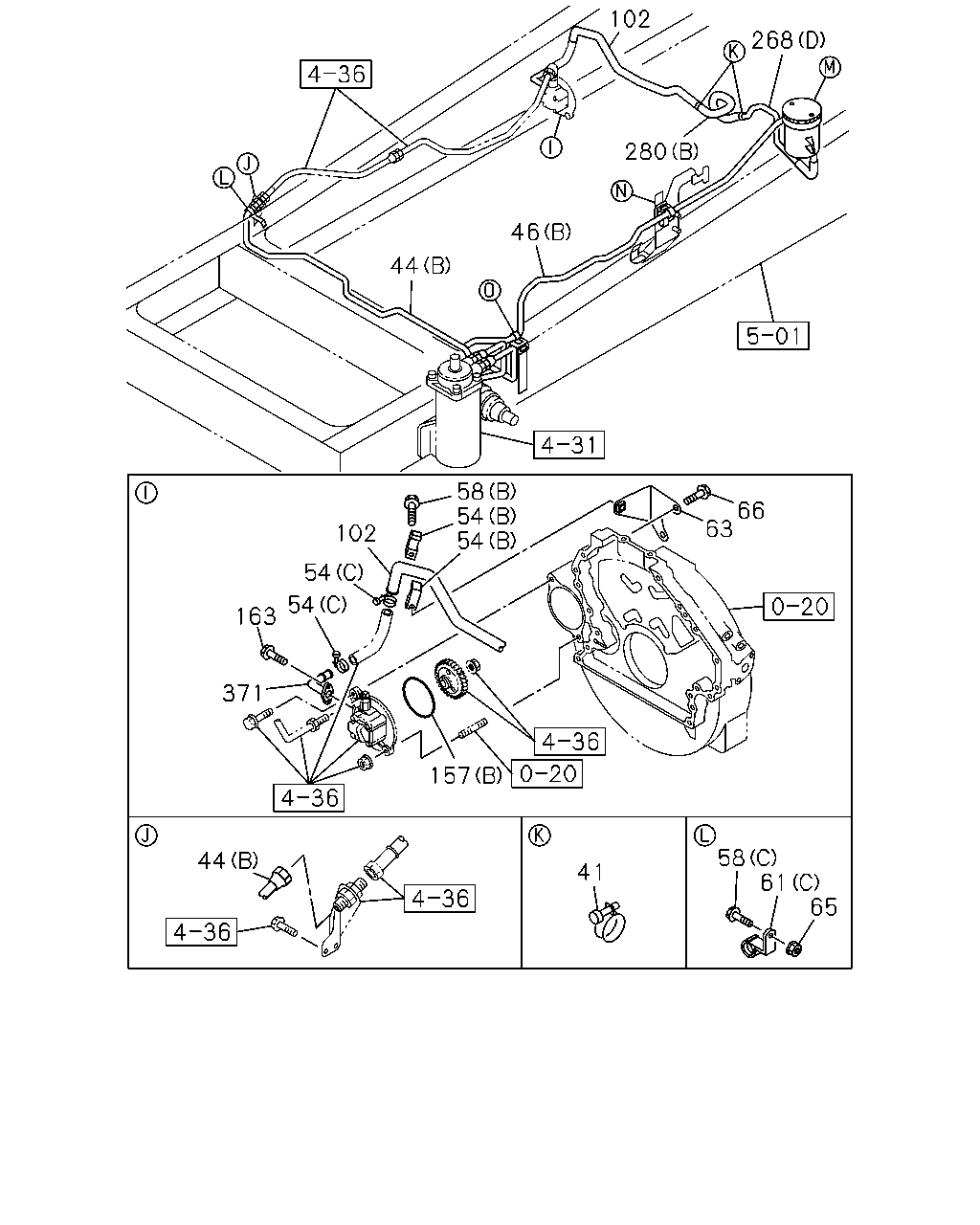

102 268 280 46 44 58 54 54 66 63 102 54 54 163 371 157 58 61 65 44 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0809-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) (B)	8-98173-341-0	01	1	1012-1206
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) (B)	8-98215-419-0	01	1	1207-
44	PIPE; OIL,P/S UNIT TO NIPPLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98089-889-1	01	1	0809-1011
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98089-889-1	01	1	1012-
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98112-952-0	01	1	0809-1011
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98112-952-0	01	1	1012-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=1999	8-98173-340-0	01	1	1012-
46	PIPE; OIL,P/S UNIT TO OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1885	8-98098-577-0	01	1	0809-1011
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1885	8-98098-577-0	01	1	1012-
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1878	8-98104-595-0	01	1	0809-1011
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1878	8-98104-595-0	01	1	1012-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1012-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1012-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1012-
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0809-1011
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1012-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	01	1	1012-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X25 FLANGE	0-28650-825-0	01	1	1012-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X45 FLANGE	0-28050-845-0	02	1	1012-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0809-1011
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-1011
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=16 L=20	0-95235-536-0	03	1	1012-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=13 H=18 L=20	1-09700-813-0	01	1	1012-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	02	1	0809-1011
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 L=20	0-95235-536-0	02	1	1012-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0809-1011
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS)	8-97375-107-0	01	1	1012-
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	05	1	1012-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0809-1011
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1012-
66	BOLT; BRKT,OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	02	1	1012-
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS)	8-98080-186-2	01	1	1012-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	1012-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=96.4	1-09623-467-0	01	1	0809-1011
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1012-
163	BOLT; OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	02	1	1012-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (D)	8-98165-444-0	01	1	1012-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-961-0	01	1	0809-1006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98154-041-0	01	1	1007-1011
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (C)	8-98154-041-0	01	1	1012-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-962-0	01	1	0809-1006
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98165-266-1	01	1	1012-
280	HOSE; P/S OIL PUMP,INL (A)	8-98094-167-0	01	1	0809-1011
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1012-
371	PIPE; OIL,INLET 4HK1-TCS ENG(RJS)	8-98072-089-1	01	1	1012-

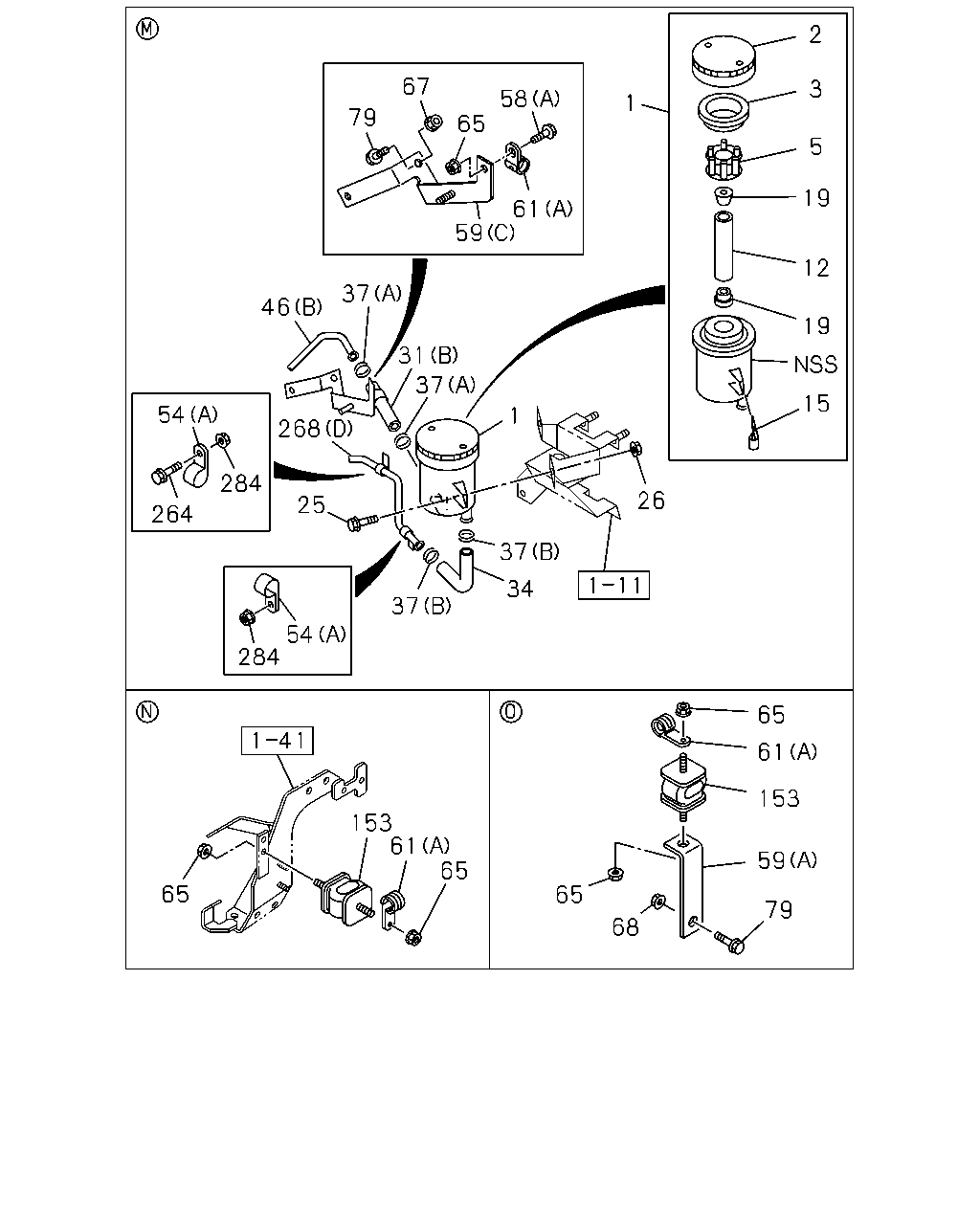

2 67 3 58 1 79 65 5 19 61 59 12 37 46 19 31 37 15 54 1 268 284 26 25 264 37 34 37 54 284 65 61 153 153 61 65 59 65 65 79 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0809-1006
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0809-1006
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0809-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0809-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0809-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0809-
19	SEAT; OIL TANK	1-21249-004-0	02	1	0809-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0809-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0809-
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	0-09814-080-0	01	1	1012-
31	HOSE; P/S OIL TANK,INL (A)	8-98093-500-0	01	1	0809-1011
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (A)	8-98093-500-0	01	1	1012-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0809-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0809-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0809-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=1999	8-98173-340-0	01	1	1012-
46	PIPE; OIL,P/S UNIT TO OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1885	8-98098-577-0	01	1	0809-1011
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1885	8-98098-577-0	01	1	1012-
46	PIPE; OIL,P/S UNIT TO OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1878	8-98104-595-0	01	1	0809-1011
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1878	8-98104-595-0	01	1	1012-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1012-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1012-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1012-
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0809-1011
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1012-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	01	1	1012-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X25 FLANGE	0-28650-825-0	01	1	1012-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X45 FLANGE	0-28050-845-0	02	1	1012-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	0809-1011
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-1011
58	BOLT; CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (C)	8-98064-809-1	01	1	1012-
59	BRACKET; CLIP,OIL PIPE (B)	1-21464-481-0	01	1	0809-1011
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (B)	1-21464-481-0	01	1	1012-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	0809-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=16 L=20	0-95235-536-0	03	1	1012-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=13 H=18 L=20	1-09700-813-0	01	1	1012-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	02	1	0809-1011
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 L=20	0-95235-536-0	02	1	1012-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	0809-1011
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1012-
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	05	1	1012-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0809-1011
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1012-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0809-0906
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0907-
68	NUT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1012-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0809-
153	RUBBER; CUSHION,POWER STRG PIPE 4HK1-TCS ENG(RJS)	8-94158-156-1	02	1	1012-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0809-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (D)	8-98165-444-0	01	1	1012-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98082-961-0	01	1	0809-1006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (C)	8-98154-041-0	01	1	1007-1011
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (C)	8-98154-041-0	01	1	1012-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98082-962-0	01	1	0809-1006
284	NUT; PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1012-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	0809-1011
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
