Sayfa 4-11 - Isuzu EPC

4-11 — FRONT HUB AND DRUM OR ROTOR (#39206) — 194 parça

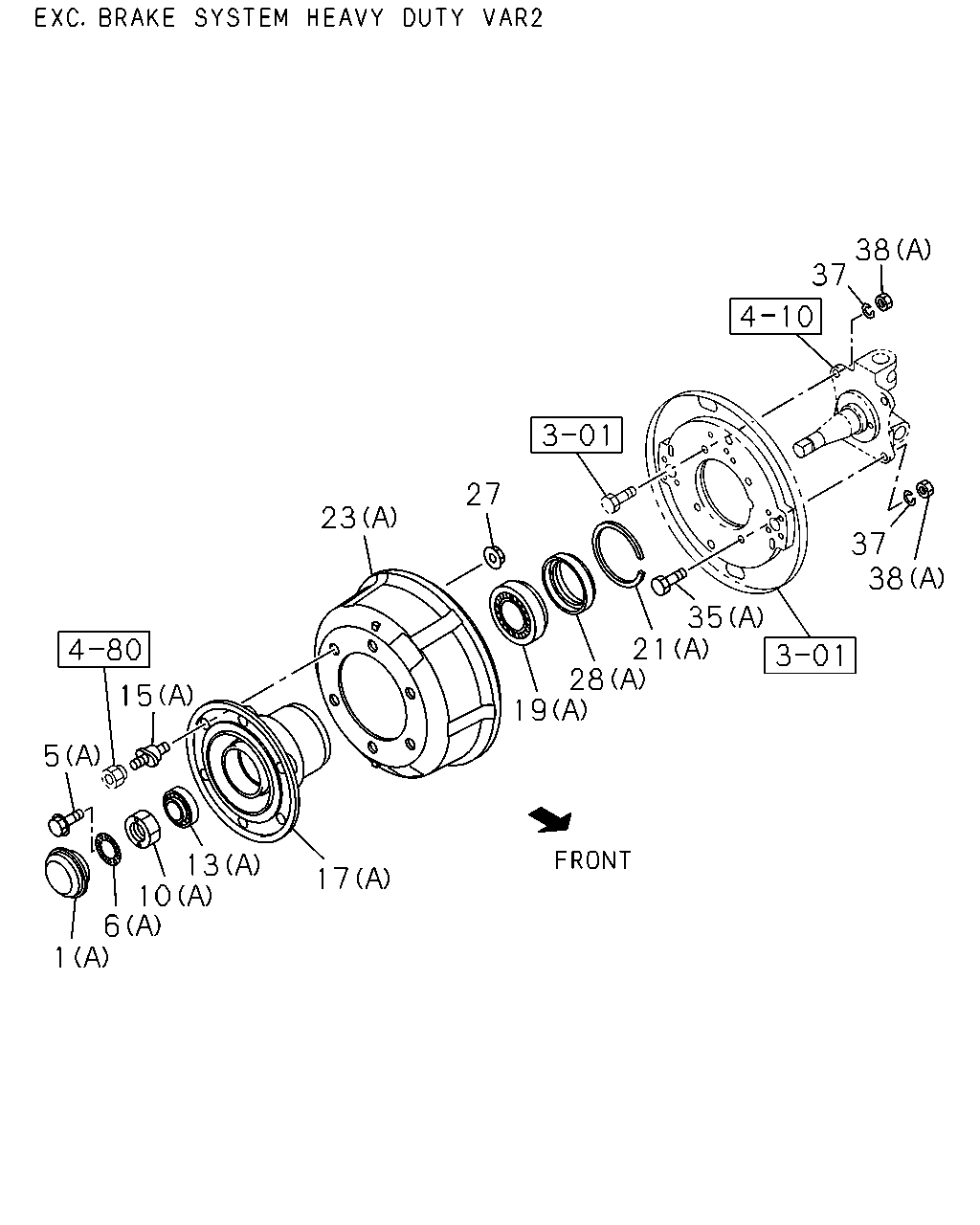

38 22 35 35 27 23 21 28 19 15 5 13 10 6 1 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAP; HUB,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-42313-030-0	02	1	0809-1509
1	CAP; HUB,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-42313-030-0	02	1	1510-1511
1	CAP; HUB,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98331-640-0	02	1	1512-
1	CAP; HUB,FRT AXLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-42313-032-0	02	1	0809-1509
1	CAP; HUB,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=156	9-42313-123-2	02	1	0809-
5	BOLT; LK WASHER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M6X16 HEX SOCKET	8-98084-271-0	04	1	0809-1201
5	BOLT; LK WASHER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M6X16 HEX SOCKET	8-98200-943-0	04	1	1202-
5	BOLT; LK WASHER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M6X16 FLANGE	0-28650-616-0	04	1	0809-
6	WASHER; LK,FRT HUB HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=48	8-98084-561-0	02	1	0809-
6	WASHER; LK,FRT HUB EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=39	1-09841-003-0	02	1	0809-
10	NUT; FRT HUB BRG HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M48	1-09840-012-5	02	1	0809-
10	NUT; FRT HUB BRG EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M39	1-09840-019-1	02	1	0809-
13	BEARING; HUB OUTER,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) NSK	1-09812-064-0	02	1	0809-1509
13	BEARING; HUB OUTER,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09812-064-0	02	1	1510-
13	BEARING; HUB OUTER,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) JTEKT	1-09812-065-0	02	1	0809-1509
13	BEARING; HUB OUTER,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> JTEKT	1-09812-065-0	02	1	1510-
13	BEARING; HUB OUTER,FRT AXLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) JTEKT	1-09812-207-0	02	1	0809-1509
13	BEARING; HUB OUTER,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) JTEKT	1-09812-234-0	02	1	0809-
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M24X37.5,M22X55.5 RH THREAD	1-42331-132-1	08	1	0809-1509
15	PIN; WHEEL,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M24X37.5,M22X55.5 RH THREAD	1-42331-132-1	08	1	1510-
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M24X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-132-1	08	1	0809-1509
15	PIN; WHEEL,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M24X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-132-1	08	1	1510-
15	PIN; WHEEL,FRT AXLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M24X37.5,M22X49.5 RH THREAD	1-42331-148-1	06	1	0809-1509
15	PIN; WHEEL,FRT AXLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M24X37.5 LH THREAD,M22X49.5 RH THREAD	1-42332-148-1	06	1	0809-1509
15	PIN; WHEEL,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M24X37.5,M22X47.5 RH THREAD	1-42331-128-1	08	1	0809-0809
15	PIN; WHEEL,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M24X37.5,M22X49.5 RH THREAD	1-42331-148-1	08	1	0809-
15	PIN; WHEEL,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M24X37.5 LH THREAD,M22X47.5 RH THREAD	1-42332-128-1	08	1	0809-0809
15	PIN; WHEEL,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M24X37.5 LH THREAD,M22X49.5 RH THREAD	1-42332-148-1	08	1	0809-
17	HUB; FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-42312-036-2	02	1	0809-1509
17	HUB; FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-42312-036-2	02	1	1510-
17	HUB; FRT AXLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98039-295-1	02	1	0809-1509
17	HUB; FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-42312-162-0	02	1	0809-
19	BEARING; HUB INNER,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) NSK	9-00093-031-1	02	1	0809-1002
19	BEARING; HUB INNER,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) JTEKT	9-00093-205-1	02	1	0809-1002
19	BEARING; HUB INNER,FRT AXLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) JTEKT	1-09812-206-0	02	1	0809-1002
19	BEARING; HUB INNER,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) JTEKT	1-09812-206-0	02	1	1003-
19	BEARING; HUB INNER,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09812-217-0	02	1	0809-
21	RING; SNAP,HUB HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=132	9-09950-164-0	02	1	0809-
21	RING; SNAP,HUB EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) OD=117	1-09587-001-0	02	1	0809-
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-85576-014-1	02	1	0809-1509
22	COVER SET; FRT BRK DRUM EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-85576-014-1	02	1	1510-
23	DRUM; BRK,FRT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-42315-362-1	02	1	0809-1509
23	DRUM; BRK,FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-42315-362-1	02	1	1510-
23	DRUM; BRK,FRT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-42315-395-1	02	1	0809-1509
23	DRUM; BRK,FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-42315-373-0	02	1	0809-0809
23	DRUM; BRK,FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-42315-414-0	02	1	0809-
27	NUT; WHEEL PIN,FRT AXLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M22 FLANGE	1-09440-065-0	12	1	0809-1509
27	NUT; WHEEL PIN,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M22 FLANGE	1-09440-065-0	16	1	0809-1509
27	NUT; WHEEL PIN,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M22 FLANGE	1-09440-065-0	16	1	0809-1509
27	NUT; WHEEL PIN,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M22 FLANGE	1-09440-065-0	16	1	1510-
27	NUT; WHEEL PIN,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M22 FLANGE	1-09440-065-0	16	1	1510-
28	SEAL; OIL,FRT HUB HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=128	1-09625-129-0	02	1	0809-
28	SEAL; OIL,FRT HUB EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09625-568-0	02	1	0809-
30	RING; EXCITER,FRT HUB ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-42319-203-0	02	1	1510-
34	COVER; CHECK HOLE,DRUM COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09333-151-0	04	1	1510-
35	BOLT; DRUM COVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M10X12	1-47159-187-0	12	1	0809-1509
35	BOLT; DRUM COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X12	1-47159-187-0	12	1	1510-
35	BOLT; DRUM COVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M14X50	8-98093-180-0	08	1	0809-1509
35	BOLT; DRUM COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14X50	8-98093-180-0	08	1	1510-
35	BOLT; DRUM COVER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X40	0-20951-440-0	04	1	0809-1509
35	BOLT; DRUM COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14X50	1-09040-066-0	08	1	0809-
38	NUT; BACK PLATE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14 FLANGE	8-98095-882-0	08	1	0809-0905
38	NUT; BACK PLATE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14 FLANGE	8-98149-153-0	08	1	0906-1509
38	NUT; BACK PLATE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14 FLANGE	8-98149-153-0	08	1	1510-
38	NUT; BACK PLATE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14	0-91110-514-0	08	1	0809-1509

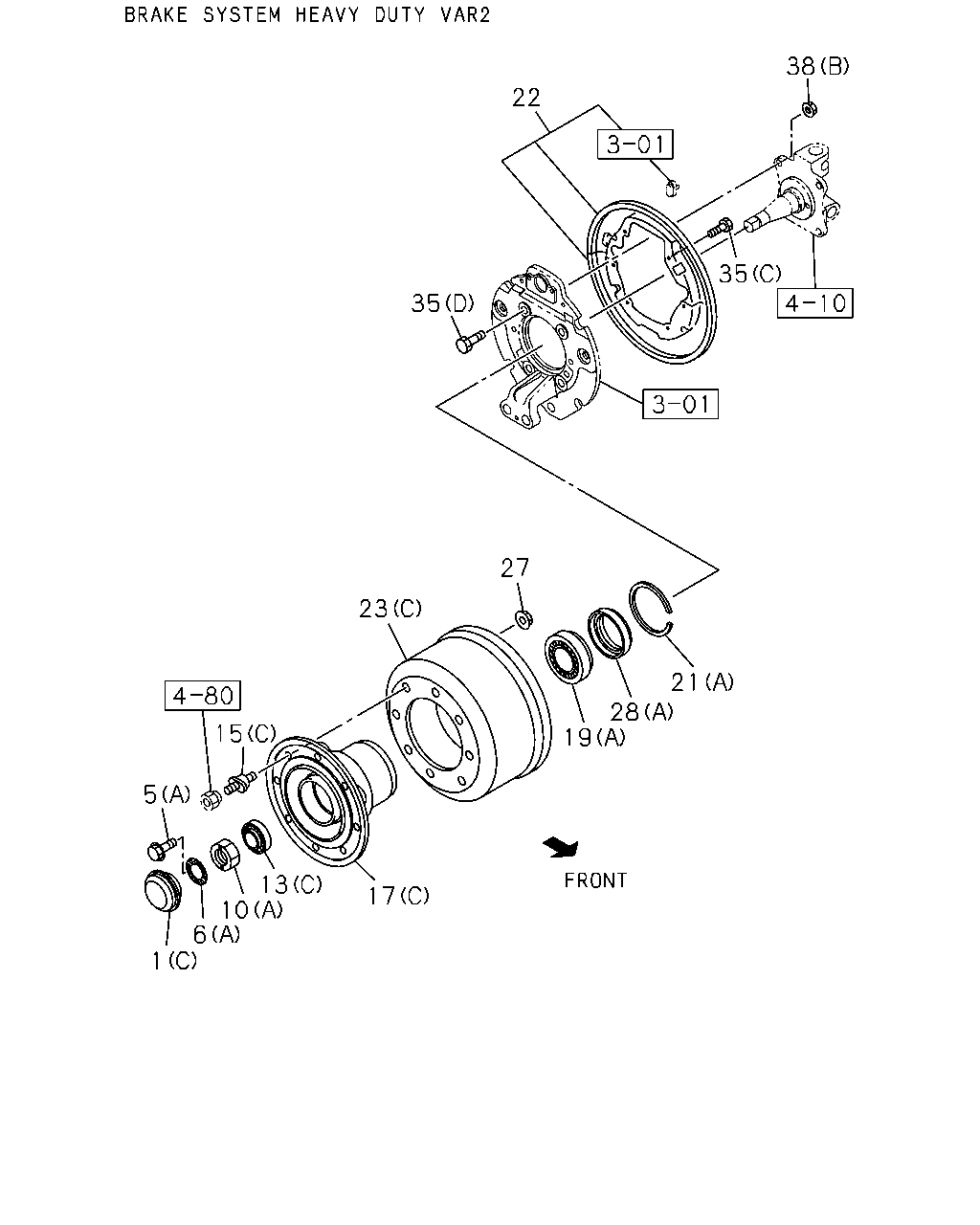

38 37 27 23 37 38 35 21 28 19 15 5 13 10 6 17 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAP; HUB,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-42313-030-0	02	1	0809-1509
1	CAP; HUB,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-42313-030-0	02	1	1510-1511
1	CAP; HUB,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98331-640-0	02	1	1512-
1	CAP; HUB,FRT AXLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-42313-032-0	02	1	0809-1509
1	CAP; HUB,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=156	9-42313-123-2	02	1	0809-
5	BOLT; LK WASHER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M6X16 HEX SOCKET	8-98084-271-0	04	1	0809-1201
5	BOLT; LK WASHER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M6X16 HEX SOCKET	8-98200-943-0	04	1	1202-
5	BOLT; LK WASHER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M6X16 FLANGE	0-28650-616-0	04	1	0809-
6	WASHER; LK,FRT HUB HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=48	8-98084-561-0	02	1	0809-
6	WASHER; LK,FRT HUB EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=39	1-09841-003-0	02	1	0809-
10	NUT; FRT HUB BRG HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M48	1-09840-012-5	02	1	0809-
10	NUT; FRT HUB BRG EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M39	1-09840-019-1	02	1	0809-
13	BEARING; HUB OUTER,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) NSK	1-09812-064-0	02	1	0809-1509
13	BEARING; HUB OUTER,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09812-064-0	02	1	1510-
13	BEARING; HUB OUTER,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) JTEKT	1-09812-065-0	02	1	0809-1509
13	BEARING; HUB OUTER,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> JTEKT	1-09812-065-0	02	1	1510-
13	BEARING; HUB OUTER,FRT AXLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) JTEKT	1-09812-207-0	02	1	0809-1509
13	BEARING; HUB OUTER,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) JTEKT	1-09812-234-0	02	1	0809-
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M24X37.5,M22X55.5 RH THREAD	1-42331-132-1	08	1	0809-1509
15	PIN; WHEEL,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M24X37.5,M22X55.5 RH THREAD	1-42331-132-1	08	1	1510-
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M24X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-132-1	08	1	0809-1509
15	PIN; WHEEL,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M24X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-132-1	08	1	1510-
15	PIN; WHEEL,FRT AXLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M24X37.5,M22X49.5 RH THREAD	1-42331-148-1	06	1	0809-1509
15	PIN; WHEEL,FRT AXLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M24X37.5 LH THREAD,M22X49.5 RH THREAD	1-42332-148-1	06	1	0809-1509
15	PIN; WHEEL,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M24X37.5,M22X47.5 RH THREAD	1-42331-128-1	08	1	0809-0809
15	PIN; WHEEL,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M24X37.5,M22X49.5 RH THREAD	1-42331-148-1	08	1	0809-
15	PIN; WHEEL,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M24X37.5 LH THREAD,M22X47.5 RH THREAD	1-42332-128-1	08	1	0809-0809
15	PIN; WHEEL,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M24X37.5 LH THREAD,M22X49.5 RH THREAD	1-42332-148-1	08	1	0809-
17	HUB; FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-42312-036-2	02	1	0809-1509
17	HUB; FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-42312-036-2	02	1	1510-
17	HUB; FRT AXLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98039-295-1	02	1	0809-1509
17	HUB; FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-42312-162-0	02	1	0809-
19	BEARING; HUB INNER,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) NSK	9-00093-031-1	02	1	0809-1002
19	BEARING; HUB INNER,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) JTEKT	9-00093-205-1	02	1	0809-1002
19	BEARING; HUB INNER,FRT AXLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) JTEKT	1-09812-206-0	02	1	0809-1002
19	BEARING; HUB INNER,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) JTEKT	1-09812-206-0	02	1	1003-
19	BEARING; HUB INNER,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09812-217-0	02	1	0809-
21	RING; SNAP,HUB HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=132	9-09950-164-0	02	1	0809-
21	RING; SNAP,HUB EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) OD=117	1-09587-001-0	02	1	0809-
23	DRUM; BRK,FRT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-42315-362-1	02	1	0809-1509
23	DRUM; BRK,FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-42315-362-1	02	1	1510-
23	DRUM; BRK,FRT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-42315-395-1	02	1	0809-1509
23	DRUM; BRK,FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-42315-373-0	02	1	0809-0809
23	DRUM; BRK,FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-42315-414-0	02	1	0809-
27	NUT; WHEEL PIN,FRT AXLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M22 FLANGE	1-09440-065-0	12	1	0809-1509
27	NUT; WHEEL PIN,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M22 FLANGE	1-09440-065-0	16	1	0809-1509
27	NUT; WHEEL PIN,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M22 FLANGE	1-09440-065-0	16	1	0809-1509
27	NUT; WHEEL PIN,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M22 FLANGE	1-09440-065-0	16	1	1510-
27	NUT; WHEEL PIN,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M22 FLANGE	1-09440-065-0	16	1	1510-
28	SEAL; OIL,FRT HUB HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=128	1-09625-129-0	02	1	0809-
28	SEAL; OIL,FRT HUB EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09625-568-0	02	1	0809-
30	RING; EXCITER,FRT HUB ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-42319-203-0	02	1	1510-
34	COVER; CHECK HOLE,DRUM COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09333-151-0	04	1	1510-
35	BOLT; DRUM COVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M10X12	1-47159-187-0	12	1	0809-1509
35	BOLT; DRUM COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X12	1-47159-187-0	12	1	1510-
35	BOLT; DRUM COVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M14X50	8-98093-180-0	08	1	0809-1509
35	BOLT; DRUM COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14X50	8-98093-180-0	08	1	1510-
35	BOLT; DRUM COVER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X40	0-20951-440-0	04	1	0809-1509
35	BOLT; DRUM COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14X50	1-09040-066-0	08	1	0809-
37	WASHER; LK,BACK PLATE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14.2	0-91510-814-0	08	1	0809-1509
38	NUT; BACK PLATE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14 FLANGE	8-98095-882-0	08	1	0809-0905
38	NUT; BACK PLATE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14 FLANGE	8-98149-153-0	08	1	0906-1509
38	NUT; BACK PLATE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14 FLANGE	8-98149-153-0	08	1	1510-
38	NUT; BACK PLATE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14	0-91110-514-0	08	1	0809-1509

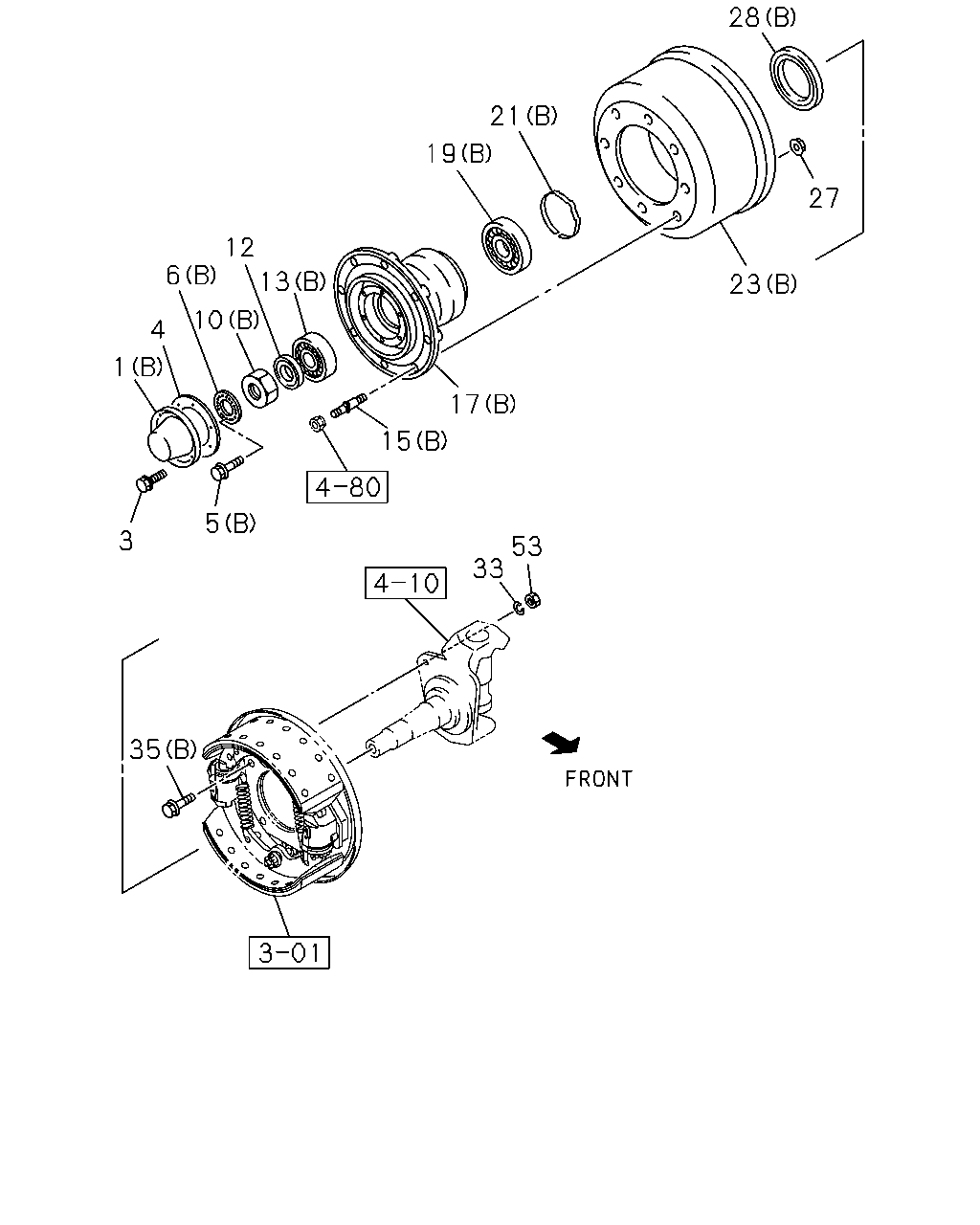

28 21 19 27 12 6 13 23 10 4 1 17 15 5 3 53 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAP; HUB,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-42313-030-0	02	1	0809-1509
1	CAP; HUB,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-42313-030-0	02	1	1510-1511
1	CAP; HUB,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98331-640-0	02	1	1512-
1	CAP; HUB,FRT AXLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-42313-032-0	02	1	0809-1509
1	CAP; HUB,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=156	9-42313-123-2	02	1	0809-
3	BOLT; HUB CAP,FRT WHEEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X12 FLANGE	0-28050-812-0	12	1	0809-
4	GASKET; HUB CAP,FRT WHEEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-42319-185-2	02	1	0809-
5	BOLT; LK WASHER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M6X16 HEX SOCKET	8-98084-271-0	04	1	0809-1201
5	BOLT; LK WASHER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M6X16 HEX SOCKET	8-98200-943-0	04	1	1202-
5	BOLT; LK WASHER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M6X16 FLANGE	0-28650-616-0	04	1	0809-
6	WASHER; LK,FRT HUB HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=48	8-98084-561-0	02	1	0809-
6	WASHER; LK,FRT HUB EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=39	1-09841-003-0	02	1	0809-
10	NUT; FRT HUB BRG HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M48	1-09840-012-5	02	1	0809-
10	NUT; FRT HUB BRG EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M39	1-09840-019-1	02	1	0809-
12	WASHER; LK,FRT HUB BRG HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=48	1-09533-016-0	02	1	0809-0911
12	WASHER; LK,FRT HUB BRG HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=48	8-98156-755-0	02	1	0912-
13	BEARING; HUB OUTER,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) NSK	1-09812-064-0	02	1	0809-1509
13	BEARING; HUB OUTER,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> NSK	1-09812-064-0	02	1	1510-
13	BEARING; HUB OUTER,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) JTEKT	1-09812-065-0	02	1	0809-1509
13	BEARING; HUB OUTER,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> JTEKT	1-09812-065-0	02	1	1510-
13	BEARING; HUB OUTER,FRT AXLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) JTEKT	1-09812-207-0	02	1	0809-1509
13	BEARING; HUB OUTER,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) JTEKT	1-09812-234-0	02	1	0809-
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M24X37.5,M22X55.5 RH THREAD	1-42331-132-1	08	1	0809-1509
15	PIN; WHEEL,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M24X37.5,M22X55.5 RH THREAD	1-42331-132-1	08	1	1510-
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M24X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-132-1	08	1	0809-1509
15	PIN; WHEEL,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M24X37.5 LH THREAD,M22X55.5 RH THREAD	1-42332-132-1	08	1	1510-
15	PIN; WHEEL,FRT AXLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M24X37.5,M22X49.5 RH THREAD	1-42331-148-1	06	1	0809-1509
15	PIN; WHEEL,FRT AXLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M24X37.5 LH THREAD,M22X49.5 RH THREAD	1-42332-148-1	06	1	0809-1509
15	PIN; WHEEL,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M24X37.5,M22X47.5 RH THREAD	1-42331-128-1	08	1	0809-0809
15	PIN; WHEEL,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M24X37.5,M22X49.5 RH THREAD	1-42331-148-1	08	1	0809-
15	PIN; WHEEL,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M24X37.5 LH THREAD,M22X47.5 RH THREAD	1-42332-128-1	08	1	0809-0809
15	PIN; WHEEL,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M24X37.5 LH THREAD,M22X49.5 RH THREAD	1-42332-148-1	08	1	0809-
17	HUB; FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-42312-036-2	02	1	0809-1509
17	HUB; FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-42312-036-2	02	1	1510-
17	HUB; FRT AXLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98039-295-1	02	1	0809-1509
17	HUB; FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-42312-162-0	02	1	0809-
19	BEARING; HUB INNER,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) NSK	9-00093-031-1	02	1	0809-1002
19	BEARING; HUB INNER,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) JTEKT	9-00093-205-1	02	1	0809-1002
19	BEARING; HUB INNER,FRT AXLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) JTEKT	1-09812-206-0	02	1	0809-1002
19	BEARING; HUB INNER,FRT AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) JTEKT	1-09812-206-0	02	1	1003-
19	BEARING; HUB INNER,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09812-217-0	02	1	0809-
21	RING; SNAP,HUB HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=132	9-09950-164-0	02	1	0809-
21	RING; SNAP,HUB EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) OD=117	1-09587-001-0	02	1	0809-
23	DRUM; BRK,FRT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-42315-362-1	02	1	0809-1509
23	DRUM; BRK,FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-42315-362-1	02	1	1510-
23	DRUM; BRK,FRT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-42315-395-1	02	1	0809-1509
23	DRUM; BRK,FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-42315-373-0	02	1	0809-0809
23	DRUM; BRK,FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-42315-414-0	02	1	0809-
27	NUT; WHEEL PIN,FRT AXLE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M22 FLANGE	1-09440-065-0	12	1	0809-1509
27	NUT; WHEEL PIN,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M22 FLANGE	1-09440-065-0	16	1	0809-1509
27	NUT; WHEEL PIN,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M22 FLANGE	1-09440-065-0	16	1	0809-1509
27	NUT; WHEEL PIN,FRT AXLE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M22 FLANGE	1-09440-065-0	16	1	1510-
27	NUT; WHEEL PIN,FRT AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M22 FLANGE	1-09440-065-0	16	1	1510-
28	SEAL; OIL,FRT HUB HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=128	1-09625-129-0	02	1	0809-
28	SEAL; OIL,FRT HUB EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09625-568-0	02	1	0809-
30	RING; EXCITER,FRT HUB ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-42319-203-0	02	1	1510-
33	WASHER; LK,DRUM COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14.2	0-91510-814-0	08	1	0809-
34	COVER; CHECK HOLE,DRUM COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09333-151-0	04	1	1510-
35	BOLT; DRUM COVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M10X12	1-47159-187-0	12	1	0809-1509
35	BOLT; DRUM COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X12	1-47159-187-0	12	1	1510-
35	BOLT; DRUM COVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M14X50	8-98093-180-0	08	1	0809-1509
35	BOLT; DRUM COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14X50	8-98093-180-0	08	1	1510-
35	BOLT; DRUM COVER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M14X40	0-20951-440-0	04	1	0809-1509
35	BOLT; DRUM COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M14X50	1-09040-066-0	08	1	0809-
53	NUT; DRUM COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M14	0-91110-514-0	08	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
