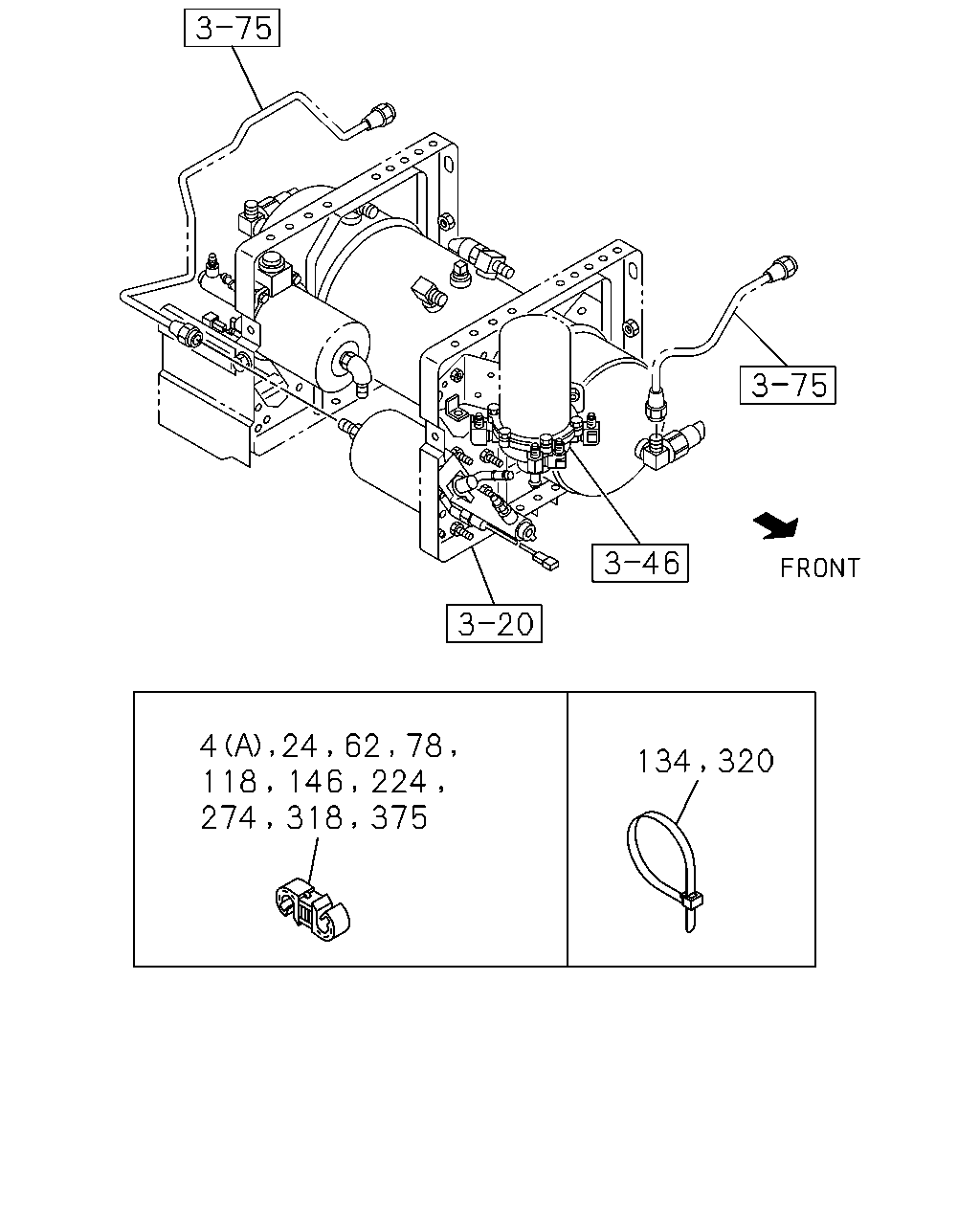

3-78 — FIXING PARTS; AIR PIPING (#39203) — 96 parça

4 24 62 78 118 146 224 274 318 375 134 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=6.35 & 6.35	1-09709-273-1	02	1	0809-
4	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=10 & 12	1-09709-278-1	02	1	0809-
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0809-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-
4	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-
24	CLIP; PIPE TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 10.0	1-09709-274-1	01	1	0812-1011
24	CLIP; PIPE 6HK1-TCN ENG(82L) TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 10.0	1-09709-274-1	01	1	1012-1107
24	CLIP; PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 10.0	1-09709-274-1	01	1	1108-
62	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0809-0809
62	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=10 & 10	1-09709-277-1	01	1	0810-0901
78	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0809-0901
118	CLIP; AIR PIPE AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=4.76 & 6.35	1-09709-304-0	01	1	0812-1011
118	CLIP; AIR PIPE 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=4.76 & 6.35	1-09709-304-0	01	1	1012-1107
118	CLIP; AIR PIPE 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=4.76 & 6.35	1-09709-304-0	01	1	1108-
118	CLIP; AIR PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 12	1-09709-275-1	01	1	0812-1011
118	CLIP; AIR PIPE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 12	1-09709-275-1	01	1	1012-1107
118	CLIP; AIR PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 12	1-09709-275-1	01	1	1108-
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	0809-
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	07	1	0809-
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	03	1	0809-0901
224	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-277-1	01	1	0809-0809
224	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-277-1	01	1	0809-0901
224	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=10 & 10	1-09709-277-1	01	1	0809-0901
224	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-277-1	01	1	0902-
224	CLIP; AIR PIPE H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=10 & 10	1-09709-277-1	01	1	0902-
224	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=6.35 & 12	1-09709-275-1	01	1	0809-0809
224	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=6.35 & 10.0	1-09709-274-1	01	1	0809-
274	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	1510-
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	03	1	1510-
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	05	1	1510-
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=4.76 & 10.0	1-09709-305-0	01	1	1510-
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 10.0	1-09709-274-1	01	1	0809-0809
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 10.0	1-09709-274-1	02	1	0809-1509
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	02	1	1510-
318	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 10.0	1-09709-274-1	01	1	0809-1011
318	CLIP; AIR PIPE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 10.0	1-09709-274-1	01	1	1012-1107
318	CLIP; AIR PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 10.0	1-09709-274-1	01	1	1108-
318	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.35 & 15	1-09709-276-1	01	1	0809-0811
318	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	0812-1011
318	CLIP; AIR PIPE 6HK1-TCN ENG(82L) ID=6.35 & 15	1-09709-276-1	01	1	1012-1107
318	CLIP; AIR PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> ID=6.35 & 15	1-09709-276-1	01	1	1108-
320	CLIP; BAND,FLEX FIX EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=250	5-09707-030-1	01	1	0809-0811
320	CLIP; BAND,FLEX FIX L=250	5-09707-030-1	01	1	0812-1011
320	CLIP; BAND,FLEX FIX 6HK1-TCN ENG(82L) L=250	5-09707-030-1	01	1	1012-1107
320	CLIP; BAND,FLEX FIX 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=250	5-09707-030-1	01	1	1108-
375	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=10 & 10	1-09709-277-1	02	1	0809-0901

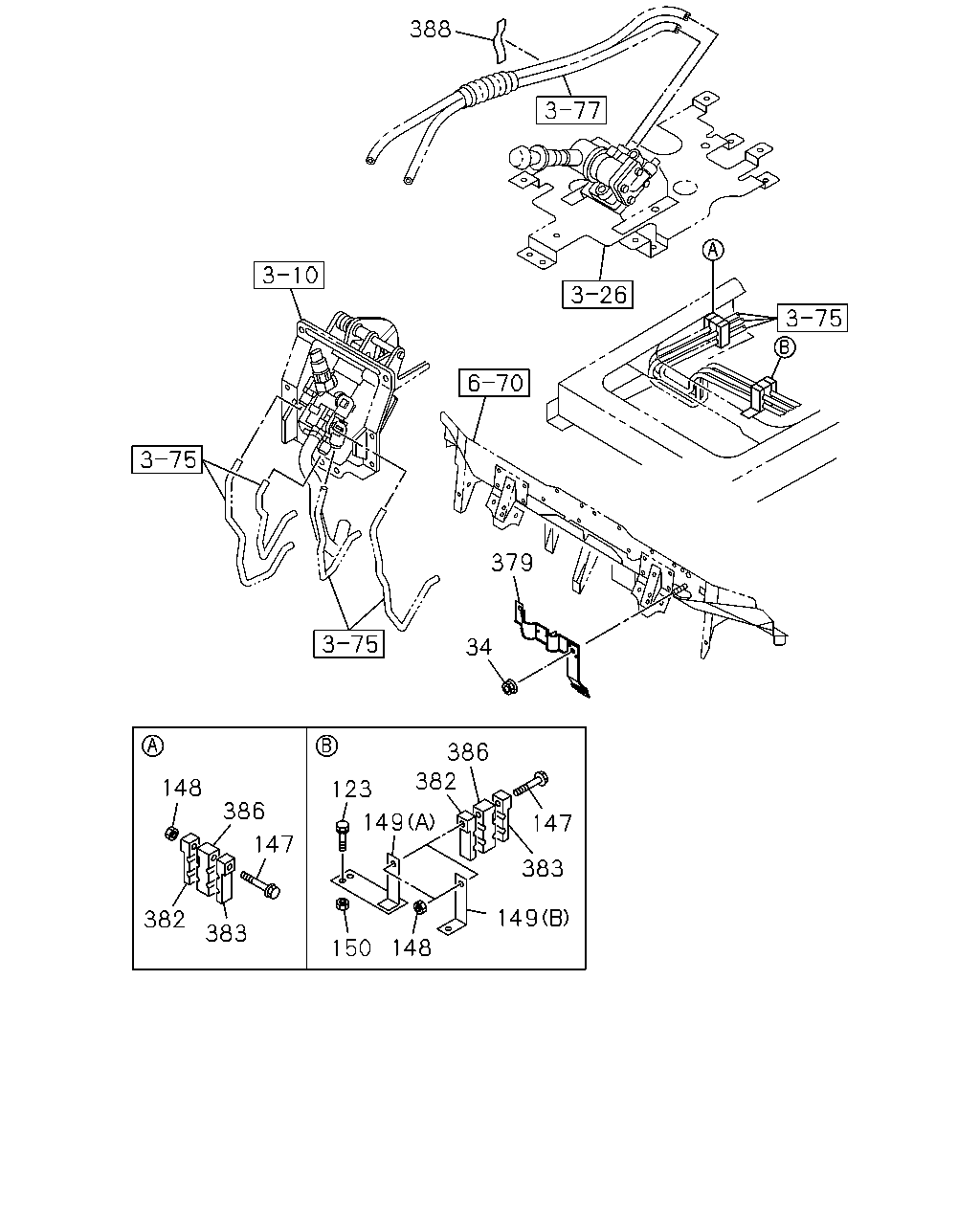

388 379 34 386 382 148 123 386 149 147 147 383 149 382 383 148 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	0809-
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	03	1	0809-0901
123	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0902-
147	BOLT; PIPE CLIP 4HK1-TCS ENG(RJS) M8X70 FLANGE	0-28050-870-0	04	1	1012-
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	05	1	0809-1011
147	BOLT; PIPE CLIP 6HK1-TCN ENG(82L) M8X70 FLANGE	0-28050-870-0	05	1	1012-
148	NUT; PIPE CLIP 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	04	1	1012-
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	0809-1011
148	NUT; PIPE CLIP 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	05	1	1012-
149	BRACKET; PIPE CLIP (A)	8-98090-114-0	01	1	0809-
149	BRACKET; PIPE CLIP 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=85	8-98094-937-0	01	1	0809-1008
149	BRACKET; PIPE CLIP HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=85	8-98094-937-0	01	1	1009-
149	BRACKET; PIPE CLIP EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98116-193-0	01	1	0809-
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	03	1	0809-
379	BRACKET; NYLON TUBE	8-98112-515-1	01	1	0809-
382	CLIP; UPR 4HK1-TCS ENG(RJS) ID=10 & 10	1-09709-241-0	04	1	1012-
382	CLIP; UPR ID=10 & 10	1-09709-241-0	05	1	0809-1011
382	CLIP; UPR 6HK1-TCN ENG(82L) ID=10 & 10	1-09709-241-0	05	1	1012-
383	CLIP; LWR 4HK1-TCS ENG(RJS) ID=10 & 10	1-09709-241-0	04	1	1012-
383	CLIP; LWR ID=10 & 10	1-09709-241-0	05	1	0809-1011
383	CLIP; LWR 6HK1-TCN ENG(82L) ID=10 & 10	1-09709-241-0	05	1	1012-
386	CLIP; CENTER 4HK1-TCS ENG(RJS) ID=10	1-09709-242-0	04	1	1012-
386	CLIP; CENTER ID=10	1-09709-242-0	05	1	0809-1011
386	CLIP; CENTER 6HK1-TCN ENG(82L) ID=10	1-09709-242-0	05	1	1012-
388	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	03	1	0809-

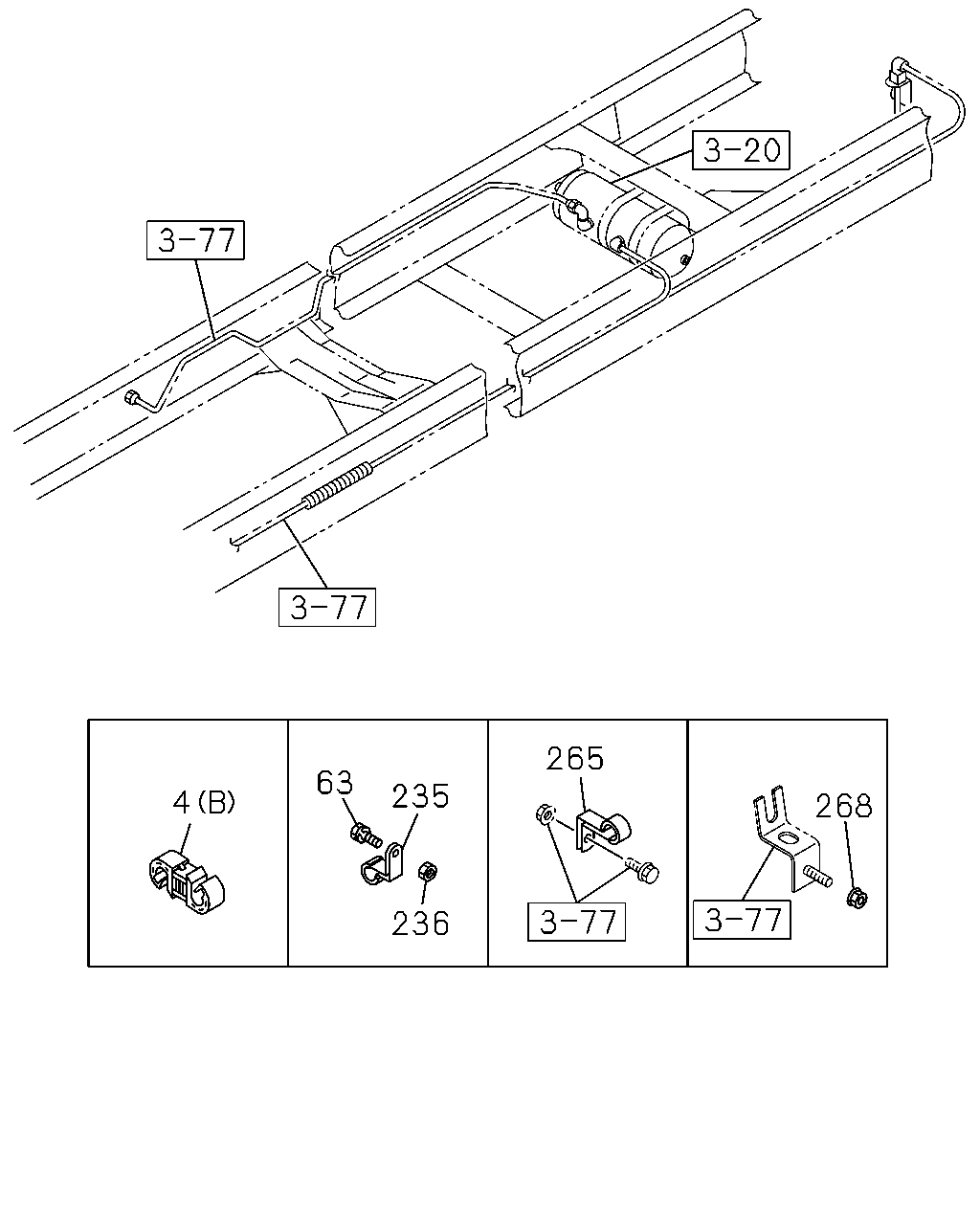

265 63 235 4 268 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=6.35 & 6.35	1-09709-273-1	02	1	0809-
4	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=10 & 12	1-09709-278-1	02	1	0809-
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0809-
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-
4	CLIP; AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-
63	BOLT; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M8X25 FLANGE	0-28650-825-0	02	1	1510-
63	BOLT; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0809-1011
63	BOLT; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	1012-1509
63	BOLT; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) M8X25 FLANGE	0-28650-825-0	03	1	1510-
63	BOLT; CLIP WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	04	1	0809-
63	BOLT; CLIP WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	06	1	0809-
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) ID=11 H=20 L=20	8-98033-780-0	02	1	1510-
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	02	1	0809-1011
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	03	1	1012-1509
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) ID=11 H=20 L=20	8-98033-780-0	03	1	1510-
235	CLIP; AIR PIPE WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	04	1	0809-
235	CLIP; AIR PIPE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	06	1	0809-
236	NUT; CLIP 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M8 FLANGE	0-91180-108-0	01	1	1510-
236	NUT; CLIP 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	03	1	1012-1509
236	NUT; CLIP 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) M8 FLANGE	0-91180-108-0	03	1	1510-
236	NUT; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0809-
236	NUT; CLIP WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	04	1	0809-
236	NUT; CLIP WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	06	1	0809-
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0809-
268	NUT; CLIP BRKT WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	01	1	0809-
