3-77 — BRAKE PIPING; AIR,REAR (#39202) — 95 parça
çizim 181344
318 97 144 98 37 223 192
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0809-
37 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0809-
97 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 STRAIGHT L=42 		0-92123-010-0 01 1 0809-
98 NUT; PIPE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		0-91111-516-0 01 1 0809-
144 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) L=990 SERVICED BY L=1000 		1-47428-874-0 01 1 1510-
144 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=967 SERVICED BY L=1000 		1-47428-874-0 01 1 1012-1509
144 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) L=967 SERVICED BY L=1000 		1-47428-874-0 01 1 1510-
144 PIPE; AIR,UNION TO UNION
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=909 SERVICED BY L=1000 		1-47428-874-0 01 1 0809-1005
144 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=909 SERVICED BY L=1000 		1-47428-874-0 01 1 1006-1011
144 PIPE; AIR,UNION TO UNION
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=909 SERVICED BY L=1000 		1-47428-874-0 01 1 1012-
144 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=909 SERVICED BY L=1000 		1-47428-874-0 01 1 1012-
144 PIPE; AIR,UNION TO UNION
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1408 SERVICED BY L=1550 		1-47428-879-0 01 1 0809-
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0809-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0809-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0809-
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0809-
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 0809-
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0809-
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 0809-
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) L=593 SERVICED BY L=600 		1-47428-868-0 01 1 1510-
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) L=1158 SERVICED BY L=1250 		1-47428-876-0 01 1 1510-
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=537 SERVICED BY L=550 		1-47428-867-0 01 1 0809-1509
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) L=537 SERVICED BY L=550 		1-47428-867-0 01 1 1510-
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1076 SERVICED BY L=1100 		1-47428-875-0 01 1 0809-1509
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) L=1076 SERVICED BY L=1100 		1-47428-875-0 01 1 1510-

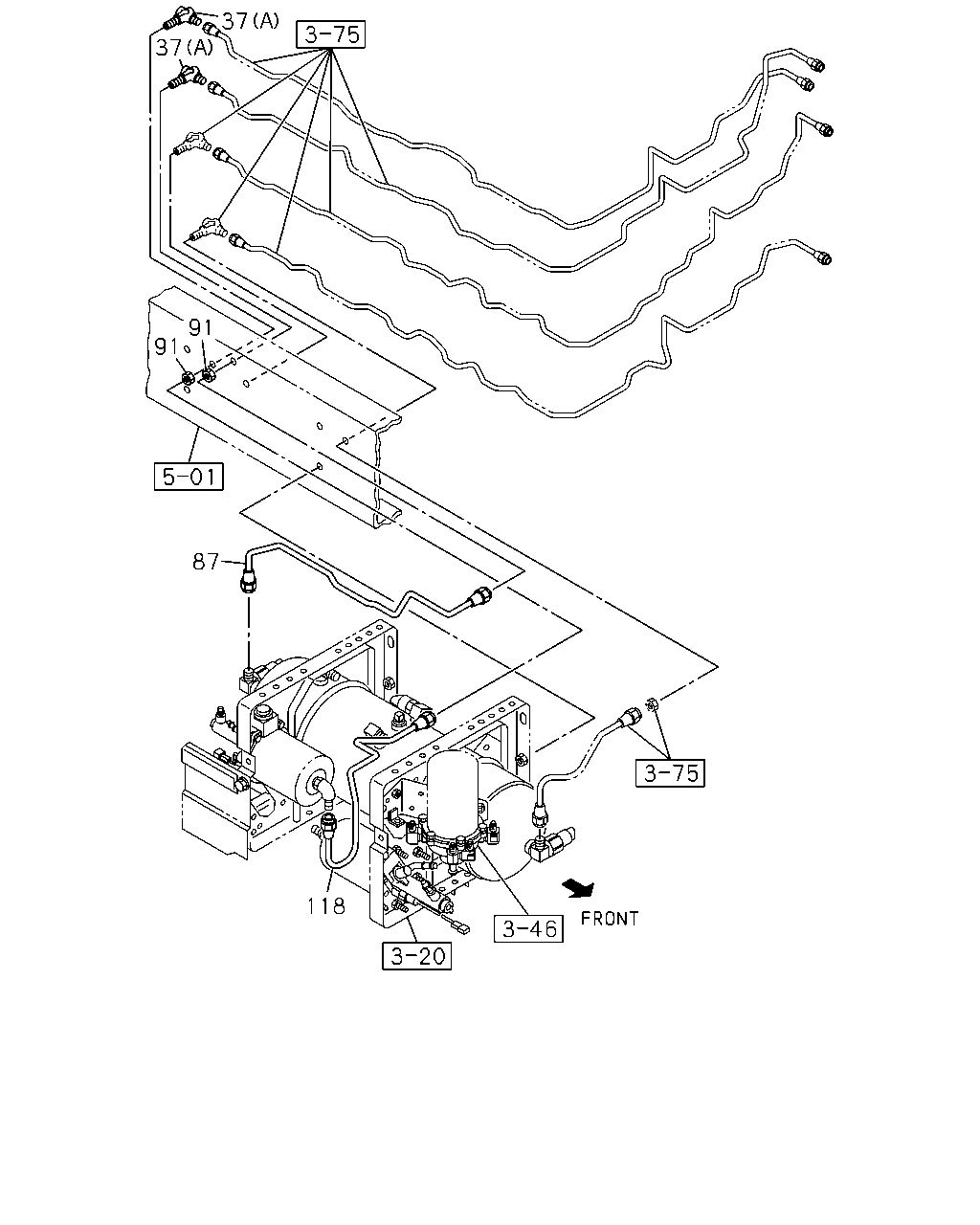

çizim 181353
37 37 91 91 87 118
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0809-
37 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0809-
87 PIPE; AIR,AIR TANK TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=700 SERVICED BY L=700 		1-47428-870-0 01 1 0809-
87 PIPE; AIR,AIR TANK TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1167 SERVICED BY L=1250 		1-47428-876-0 01 1 0809-
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 0809-
118 PIPE; AIR,UNION TO AIR MASTER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> L=692 SERVICED BY L=700 		1-47428-870-0 01 1 0809-0811
118 PIPE; AIR,UNION TO AIR MASTER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> L=830 SERVICED BY L=900 		1-47428-873-0 01 1 0812-1509
118 PIPE; AIR,UNION TO AIR MASTER
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=830 SERVICED BY L=900 		1-47428-873-0 01 1 1510-
118 PIPE; AIR,UNION TO AIR MASTER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> L=915 SERVICED BY L=1000 		1-47428-874-0 01 1 0809-

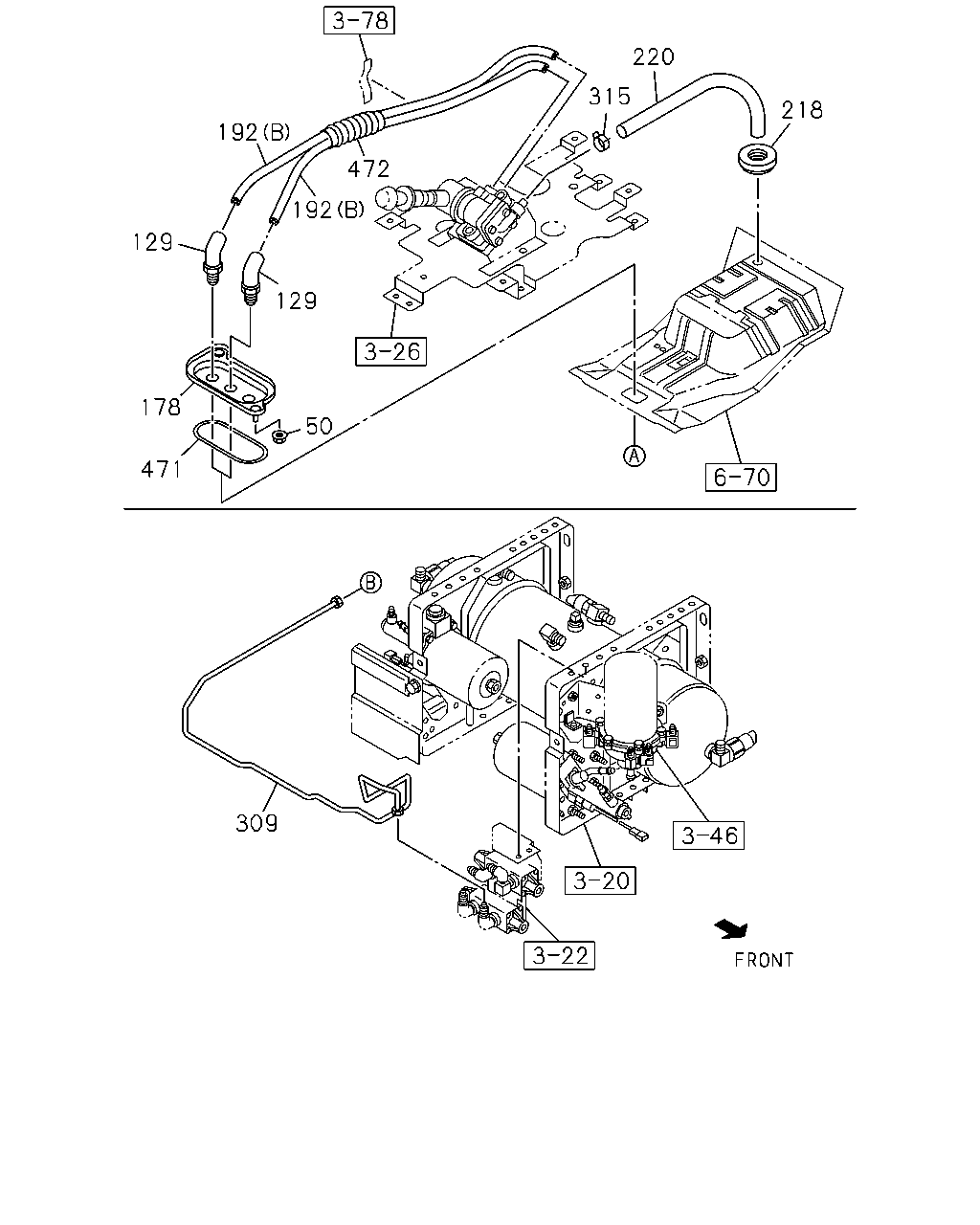

çizim 181356
309 218 220 315 472 192 129 192 129 178 471 50
BalonParca AdiParca NoAdetTipApplied Date
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 0809-
178 BRACKET; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98017-054-1 01 1 0809-
178 BRACKET; UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98017-052-1 01 1 0809-
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0809-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0809-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0809-
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0809-
218 GROMMET; VINYL HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24 		9-61166-007-0 01 1 0809-
220 HOSE; VINYL,EXH,PARKING BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0809-
309 PIPE; AIR,MPV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 0809-
315 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14 		8-94238-572-0 01 1 0809-
471 SEAL; BRKT 1-79738-832-0 01 1 0809-
472 TUBE; SPUTTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98067-708-0 01 1 0809-

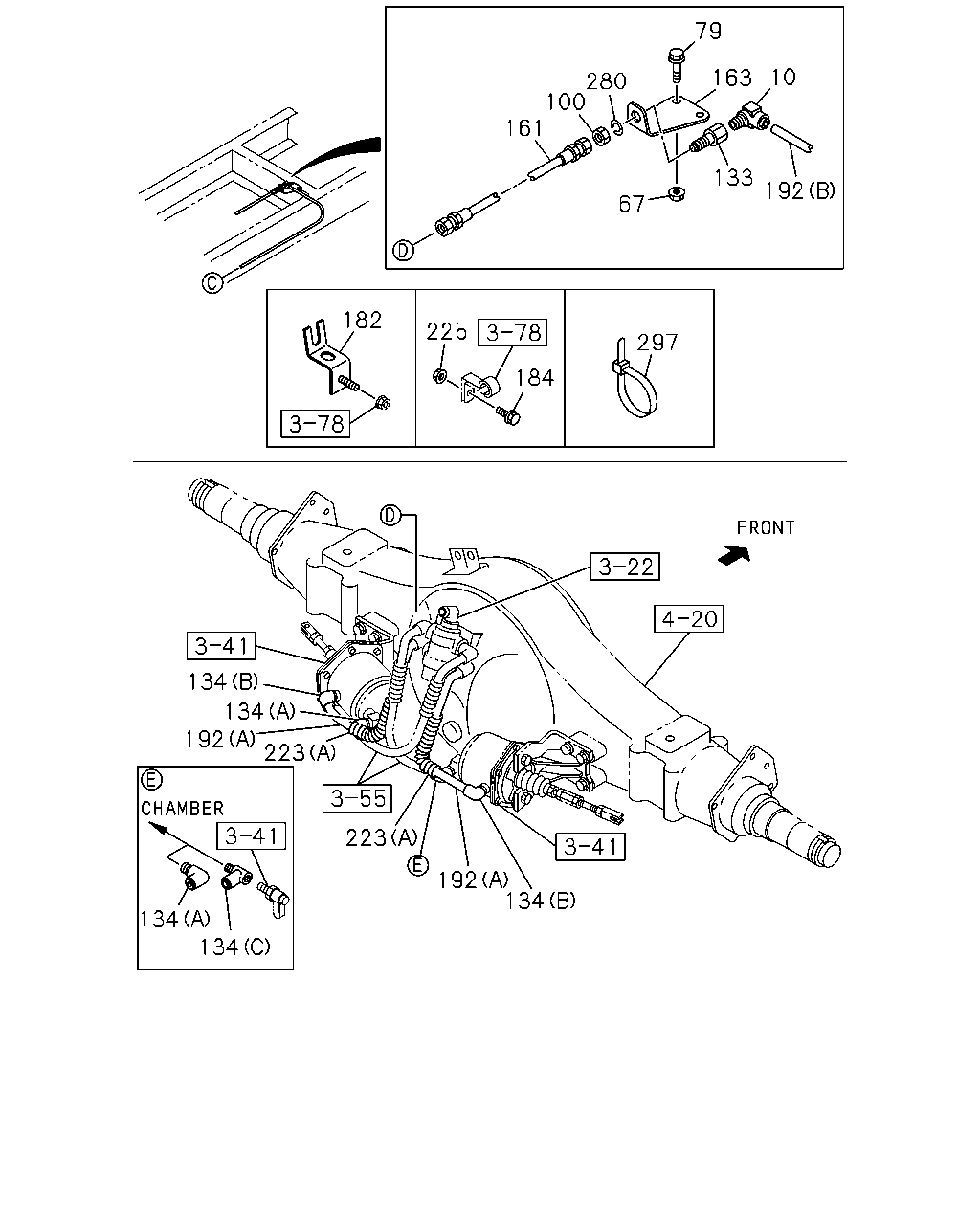

çizim 181363
161 182 184 225 297 134 134 223 192 134 223 192 134 100 280 79 133 67 192 163 10 134
BalonParca AdiParca NoAdetTipApplied Date
10 CONNECTOR; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0809-
67 NUT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0809-
79 BOLT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0809-
100 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		0-91111-516-0 01 1 0809-
133 UNION; NIPPLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09654-258-2 01 1 0809-1111
133 UNION; NIPPLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8 & M16 STRAIGHT 		8-98202-001-0 01 1 1112-
134 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 1510-
134 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1510-
134 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0809-1509
134 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1510-
134 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 0809-
161 HOSE; FLEX,QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=460 		1-09363-963-0 01 1 0809-
163 BRACKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98044-842-0 01 1 0809-
182 BRACKET; TUBE CLIP
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98096-272-0 01 1 0809-
184 BOLT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 01 1 0809-
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0809-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0809-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0809-
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0809-
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 0809-
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0809-
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 0809-
225 NUT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0809-1107
280 WASHER; LK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2 		0-91510-816-0 01 1 0809-0809
297 CLIP; BAND
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 11 1 1012-1109
297 CLIP; BAND
WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 11 1 1110-
297 CLIP; BAND
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 12 1 1012-1109
297 CLIP; BAND
WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 12 1 1110-
297 CLIP; BAND
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 05 1 0809-1005
297 CLIP; BAND
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 05 1 1006-1109
297 CLIP; BAND
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 09 1 0809-1005
297 CLIP; BAND
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 09 1 1006-1011
297 CLIP; BAND
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 09 1 1012-1109
297 CLIP; BAND
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 09 1 1012-1109
297 CLIP; BAND
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 09 1 1110-

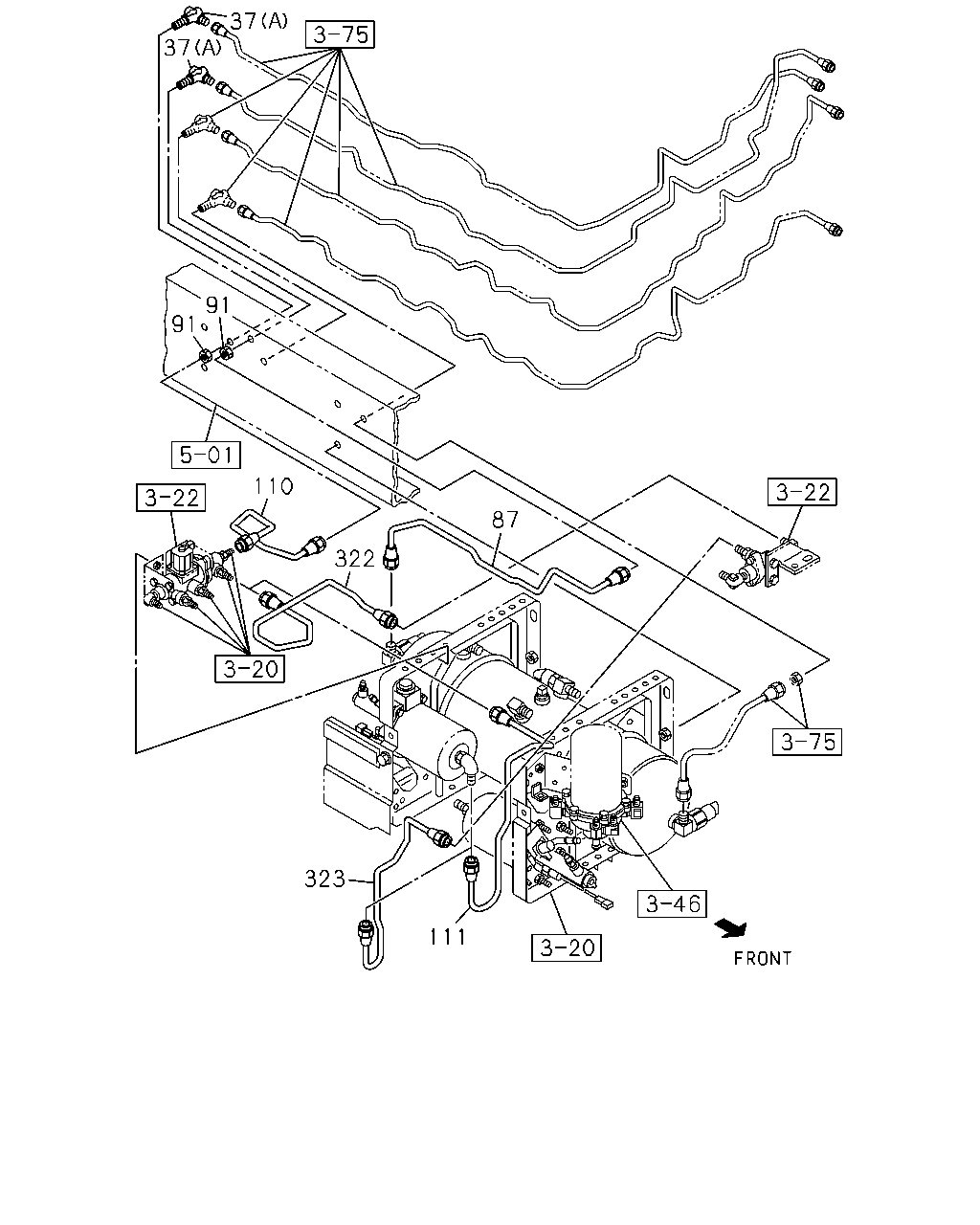

çizim 181366
87 322 110 91 91 37 37 111 323
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0809-
37 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0809-
87 PIPE; AIR,AIR TANK TO UNION
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=700 SERVICED BY L=700 		1-47428-870-0 01 1 0809-
87 PIPE; AIR,AIR TANK TO UNION
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1167 SERVICED BY L=1250 		1-47428-876-0 01 1 0809-
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 0809-
110 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=473 		8-98067-756-0 01 1 0809-
110 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=550 SERVICED BY L=550 		1-47428-867-0 01 1 0809-
111 PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=554 SERVICED BY L=600 		1-47428-868-0 01 1 0809-1509
111 PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH) L=554 SERVICED BY L=600 		1-47428-868-0 01 1 1510-
111 PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=589 SERVICED BY L=600 		1-47428-868-0 01 1 0809-
322 PIPE; AIR,HSA VLV TO DBL CHK VLV
THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700 		1-47428-870-0 01 1 1510-
323 PIPE; AIR,DBL CHK VLV
THROTTLE CONTROL SYSTEM(6XH) L=574 SERVICED BY L=600 		1-47428-868-0 01 1 1510-
