3-75 — BRAKE PIPING; AIR,FRONT (#39201) — 83 parça

5 5 2 2 5 5 77 87 3 1

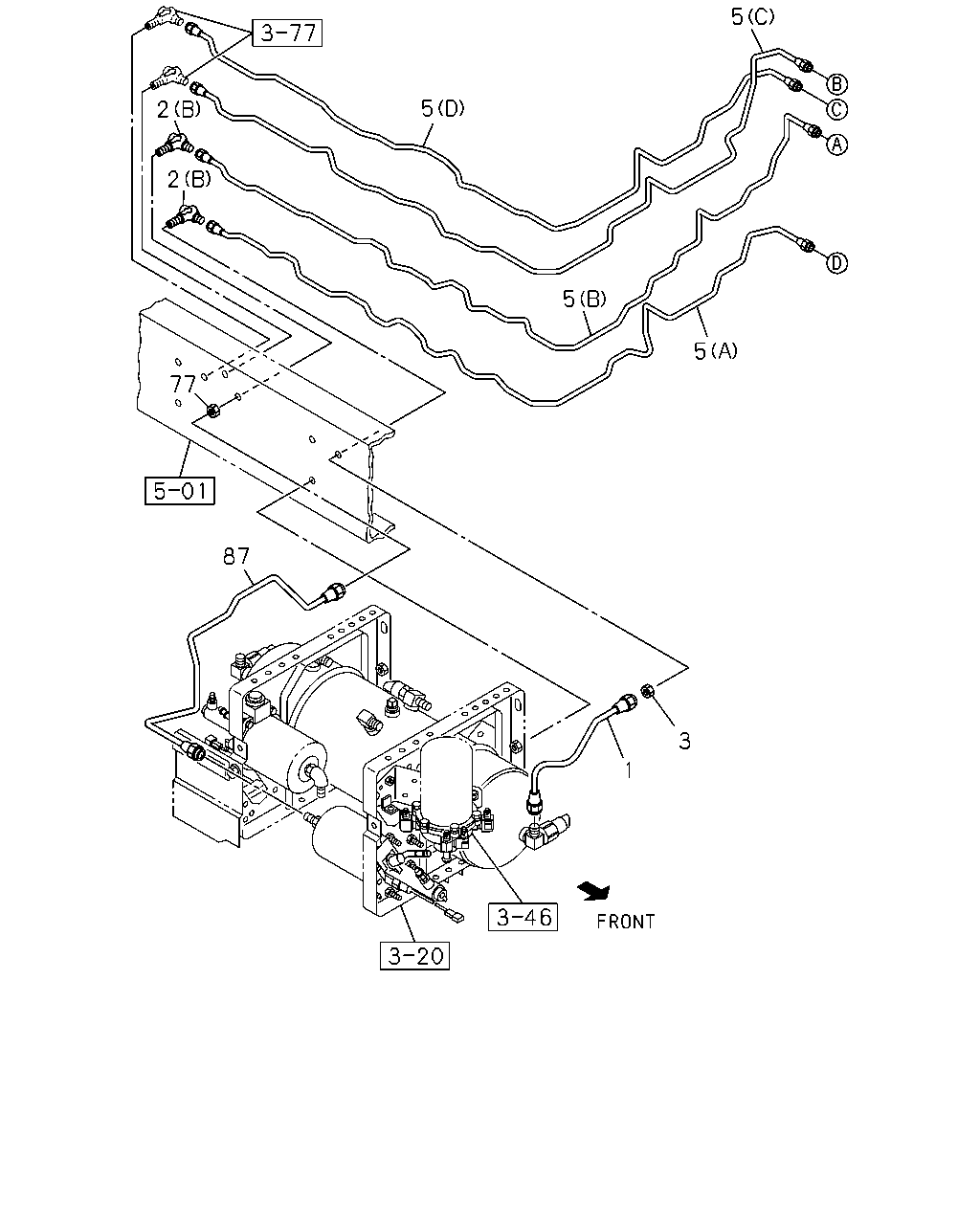

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=290	8-98044-172-0	01	1	0809-
1	PIPE; AIR,AIR TANK TO UNION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1026 SERVICED BY L=1100	1-47428-875-0	01	1	0809-
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	02	1	0809-
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	0809-
3	NUT; PIPE UNION M8 FLANGE	0-91180-108-0	01	1	0809-
3	NUT; PIPE UNION M16	0-91111-516-0	01	1	0809-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3073 SERVICED BY L=3200	1-47428-829-0	01	1	1012-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3343	8-98173-446-0	01	1	1012-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3506	8-98173-447-0	01	1	1012-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3509	8-98173-448-0	01	1	1012-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3051 SERVICED BY L=3300	1-47428-886-0	01	1	0809-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3352 SERVICED BY L=3500	1-47428-887-0	01	1	0809-1007
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3352	8-98165-233-0	01	1	1008-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3489 SERVICED BY L=3500	1-47428-887-0	01	1	0809-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3493 SERVICED BY L=3500	1-47428-887-0	01	1	0809-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3154 SERVICED BY L=3300	1-47428-886-0	01	1	0809-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3298 SERVICED BY L=3300	1-47428-886-0	01	1	0809-0810
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3307 SERVICED BY L=3500	1-47428-887-0	01	1	0811-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3440	8-98125-934-1	01	1	0809-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3528	8-98125-936-0	01	1	0809-0810
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3537	8-98135-202-0	01	1	0811-
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	0809-
87	PIPE; AIR,UNION TO AIR MASTER BRAKE REGULATION ECE(TDV) EXC. H.S.A SYSTEM<6EP> L=798 SERVICED BY L=800	1-47428-872-0	01	1	1510-
87	PIPE; AIR,UNION TO AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> L=821 SERVICED BY L=900	1-47428-873-0	01	1	0809-1509
87	PIPE; AIR,UNION TO AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP> L=821 SERVICED BY L=900	1-47428-873-0	01	1	1510-
87	PIPE; AIR,UNION TO AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> L=668 SERVICED BY L=700	1-47428-870-0	01	1	0809-

5 5 2 2 5 5 77 90 92 1 3

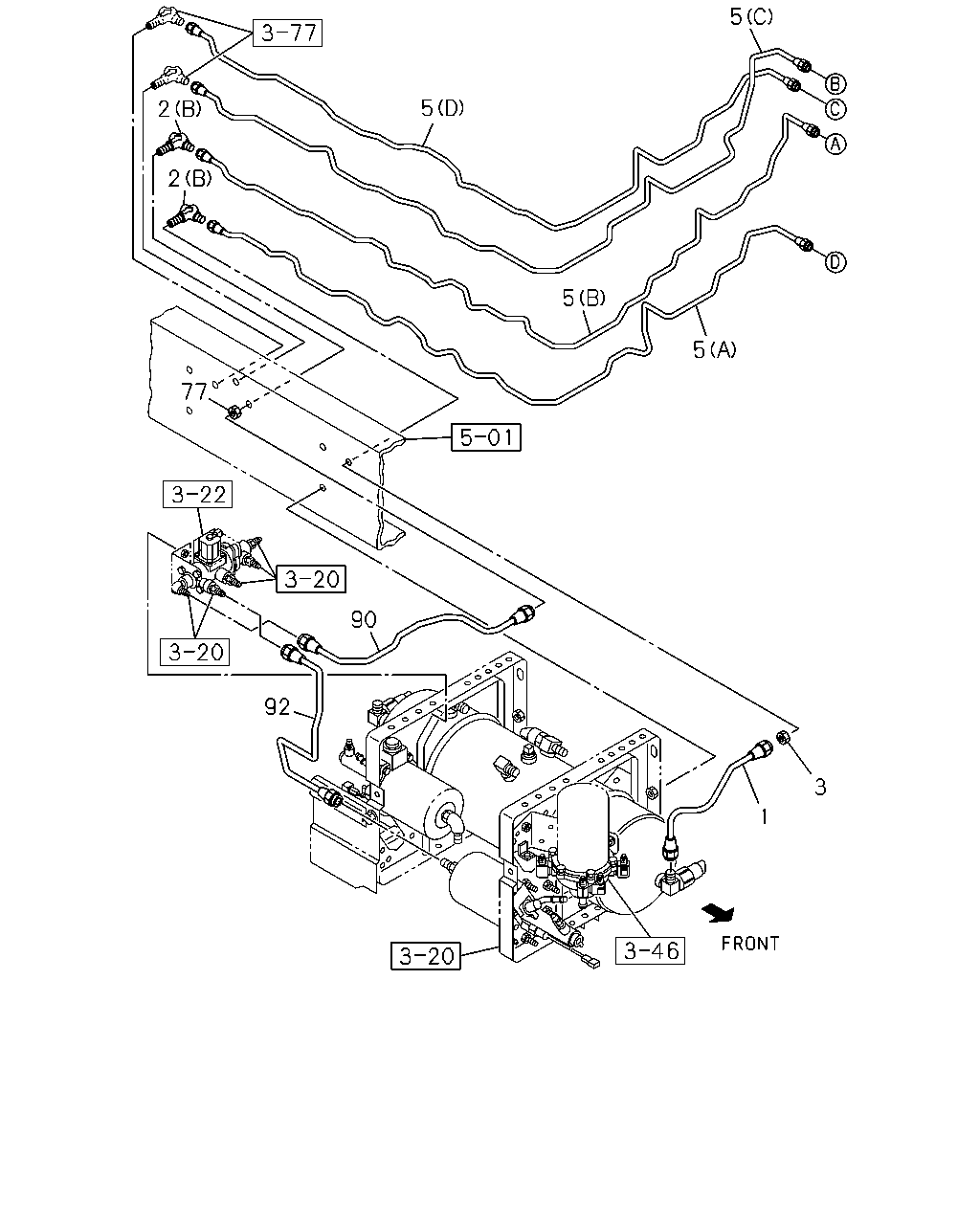

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=290	8-98044-172-0	01	1	0809-
1	PIPE; AIR,AIR TANK TO UNION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1026 SERVICED BY L=1100	1-47428-875-0	01	1	0809-
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	02	1	0809-
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	0809-
3	NUT; PIPE UNION M8 FLANGE	0-91180-108-0	01	1	0809-
3	NUT; PIPE UNION M16	0-91111-516-0	01	1	0809-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3073 SERVICED BY L=3200	1-47428-829-0	01	1	1012-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3343	8-98173-446-0	01	1	1012-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3506	8-98173-447-0	01	1	1012-
5	PIPE; AIR,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3509	8-98173-448-0	01	1	1012-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3051 SERVICED BY L=3300	1-47428-886-0	01	1	0809-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3352 SERVICED BY L=3500	1-47428-887-0	01	1	0809-1007
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3352	8-98165-233-0	01	1	1008-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3489 SERVICED BY L=3500	1-47428-887-0	01	1	0809-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3493 SERVICED BY L=3500	1-47428-887-0	01	1	0809-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=3154 SERVICED BY L=3300	1-47428-886-0	01	1	0809-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3298 SERVICED BY L=3300	1-47428-886-0	01	1	0809-0810
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3307 SERVICED BY L=3500	1-47428-887-0	01	1	0811-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=3440	8-98125-934-1	01	1	0809-
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3528	8-98125-936-0	01	1	0809-0810
5	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=3537	8-98135-202-0	01	1	0811-
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	0809-
90	PIPE; AIR,UNION TO HSA VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=493	8-98077-878-0	01	1	0809-1011
90	PIPE; AIR,UNION TO HSA VLV H.S.A SYSTEM<6EP> L=493	8-98077-878-0	01	1	1012-
90	PIPE; AIR,UNION TO HSA VLV H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=511 SERVICED BY L=550	1-47428-867-0	01	1	0809-
92	PIPE; AIR,HSA VLV TO AIR MASTER H.S.A SYSTEM<6EP> BRAKE REGULATION ECE(TDV) L=513 SERVICED BY L=550	1-47428-867-0	01	1	1510-
92	PIPE; AIR,HSA VLV TO AIR MASTER H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=532 SERVICED BY L=550	1-47428-867-0	01	1	0809-1011
92	PIPE; AIR,HSA VLV TO AIR MASTER H.S.A SYSTEM<6EP> L=532 SERVICED BY L=550	1-47428-867-0	01	1	1012-1509
92	PIPE; AIR,HSA VLV TO AIR MASTER H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) L=532 SERVICED BY L=550	1-47428-867-0	01	1	1510-
92	PIPE; AIR,HSA VLV TO AIR MASTER H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=568 SERVICED BY L=600	1-47428-868-0	01	1	0809-

3 176 145 177 94 177 176 177 75 177 177 177 15 15 176 2 175 98 52 52 175 145 52 149 52 15 15

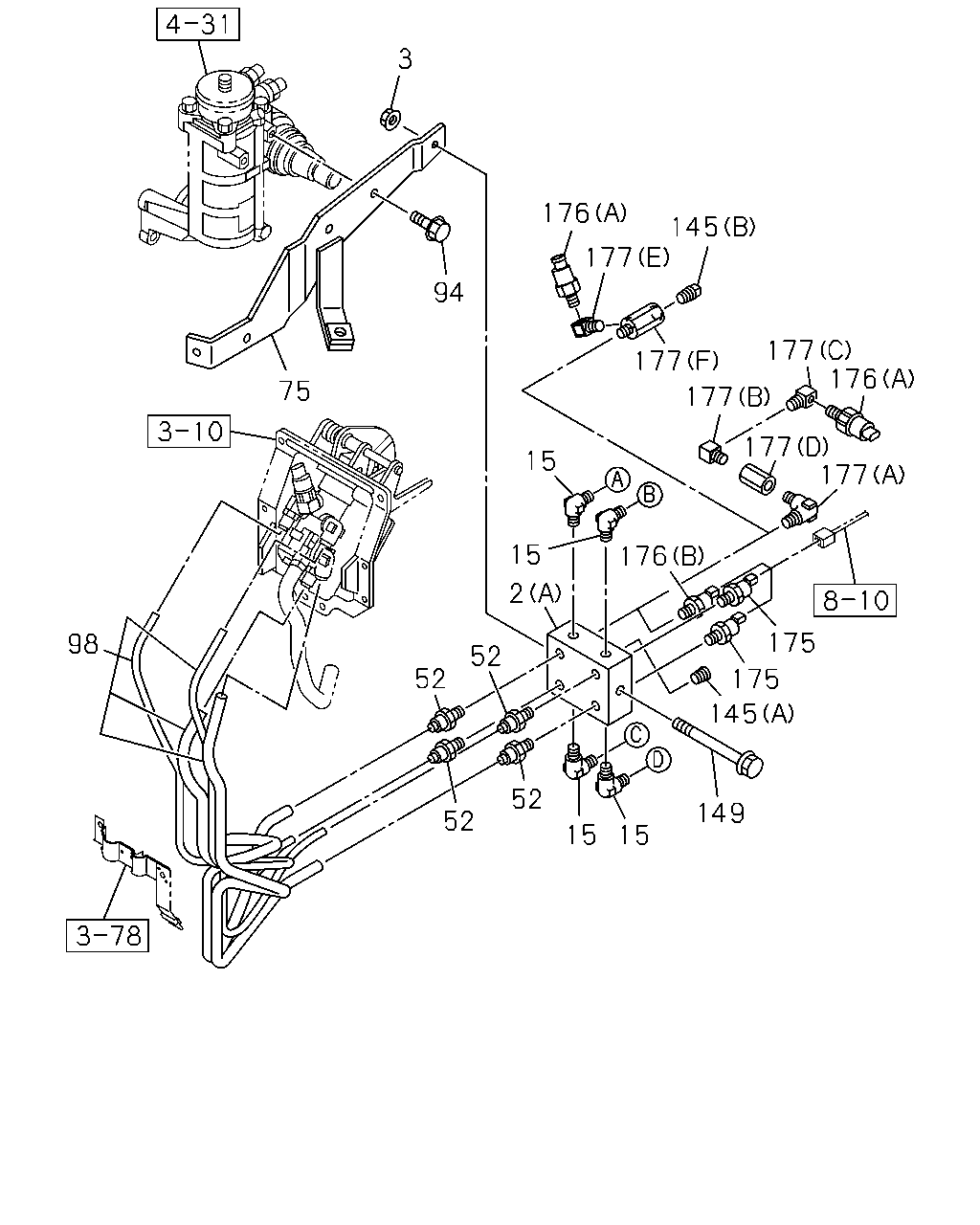

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	02	1	0809-
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	0809-
3	NUT; PIPE UNION M8 FLANGE	0-91180-108-0	01	1	0809-
3	NUT; PIPE UNION M16	0-91111-516-0	01	1	0809-
15	CONNECTOR; AIR PIPE M16 & PT1/4 ELBOW	0-92134-310-0	04	1	0809-
52	CONNECTOR; NYLON TUBE DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	0809-
75	BRACKET; UNION	8-98124-802-0	01	1	0809-
94	BOLT; BRKT M10X16 FLANGE	0-28151-016-0	02	1	0809-0901
94	BOLT; BRKT M10X20 FLANGE	0-28651-020-0	02	1	0902-0902
94	BOLT; BRKT M10X16 FLANGE	0-28151-016-0	02	1	0902-0911
94	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	02	1	0912-
98	TUBE; NYLON 4HK1-TCS ENG(RJS)	8-98124-954-1	01	1	1012-
98	TUBE; NYLON	8-98123-961-0	01	1	0809-1008
98	TUBE; NYLON	8-98123-961-0	01	1	1009-1011
98	TUBE; NYLON 6HK1-TCN ENG(82L)	8-98123-961-0	01	1	1012-
145	PLUG H.S.A SYSTEM<6EP> (B) PT1/2	9-09204-521-0	01	1	1008-
145	PLUG (A) PT1/4	9-99204-513-0	01	1	0809-
149	BOLT; UNION M8X100 FLANGE	0-28050-800-0	01	1	0809-
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	0809-
176	SWITCH; AIR PRESS H.S.A SYSTEM<6EP> (A) STAMP 0.7	8-97622-710-0	01	1	0809-
176	SWITCH; AIR PRESS EXC. H.S.A SYSTEM<6EP> (B) STAMP 0.3	8-98010-857-0	01	1	0809-
177	CONNECTOR H.S.A SYSTEM<6EP> (A)	1-09650-433-0	01	1	0809-1007
177	CONNECTOR H.S.A SYSTEM<6EP> (F)	8-98134-010-0	01	1	1008-
177	CONNECTOR H.S.A SYSTEM<6EP> (B) PT3/8 ELBOW	1-09660-696-0	01	1	0809-1007
177	CONNECTOR H.S.A SYSTEM<6EP> (E) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1008-
177	CONNECTOR H.S.A SYSTEM<6EP> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1007
177	CONNECTOR H.S.A SYSTEM<6EP> (D)	1-09660-881-0	01	1	0809-1007
