Sayfa 3-70 - Isuzu EPC

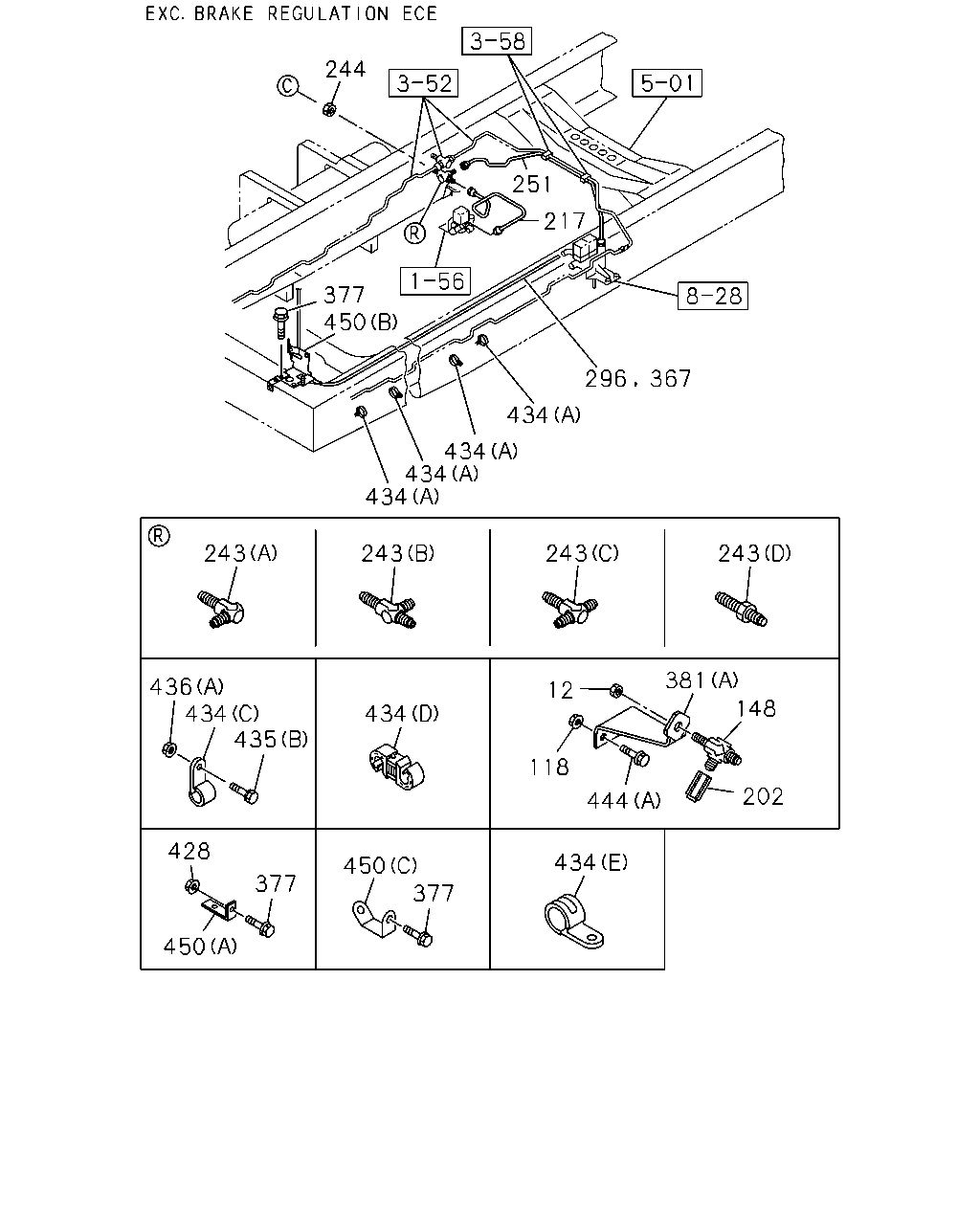

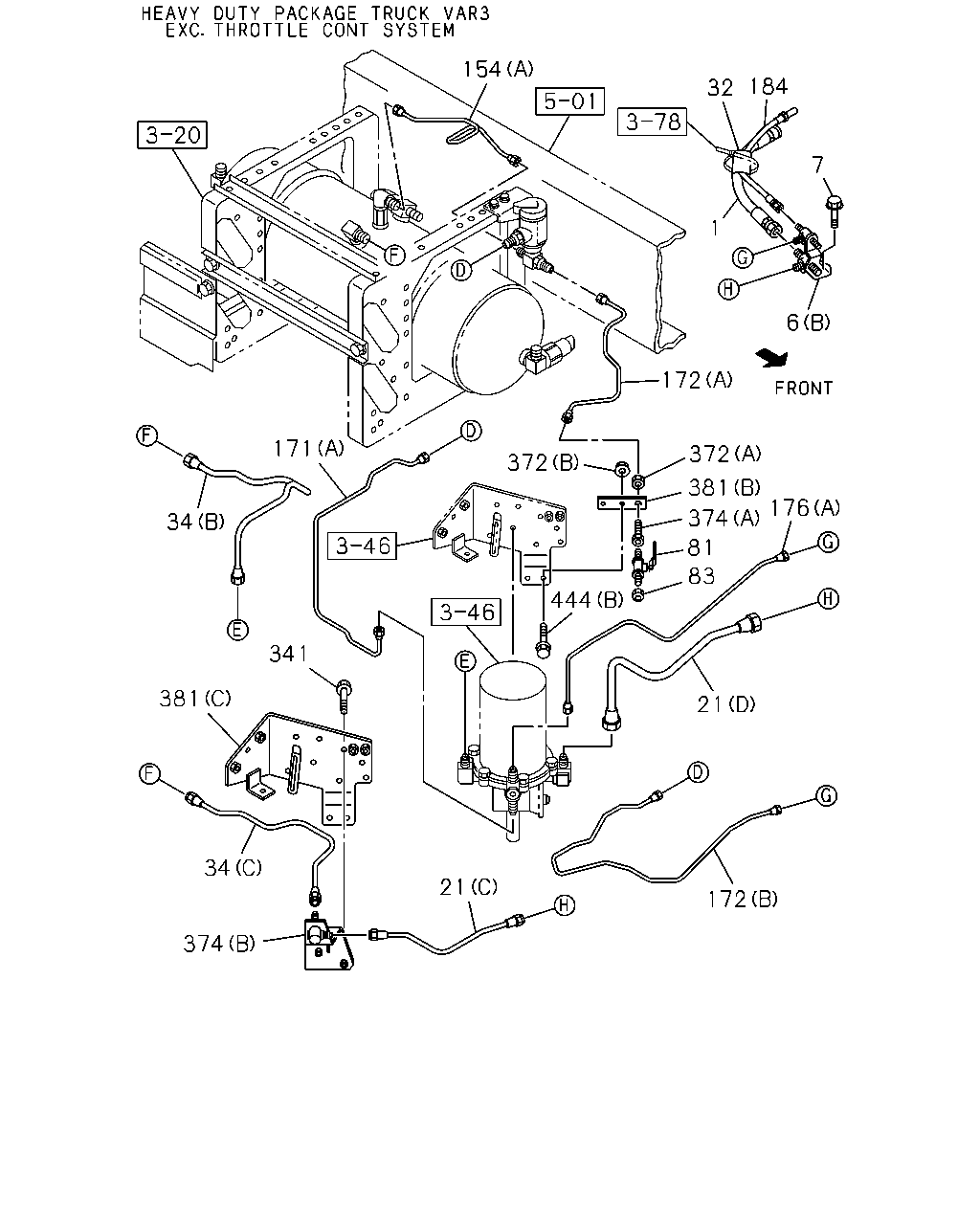

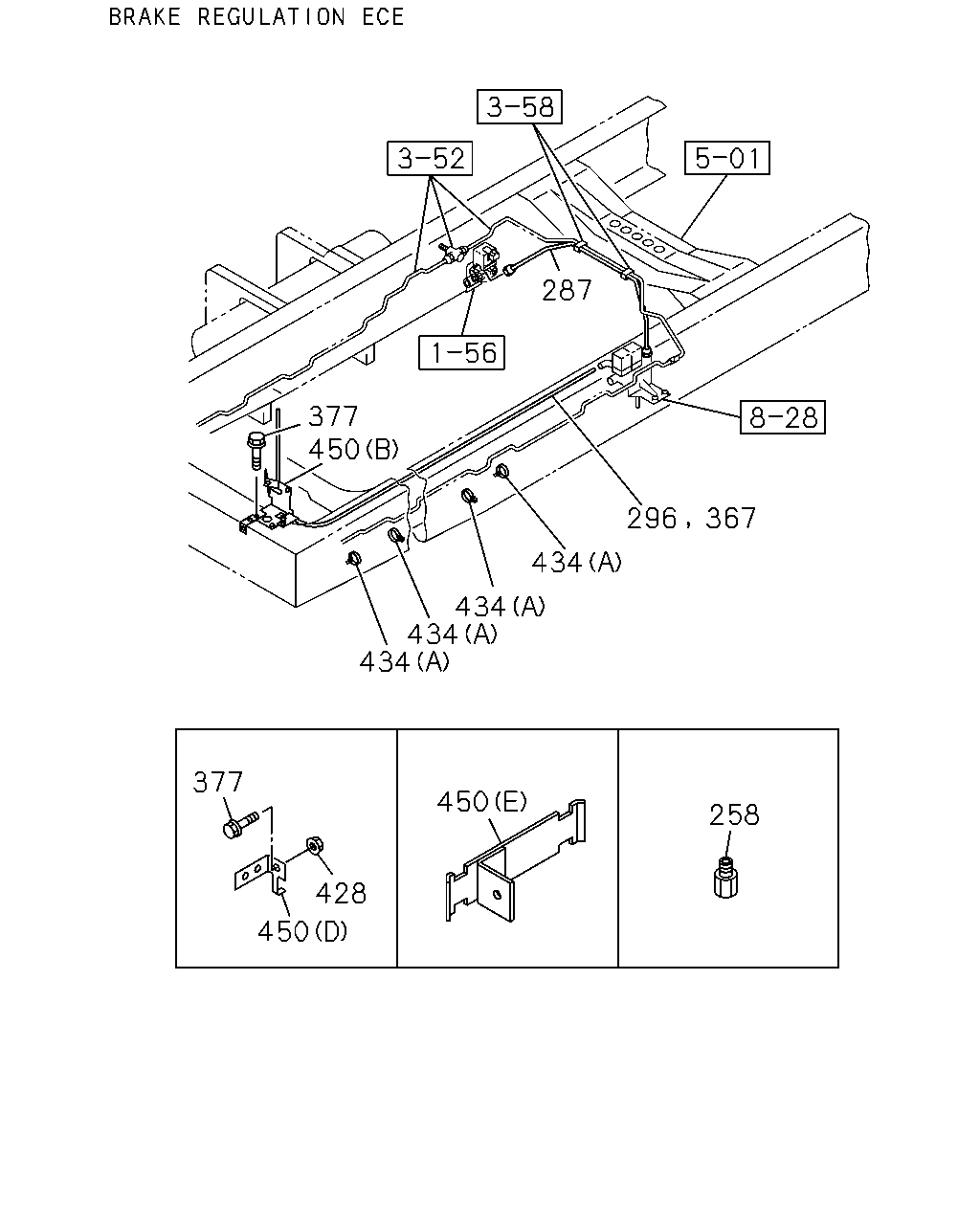

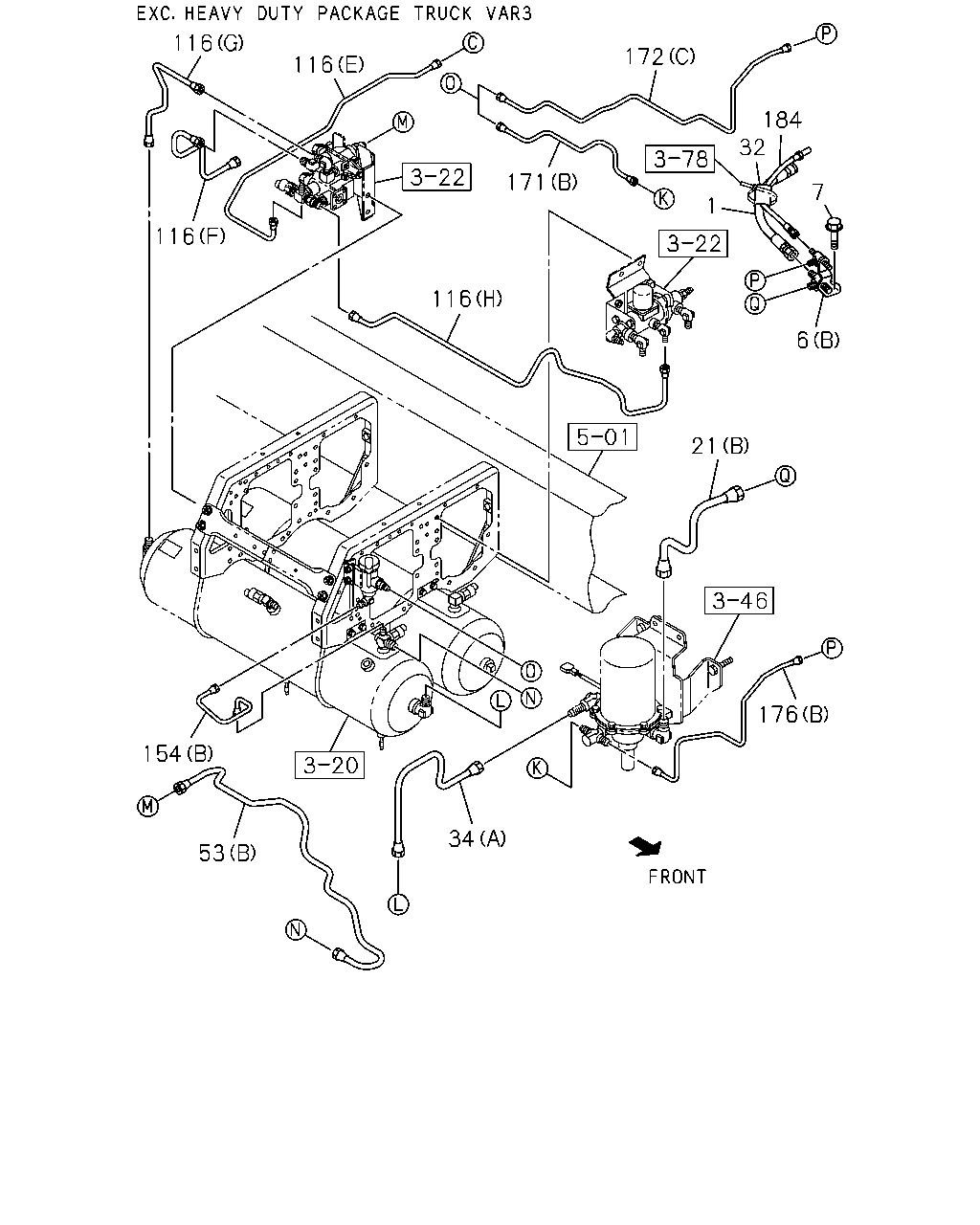

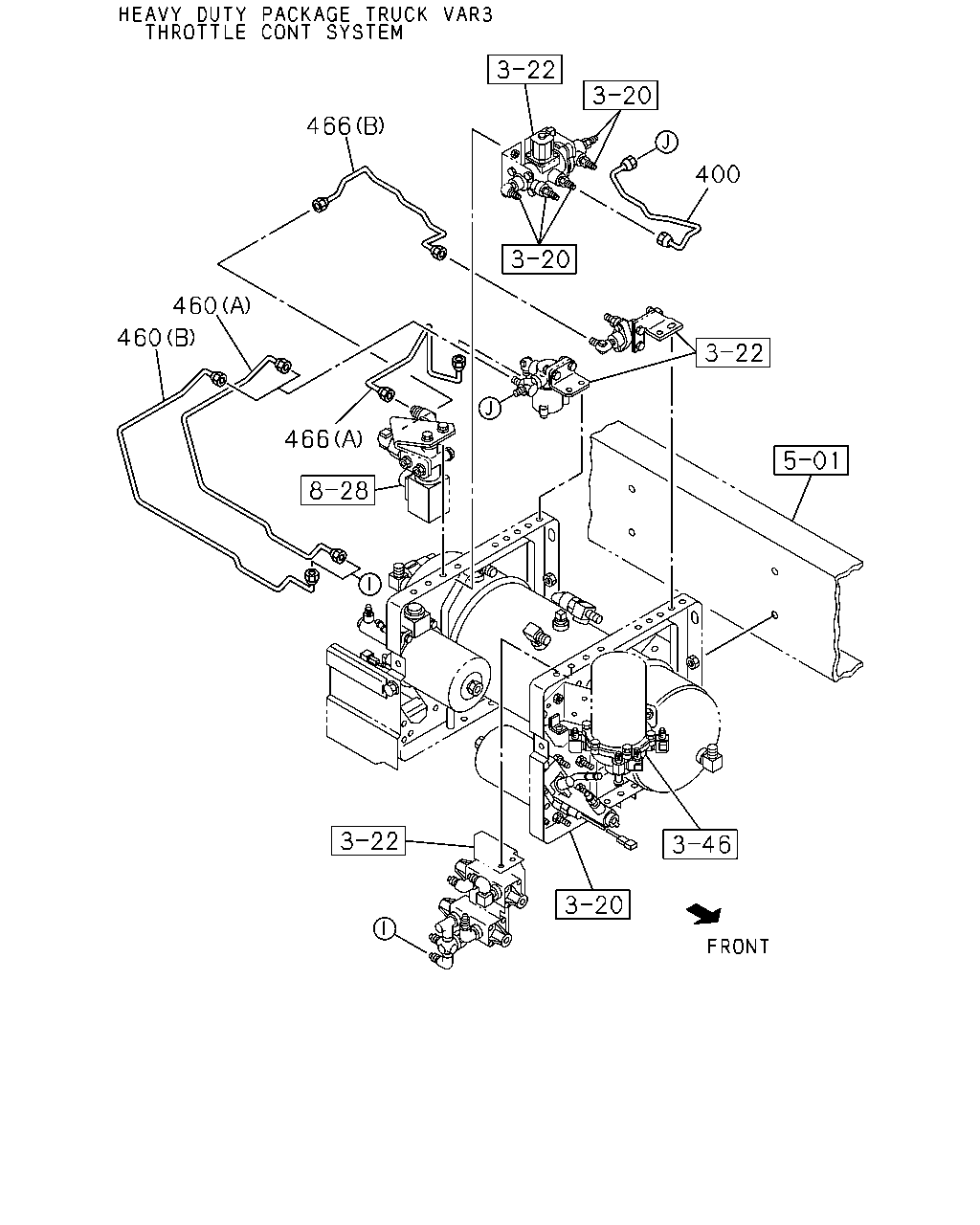

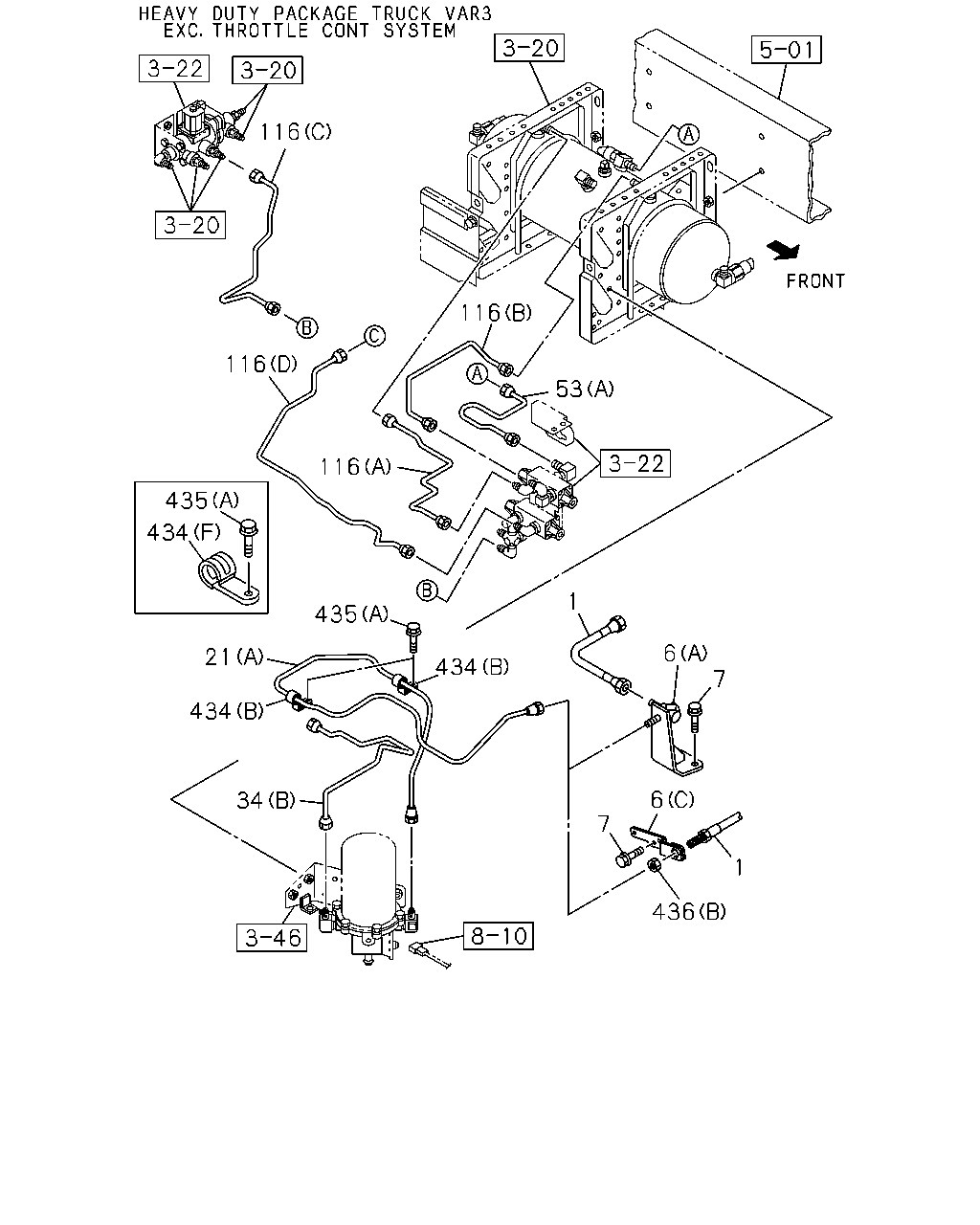

3-70 — BRAKE PIPING; AIR,AIR MASTER (#39200) — 523 parça

116 116 116 53 435 435 434 21 434 34 434 436 116 1 6 6 7 1 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>	1-09363-958-0	01	1	1108-
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09363-913-0	01	1	1012-
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98079-973-0	01	1	0809-0811
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=310	8-97607-730-0	01	1	0809-0811
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) L=310	8-97607-730-0	01	1	0812-0906
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) L=310	8-97607-730-0	01	1	0907-1107
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1108-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98079-987-1	01	1	1108-
6	BRACKET; FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) (C)	8-98119-929-0	01	1	1012-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98079-987-1	01	1	0809-0811
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98133-392-0	01	1	0812-0903
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) (B)	8-98133-392-0	01	1	0904-0906
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) (B)	8-98133-392-0	01	1	0907-1107
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98133-392-0	01	1	1108-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98120-436-0	01	1	0809-0903
7	BOLT; BRKT,FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	02	1	1012-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0809-1011
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) M8X30 FLANGE	0-28650-830-0	02	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1816	8-98083-100-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) L=1798	8-98083-099-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1965	8-98162-112-0	01	1	1012-1201
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2032	8-98187-598-0	01	1	1202-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496	8-98133-372-0	01	1	0812-1107
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496	8-98133-372-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=397	8-98111-639-0	01	1	0809-1107
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=397	8-98111-639-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1025	8-98111-640-1	01	1	0809-0906
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1025	8-98111-640-1	01	1	0907-1107
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1025	8-98111-640-1	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1798	8-98083-099-0	01	1	0809-0811
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=516	8-98133-370-0	01	1	0812-1107
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=516	8-98133-370-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1816	8-98083-100-0	01	1	0809-0811
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=503	8-98133-371-0	01	1	0812-1107
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=503	8-98133-371-0	01	1	1108-
34	PIPE; AIR 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1012-1107
34	PIPE; AIR 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1108-
34	PIPE; AIR 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1108-
34	PIPE; AIR 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=659 SERVICED BY L=660	1-49115-480-0	01	1	1012-1107
34	PIPE; AIR 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=659 SERVICED BY L=660	1-49115-480-0	01	1	1108-
34	PIPE; AIR 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B) L=659 SERVICED BY L=660	1-49115-480-0	01	1	1108-
34	PIPE; AIR 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=669 SERVICED BY L=700	1-49115-481-0	01	1	0812-1107
34	PIPE; AIR 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=669 SERVICED BY L=700	1-49115-481-0	01	1	1108-
34	PIPE; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660	1-49115-480-0	01	1	0812-1107
34	PIPE; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660	1-49115-480-0	01	1	1108-
34	PIPE; AIR 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=457	8-98133-390-0	01	1	0812-1107
34	PIPE; AIR 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=457	8-98133-390-0	01	1	1108-
34	PIPE; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=563 SERVICED BY L=600	1-49115-479-0	01	1	0809-1107
34	PIPE; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=563 SERVICED BY L=600	1-49115-479-0	01	1	1108-
53	PIPE; AIR,AIR TANK TO VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98131-454-0	01	1	0809-0810
53	PIPE; AIR,AIR TANK TO VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98133-846-0	01	1	0811-
53	PIPE; AIR,AIR TANK TO VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98061-086-0	01	1	0809-
116	PIPE; AIR,PROTECTION VLV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> (E) L=840 SERVICED BY L=900	1-47428-813-0	01	1	0809-0810
116	PIPE; AIR,PROTECTION VLV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=840 SERVICED BY L=900	1-47428-813-0	01	1	0811-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=601 SERVICED BY L=650	1-47428-810-0	01	1	0809-1509
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650	1-47428-810-0	01	1	1510-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-98120-159-0	01	1	0809-0810
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) L=945 SERVICED BY L=1000	1-47428-814-0	01	1	0809-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=519 SERVICED BY L=550	1-47428-808-0	01	1	0809-1509
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550	1-47428-808-0	01	1	1510-
116	PIPE; AIR,PROTECTION VLV HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	0809-
116	PIPE; AIR,PROTECTION VLV HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=382	8-98077-880-0	01	1	0809-
116	PIPE; AIR,PROTECTION VLV HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370	1-47428-818-0	01	1	0809-
116	PIPE; AIR,PROTECTION VLV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-98120-149-0	01	1	0809-
116	PIPE; AIR,PROTECTION VLV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) L=402	8-98120-150-0	01	1	0809-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	0809-
434	CLIP 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	05	1	1510-
434	CLIP 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	04	1	1510-
434	CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	03	1	1510-
434	CLIP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1108-
434	CLIP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) ID=16 L=20	0-95235-536-0	02	1	1012-
434	CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. RIGID SEAT WO/ARM REST<TAZ> (E) ID=24 L=24	1-09701-001-1	01	1	1009-1107
434	CLIP 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	09	1	1012-
434	CLIP 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	09	1	1012-
434	CLIP (B) ID=15 H=24 L=20	1-09700-606-0	02	1	0809-0811
434	CLIP 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15	1-09709-279-1	01	1	0809-0906
434	CLIP 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15	1-09709-279-1	01	1	0907-1509
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (D) ID=10 & 15	1-09709-279-1	01	1	1510-
434	CLIP 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15	1-09709-279-1	01	1	1510-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	0809-1008
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1009-1109
434	CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1009-1109
434	CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	01	1	1009-1109
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1110-
434	CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	12	1	0809-0906
434	CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	12	1	0809-0906
434	CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	12	1	0907-1109
434	CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	12	1	0907-1109
434	CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	13	1	1110-
434	CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	13	1	1110-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20	0-95234-635-0	01	1	0809-
435	BOLT; CLIP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-1107
435	BOLT; CLIP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE	0-28650-825-0	02	1	1108-
435	BOLT; CLIP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X25 FLANGE	0-28650-825-0	02	1	1108-
435	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	02	1	0809-0811
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X20 FLANGE	0-28650-820-0	01	1	0809-
436	NUT; CLIP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M22	0-91111-522-0	01	1	1012-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	0-91180-108-0	01	1	0809-

154 32 184 7 1 6 172 372 381 176 374 81 83 444 21 341 381 34 374 21 172 171 34 372

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>	1-09363-958-0	01	1	1108-
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09363-913-0	01	1	1012-
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98079-973-0	01	1	0809-0811
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=310	8-97607-730-0	01	1	0809-0811
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) L=310	8-97607-730-0	01	1	0812-0906
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) L=310	8-97607-730-0	01	1	0907-1107
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1108-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98079-987-1	01	1	1108-
6	BRACKET; FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) (C)	8-98119-929-0	01	1	1012-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98079-987-1	01	1	0809-0811
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98133-392-0	01	1	0812-0903
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) (B)	8-98133-392-0	01	1	0904-0906
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) (B)	8-98133-392-0	01	1	0907-1107
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98133-392-0	01	1	1108-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98120-436-0	01	1	0809-0903
7	BOLT; BRKT,FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	02	1	1012-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0809-1011
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) M8X30 FLANGE	0-28650-830-0	02	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1816	8-98083-100-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) L=1798	8-98083-099-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1965	8-98162-112-0	01	1	1012-1201
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2032	8-98187-598-0	01	1	1202-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496	8-98133-372-0	01	1	0812-1107
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496	8-98133-372-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=397	8-98111-639-0	01	1	0809-1107
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=397	8-98111-639-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1025	8-98111-640-1	01	1	0809-0906
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1025	8-98111-640-1	01	1	0907-1107
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1025	8-98111-640-1	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1798	8-98083-099-0	01	1	0809-0811
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=516	8-98133-370-0	01	1	0812-1107
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=516	8-98133-370-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1816	8-98083-100-0	01	1	0809-0811
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=503	8-98133-371-0	01	1	0812-1107
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=503	8-98133-371-0	01	1	1108-
32	SLEEVE; RUBBER,AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=32 OD=36 L=50	1-09337-023-0	01	1	0809-0811
32	SLEEVE; RUBBER,AIR PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	0812-1011
32	SLEEVE; RUBBER,AIR PIPE 6HK1-TCN ENG(82L) ID=32 OD=36 L=50	1-09337-023-0	01	1	1012-1107
32	SLEEVE; RUBBER,AIR PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1108-
34	PIPE; AIR 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1012-1107
34	PIPE; AIR 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1108-
34	PIPE; AIR 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1108-
34	PIPE; AIR 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=659 SERVICED BY L=660	1-49115-480-0	01	1	1012-1107
34	PIPE; AIR 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=659 SERVICED BY L=660	1-49115-480-0	01	1	1108-
34	PIPE; AIR 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B) L=659 SERVICED BY L=660	1-49115-480-0	01	1	1108-
34	PIPE; AIR 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=669 SERVICED BY L=700	1-49115-481-0	01	1	0812-1107
34	PIPE; AIR 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=669 SERVICED BY L=700	1-49115-481-0	01	1	1108-
34	PIPE; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660	1-49115-480-0	01	1	0812-1107
34	PIPE; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660	1-49115-480-0	01	1	1108-
34	PIPE; AIR 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=457	8-98133-390-0	01	1	0812-1107
34	PIPE; AIR 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=457	8-98133-390-0	01	1	1108-
34	PIPE; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=563 SERVICED BY L=600	1-49115-479-0	01	1	0809-1107
34	PIPE; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=563 SERVICED BY L=600	1-49115-479-0	01	1	1108-
81	COCK; AIR TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09680-099-0	01	1	0812-1107
81	COCK; AIR 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09680-099-0	01	1	1108-
83	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	9-48319-102-0	01	1	0812-1107
83	CAP; AIR COCK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	9-48319-102-0	01	1	1108-
154	PIPE; AIR,AIR TANK TO AIR GOV HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98133-361-0	01	1	0812-1008
154	PIPE; AIR,AIR TANK TO AIR GOV HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98167-336-0	01	1	1009-1011
154	PIPE; AIR,AIR TANK TO AIR GOV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98167-336-0	01	1	1012-1107
154	PIPE; AIR,AIR TANK TO AIR GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98167-336-0	01	1	1108-
154	PIPE; AIR,AIR TANK TO AIR GOV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98131-453-0	01	1	0809-1011
154	PIPE; AIR,AIR TANK TO AIR GOV 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98131-453-0	01	1	1012-1107
154	PIPE; AIR,AIR TANK TO AIR GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98131-453-0	01	1	1108-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900	1-47428-813-0	01	1	0812-1107
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900	1-47428-813-0	01	1	1108-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800	1-47428-812-0	01	1	0812-1107
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800	1-47428-812-0	01	1	1108-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550	1-47428-808-0	01	1	0809-1107
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550	1-47428-808-0	01	1	1108-
172	PIPE; AIR,GOV TO UNION TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=426	8-98133-384-0	01	1	0812-1008
172	PIPE; AIR,GOV TO UNION TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=425	8-98167-526-0	01	1	1009-1011
172	PIPE; AIR,GOV TO UNION 6HK1-TCN ENG(82L) TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=425	8-98167-526-0	01	1	1012-1107
172	PIPE; AIR,GOV TO UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=425	8-98167-526-0	01	1	1108-
172	PIPE; AIR,GOV TO UNION HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B)	8-98133-363-0	01	1	0812-1011
172	PIPE; AIR,GOV TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B)	8-98133-363-0	01	1	1012-1107
172	PIPE; AIR,GOV TO UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B)	8-98133-363-0	01	1	1108-
172	PIPE; AIR,GOV TO UNION EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98130-857-0	01	1	0809-1011
172	PIPE; AIR,GOV TO UNION 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98130-857-0	01	1	1012-1107
172	PIPE; AIR,GOV TO UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98130-857-0	01	1	1108-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800	1-47428-812-0	01	1	0812-1107
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800	1-47428-812-0	01	1	1108-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800	1-47428-812-0	01	1	0812-1107
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800	1-47428-812-0	01	1	1108-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700	1-47428-811-0	01	1	0809-1107
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700	1-47428-811-0	01	1	1108-
184	HOSE; FLEX,AIR GOV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=340	1-09363-622-0	01	1	0809-0811
184	HOSE; FLEX,AIR GOV L=340	1-09363-622-0	01	1	0812-1011
184	HOSE; FLEX,AIR GOV 6HK1-TCN ENG(82L) L=340	1-09363-622-0	01	1	1012-1107
184	HOSE; FLEX,AIR GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=340	1-09363-622-0	01	1	1108-
341	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	02	1	0812-1005
341	BOLT; BRKT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	02	1	1006-1107
341	BOLT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	02	1	1108-
372	NUT TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8 FLANGE	0-91180-108-0	02	1	0812-1107
372	NUT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8 FLANGE	0-91180-108-0	02	1	1108-
372	NUT TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12	9-09840-280-0	01	1	0812-1107
372	NUT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12	9-09840-280-0	01	1	1108-
374	CONNECTOR TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09654-280-1	01	1	0812-1107
374	CONNECTOR 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09654-280-1	01	1	1108-
374	CONNECTOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B)	8-98135-407-0	01	1	0812-1005
374	CONNECTOR 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B)	8-98135-407-0	01	1	1006-1107
374	CONNECTOR 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B)	8-98135-407-0	01	1	1108-
381	BRACKET TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98135-449-0	01	1	0812-1107
381	BRACKET 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98135-449-0	01	1	1108-
381	BRACKET HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C)	8-98044-548-4	01	1	0812-1005
381	BRACKET 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C)	8-98044-548-4	01	1	1006-1107
381	BRACKET 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C)	8-98044-548-4	01	1	1108-
381	BRACKET EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98119-700-0	01	1	0809-
444	BOLT; UNION TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X20 FLANGE	0-28650-820-0	02	1	0812-1107
444	BOLT; UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X20 FLANGE	0-28650-820-0	02	1	1108-
444	BOLT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M10X30 FLANGE	0-28651-030-0	02	1	0809-

466 400 466 460 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
400	PIPE; AIR,HSA VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467	8-98066-848-0	01	1	1510-
460	PIPE; AIR,PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) (A)	8-98066-846-0	01	1	1510-
460	PIPE; AIR,PROTECTION VALVE THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98066-847-0	01	1	1510-
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (B) L=756 SERVICED BY L=800	1-47428-872-0	01	1	1510-
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (A) L=492	8-98077-879-0	01	1	1510-

116 116 116 172 184 7 6 32 116 171 154 53 21 176 34 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>	1-09363-958-0	01	1	1108-
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09363-913-0	01	1	1012-
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98079-973-0	01	1	0809-0811
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=310	8-97607-730-0	01	1	0809-0811
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) L=310	8-97607-730-0	01	1	0812-0906
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) L=310	8-97607-730-0	01	1	0907-1107
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1108-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98079-987-1	01	1	1108-
6	BRACKET; FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) (C)	8-98119-929-0	01	1	1012-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98079-987-1	01	1	0809-0811
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98133-392-0	01	1	0812-0903
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) (B)	8-98133-392-0	01	1	0904-0906
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) (B)	8-98133-392-0	01	1	0907-1107
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98133-392-0	01	1	1108-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98120-436-0	01	1	0809-0903
7	BOLT; BRKT,FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	02	1	1012-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0809-1011
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) M8X30 FLANGE	0-28650-830-0	02	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1816	8-98083-100-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) L=1798	8-98083-099-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1965	8-98162-112-0	01	1	1012-1201
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2032	8-98187-598-0	01	1	1202-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496	8-98133-372-0	01	1	0812-1107
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496	8-98133-372-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=397	8-98111-639-0	01	1	0809-1107
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=397	8-98111-639-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1025	8-98111-640-1	01	1	0809-0906
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1025	8-98111-640-1	01	1	0907-1107
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1025	8-98111-640-1	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1798	8-98083-099-0	01	1	0809-0811
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=516	8-98133-370-0	01	1	0812-1107
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=516	8-98133-370-0	01	1	1108-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1816	8-98083-100-0	01	1	0809-0811
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=503	8-98133-371-0	01	1	0812-1107
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=503	8-98133-371-0	01	1	1108-
32	SLEEVE; RUBBER,AIR PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=32 OD=36 L=50	1-09337-023-0	01	1	0809-0811
32	SLEEVE; RUBBER,AIR PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	0812-1011
32	SLEEVE; RUBBER,AIR PIPE 6HK1-TCN ENG(82L) ID=32 OD=36 L=50	1-09337-023-0	01	1	1012-1107
32	SLEEVE; RUBBER,AIR PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1108-
34	PIPE; AIR 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1012-1107
34	PIPE; AIR 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1108-
34	PIPE; AIR 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1108-
34	PIPE; AIR 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=659 SERVICED BY L=660	1-49115-480-0	01	1	1012-1107
34	PIPE; AIR 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=659 SERVICED BY L=660	1-49115-480-0	01	1	1108-
34	PIPE; AIR 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B) L=659 SERVICED BY L=660	1-49115-480-0	01	1	1108-
34	PIPE; AIR 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=669 SERVICED BY L=700	1-49115-481-0	01	1	0812-1107
34	PIPE; AIR 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=669 SERVICED BY L=700	1-49115-481-0	01	1	1108-
34	PIPE; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660	1-49115-480-0	01	1	0812-1107
34	PIPE; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=656 SERVICED BY L=660	1-49115-480-0	01	1	1108-
34	PIPE; AIR 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=457	8-98133-390-0	01	1	0812-1107
34	PIPE; AIR 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=457	8-98133-390-0	01	1	1108-
34	PIPE; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=563 SERVICED BY L=600	1-49115-479-0	01	1	0809-1107
34	PIPE; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=563 SERVICED BY L=600	1-49115-479-0	01	1	1108-
53	PIPE; AIR,AIR TANK TO VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98131-454-0	01	1	0809-0810
53	PIPE; AIR,AIR TANK TO VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98133-846-0	01	1	0811-
53	PIPE; AIR,AIR TANK TO VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98061-086-0	01	1	0809-
116	PIPE; AIR,PROTECTION VLV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> (E) L=840 SERVICED BY L=900	1-47428-813-0	01	1	0809-0810
116	PIPE; AIR,PROTECTION VLV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=840 SERVICED BY L=900	1-47428-813-0	01	1	0811-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=601 SERVICED BY L=650	1-47428-810-0	01	1	0809-1509
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650	1-47428-810-0	01	1	1510-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-98120-159-0	01	1	0809-0810
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) L=945 SERVICED BY L=1000	1-47428-814-0	01	1	0809-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=519 SERVICED BY L=550	1-47428-808-0	01	1	0809-1509
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550	1-47428-808-0	01	1	1510-
116	PIPE; AIR,PROTECTION VLV HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	0809-
116	PIPE; AIR,PROTECTION VLV HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=382	8-98077-880-0	01	1	0809-
116	PIPE; AIR,PROTECTION VLV HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370	1-47428-818-0	01	1	0809-
116	PIPE; AIR,PROTECTION VLV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-98120-149-0	01	1	0809-
116	PIPE; AIR,PROTECTION VLV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) L=402	8-98120-150-0	01	1	0809-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	0809-
154	PIPE; AIR,AIR TANK TO AIR GOV HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98133-361-0	01	1	0812-1008
154	PIPE; AIR,AIR TANK TO AIR GOV HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98167-336-0	01	1	1009-1011
154	PIPE; AIR,AIR TANK TO AIR GOV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98167-336-0	01	1	1012-1107
154	PIPE; AIR,AIR TANK TO AIR GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98167-336-0	01	1	1108-
154	PIPE; AIR,AIR TANK TO AIR GOV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98131-453-0	01	1	0809-1011
154	PIPE; AIR,AIR TANK TO AIR GOV 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98131-453-0	01	1	1012-1107
154	PIPE; AIR,AIR TANK TO AIR GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98131-453-0	01	1	1108-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900	1-47428-813-0	01	1	0812-1107
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900	1-47428-813-0	01	1	1108-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800	1-47428-812-0	01	1	0812-1107
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800	1-47428-812-0	01	1	1108-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550	1-47428-808-0	01	1	0809-1107
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550	1-47428-808-0	01	1	1108-
172	PIPE; AIR,GOV TO UNION TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=426	8-98133-384-0	01	1	0812-1008
172	PIPE; AIR,GOV TO UNION TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=425	8-98167-526-0	01	1	1009-1011
172	PIPE; AIR,GOV TO UNION 6HK1-TCN ENG(82L) TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=425	8-98167-526-0	01	1	1012-1107
172	PIPE; AIR,GOV TO UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=425	8-98167-526-0	01	1	1108-
172	PIPE; AIR,GOV TO UNION HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B)	8-98133-363-0	01	1	0812-1011
172	PIPE; AIR,GOV TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B)	8-98133-363-0	01	1	1012-1107
172	PIPE; AIR,GOV TO UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B)	8-98133-363-0	01	1	1108-
172	PIPE; AIR,GOV TO UNION EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98130-857-0	01	1	0809-1011
172	PIPE; AIR,GOV TO UNION 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98130-857-0	01	1	1012-1107
172	PIPE; AIR,GOV TO UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98130-857-0	01	1	1108-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800	1-47428-812-0	01	1	0812-1107
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800	1-47428-812-0	01	1	1108-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800	1-47428-812-0	01	1	0812-1107
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800	1-47428-812-0	01	1	1108-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700	1-47428-811-0	01	1	0809-1107
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700	1-47428-811-0	01	1	1108-
184	HOSE; FLEX,AIR GOV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=340	1-09363-622-0	01	1	0809-0811
184	HOSE; FLEX,AIR GOV L=340	1-09363-622-0	01	1	0812-1011
184	HOSE; FLEX,AIR GOV 6HK1-TCN ENG(82L) L=340	1-09363-622-0	01	1	1012-1107
184	HOSE; FLEX,AIR GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=340	1-09363-622-0	01	1	1108-

434 434 434 434 434 434 243 243 243 243 244 377 450 450 450 296 367 12 381 148 202 444 118 377 435 377 428 434 251 217 436

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12	0-91111-512-0	01	1	0809-
118	NUT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10 FLANGE	0-91180-210-0	02	1	0809-
148	CONNECTOR; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 2WAY	1-09654-059-2	01	1	0809-
202	ADAPTER EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-
217	PIPE; VAC,UNION TO MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> L=415	8-98067-435-0	01	1	1012-1509
217	PIPE; VAC,UNION TO MAG VLV 4HK1-TCS ENG(RJS) EXC. RIGID SEAT WO/ARM REST<TAZ> L=415	8-98067-435-0	01	1	1012-1509
217	PIPE; VAC,UNION TO MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. BRAKE REGULATION ECE(TDV) L=415	8-98067-435-0	01	1	1510-
217	PIPE; VAC,UNION TO MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=415	8-98067-435-0	01	1	1510-
217	PIPE; VAC,UNION TO MAG VLV 4HK1-TCS ENG(RJS) EXC. RIGID SEAT WO/ARM REST<TAZ>,BRAKE REGULATION ECE(TDV) L=415	8-98067-435-0	01	1	1510-
217	PIPE; VAC,UNION TO MAG VLV 4HK1-TCS ENG(RJS) BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> L=415	8-98067-435-0	01	1	1510-
217	PIPE; VAC,UNION TO MAG VLV 4HK1-TCS ENG(RJS) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> L=452	8-98181-620-0	01	1	1012-1509
217	PIPE; VAC,UNION TO MAG VLV 4HK1-TCS ENG(RJS) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ECE(TDV) L=452	8-98181-620-0	01	1	1510-
217	PIPE; VAC,UNION TO MAG VLV 4HK1-TCS ENG(RJS) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6> L=452	8-98181-620-0	01	1	1510-
217	PIPE; VAC,UNION TO MAG VLV 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SERVICED BY L=600	1-47428-809-0	01	1	0809-
217	PIPE; VAC,UNION TO MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=456	8-98067-434-0	01	1	0809-0906
217	PIPE; VAC,UNION TO MAG VLV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=456	8-98067-434-0	01	1	0809-0906
217	PIPE; VAC,UNION TO MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=456	8-98067-434-0	01	1	0907-1509
217	PIPE; VAC,UNION TO MAG VLV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=456	8-98067-434-0	01	1	0907-1509
217	PIPE; VAC,UNION TO MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) L=456	8-98067-434-0	01	1	1510-
217	PIPE; VAC,UNION TO MAG VLV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ECE(TDV) L=456	8-98067-434-0	01	1	1510-
217	PIPE; VAC,UNION TO MAG VLV 6HK1-TCN ENG(82L) RIGID SEAT WO/ARM REST<TAZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6> L=480	8-98120-257-0	01	1	0809-0906
217	PIPE; VAC,UNION TO MAG VLV 6HK1-TCN ENG(82L) RIGID SEAT WO/ARM REST<TAZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6> L=480	8-98120-257-0	01	1	0907-1509
217	PIPE; VAC,UNION TO MAG VLV 6HK1-TCN ENG(82L) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6> L=480	8-98120-257-0	01	1	1510-
217	PIPE; VAC,UNION TO MAG VLV 6HK1-TCN ENG(82L) RIGID SEAT WO/ARM REST<TAZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ECE(TDV) L=480	8-98120-257-0	01	1	1510-
243	UNION; AIR PIPE PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 3WAY	0-92138-906-0	01	1	0809-1509
243	UNION; AIR PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12 3WAY	0-92138-906-0	01	1	0809-1509
243	UNION; AIR PIPE PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 3WAY	0-92138-906-0	01	1	1510-
243	UNION; AIR PIPE PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (B) M12 3WAY	0-92138-906-0	01	1	1510-
243	UNION; AIR PIPE BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12 3WAY	0-92138-906-0	01	1	1510-
243	UNION; AIR PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ECE(TDV) (B) M12 3WAY	0-92138-906-0	01	1	1510-
243	UNION; AIR PIPE PTO CONTROL<SV6> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 3WAY	0-92138-606-0	01	1	0809-
243	UNION; AIR PIPE EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 3WAY	0-92138-606-0	01	1	0809-
243	UNION; AIR PIPE RIGID SEAT WO/ARM REST<TAZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6> (D) M12 L=66.5	0-92113-306-0	01	1	0809-1509
243	UNION; AIR PIPE RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6> (D) M12 L=66.5	0-92113-306-0	01	1	1510-
243	UNION; AIR PIPE RIGID SEAT WO/ARM REST<TAZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ECE(TDV) (D) M12 L=66.5	0-92113-306-0	01	1	1510-
243	UNION; AIR PIPE RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 ELBOW	0-92125-206-0	01	1	0809-1509
243	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 ELBOW	0-92125-206-0	01	1	1510-
243	UNION; AIR PIPE RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 ELBOW	0-92125-206-0	01	1	1510-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0809-
251	PIPE; AIR,UNION TO MAG VLV 4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=1012 SERVICED BY L=1100	1-47428-815-0	01	1	1012-1509
251	PIPE; AIR,UNION TO MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> L=1012 SERVICED BY L=1100	1-47428-815-0	01	1	1012-1509
251	PIPE; AIR,UNION TO MAG VLV 4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ECE(TDV) L=1012 SERVICED BY L=1100	1-47428-815-0	01	1	1510-
251	PIPE; AIR,UNION TO MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> EXC. BRAKE REGULATION ECE(TDV) L=1012 SERVICED BY L=1100	1-47428-815-0	01	1	1510-
251	PIPE; AIR,UNION TO MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1012 SERVICED BY L=1100	1-47428-815-0	01	1	1510-
251	PIPE; AIR,UNION TO MAG VLV 4HK1-TCS ENG(RJS) BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=1012 SERVICED BY L=1100	1-47428-815-0	01	1	1510-
251	PIPE; AIR,UNION TO MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1021 SERVICED BY L=1100	1-47428-815-0	01	1	0809-1509
251	PIPE; AIR,UNION TO MAG VLV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=1021 SERVICED BY L=1100	1-47428-815-0	01	1	0809-1509
251	PIPE; AIR,UNION TO MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1021 SERVICED BY L=1100	1-47428-815-0	01	1	1510-
251	PIPE; AIR,UNION TO MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) L=1021 SERVICED BY L=1100	1-47428-815-0	01	1	1510-
251	PIPE; AIR,UNION TO MAG VLV 6HK1-TCN ENG(82L) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=1021 SERVICED BY L=1100	1-47428-815-0	01	1	1510-
251	PIPE; AIR,UNION TO MAG VLV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ECE(TDV) L=1021 SERVICED BY L=1100	1-47428-815-0	01	1	1510-
251	PIPE; AIR,UNION TO MAG VLV 6HK1-TCN ENG(82L) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=989 SERVICED BY L=1000	1-47428-814-0	01	1	0809-
251	PIPE; AIR,UNION TO MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=989 SERVICED BY L=1000	1-47428-814-0	01	1	0809-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=7	1-87411-017-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0809-
377	BOLT; BRKT FIX WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M8X25 FLANGE	0-28650-825-0	01	1	1510-
377	BOLT; BRKT FIX WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10X30 FLANGE	0-28651-030-0	01	1	1510-
377	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	04	1	1012-
377	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	04	1	1012-
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	0809-
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	03	1	0809-
377	BOLT; BRKT FIX 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	03	1	0809-0906
377	BOLT; BRKT FIX 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	03	1	0809-0906
377	BOLT; BRKT FIX 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	03	1	0907-1011
377	BOLT; BRKT FIX 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	03	1	0907-1011
377	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	03	1	1012-
377	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	03	1	1012-
377	BOLT; BRKT FIX 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	03	1	1012-
377	BOLT; BRKT FIX 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	03	1	1012-
381	BRACKET TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98135-449-0	01	1	0812-1107
381	BRACKET 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98135-449-0	01	1	1108-
381	BRACKET HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C)	8-98044-548-4	01	1	0812-1005
381	BRACKET 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C)	8-98044-548-4	01	1	1006-1107
381	BRACKET 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C)	8-98044-548-4	01	1	1108-
381	BRACKET EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98119-700-0	01	1	0809-
428	NUT; BRKT WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10 FLANGE	0-91180-210-0	01	1	1510-
428	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1012-
428	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0809-
428	NUT; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-
434	CLIP 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	05	1	1510-
434	CLIP 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	04	1	1510-
434	CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	03	1	1510-
434	CLIP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1108-
434	CLIP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) ID=16 L=20	0-95235-536-0	02	1	1012-
434	CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. RIGID SEAT WO/ARM REST<TAZ> (E) ID=24 L=24	1-09701-001-1	01	1	1009-1107
434	CLIP 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	09	1	1012-
434	CLIP 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	09	1	1012-
434	CLIP (B) ID=15 H=24 L=20	1-09700-606-0	02	1	0809-0811
434	CLIP 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15	1-09709-279-1	01	1	0809-0906
434	CLIP 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15	1-09709-279-1	01	1	0907-1509
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (D) ID=10 & 15	1-09709-279-1	01	1	1510-
434	CLIP 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15	1-09709-279-1	01	1	1510-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	0809-1008
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1009-1109
434	CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1009-1109
434	CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	01	1	1009-1109
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1110-
434	CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	12	1	0809-0906
434	CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	12	1	0809-0906
434	CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	12	1	0907-1109
434	CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	12	1	0907-1109
434	CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	13	1	1110-
434	CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	13	1	1110-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20	0-95234-635-0	01	1	0809-
435	BOLT; CLIP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-1107
435	BOLT; CLIP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE	0-28650-825-0	02	1	1108-
435	BOLT; CLIP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X25 FLANGE	0-28650-825-0	02	1	1108-
435	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	02	1	0809-0811
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X20 FLANGE	0-28650-820-0	01	1	0809-
436	NUT; CLIP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M22	0-91111-522-0	01	1	1012-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	0-91180-108-0	01	1	0809-
444	BOLT; UNION TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X20 FLANGE	0-28650-820-0	02	1	0812-1107
444	BOLT; UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X20 FLANGE	0-28650-820-0	02	1	1108-
444	BOLT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M10X30 FLANGE	0-28651-030-0	02	1	0809-
450	BRACKET; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (D)	8-98100-216-1	01	1	1510-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (E)	8-98116-680-0	01	1	1510-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98117-686-0	04	1	1012-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C)	8-98117-686-0	04	1	1012-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47477-694-0	01	1	0809-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A)	1-47477-694-0	01	1	0809-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98070-479-0	01	1	0809-1107
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98070-479-0	01	1	0809-1107
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98180-947-0	01	1	1108-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98180-947-0	01	1	1108-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98117-686-0	03	1	0809-0906
450	BRACKET; CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C)	8-98117-686-0	03	1	0809-0906
450	BRACKET; CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98117-686-0	03	1	0907-1011
450	BRACKET; CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C)	8-98117-686-0	03	1	0907-1011
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98117-686-0	03	1	1012-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C)	8-98117-686-0	03	1	1012-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98117-686-0	03	1	1012-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C)	8-98117-686-0	03	1	1012-

434 434 434 434 377 450 296 367 287 428 450 258 450 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
258	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1510-
287	PIPE; AIR,MAG VLV 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) L=830 SERVICED BY L=900	1-47428-813-0	01	1	1510-
287	PIPE; AIR,MAG VLV 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=830 SERVICED BY L=900	1-47428-813-0	01	1	1510-
287	PIPE; AIR,MAG VLV 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	1510-
287	PIPE; AIR,MAG VLV 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	1510-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=7	1-87411-017-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0809-
377	BOLT; BRKT FIX WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M8X25 FLANGE	0-28650-825-0	01	1	1510-
377	BOLT; BRKT FIX WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10X30 FLANGE	0-28651-030-0	01	1	1510-
377	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	04	1	1012-
377	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	04	1	1012-
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	0809-
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	03	1	0809-
377	BOLT; BRKT FIX 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	03	1	0809-0906
377	BOLT; BRKT FIX 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	03	1	0809-0906
377	BOLT; BRKT FIX 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	03	1	0907-1011
377	BOLT; BRKT FIX 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	03	1	0907-1011
377	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	03	1	1012-
377	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	03	1	1012-
377	BOLT; BRKT FIX 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	03	1	1012-
377	BOLT; BRKT FIX 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	03	1	1012-
428	NUT; BRKT WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10 FLANGE	0-91180-210-0	01	1	1510-
428	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1012-
428	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0809-
428	NUT; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-
434	CLIP 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	05	1	1510-
434	CLIP 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	04	1	1510-
434	CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) BRAKE REGULATION ECE(TDV) (A) L=350	1-09707-183-0	03	1	1510-
434	CLIP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1108-
434	CLIP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) ID=16 L=20	0-95235-536-0	02	1	1012-
434	CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. RIGID SEAT WO/ARM REST<TAZ> (E) ID=24 L=24	1-09701-001-1	01	1	1009-1107
434	CLIP 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	09	1	1012-
434	CLIP 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	09	1	1012-
434	CLIP (B) ID=15 H=24 L=20	1-09700-606-0	02	1	0809-0811
434	CLIP 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15	1-09709-279-1	01	1	0809-0906
434	CLIP 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15	1-09709-279-1	01	1	0907-1509
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (D) ID=10 & 15	1-09709-279-1	01	1	1510-
434	CLIP 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15	1-09709-279-1	01	1	1510-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	0809-1008
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1009-1109
434	CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1009-1109
434	CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	01	1	1009-1109
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1110-
434	CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	12	1	0809-0906
434	CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	12	1	0809-0906
434	CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	12	1	0907-1109
434	CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	12	1	0907-1109
434	CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	13	1	1110-
434	CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	13	1	1110-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20	0-95234-635-0	01	1	0809-
450	BRACKET; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (D)	8-98100-216-1	01	1	1510-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (E)	8-98116-680-0	01	1	1510-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98117-686-0	04	1	1012-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C)	8-98117-686-0	04	1	1012-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47477-694-0	01	1	0809-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A)	1-47477-694-0	01	1	0809-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98070-479-0	01	1	0809-1107
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98070-479-0	01	1	0809-1107
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98180-947-0	01	1	1108-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98180-947-0	01	1	1108-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98117-686-0	03	1	0809-0906
450	BRACKET; CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C)	8-98117-686-0	03	1	0809-0906
450	BRACKET; CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98117-686-0	03	1	0907-1011
450	BRACKET; CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C)	8-98117-686-0	03	1	0907-1011
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98117-686-0	03	1	1012-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C)	8-98117-686-0	03	1	1012-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98117-686-0	03	1	1012-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C)	8-98117-686-0	03	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
