4-65 — REAR LEAF SPRING (#392) — 61 parça

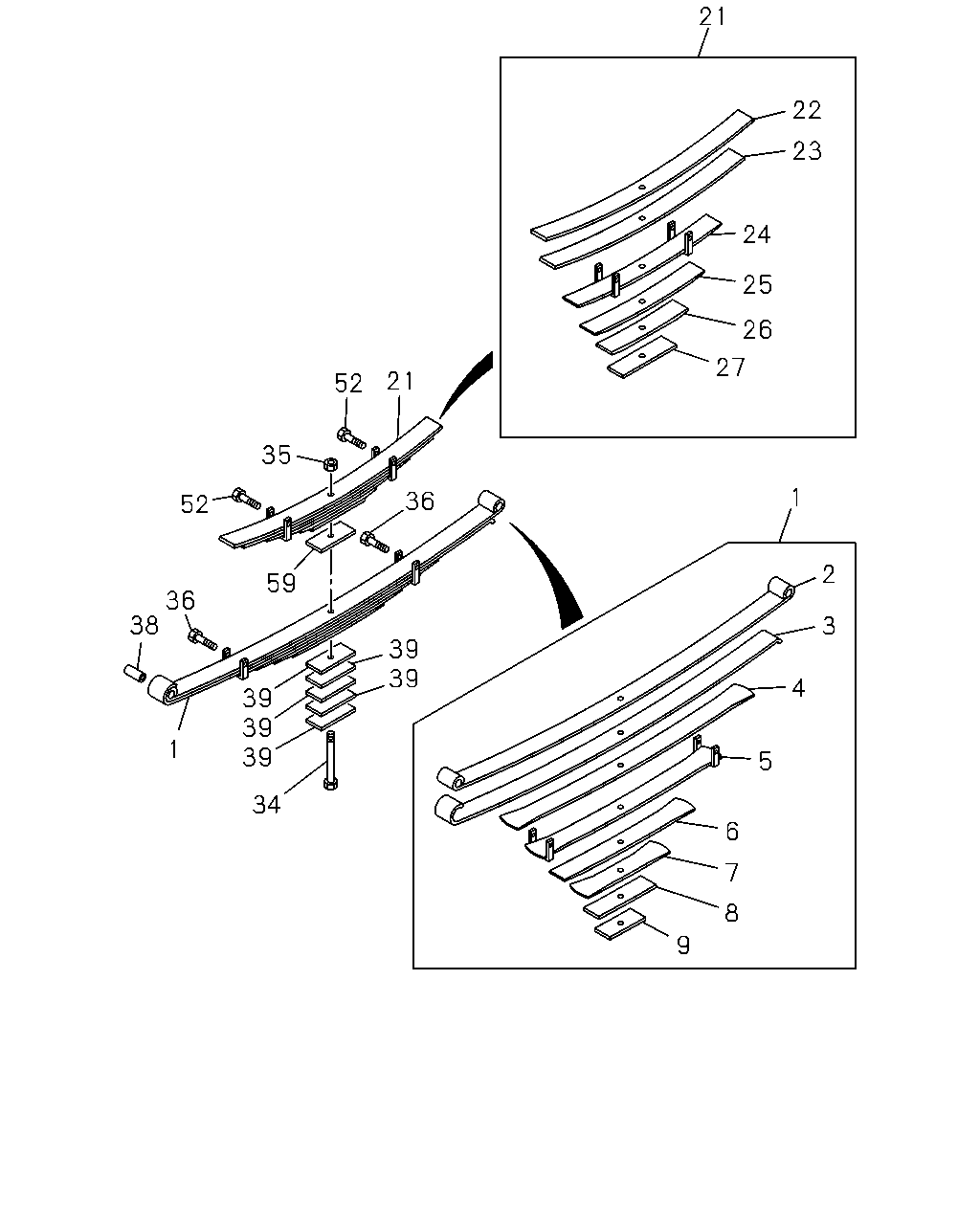

çizim 94541
21 22 23 24 25 26 27 21 52 35 1 36 52 2 59 36 38 3 39 39 4 39 39 39 1 5 34 6 7 8 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 1-51300-333-2 		1-51310-716-1 01 1 -
1 SPRING ASM; LEAF,RR MAIN
ASM PART: B = 1-51300-334-3 		1-51310-717-2 01 1 -
1 SPRING ASM; LEAF,RR MAIN
ASM PART: C = 1-51300-352-0 		1-51310-721-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 1-51300-333-2 		1-51311-716-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 1-51300-334-3 		1-51311-717-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: C = 1-51300-352-0 		1-51311-721-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 1-51300-333-2 		1-51312-716-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 1-51300-334-3 		1-51312-717-2 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: C = 1-51300-352-0 		1-51312-721-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 1-51300-333-2 		1-51313-716-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 1-51300-334-3 		1-51313-717-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: C = 1-51300-352-0 		1-51313-721-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
W/CLIP ASM PART: A = 1-51300-333-2 		1-51314-716-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
W/CLIP ASM PART: B = 1-51300-334-3 		1-51314-717-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: C = 1-51300-352-0 		1-51314-721-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 1-51300-333-2 		1-51315-716-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: B = 1-51300-334-3 		1-51315-717-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
W/CLIP ASM PART: C = 1-51300-352-0 		1-51315-721-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 1-51300-333-2 		1-51316-716-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: B = 1-51300-334-3 		1-51316-717-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: C = 1-51300-352-0 		1-51316-721-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 1-51300-333-2 		1-51317-716-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: B = 1-51300-334-3 		1-51317-717-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: C = 1-51300-352-0 		1-51317-721-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: C = 1-51300-352-0 		1-51318-721-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 1-51300-333-2 		1-51340-444-1 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: B = 1-51300-334-3 		1-51340-445-1 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: C = 1-51300-352-0 		1-51340-450-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 1-51300-333-2 		1-51341-444-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 1-51300-334-3 		1-51341-445-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: C = 1-51300-352-0 		1-51341-450-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 1-51300-333-2 		1-51342-444-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: B = 1-51300-334-3 		1-51342-445-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: C = 1-51300-352-0 		1-51342-450-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
W/CLIP ASM PART: A = 1-51300-333-2 		1-51343-444-1 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
W/CLIP ASM PART: B = 1-51300-334-3 		1-51343-445-1 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: C = 1-51300-352-0 		1-51343-450-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 1-51300-333-2 		1-51344-444-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: B = 1-51300-334-3 		1-51344-445-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
W/CLIP ASM PART: C = 1-51300-352-0 		1-51344-450-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 1-51300-333-2 		1-51345-444-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: B = 1-51300-334-3 		1-51345-445-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: C = 1-51300-352-0 		1-51345-450-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 1-51300-333-2 		1-51346-444-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: B = 1-51300-334-3 		1-51346-445-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: C = 1-51300-352-0 		1-51346-450-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=240 ASM PART: C = 1-51300-352-0 		1-51356-131-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=215 ASM PART: A = 1-51300-333-2 		1-51356-190-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: B = 1-51300-334-3 		1-51356-233-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: C = 1-51300-352-0 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
ASM PART: A = 1-51300-333-2, B = 1-51300-334-3 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X99 ASM PART: A = 1-51300-333-2, B = 1-51300-334-3 		1-09000-328-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: C = 1-51300-352-0 		1-09000-334-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: C = 1-51300-352-0 		1-51351-010-0 01 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51300-333-2, B = 1-51300-334-3 		9-51351-019-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
T=10 ASM PART: C = 1-51300-352-0 		1-51377-118-0 05 1 -
39 SEAT; LEAF SPR,RR MAIN
T=12 ASM PART: A = 1-51300-333-2 		1-51377-175-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
T=12 ASM PART: B = 1-51300-334-3 		1-51377-175-0 01 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M10X117 ASM PART: C = 1-51300-352-0 		1-09000-334-0 02 1 -
59 SEAT; RR SPRING,SUB
T=10 ASM PART: C = 1-51300-352-0 		1-51377-118-0 01 1 -
59 SEAT; RR SPRING,SUB
T=12 ASM PART: A = 1-51300-333-2, B = 1-51300-334-3 		1-51377-171-0 01 1 -
