3-58 — FIXING PARTS; OIL PIPING (#39199) — 39 parça

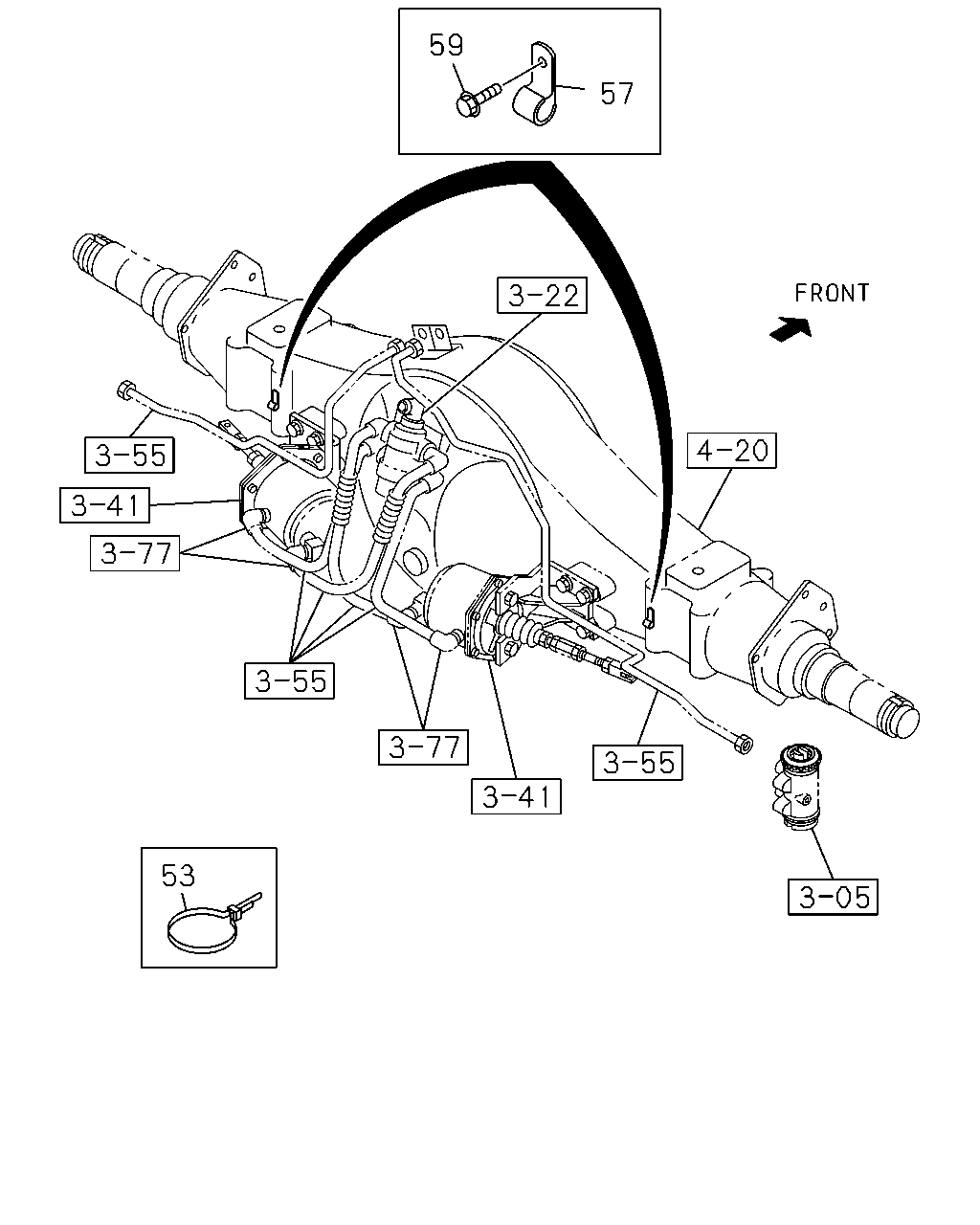

59 57 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	CLIP; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	05	1	0809-
57	CLIP; BRK PIPE,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=7 L=20	0-95234-635-0	02	1	0809-
57	CLIP; BRK PIPE,RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=7 L=20	0-95234-635-0	05	1	0809-
59	BOLT; BRK PIPE,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X10 FLANGE	0-28050-810-0	02	1	0809-
59	BOLT; BRK PIPE,RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X10 FLANGE	0-28050-810-0	05	1	0809-

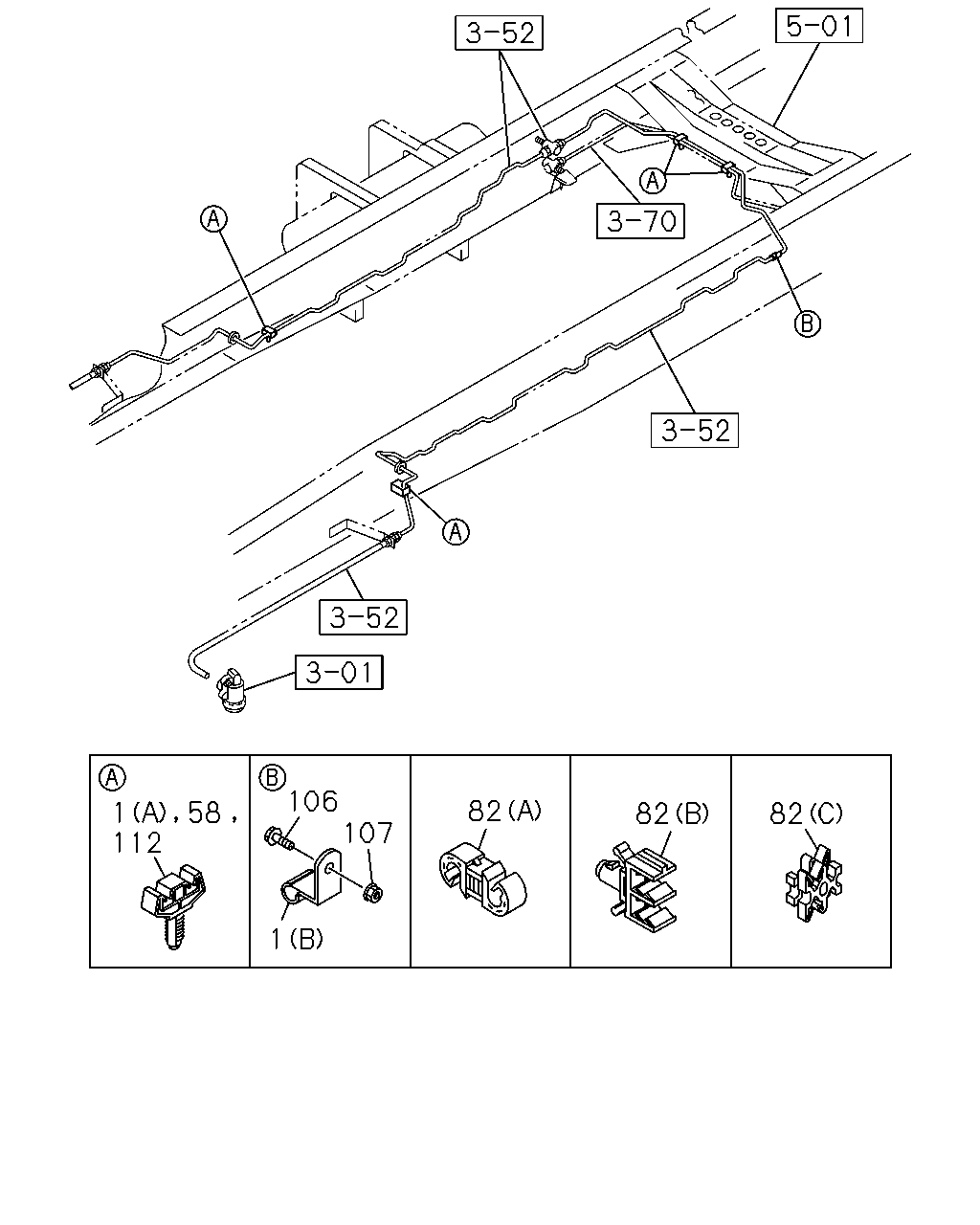

1 58 112 106 107 1 82 82 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; OIL PIPE TO BODY 4HK1-TCS ENG(RJS) (B) ID=6 H=20 L=20	8-98040-714-0	04	1	1110-
1	CLIP; OIL PIPE TO BODY (B) ID=6 H=20 L=20	8-98040-714-0	05	1	0809-0901
1	CLIP; OIL PIPE TO BODY HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=6 H=20 L=20	8-98040-714-0	05	1	0902-0909
1	CLIP; OIL PIPE TO BODY 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=6 H=20 L=20	8-98040-714-0	05	1	0910-
1	CLIP; OIL PIPE TO BODY 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-254-1	07	1	0809-1109
1	CLIP; OIL PIPE TO BODY HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-254-1	07	1	1110-
1	CLIP; OIL PIPE TO BODY 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-254-1	11	1	0809-0901
1	CLIP; OIL PIPE TO BODY 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-254-1	12	1	0902-
58	CLIP; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98012-254-1	05	1	0809-
58	CLIP; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98012-254-1	06	1	0809-
82	CLIP; OIL PIPE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=4.7X4	1-09701-304-0	03	1	1510-
82	CLIP; OIL PIPE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=4.76 & 6.35	1-09709-304-0	03	1	1510-
82	CLIP; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=4.8X2	8-94316-410-0	01	1	0809-
82	CLIP; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=4.76 & 4.76	1-09709-303-0	02	1	0809-1509
82	CLIP; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 4.76	1-09709-303-0	02	1	1510-
82	CLIP; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=4.76 & 6.35	1-09709-304-0	04	1	0809-1509
82	CLIP; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A) ID=4.76 & 6.35	1-09709-304-0	04	1	1510-
82	CLIP; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=4.76 & 10.0	1-09709-305-0	01	1	0809-0910
82	CLIP; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=4.76 & 10.0	1-09709-305-0	01	1	0911-
82	CLIP; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=4.76 & 10.0	1-09709-305-0	01	1	0911-
106	BOLT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	04	1	1110-
106	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	05	1	0809-0901
106	BOLT; CLIP,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	05	1	0902-0909
106	BOLT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	05	1	0910-
107	NUT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	04	1	1110-
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	05	1	0809-0901
107	NUT; CLIP,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	05	1	0902-0909
107	NUT; CLIP,OIL PIPE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	05	1	0910-
112	CLIP; OIL PIPE WHEEL BASE 3700MM(37W)	8-98012-254-1	02	1	0809-
112	CLIP; OIL PIPE WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98012-254-1	04	1	0809-
112	CLIP; OIL PIPE WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98012-254-1	04	1	0809-
112	CLIP; OIL PIPE WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98012-254-1	03	1	0809-0906
112	CLIP; OIL PIPE WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98012-254-1	03	1	0907-
112	CLIP; OIL PIPE WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98012-254-1	05	1	0809-
