Sayfa 3-55 - Isuzu EPC

3-55 — BRAKE PIPING; OIL,REAR (#39198) — 276 parça

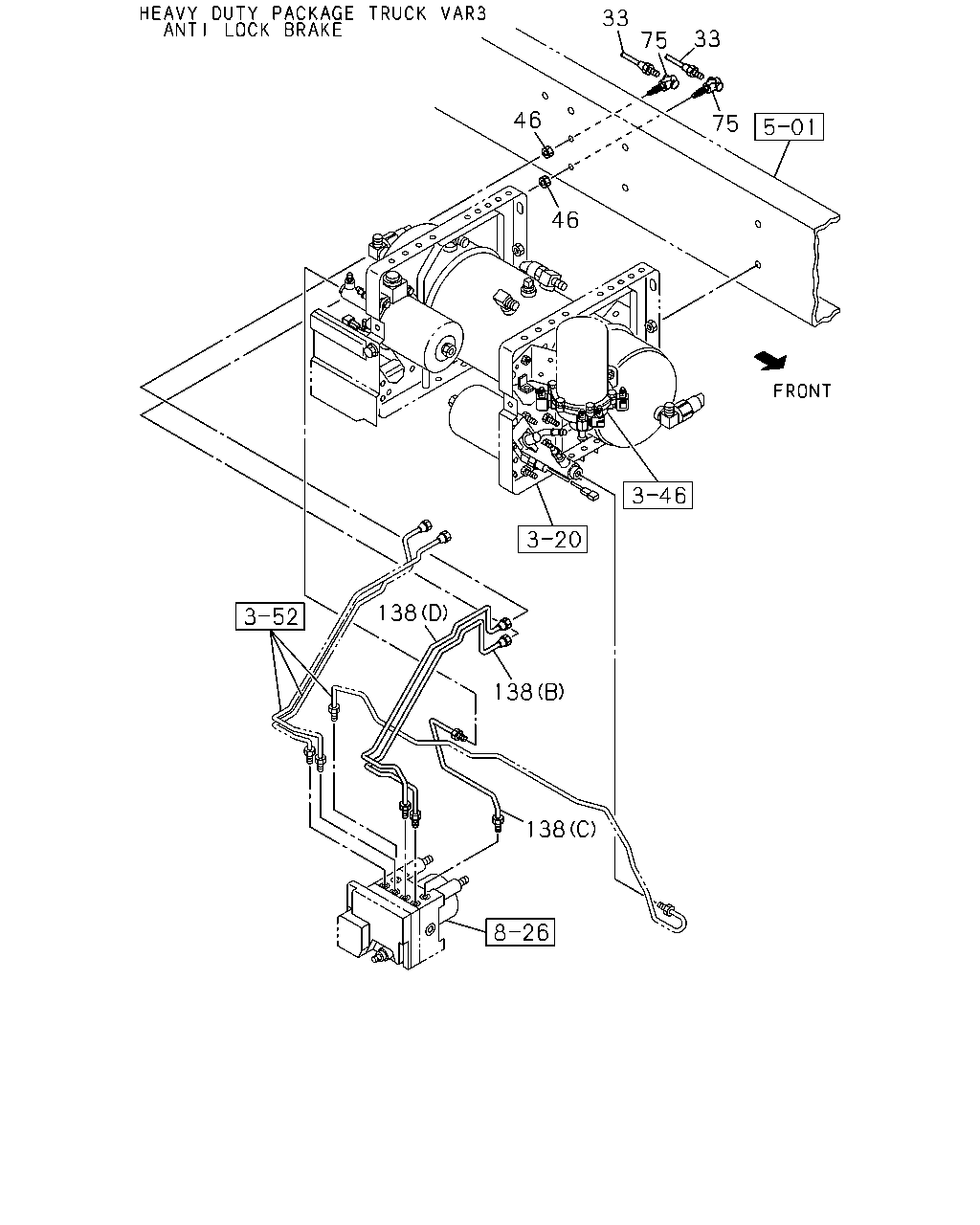

138 32 39 33 75 46 5 3 4 126 1 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=350	8-97138-885-0	02	1	1510-
1	HOSE; FLEX,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=485	8-98057-386-1	01	1	0809-1509
1	HOSE; FLEX,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	1510-
1	HOSE; FLEX,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=730	0-05213-730-0	01	1	0809-
3	BRACKET; FLEX HOSE,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98065-999-2	01	1	0809-0906
3	BRACKET; FLEX HOSE,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98065-999-2	01	1	0907-
3	BRACKET; FLEX HOSE,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98119-699-1	01	1	0809-
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91180-108-0	02	1	0809-
4	NUT; BRKT,FLEX HOSE,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12	9-09840-280-0	01	1	0809-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	0809-
32	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 STRAIGHT	0-92107-005-0	02	1	1510-
32	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 STRAIGHT	0-92107-005-0	01	1	0809-1509
32	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	01	1	1510-
32	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 L=40	0-92113-006-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=997	8-98173-020-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1073	8-98123-537-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1578	8-98069-808-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2078	8-98076-348-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1071	8-98173-019-0	01	1	1012-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1557	8-98173-021-0	01	1	1012-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2057	8-98173-022-0	01	1	1012-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1099	8-98123-538-0	01	1	0809-1005
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1099	8-98123-538-0	01	1	1006-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=853 SERVICED BY L=900	1-47428-729-0	01	1	0809-0809
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=853 SERVICED BY L=900	1-47428-729-0	01	1	0810-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1622	8-98069-807-0	01	1	0809-1005
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1622	8-98069-807-0	01	1	1006-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1423 SERVICED BY L=1500	1-47428-735-0	01	1	0809-0809
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1423 SERVICED BY L=1500	1-47428-735-0	01	1	0810-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2124	8-98076-347-0	01	1	0809-1005
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2124	8-98076-347-0	01	1	1006-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1923 SERVICED BY L=2000	1-47428-739-0	01	1	0809-0809
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1923 SERVICED BY L=2000	1-47428-739-0	01	1	0810-
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1772	8-98106-486-0	01	1	1510-
39	PIPE; OIL,UNION TO RR FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1710	8-98106-485-0	01	1	0809-0906
39	PIPE; OIL,UNION TO RR FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1710	8-98106-485-0	01	1	0907-
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2268 SERVICED BY L=2350	1-47428-741-0	01	1	0809-
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8	1-09400-029-0	02	1	1510-
46	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8	1-09400-029-0	01	1	0809-1509
46	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1510-
46	NUT; UNION,OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	01	1	0809-1509
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	01	1	1510-
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW	8-98018-438-0	02	1	1510-
75	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW	8-98018-438-0	01	1	0809-1509
75	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1510-
75	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 ELBOW	0-92125-206-0	01	1	0809-1509
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 ELBOW	0-92125-206-0	01	1	1510-
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	1510-
126	CLIP; FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97360-054-0	01	1	0809-1509
126	CLIP; FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (C) L=296	8-98066-107-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) (D) L=733	8-98169-366-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) (B) L=781	8-98169-367-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (D) L=657	8-98012-129-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) L=703	8-98012-146-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=572	8-98173-026-0	01	1	1012-1509
138	PIPE; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A) L=572	8-98173-026-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=497	8-98108-125-0	01	1	0809-1005
138	PIPE; HYDRAULIC UNIT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=497	8-98108-125-0	01	1	1006-1509
138	PIPE; HYDRAULIC UNIT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A) L=497	8-98108-125-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=420	8-98120-163-0	01	1	0809-1509
138	PIPE; HYDRAULIC UNIT EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=420	8-98120-163-0	01	1	1510-

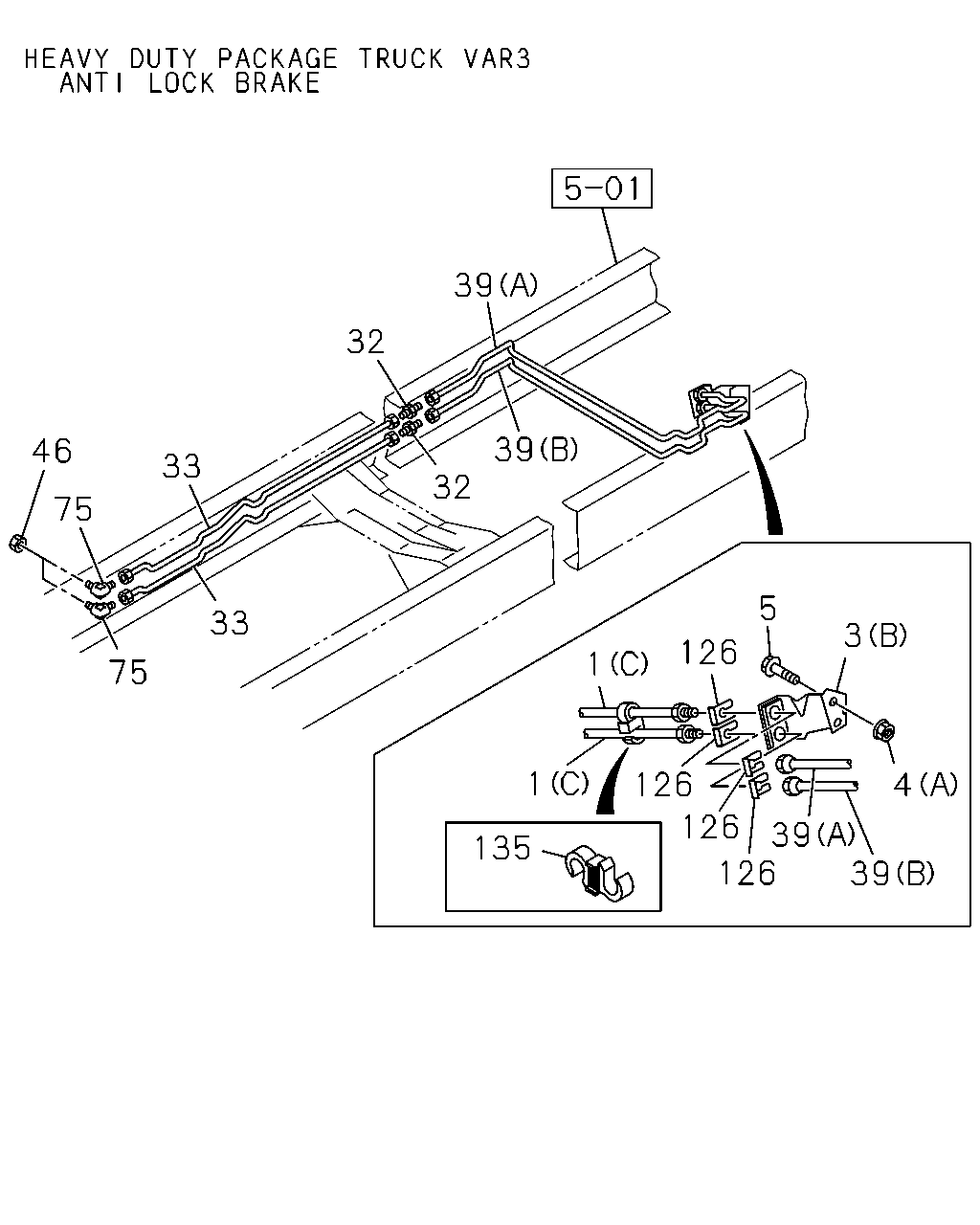

39 32 33 46 75 75 33 32 39 5 126 3 1 1 4 39 126 126 126 39 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=350	8-97138-885-0	02	1	1510-
1	HOSE; FLEX,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=485	8-98057-386-1	01	1	0809-1509
1	HOSE; FLEX,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	1510-
1	HOSE; FLEX,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=730	0-05213-730-0	01	1	0809-
3	BRACKET; FLEX HOSE,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98065-999-2	01	1	0809-0906
3	BRACKET; FLEX HOSE,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98065-999-2	01	1	0907-
3	BRACKET; FLEX HOSE,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98119-699-1	01	1	0809-
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91180-108-0	02	1	0809-
4	NUT; BRKT,FLEX HOSE,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12	9-09840-280-0	01	1	0809-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	0809-
32	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 STRAIGHT	0-92107-005-0	02	1	1510-
32	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 STRAIGHT	0-92107-005-0	01	1	0809-1509
32	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	01	1	1510-
32	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 L=40	0-92113-006-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=997	8-98173-020-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1073	8-98123-537-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1578	8-98069-808-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2078	8-98076-348-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1071	8-98173-019-0	01	1	1012-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1557	8-98173-021-0	01	1	1012-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2057	8-98173-022-0	01	1	1012-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1099	8-98123-538-0	01	1	0809-1005
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1099	8-98123-538-0	01	1	1006-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=853 SERVICED BY L=900	1-47428-729-0	01	1	0809-0809
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=853 SERVICED BY L=900	1-47428-729-0	01	1	0810-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1622	8-98069-807-0	01	1	0809-1005
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1622	8-98069-807-0	01	1	1006-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1423 SERVICED BY L=1500	1-47428-735-0	01	1	0809-0809
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1423 SERVICED BY L=1500	1-47428-735-0	01	1	0810-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2124	8-98076-347-0	01	1	0809-1005
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2124	8-98076-347-0	01	1	1006-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1923 SERVICED BY L=2000	1-47428-739-0	01	1	0809-0809
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1923 SERVICED BY L=2000	1-47428-739-0	01	1	0810-
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1772	8-98106-486-0	01	1	1510-
39	PIPE; OIL,UNION TO RR FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1710	8-98106-485-0	01	1	0809-0906
39	PIPE; OIL,UNION TO RR FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1710	8-98106-485-0	01	1	0907-
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2268 SERVICED BY L=2350	1-47428-741-0	01	1	0809-
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8	1-09400-029-0	02	1	1510-
46	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8	1-09400-029-0	01	1	0809-1509
46	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1510-
46	NUT; UNION,OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	01	1	0809-1509
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	01	1	1510-
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW	8-98018-438-0	02	1	1510-
75	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW	8-98018-438-0	01	1	0809-1509
75	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1510-
75	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 ELBOW	0-92125-206-0	01	1	0809-1509
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 ELBOW	0-92125-206-0	01	1	1510-
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	1510-
126	CLIP; FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97360-054-0	01	1	0809-1509
126	CLIP; FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	1510-
135	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5) ID=10 & 10	1-09709-277-1	01	1	1510-

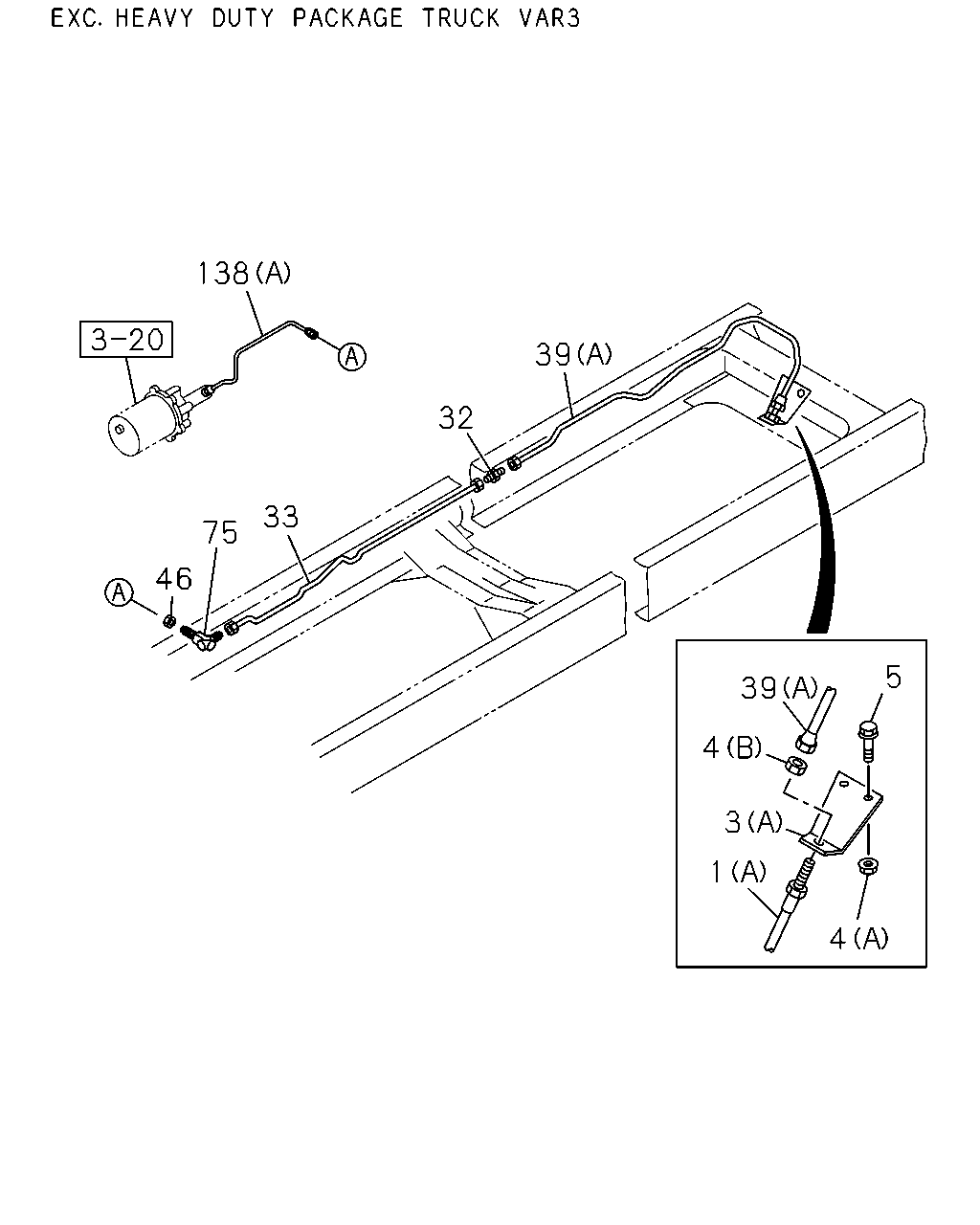

138 75 33 46 32 39 39 4 5 4 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=350	8-97138-885-0	02	1	1510-
1	HOSE; FLEX,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=485	8-98057-386-1	01	1	0809-1509
1	HOSE; FLEX,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	1510-
1	HOSE; FLEX,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=730	0-05213-730-0	01	1	0809-
3	BRACKET; FLEX HOSE,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98065-999-2	01	1	0809-0906
3	BRACKET; FLEX HOSE,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98065-999-2	01	1	0907-
3	BRACKET; FLEX HOSE,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98119-699-1	01	1	0809-
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91180-108-0	02	1	0809-
4	NUT; BRKT,FLEX HOSE,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12	9-09840-280-0	01	1	0809-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	0809-
32	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 STRAIGHT	0-92107-005-0	02	1	1510-
32	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 STRAIGHT	0-92107-005-0	01	1	0809-1509
32	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 STRAIGHT	0-92107-005-0	01	1	1510-
32	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 L=40	0-92113-006-0	01	1	0809-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=997	8-98173-020-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1073	8-98123-537-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1578	8-98069-808-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2078	8-98076-348-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1071	8-98173-019-0	01	1	1012-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1557	8-98173-021-0	01	1	1012-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2057	8-98173-022-0	01	1	1012-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1099	8-98123-538-0	01	1	0809-1005
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1099	8-98123-538-0	01	1	1006-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=853 SERVICED BY L=900	1-47428-729-0	01	1	0809-0809
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=853 SERVICED BY L=900	1-47428-729-0	01	1	0810-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1622	8-98069-807-0	01	1	0809-1005
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1622	8-98069-807-0	01	1	1006-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1423 SERVICED BY L=1500	1-47428-735-0	01	1	0809-0809
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1423 SERVICED BY L=1500	1-47428-735-0	01	1	0810-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2124	8-98076-347-0	01	1	0809-1005
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2124	8-98076-347-0	01	1	1006-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1923 SERVICED BY L=2000	1-47428-739-0	01	1	0809-0809
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1923 SERVICED BY L=2000	1-47428-739-0	01	1	0810-
39	PIPE; OIL,UNION TO RR FLEX HOSE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1772	8-98106-486-0	01	1	1510-
39	PIPE; OIL,UNION TO RR FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1710	8-98106-485-0	01	1	0809-0906
39	PIPE; OIL,UNION TO RR FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1710	8-98106-485-0	01	1	0907-
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2268 SERVICED BY L=2350	1-47428-741-0	01	1	0809-
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8	1-09400-029-0	02	1	1510-
46	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8	1-09400-029-0	01	1	0809-1509
46	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1510-
46	NUT; UNION,OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	01	1	0809-1509
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	01	1	1510-
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW	8-98018-438-0	02	1	1510-
75	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW	8-98018-438-0	01	1	0809-1509
75	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1510-
75	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 ELBOW	0-92125-206-0	01	1	0809-1509
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 ELBOW	0-92125-206-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (C) L=296	8-98066-107-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) (D) L=733	8-98169-366-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) (B) L=781	8-98169-367-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (D) L=657	8-98012-129-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) L=703	8-98012-146-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=572	8-98173-026-0	01	1	1012-1509
138	PIPE; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A) L=572	8-98173-026-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=497	8-98108-125-0	01	1	0809-1005
138	PIPE; HYDRAULIC UNIT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=497	8-98108-125-0	01	1	1006-1509
138	PIPE; HYDRAULIC UNIT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A) L=497	8-98108-125-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=420	8-98120-163-0	01	1	0809-1509
138	PIPE; HYDRAULIC UNIT EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=420	8-98120-163-0	01	1	1510-

13 13

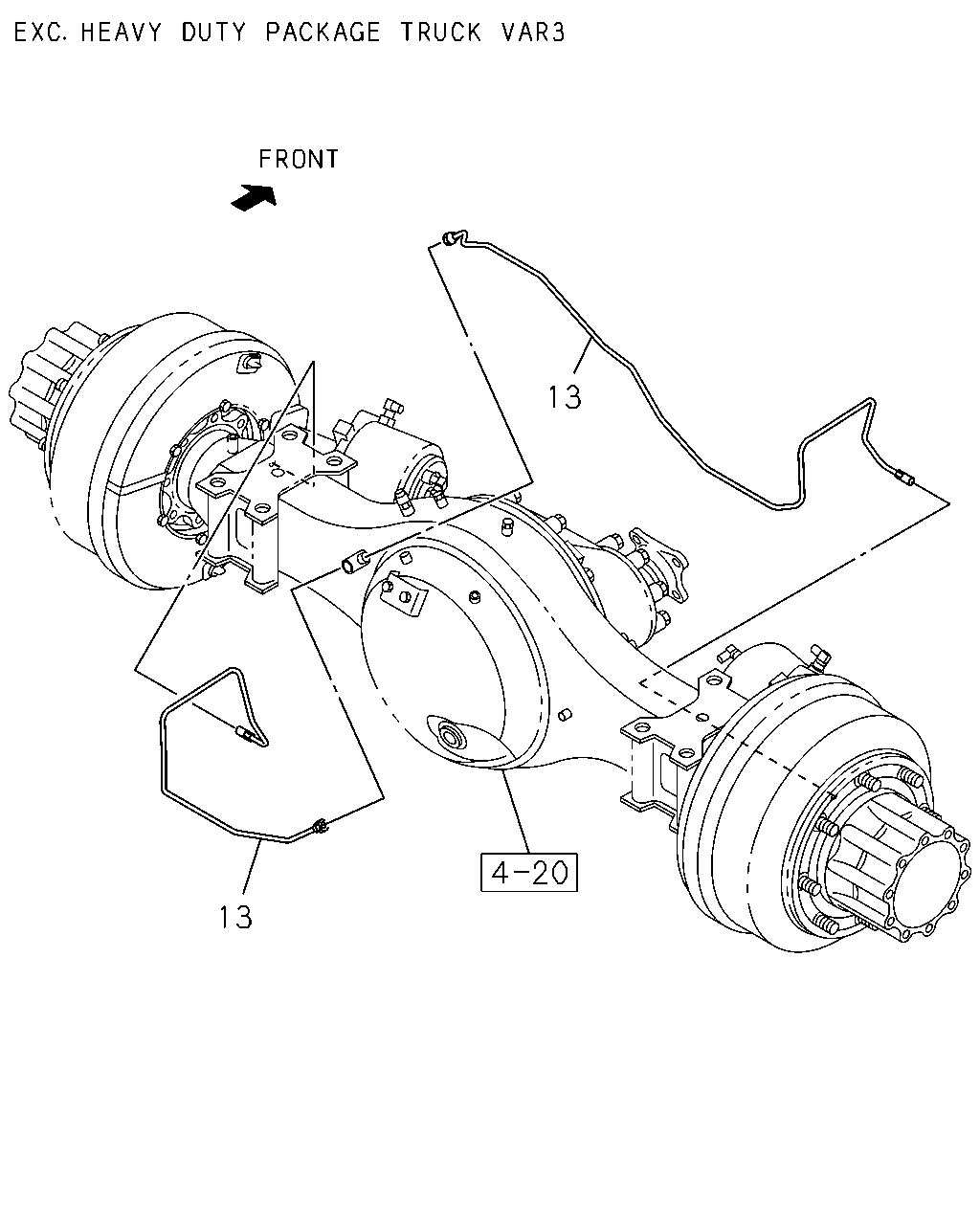

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98207-113-0	01	1	1510-
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98207-114-0	01	1	1510-
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98029-683-1	01	1	1510-
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98029-684-0	01	1	1510-
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98029-685-1	01	1	0809-1509
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5)	8-98029-685-1	01	1	1510-
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98029-686-0	01	1	0809-1509
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5)	8-98029-686-0	01	1	1510-
13	PIPE; BRK,RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1190	8-98012-467-0	01	1	0809-
13	PIPE; BRK,RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=600	8-98012-468-0	01	1	0809-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98029-655-1	01	1	0809-1302
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98207-111-0	01	1	1303-1509
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5)	8-98207-111-0	01	1	1510-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98029-656-0	01	1	0809-1302
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98207-112-0	01	1	1303-1509
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5)	8-98207-112-0	01	1	1510-

12 1 13 106 106 13

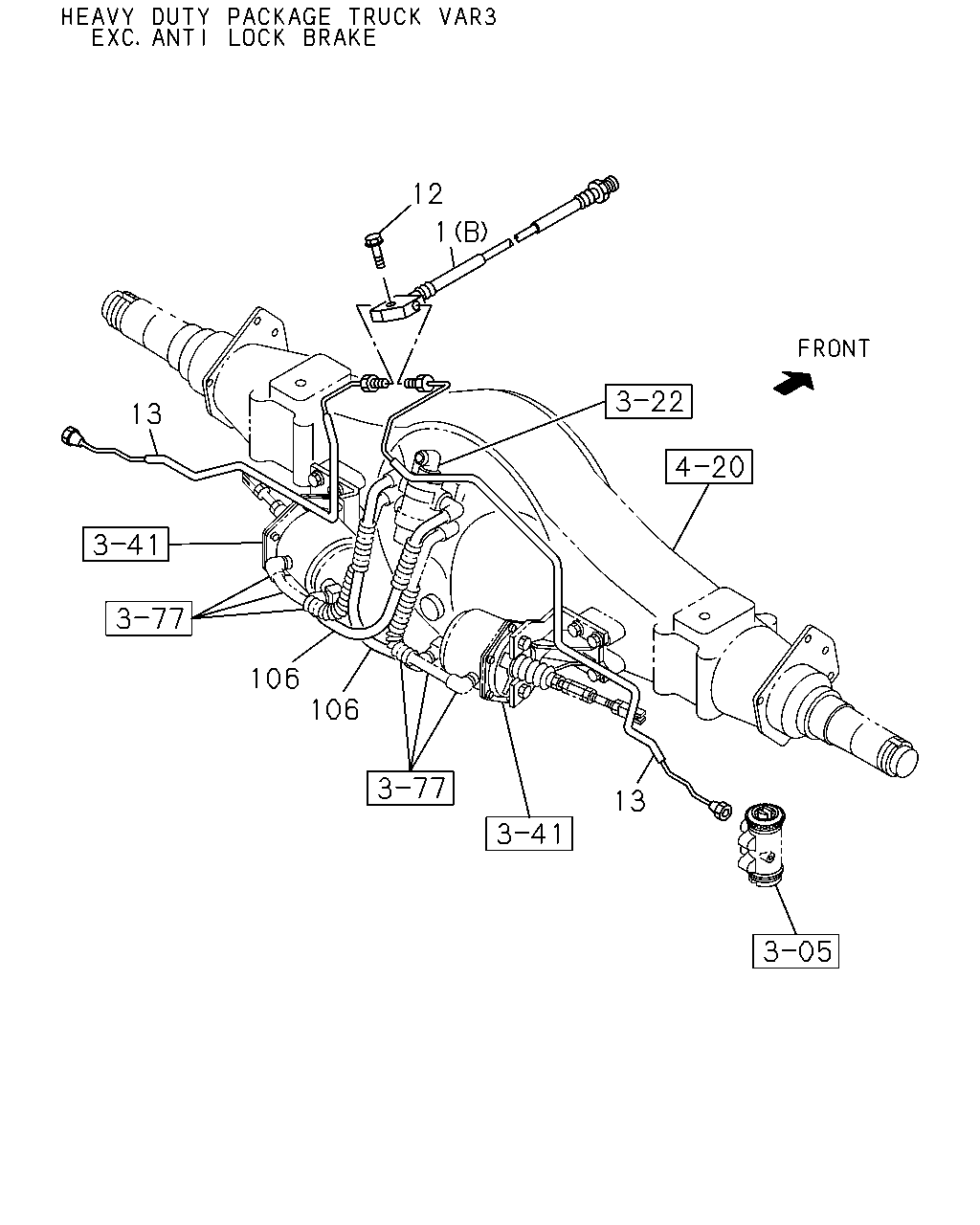

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=350	8-97138-885-0	02	1	1510-
1	HOSE; FLEX,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=485	8-98057-386-1	01	1	0809-1509
1	HOSE; FLEX,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	1510-
1	HOSE; FLEX,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=730	0-05213-730-0	01	1	0809-
12	BOLT; FLEX HOSE TO RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	01	1	0809-0901
12	BOLT; FLEX HOSE TO RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	01	1	0902-1509
12	BOLT; FLEX HOSE TO RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M8X35 FLANGE	0-28650-835-0	01	1	1510-
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98207-113-0	01	1	1510-
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98207-114-0	01	1	1510-
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98029-683-1	01	1	1510-
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98029-684-0	01	1	1510-
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98029-685-1	01	1	0809-1509
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5)	8-98029-685-1	01	1	1510-
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98029-686-0	01	1	0809-1509
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5)	8-98029-686-0	01	1	1510-
13	PIPE; BRK,RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1190	8-98012-467-0	01	1	0809-
13	PIPE; BRK,RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=600	8-98012-468-0	01	1	0809-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98029-655-1	01	1	0809-1302
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98207-111-0	01	1	1303-1509
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5)	8-98207-111-0	01	1	1510-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98029-656-0	01	1	0809-1302
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98207-112-0	01	1	1303-1509
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5)	8-98207-112-0	01	1	1510-
106	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98061-971-0	02	1	0809-

126 1 1 13 13

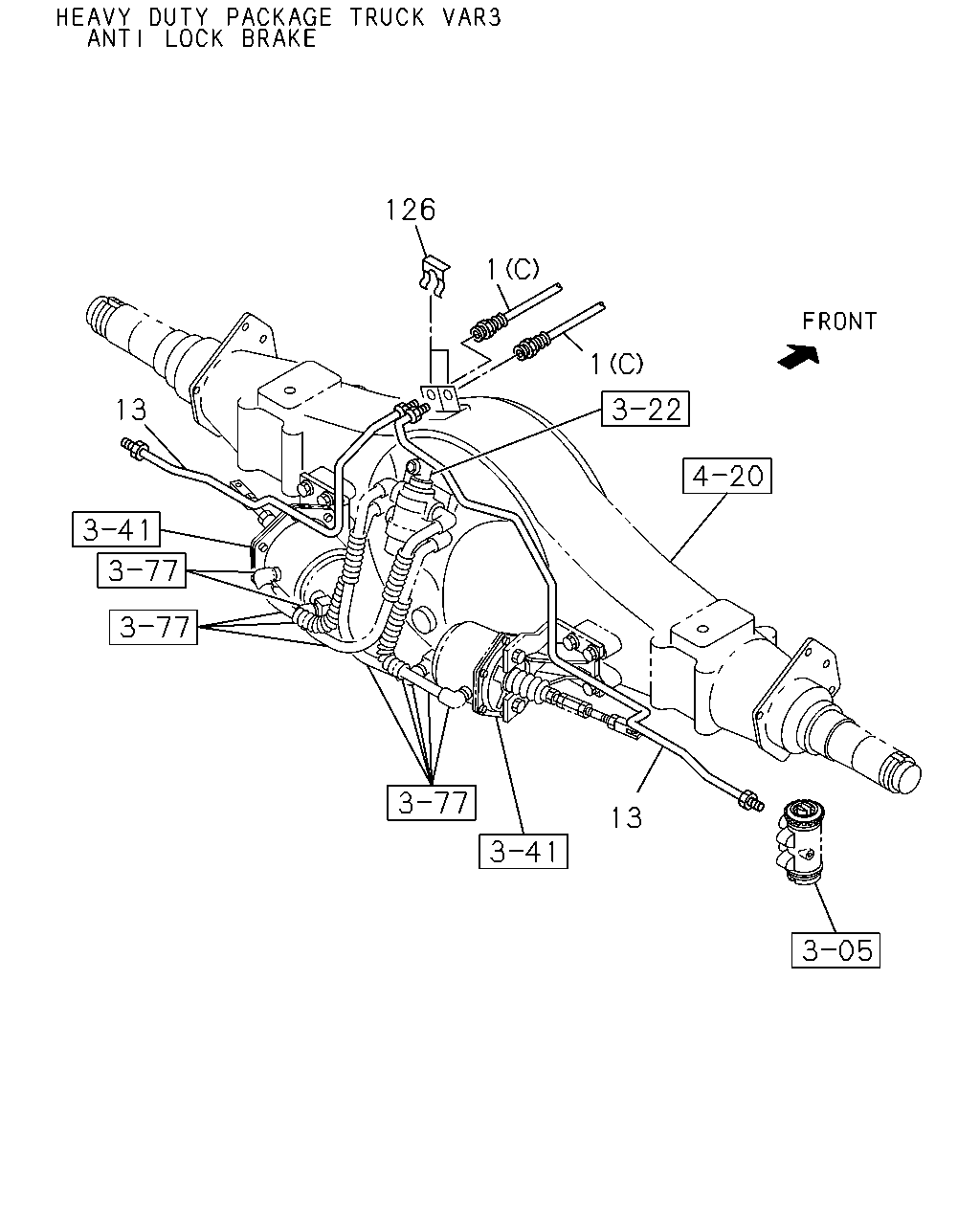

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=350	8-97138-885-0	02	1	1510-
1	HOSE; FLEX,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=485	8-98057-386-1	01	1	0809-1509
1	HOSE; FLEX,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=485	8-98057-386-1	01	1	1510-
1	HOSE; FLEX,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=730	0-05213-730-0	01	1	0809-
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98207-113-0	01	1	1510-
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98207-114-0	01	1	1510-
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98029-683-1	01	1	1510-
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98029-684-0	01	1	1510-
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98029-685-1	01	1	0809-1509
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5)	8-98029-685-1	01	1	1510-
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98029-686-0	01	1	0809-1509
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5)	8-98029-686-0	01	1	1510-
13	PIPE; BRK,RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1190	8-98012-467-0	01	1	0809-
13	PIPE; BRK,RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=600	8-98012-468-0	01	1	0809-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98029-655-1	01	1	0809-1302
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98207-111-0	01	1	1303-1509
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5)	8-98207-111-0	01	1	1510-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98029-656-0	01	1	0809-1302
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98207-112-0	01	1	1303-1509
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5)	8-98207-112-0	01	1	1510-
126	CLIP; FLEX HOSE ANTI LOCK BRAKE(JE5)	8-97360-054-0	04	1	1510-
126	CLIP; FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97360-054-0	01	1	0809-1509
126	CLIP; FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-97360-054-0	01	1	1510-

33 33 75 46 75 46 138 138 138

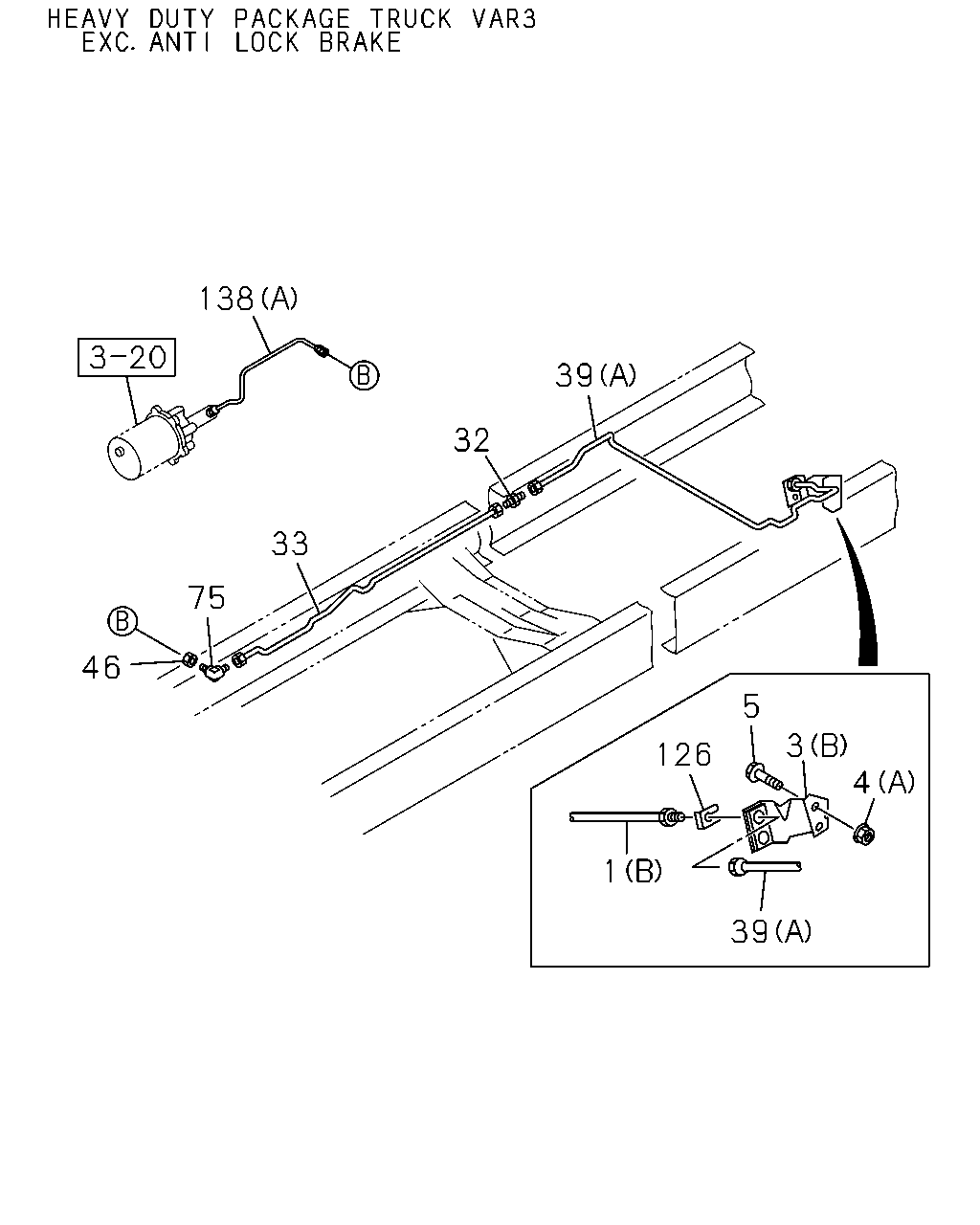

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=997	8-98173-020-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1073	8-98123-537-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1578	8-98069-808-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2078	8-98076-348-0	01	1	1510-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1071	8-98173-019-0	01	1	1012-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1557	8-98173-021-0	01	1	1012-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2057	8-98173-022-0	01	1	1012-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1099	8-98123-538-0	01	1	0809-1005
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1099	8-98123-538-0	01	1	1006-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=853 SERVICED BY L=900	1-47428-729-0	01	1	0809-0809
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=853 SERVICED BY L=900	1-47428-729-0	01	1	0810-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1622	8-98069-807-0	01	1	0809-1005
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1622	8-98069-807-0	01	1	1006-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1423 SERVICED BY L=1500	1-47428-735-0	01	1	0809-0809
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1423 SERVICED BY L=1500	1-47428-735-0	01	1	0810-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2124	8-98076-347-0	01	1	0809-1005
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2124	8-98076-347-0	01	1	1006-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1923 SERVICED BY L=2000	1-47428-739-0	01	1	0809-0809
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1923 SERVICED BY L=2000	1-47428-739-0	01	1	0810-
46	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8	1-09400-029-0	02	1	1510-
46	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8	1-09400-029-0	01	1	0809-1509
46	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1510-
46	NUT; UNION,OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	01	1	0809-1509
46	NUT; UNION,OIL PIPE EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	01	1	1510-
75	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW	8-98018-438-0	02	1	1510-
75	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X2 ELBOW	8-98018-438-0	01	1	0809-1509
75	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10X2 ELBOW	8-98018-438-0	01	1	1510-
75	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 ELBOW	0-92125-206-0	01	1	0809-1509
75	UNION; OIL PIPE EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 ELBOW	0-92125-206-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT ANTI LOCK BRAKE(JE5) (C) L=296	8-98066-107-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) (D) L=733	8-98169-366-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) (B) L=781	8-98169-367-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (D) L=657	8-98012-129-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (B) L=703	8-98012-146-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=572	8-98173-026-0	01	1	1012-1509
138	PIPE; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A) L=572	8-98173-026-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=497	8-98108-125-0	01	1	0809-1005
138	PIPE; HYDRAULIC UNIT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=497	8-98108-125-0	01	1	1006-1509
138	PIPE; HYDRAULIC UNIT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A) L=497	8-98108-125-0	01	1	1510-
138	PIPE; HYDRAULIC UNIT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=420	8-98120-163-0	01	1	0809-1509
138	PIPE; HYDRAULIC UNIT EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=420	8-98120-163-0	01	1	1510-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
