Sayfa 3-52 - Isuzu EPC

3-52 — BRAKE PIPING; OIL,FRONT (#39197) — 210 parça

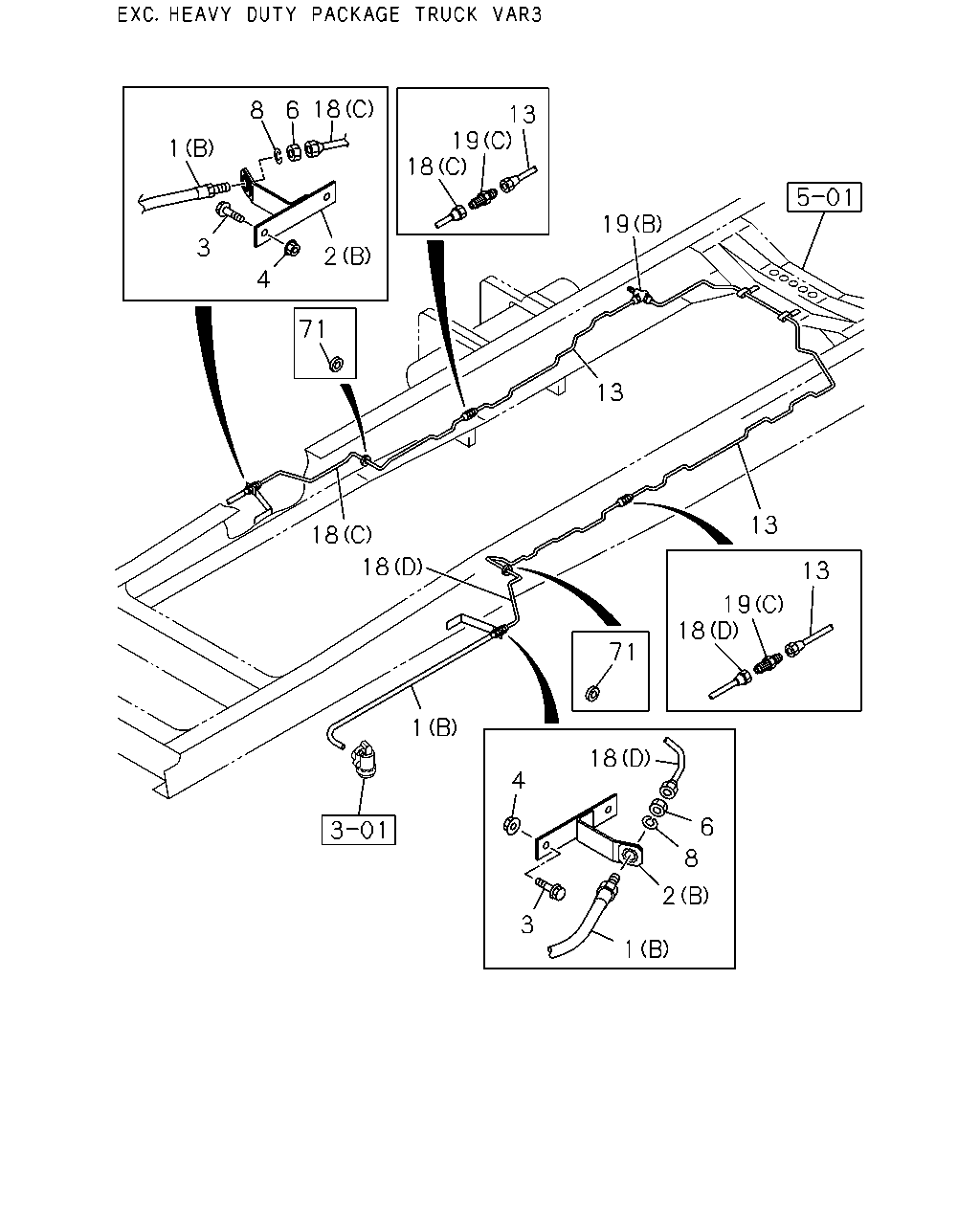

1 3 4 2 18 6 8 18 19 13 71 19 13 18 18 1 4 3 18 6 8 2 1 71 18 19 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=330	8-98024-433-0	02	1	0809-
1	HOSE; FLEX,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-714-0	02	1	0809-
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	0809-0906
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	0907-1011
2	BRACKET; FLEX HOSE,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	1012-
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-698-1	02	1	0809-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0809-
4	NUT; FLEX HOSE BRKT,FRT BRK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	0809-0906
4	NUT; FLEX HOSE BRKT,FRT BRK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	0907-0907
4	NUT; FLEX HOSE BRKT,FRT BRK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	0907-1011
4	NUT; FLEX HOSE BRKT,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	1012-
6	NUT; FLEX HOSE,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	02	1	0809-
8	GASKET; FLEX HOSE,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=9 OD=17	9-09920-472-0	02	1	0809-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1785	8-98078-159-0	01	1	1510-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1267	8-98125-568-0	01	1	1012-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1826	8-98173-027-0	01	1	1012-1509
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) L=1826	8-98173-027-0	01	1	1510-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	0809-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	0809-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3240	8-98078-161-0	01	1	1510-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=689	8-98134-926-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=1111	8-98134-927-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3280	8-98113-895-0	01	1	0809-1509
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=3280	8-98113-895-0	01	1	1510-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1940	8-98067-420-1	01	1	0809-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=584 SERVICED BY L=600	1-47428-725-0	01	1	0809-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=527 SERVICED BY L=550	1-47428-724-0	01	1	0809-
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (E) M10X2 ELBOW	8-98018-438-0	02	1	1510-
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (D) M10 STRAIGHT	0-92107-005-0	02	1	1012-
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98113-738-0	01	1	0809-1509
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A)	8-98113-738-0	01	1	1510-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	0809-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 3WAY	0-92138-906-0	01	1	0809-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0809-

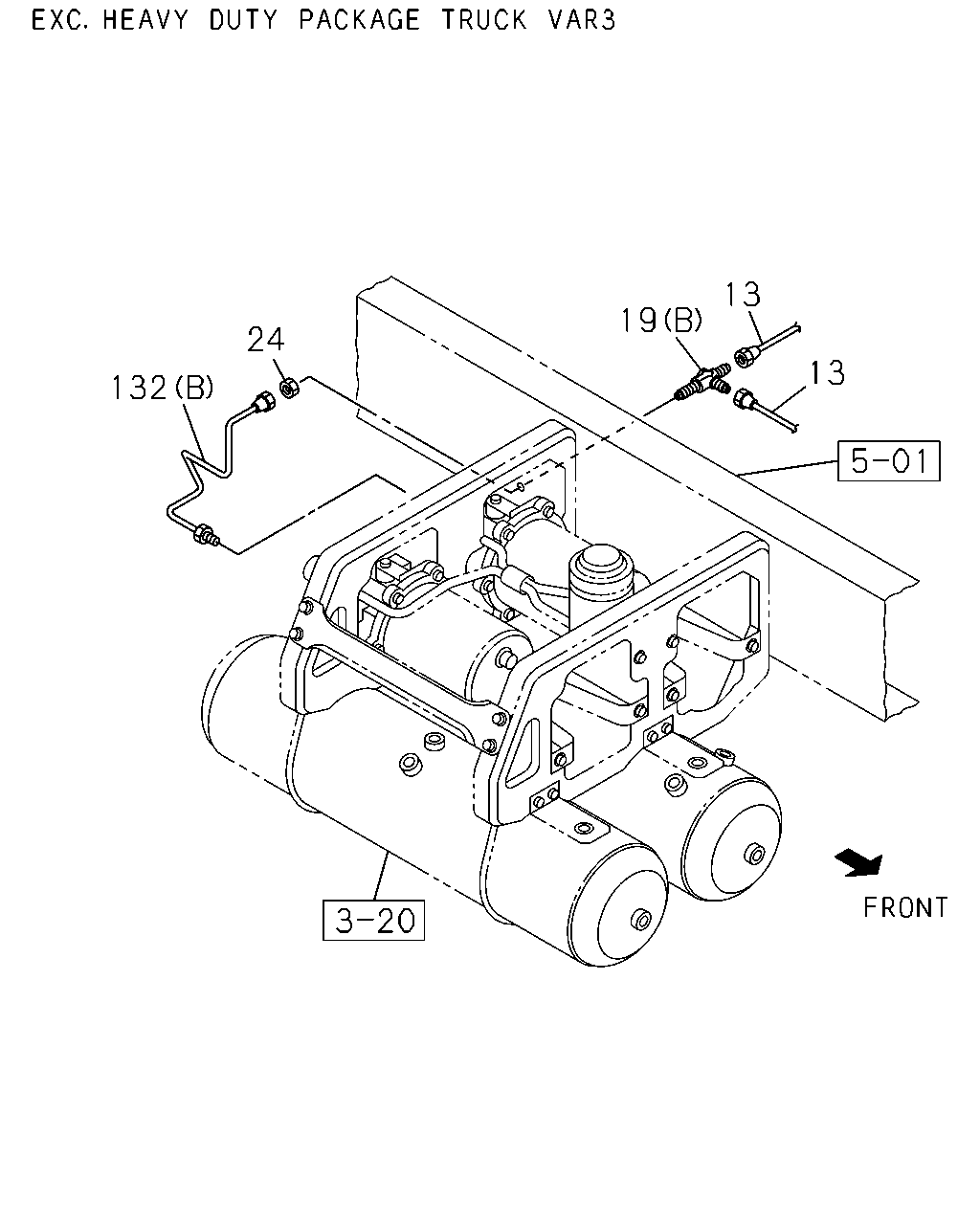

24 24 13 19 19 13 132 132 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1785	8-98078-159-0	01	1	1510-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1267	8-98125-568-0	01	1	1012-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1826	8-98173-027-0	01	1	1012-1509
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) L=1826	8-98173-027-0	01	1	1510-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	0809-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	0809-
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (E) M10X2 ELBOW	8-98018-438-0	02	1	1510-
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (D) M10 STRAIGHT	0-92107-005-0	02	1	1012-
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98113-738-0	01	1	0809-1509
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A)	8-98113-738-0	01	1	1510-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	0809-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 3WAY	0-92138-906-0	01	1	0809-
24	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	1510-
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8	1-09400-029-0	01	1	0809-1509
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1510-
24	NUT; UNION,OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	01	1	0809-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (D) L=645	8-98011-949-0	01	1	1510-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (C) L=949	8-98078-732-0	01	1	1510-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (E) L=625	8-98116-095-0	01	1	1510-
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1464	8-98113-766-0	01	1	0809-0811
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1467	8-98135-796-0	01	1	0812-1509
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A) L=1467	8-98135-796-0	01	1	1510-
132	PIPE; OIL,BRK,HYD UNIT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=407	8-98120-162-0	01	1	0809-1509
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=407	8-98120-162-0	01	1	1510-

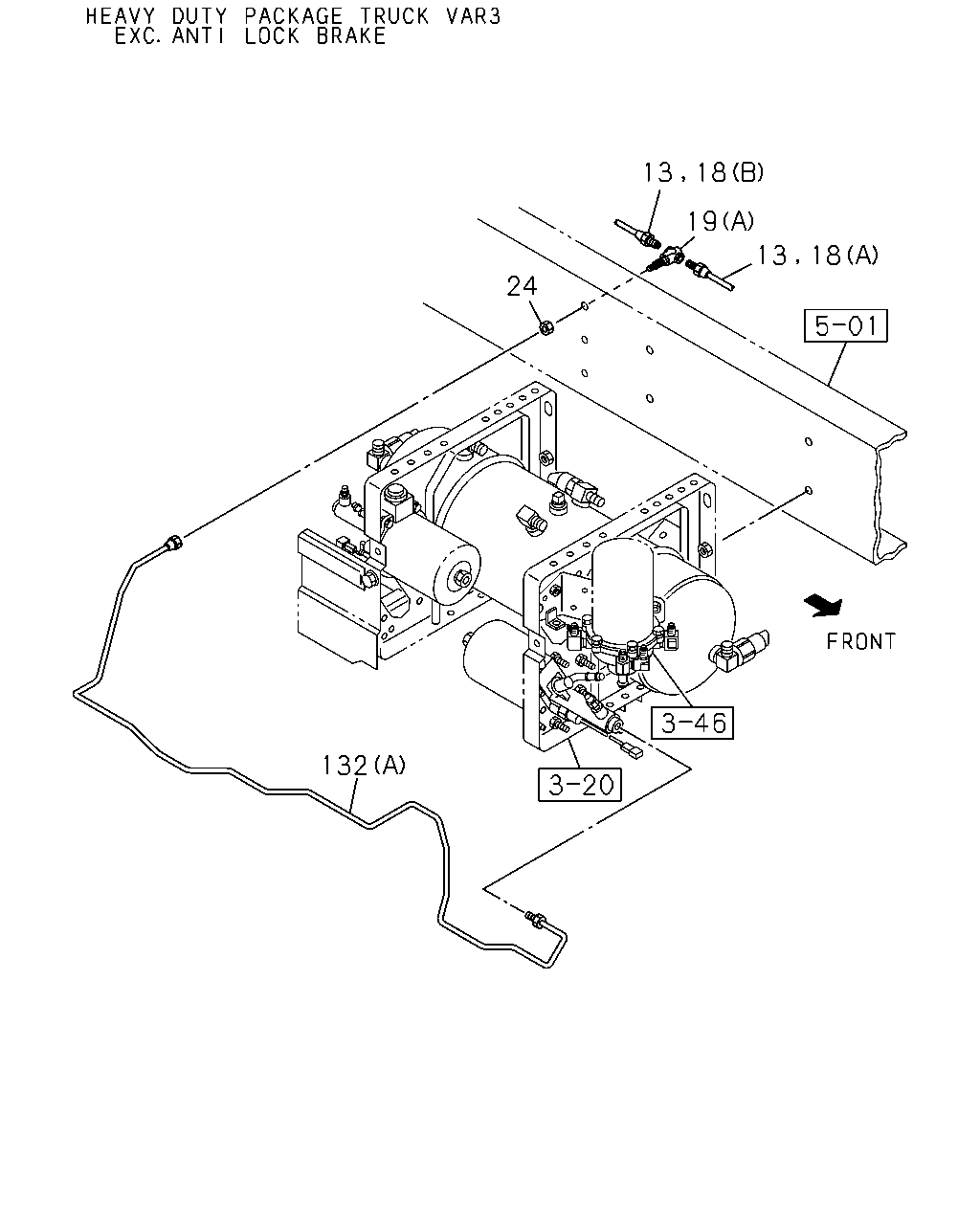

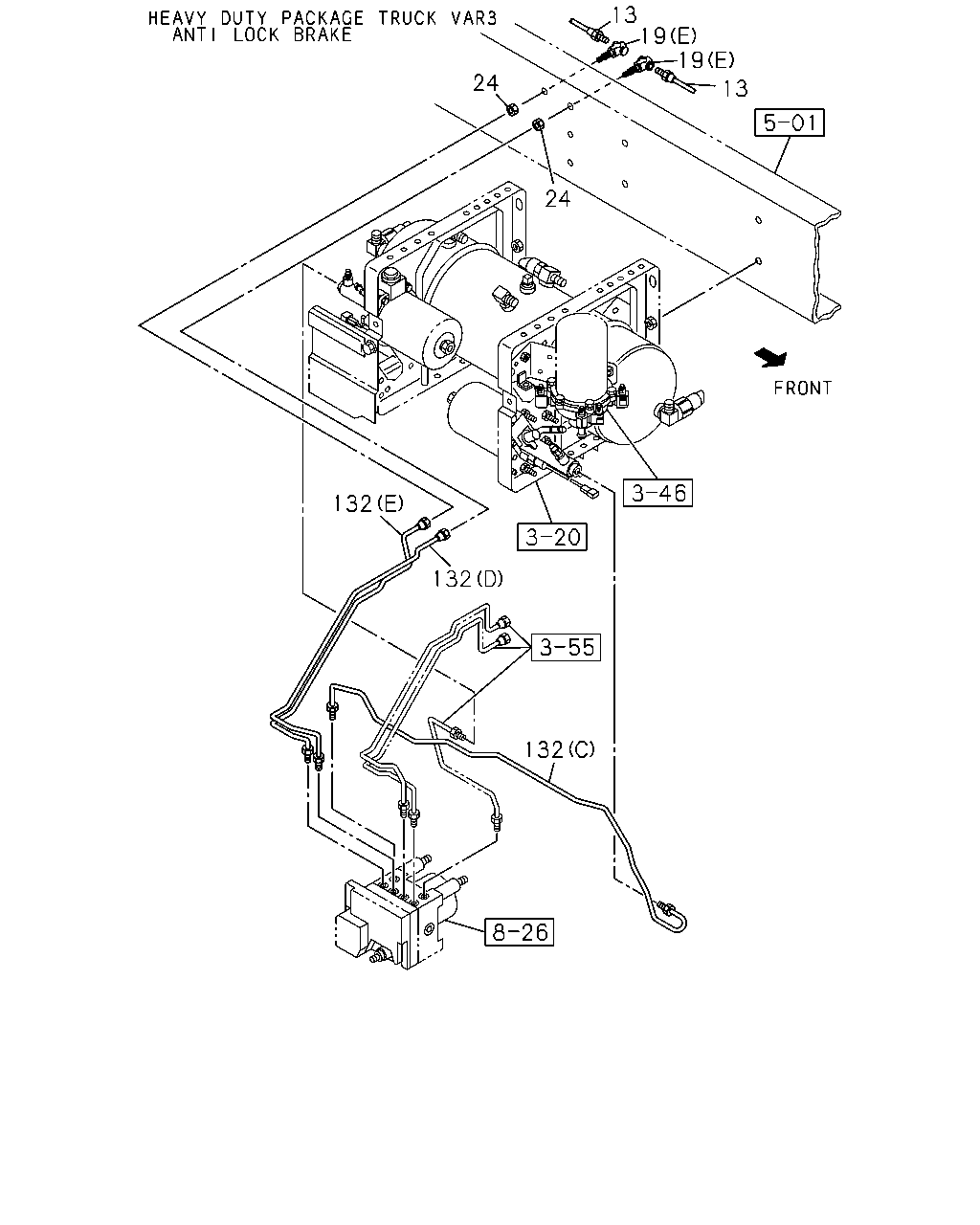

13 19 24 13 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1785	8-98078-159-0	01	1	1510-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1267	8-98125-568-0	01	1	1012-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1826	8-98173-027-0	01	1	1012-1509
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) L=1826	8-98173-027-0	01	1	1510-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	0809-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	0809-
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (E) M10X2 ELBOW	8-98018-438-0	02	1	1510-
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (D) M10 STRAIGHT	0-92107-005-0	02	1	1012-
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98113-738-0	01	1	0809-1509
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A)	8-98113-738-0	01	1	1510-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	0809-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 3WAY	0-92138-906-0	01	1	0809-
24	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	1510-
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8	1-09400-029-0	01	1	0809-1509
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1510-
24	NUT; UNION,OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	01	1	0809-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (D) L=645	8-98011-949-0	01	1	1510-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (C) L=949	8-98078-732-0	01	1	1510-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (E) L=625	8-98116-095-0	01	1	1510-
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1464	8-98113-766-0	01	1	0809-0811
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1467	8-98135-796-0	01	1	0812-1509
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A) L=1467	8-98135-796-0	01	1	1510-
132	PIPE; OIL,BRK,HYD UNIT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=407	8-98120-162-0	01	1	0809-1509
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=407	8-98120-162-0	01	1	1510-

24 132 19 13 18 13 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1785	8-98078-159-0	01	1	1510-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1267	8-98125-568-0	01	1	1012-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1826	8-98173-027-0	01	1	1012-1509
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) L=1826	8-98173-027-0	01	1	1510-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	0809-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	0809-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3240	8-98078-161-0	01	1	1510-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=689	8-98134-926-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=1111	8-98134-927-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3280	8-98113-895-0	01	1	0809-1509
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=3280	8-98113-895-0	01	1	1510-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1940	8-98067-420-1	01	1	0809-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=584 SERVICED BY L=600	1-47428-725-0	01	1	0809-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=527 SERVICED BY L=550	1-47428-724-0	01	1	0809-
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (E) M10X2 ELBOW	8-98018-438-0	02	1	1510-
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (D) M10 STRAIGHT	0-92107-005-0	02	1	1012-
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98113-738-0	01	1	0809-1509
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A)	8-98113-738-0	01	1	1510-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	0809-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 3WAY	0-92138-906-0	01	1	0809-
24	NUT; UNION,OIL PIPE ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	02	1	1510-
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8	1-09400-029-0	01	1	0809-1509
24	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) M10 H=8	1-09400-029-0	01	1	1510-
24	NUT; UNION,OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	01	1	0809-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (D) L=645	8-98011-949-0	01	1	1510-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (C) L=949	8-98078-732-0	01	1	1510-
132	PIPE; OIL,BRK,HYD UNIT ANTI LOCK BRAKE(JE5) (E) L=625	8-98116-095-0	01	1	1510-
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1464	8-98113-766-0	01	1	0809-0811
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1467	8-98135-796-0	01	1	0812-1509
132	PIPE; OIL,BRK,HYD UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A) L=1467	8-98135-796-0	01	1	1510-
132	PIPE; OIL,BRK,HYD UNIT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=407	8-98120-162-0	01	1	0809-1509
132	PIPE; OIL,BRK,HYD UNIT EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=407	8-98120-162-0	01	1	1510-

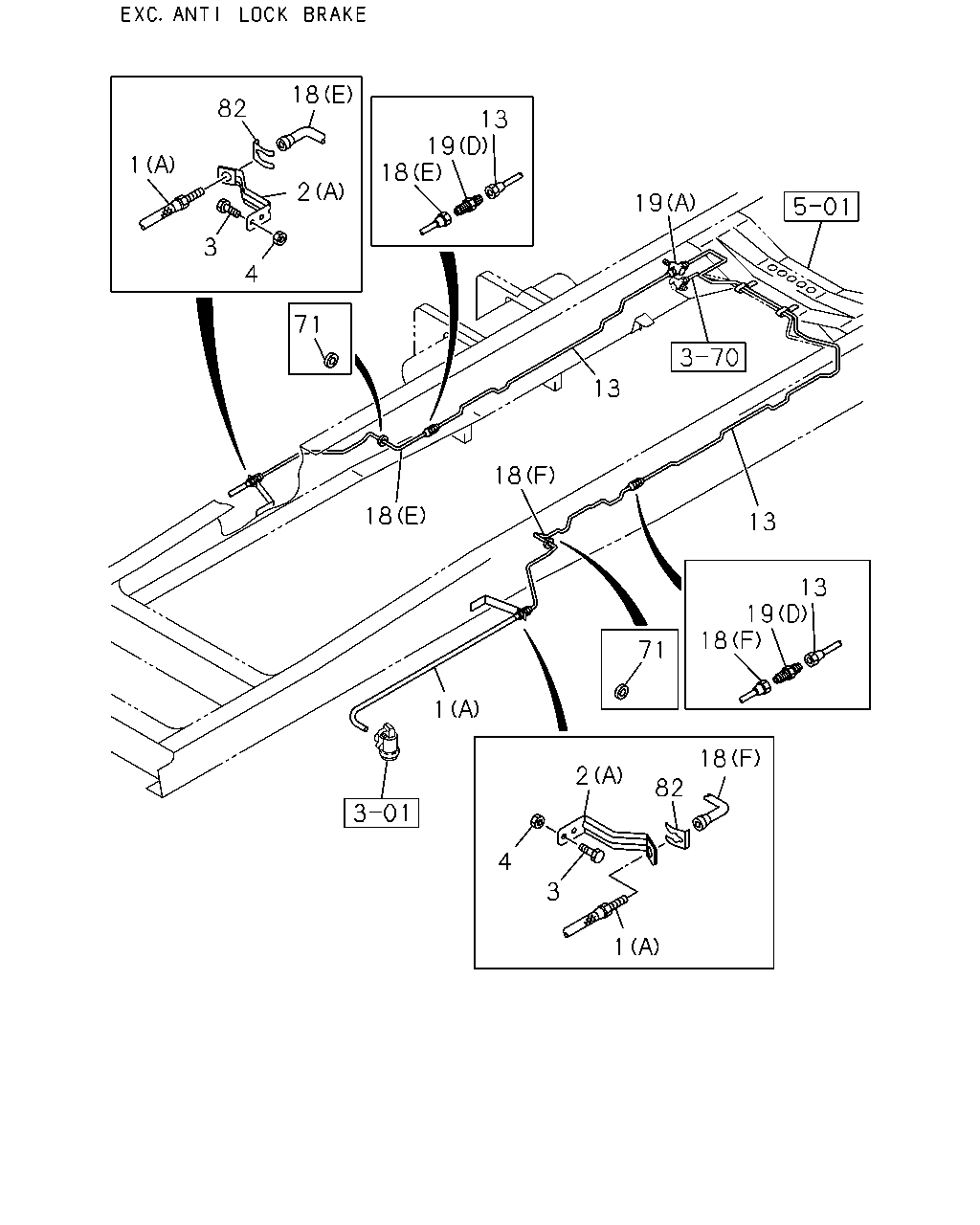

1 3 4 2 18 82 19 71 18 18 71 1 2 82 18 4 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=330	8-98024-433-0	02	1	0809-
1	HOSE; FLEX,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-714-0	02	1	0809-
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	0809-0906
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	0907-1011
2	BRACKET; FLEX HOSE,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	1012-
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-698-1	02	1	0809-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0809-
4	NUT; FLEX HOSE BRKT,FRT BRK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	0809-0906
4	NUT; FLEX HOSE BRKT,FRT BRK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	0907-0907
4	NUT; FLEX HOSE BRKT,FRT BRK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	0907-1011
4	NUT; FLEX HOSE BRKT,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3240	8-98078-161-0	01	1	1510-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=689	8-98134-926-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=1111	8-98134-927-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3280	8-98113-895-0	01	1	0809-1509
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=3280	8-98113-895-0	01	1	1510-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1940	8-98067-420-1	01	1	0809-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=584 SERVICED BY L=600	1-47428-725-0	01	1	0809-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=527 SERVICED BY L=550	1-47428-724-0	01	1	0809-
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (E) M10X2 ELBOW	8-98018-438-0	02	1	1510-
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (D) M10 STRAIGHT	0-92107-005-0	02	1	1012-
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98113-738-0	01	1	0809-1509
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A)	8-98113-738-0	01	1	1510-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	0809-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 3WAY	0-92138-906-0	01	1	0809-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0809-
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	0809-1307
82	PLATE; FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97360-054-0	02	1	1308-

1 3 4 2 18 82 18 19 13 71 19 13 18 18 1 2 4 3 1 82 18 18 71 19 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=330	8-98024-433-0	02	1	0809-
1	HOSE; FLEX,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-714-0	02	1	0809-
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	0809-0906
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	0907-1011
2	BRACKET; FLEX HOSE,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	1012-
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-698-1	02	1	0809-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0809-
4	NUT; FLEX HOSE BRKT,FRT BRK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	0809-0906
4	NUT; FLEX HOSE BRKT,FRT BRK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	0907-0907
4	NUT; FLEX HOSE BRKT,FRT BRK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	0907-1011
4	NUT; FLEX HOSE BRKT,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	1012-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1785	8-98078-159-0	01	1	1510-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1267	8-98125-568-0	01	1	1012-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1826	8-98173-027-0	01	1	1012-1509
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) L=1826	8-98173-027-0	01	1	1510-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	0809-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	0809-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3240	8-98078-161-0	01	1	1510-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=689	8-98134-926-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=1111	8-98134-927-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3280	8-98113-895-0	01	1	0809-1509
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=3280	8-98113-895-0	01	1	1510-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1940	8-98067-420-1	01	1	0809-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=584 SERVICED BY L=600	1-47428-725-0	01	1	0809-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=527 SERVICED BY L=550	1-47428-724-0	01	1	0809-
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (E) M10X2 ELBOW	8-98018-438-0	02	1	1510-
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (D) M10 STRAIGHT	0-92107-005-0	02	1	1012-
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98113-738-0	01	1	0809-1509
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A)	8-98113-738-0	01	1	1510-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	0809-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 3WAY	0-92138-906-0	01	1	0809-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0809-
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	0809-1307
82	PLATE; FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97360-054-0	02	1	1308-

1 3 4 2 18 82 18 19 13 71 19 19 13 18 18 1 4 3 2 82 18 1 71 18 19 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=330	8-98024-433-0	02	1	0809-
1	HOSE; FLEX,FRT BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-714-0	02	1	0809-
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	0809-0906
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	0907-1011
2	BRACKET; FLEX HOSE,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98012-343-1	02	1	1012-
2	BRACKET; FLEX HOSE,FRT BRK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98119-698-1	02	1	0809-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	0809-
4	NUT; FLEX HOSE BRKT,FRT BRK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	0809-0906
4	NUT; FLEX HOSE BRKT,FRT BRK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	0907-0907
4	NUT; FLEX HOSE BRKT,FRT BRK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	0907-1011
4	NUT; FLEX HOSE BRKT,FRT BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	1012-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1785	8-98078-159-0	01	1	1510-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1267	8-98125-568-0	01	1	1012-
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1826	8-98173-027-0	01	1	1012-1509
13	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) L=1826	8-98173-027-0	01	1	1510-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2495 SERVICED BY L=2500	1-47428-742-0	01	1	0809-
13	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1319 SERVICED BY L=1370	1-47428-734-0	01	1	0809-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3240	8-98078-161-0	01	1	1510-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=689	8-98134-926-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=1111	8-98134-927-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=3280	8-98113-895-0	01	1	0809-1509
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (B) L=3280	8-98113-895-0	01	1	1510-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1940	8-98067-420-1	01	1	0809-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=584 SERVICED BY L=600	1-47428-725-0	01	1	0809-
18	PIPE; OIL,UNION TO FRT FLEX HOSE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=527 SERVICED BY L=550	1-47428-724-0	01	1	0809-
19	UNION; OIL PIPE ANTI LOCK BRAKE(JE5) (E) M10X2 ELBOW	8-98018-438-0	02	1	1510-
19	UNION; OIL PIPE 4HK1-TCS ENG(RJS) (D) M10 STRAIGHT	0-92107-005-0	02	1	1012-
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98113-738-0	01	1	0809-1509
19	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (A)	8-98113-738-0	01	1	1510-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 L=40	0-92113-006-0	02	1	0809-
19	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 3WAY	0-92138-906-0	01	1	0809-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	0809-
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	0809-1307
82	PLATE; FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97360-054-0	02	1	1308-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
