◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11123 - FSR(LHD) ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#39195) — 23 parça

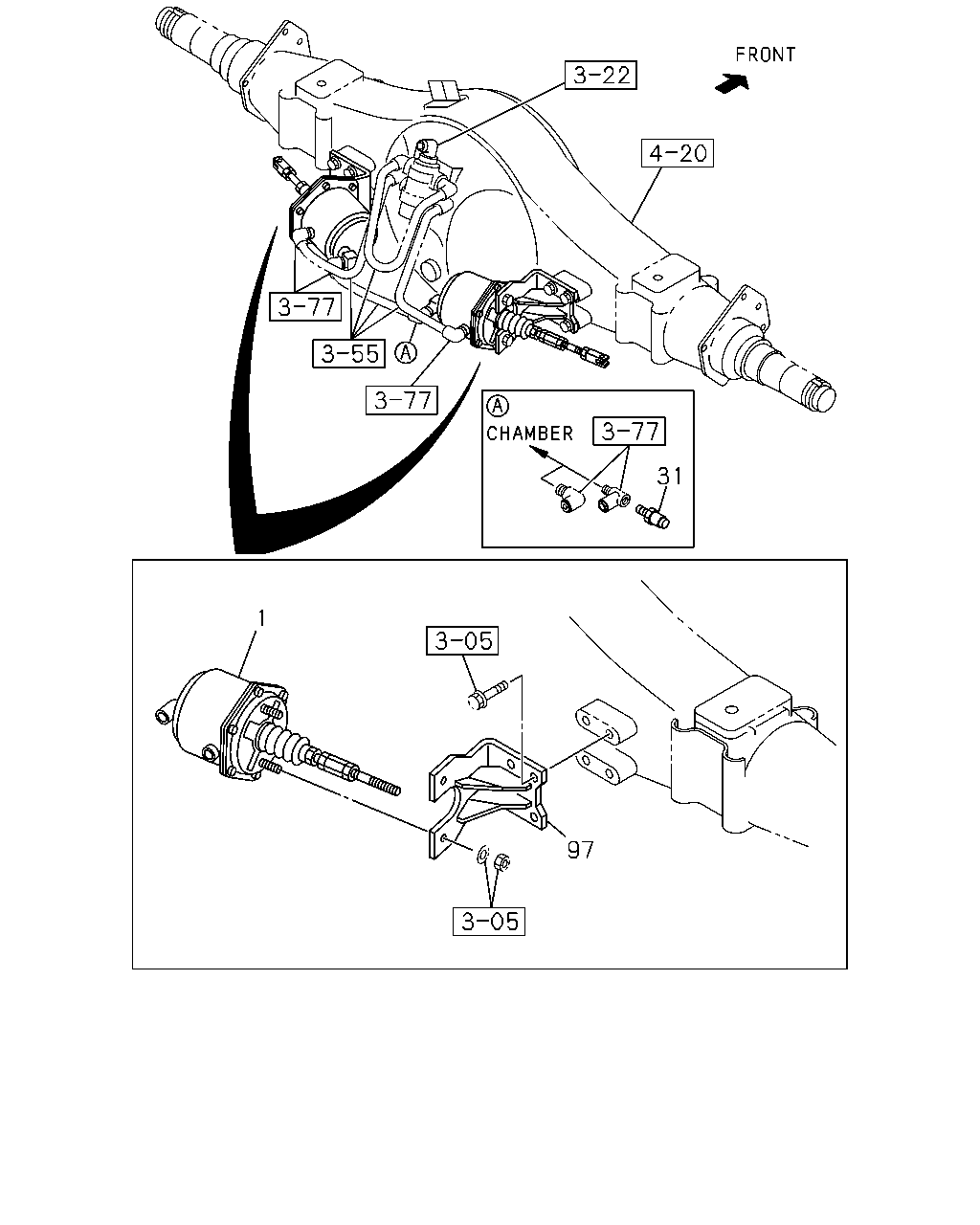

çizim 181332
31 1 97
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48250-918-1 01 1 0809-
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48250-919-1 01 1 0809-
31 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1510-
97 BRACKET; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48258-186-1 01 1 0809-
97 BRACKET; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48258-187-1 01 1 0809-

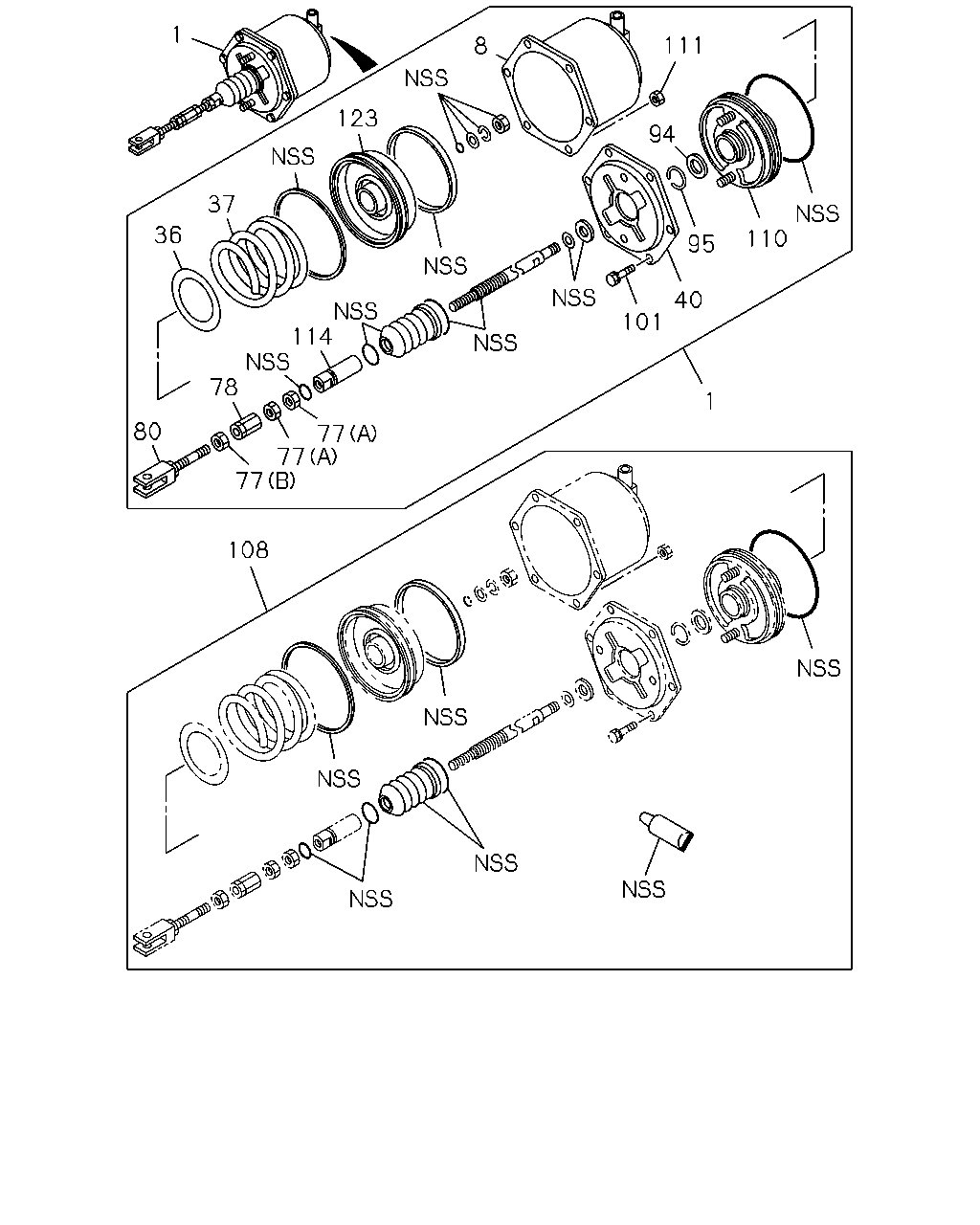

çizim 181347
1 111 8 123 94 37 110 36 95 40 114 78 101 1 80 77 77 77 108
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48250-918-1 01 1 0809-
1 CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48250-919-1 01 1 0809-
8 SHELL; CYL,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48251-190-1 02 1 0809-
36 RETAINER; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48269-099-0 02 1 0809-
37 SPRING; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48265-009-0 02 1 0809-
40 COVER ASM; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48266-013-1 02 1 0809-
77 NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-48269-105-0 04 1 0809-
77 NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		1-48269-114-0 02 1 0809-
78 TURNBACKLE; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48269-113-0 02 1 0809-
80 CLEVIS; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48269-242-0 02 1 0809-
94 PLATE; RELEASE,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48269-097-1 02 1 0809-
95 RING; RELEASE,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48269-098-0 02 1 0809-
101 BOLT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48269-102-0 12 1 0809-
108 REPAIR KIT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> W/GREASE 		1-85576-442-0 02 1 0809-
110 PLATE; MOUNTING,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48251-189-0 02 1 0809-
111 NUT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48269-101-0 12 1 0809-
114 HOLDER; ROD,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48269-250-0 02 1 0809-
123 PISTON ASM; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-48262-024-2 02 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
