Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#39191) — 584 parça

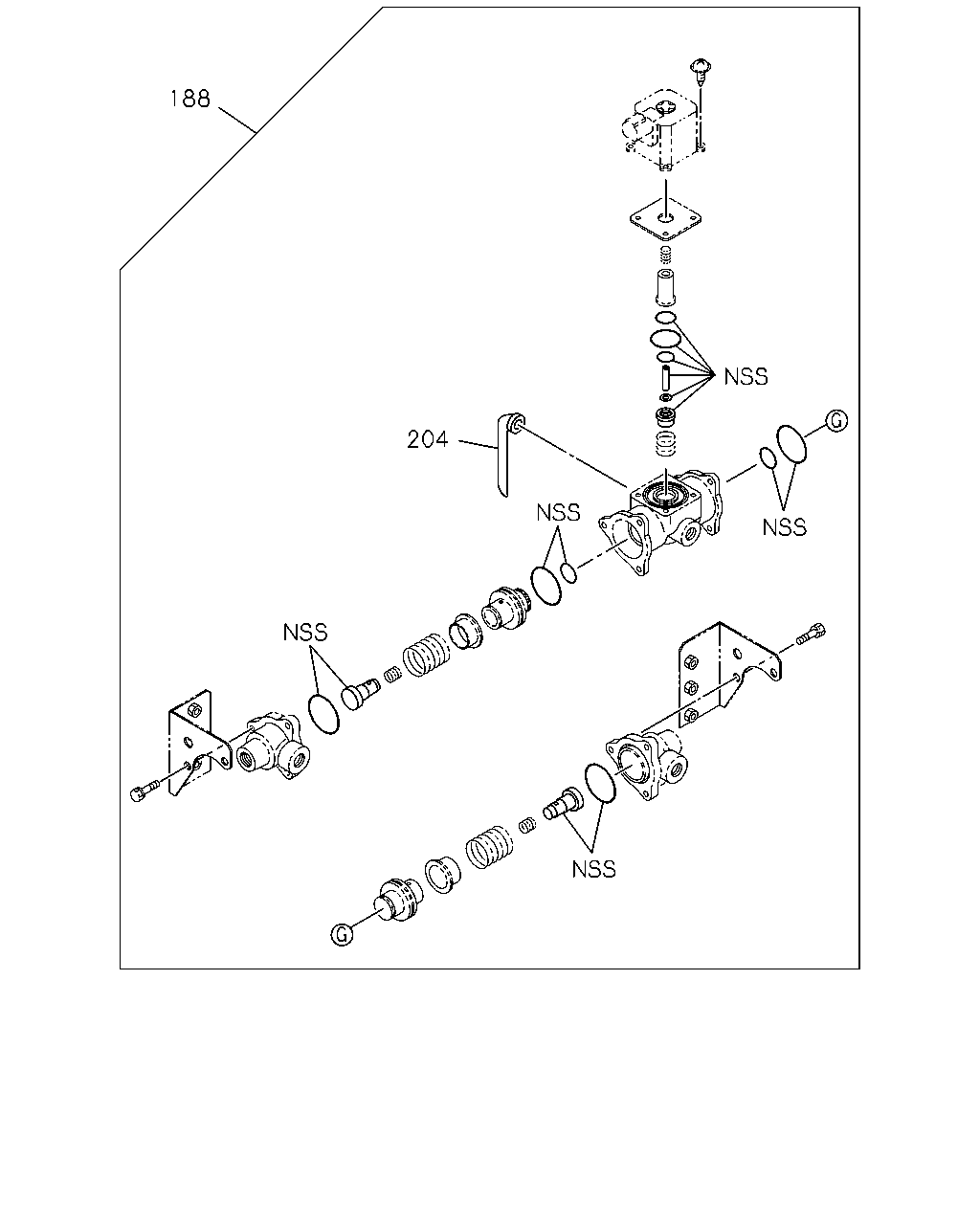

188 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	188	REPAIR KIT; HSA VLV H.S.A SYSTEM<6EP>	1-85576-304-1	01	1	0809-
	204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	0809-

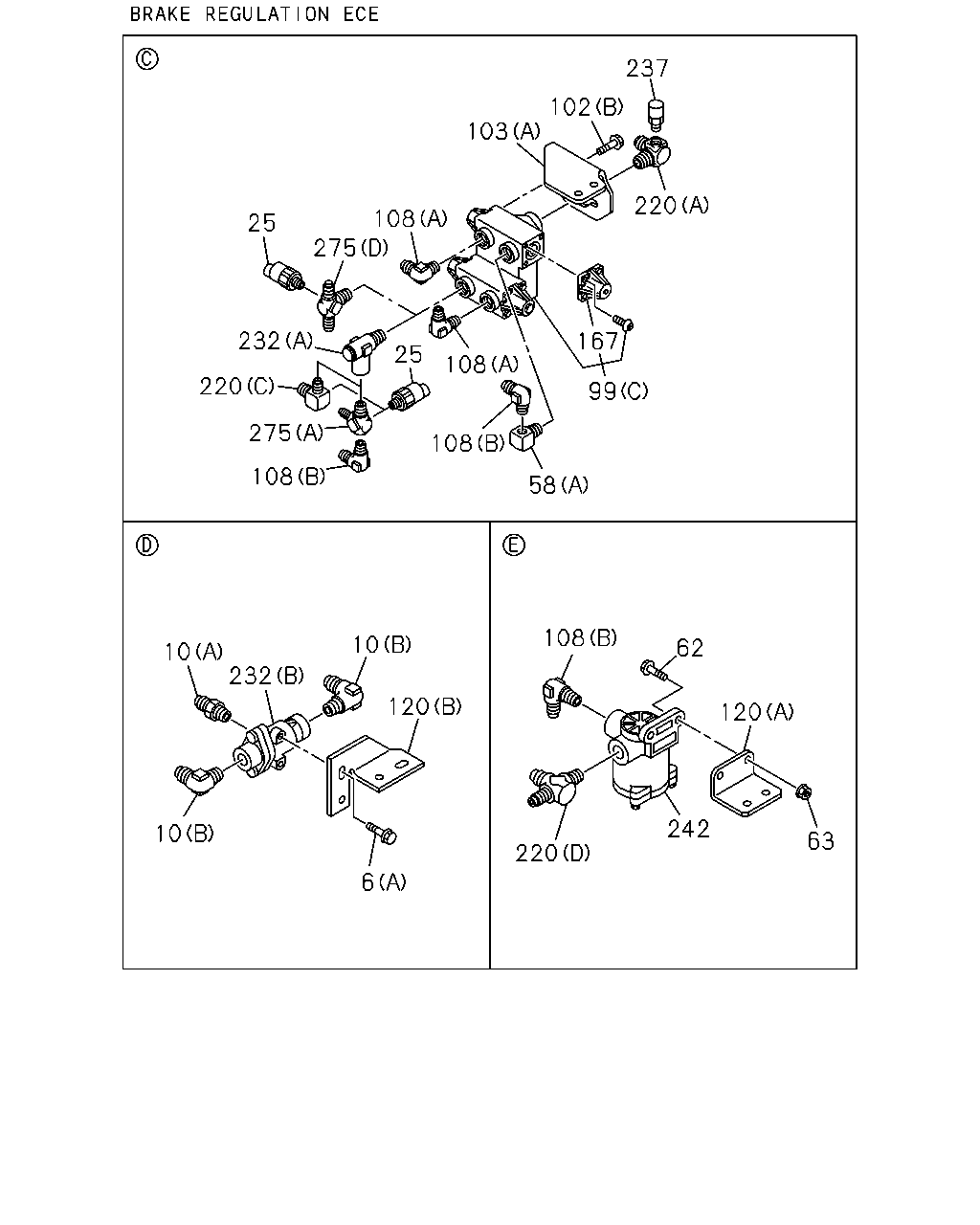

25 232 220 275 108 25 275 108 103 102 237 220 108 108 58 99 167 10 10 232 10 120 6 220 108 62 120 63 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE	0-28050-816-0	02	1	1510-
6	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE	0-28650-825-0	02	1	1510-
10	CONNECTOR THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1510-
10	CONNECTOR THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1510-
25	SWITCH; PRESSURE STAMP 5.5	8-97609-249-0	01	1	0809-1011
25	SWITCH; PRESSURE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	01	1	1012-1311
25	SWITCH; PRESSURE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	01	1	1012-1311
25	SWITCH; PRESSURE 4HK1-TCS ENG(RJS) STAMP 5.5	8-97609-249-0	01	1	1012-1311
25	SWITCH; PRESSURE STAMP 5.5	8-97609-249-0	01	1	1312-
58	ADAPTER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1204-1311
58	ADAPTER 4HK1-TCS ENG(RJS) (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1204-1311
58	ADAPTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1312-1509
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV),THROTTLE CONTROL SYSTEM(6XH) (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1510-
58	ADAPTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1510-
58	ADAPTER 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98035-011-0	01	1	1204-1311
58	ADAPTER 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98035-011-0	01	1	1204-1311
58	ADAPTER H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98035-011-0	01	1	1312-1509
58	ADAPTER H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV),THROTTLE CONTROL SYSTEM(6XH) (D)	8-98035-011-0	01	1	1510-
58	ADAPTER 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-09656-704-0	01	1	1204-1311
58	ADAPTER 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-09656-704-0	01	1	1204-1311
58	ADAPTER H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-09656-704-0	01	1	1312-1509
58	ADAPTER H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (E)	1-09656-704-0	01	1	1510-
58	ADAPTER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (F) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1204-1311
58	ADAPTER 4HK1-TCS ENG(RJS) EXC. H.S.A SYSTEM<6EP> (F) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1204-1311
58	ADAPTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (F) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1312-1509
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP>, THROTTLE CONTROL SYSTEM(6XH) (F) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1510-
58	ADAPTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (F) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1510-
58	ADAPTER (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1011
58	ADAPTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1012-1311
58	ADAPTER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1012-1311
58	ADAPTER 4HK1-TCS ENG(RJS) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1012-1311
58	ADAPTER (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1312-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR	1-09661-815-0	02	1	0809-
62	BOLT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) M8X30 FLANGE	0-28650-830-0	02	1	1510-
63	NUT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE	0-91180-108-0	02	1	1510-
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-48110-290-3	01	1	1510-
99	VALVE; PROTECTION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-48110-287-0	01	1	0809-1011
99	VALVE; PROTECTION HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48110-287-0	01	1	0809-1011
99	VALVE; PROTECTION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-48110-287-1	01	1	1012-1311
99	VALVE; PROTECTION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48110-287-1	01	1	1012-1311
99	VALVE; PROTECTION 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48110-287-1	01	1	1012-1311
99	VALVE; PROTECTION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-48110-287-3	01	1	1312-
99	VALVE; PROTECTION HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48110-287-3	01	1	1312-
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48110-288-0	01	1	0809-1011
99	VALVE; PROTECTION 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48110-288-1	01	1	1012-1311
99	VALVE; PROTECTION 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48110-288-1	01	1	1012-1311
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48110-288-3	01	1	1312-1509
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (A)	1-48110-288-3	01	1	1510-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	0809-1011
102	BOLT; PROTECTION VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X16 FLANGE	0-28050-816-0	02	1	1012-1311
102	BOLT; PROTECTION VALVE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X16 FLANGE	0-28050-816-0	02	1	1012-1311
102	BOLT; PROTECTION VALVE 4HK1-TCS ENG(RJS) (B) M8X16 FLANGE	0-28050-816-0	02	1	1012-1311
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	1312-
102	BOLT; PROTECTION VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-
102	BOLT; PROTECTION VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M10X30 FLANGE	0-28651-030-0	02	1	0809-
103	BRACKET; PROTECTION VALVE 4HK1-TCS ENG(RJS) (A)	8-98162-113-1	01	1	1012-1311
103	BRACKET; PROTECTION VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98221-293-0	01	1	1312-
103	BRACKET; PROTECTION VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98034-985-1	01	1	0809-1011
103	BRACKET; PROTECTION VALVE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98034-985-1	01	1	1012-1311
103	BRACKET; PROTECTION VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98111-527-1	01	1	0809-
108	CONNECTOR; ELBOW THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1510-
108	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1510-
108	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1510-
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1510-
108	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0812-1005
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1006-1107
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1108-
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	0809-1011
108	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1012-1311
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1012-1311
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1012-1311
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1312-1509
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	02	1	1510-
108	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1011
108	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1011
108	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1311
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1311
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1311
108	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1312-
108	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1312-
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0809-1011
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1012-1311
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1012-1311
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1312-
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-1011
108	CONNECTOR; ELBOW EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-1011
108	CONNECTOR; ELBOW EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1107
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1107
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1107
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-1311
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-1311
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-1311
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1312-1509
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1312-1509
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1510-
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1510-
120	BRACKET; VLV THROTTLE CONTROL SYSTEM(6XH) (A)	1-48316-012-0	01	1	1510-
120	BRACKET; VLV THROTTLE CONTROL SYSTEM(6XH) (B)	8-98050-131-0	01	1	1510-
167	COVER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48119-625-0	04	1	0907-1011
167	COVER; VALVE 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48119-625-0	04	1	1012-1311
167	COVER; VALVE 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-625-0	04	1	1012-1311
167	COVER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48119-625-0	04	1	1312-
167	COVER; VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48119-625-0	03	1	0907-1011
167	COVER; VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-625-0	03	1	0907-1011
167	COVER; VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48119-625-0	03	1	1012-1311
167	COVER; VALVE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-625-0	03	1	1012-1311
167	COVER; VALVE 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-625-0	03	1	1012-1311
167	COVER; VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48119-625-0	03	1	1312-
167	COVER; VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-625-0	03	1	1312-
220	CONNECTOR; 3WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1510-
220	CONNECTOR; 3WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1510-
220	CONNECTOR; 3WAY HEAVY DUTY PACKAGE TRUCK VAR3<Y48> THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1510-
220	CONNECTOR; 3WAY THROTTLE CONTROL SYSTEM(6XH) (D) PT1/4 & M12 & M16 3WAY	1-09656-331-1	01	1	1510-
220	CONNECTOR; 3WAY EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> (C)	8-98131-540-0	01	1	0809-
220	CONNECTOR; 3WAY HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	0809-1011
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1012-1203
220	CONNECTOR; 3WAY 4HK1-TCS ENG(RJS) EXC. H.S.A SYSTEM<6EP> (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1012-1203
220	CONNECTOR; 3WAY HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	0809-1011
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1012-1203
220	CONNECTOR; 3WAY 4HK1-TCS ENG(RJS) (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1012-1203
220	CONNECTOR; 3WAY TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0809-1107
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1108-
232	VALVE; CHECK THROTTLE CONTROL SYSTEM(6XH) (B)	1-48410-531-1	01	1	1510-
232	VALVE; CHECK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0809-1011
232	VALVE; CHECK 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1012-1311
232	VALVE; CHECK 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1012-1311
232	VALVE; CHECK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1312-
237	VALVE; SAFETY	1-48320-012-2	01	1	0809-
242	VALVE; REGULATION THROTTLE CONTROL SYSTEM(6XH)	1-48410-723-0	01	1	1510-
275	CONNECTOR; 4WAY H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH) (A)	8-98035-011-0	01	1	1510-
275	CONNECTOR; 4WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> THROTTLE CONTROL SYSTEM(6XH) (A)	8-98035-011-0	01	1	1510-
275	CONNECTOR; 4WAY HEAVY DUTY PACKAGE TRUCK VAR3<Y48> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98050-414-0	01	1	1510-
275	CONNECTOR; 4WAY H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09656-704-0	01	1	0809-1011
275	CONNECTOR; 4WAY 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09656-704-0	01	1	1012-1203
275	CONNECTOR; 4WAY 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09656-704-0	01	1	1012-1203
275	CONNECTOR; 4WAY H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98024-621-0	01	1	0809-
275	CONNECTOR; 4WAY H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98035-011-0	01	1	0809-1011
275	CONNECTOR; 4WAY 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98035-011-0	01	1	1012-1203
275	CONNECTOR; 4WAY 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98035-011-0	01	1	1012-1203

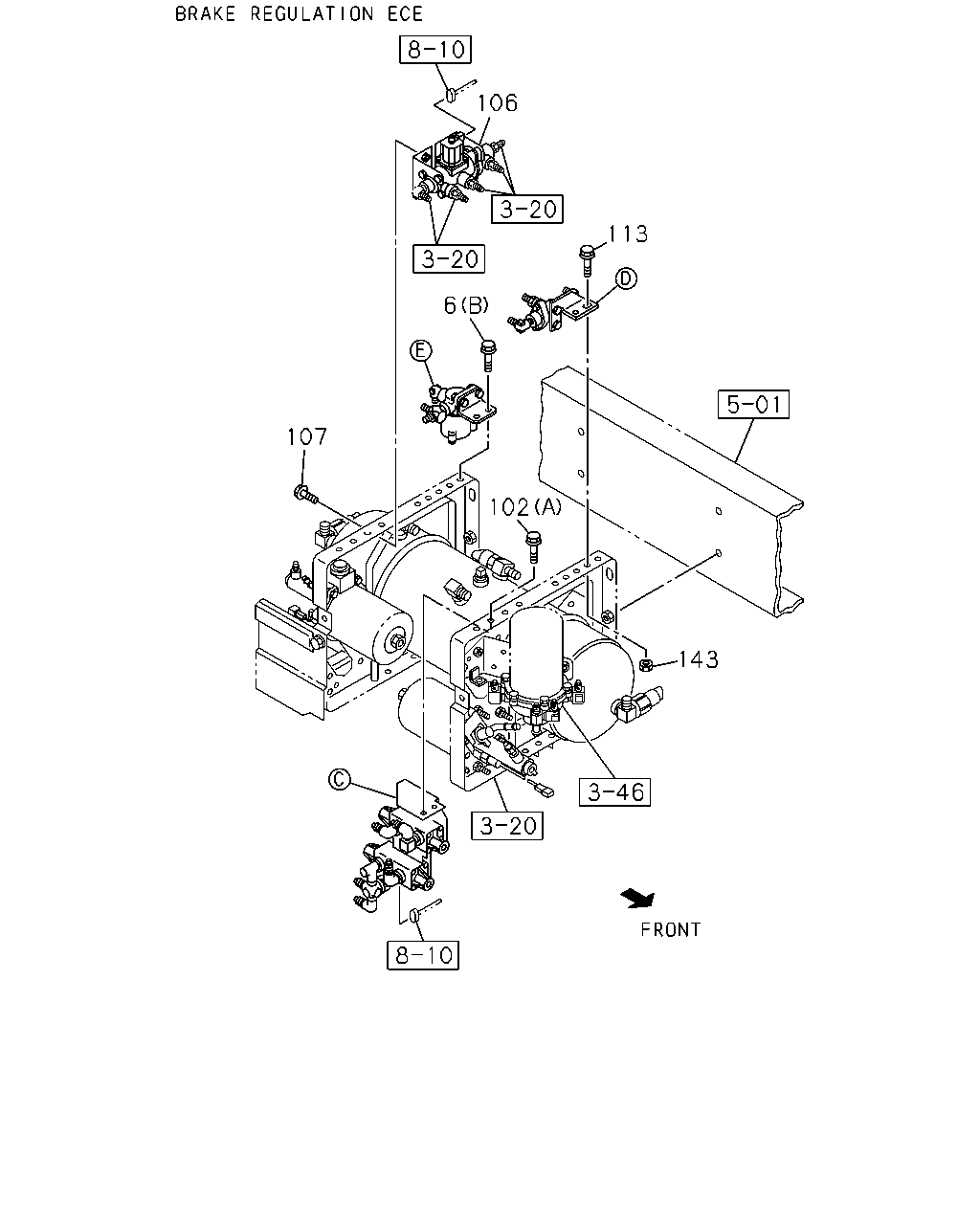

106 113 6 102 107 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE	0-28050-816-0	02	1	1510-
6	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE	0-28650-825-0	02	1	1510-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	0809-1011
102	BOLT; PROTECTION VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X16 FLANGE	0-28050-816-0	02	1	1012-1311
102	BOLT; PROTECTION VALVE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X16 FLANGE	0-28050-816-0	02	1	1012-1311
102	BOLT; PROTECTION VALVE 4HK1-TCS ENG(RJS) (B) M8X16 FLANGE	0-28050-816-0	02	1	1012-1311
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	1312-
102	BOLT; PROTECTION VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-
102	BOLT; PROTECTION VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M10X30 FLANGE	0-28651-030-0	02	1	0809-

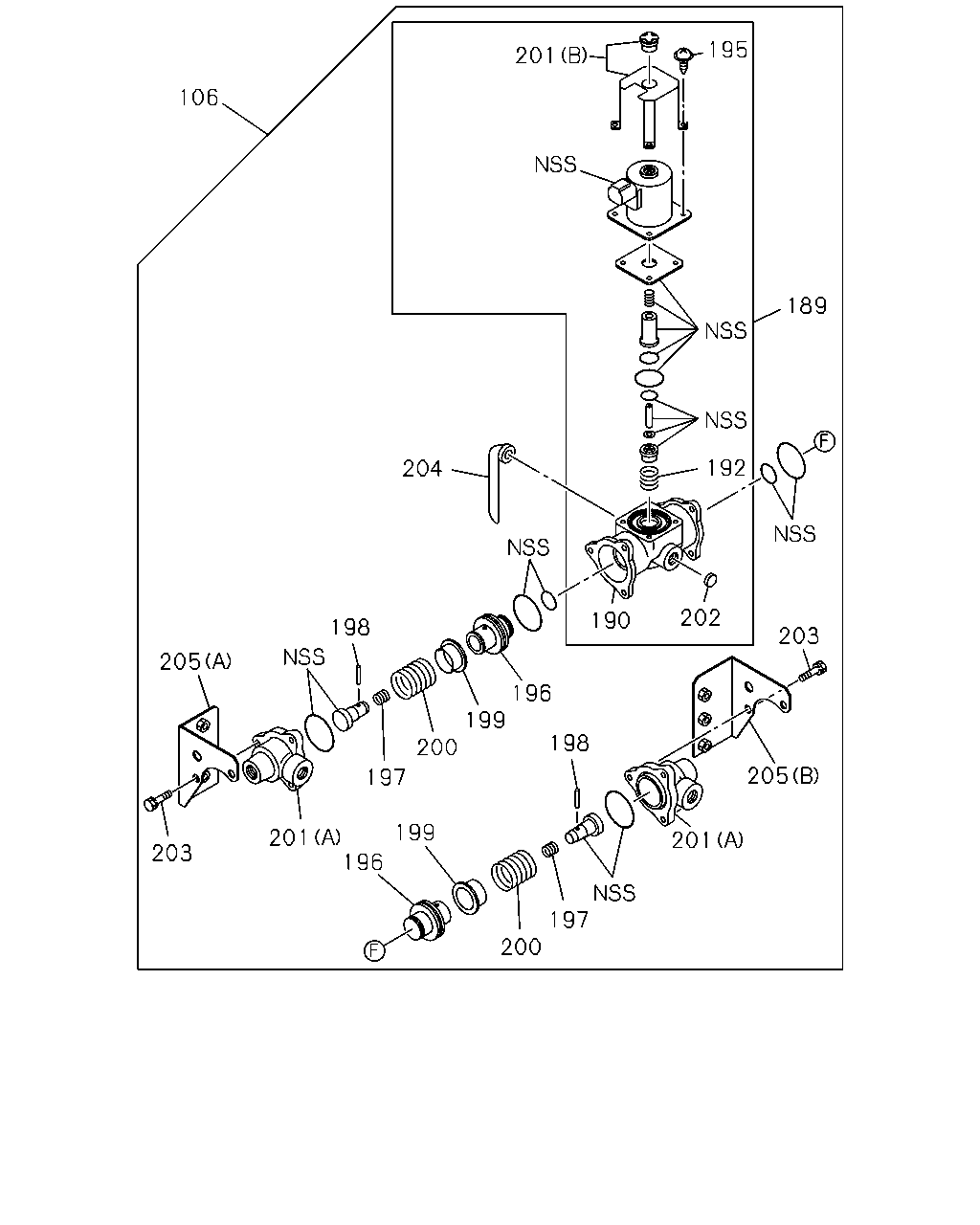

106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	0809-
107	BOLT; VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	03	1	0809-
107	BOLT; VLV H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	02	1	0809-
113	BOLT; VLV THROTTLE CONTROL SYSTEM(6XH) M8X20 FLANGE	0-28650-820-0	02	1	1510-
143	NUT; VLV THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE	0-91180-108-0	02	1	1510-

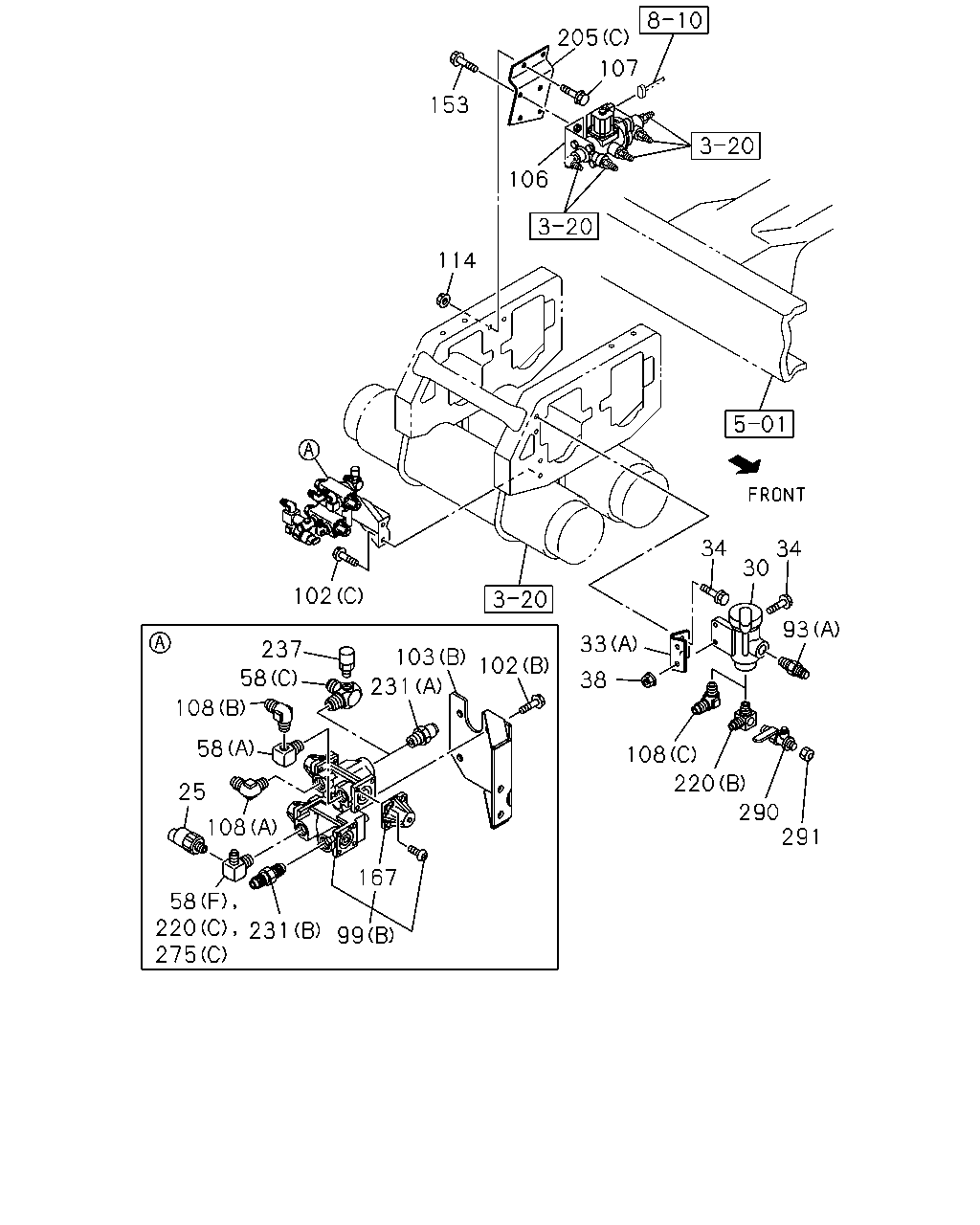

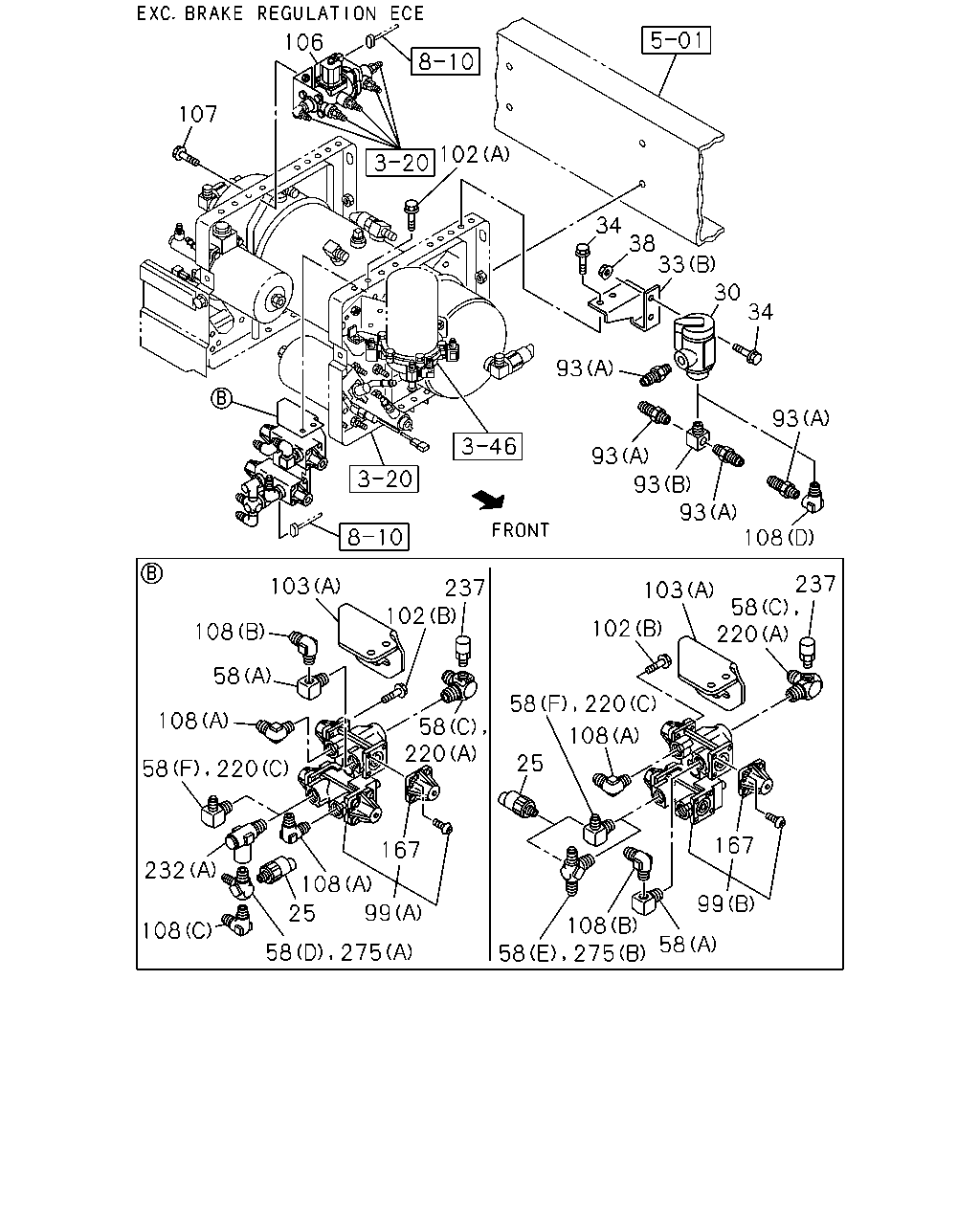

205 153 107 106 34 114 34 30 33 38 108 220 290 291 93 102 103 231 237 58 108 58 25 108 58 99 167 231 220 275 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	SWITCH; PRESSURE STAMP 5.5	8-97609-249-0	01	1	0809-1011
25	SWITCH; PRESSURE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	01	1	1012-1311
25	SWITCH; PRESSURE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	01	1	1012-1311
25	SWITCH; PRESSURE 4HK1-TCS ENG(RJS) STAMP 5.5	8-97609-249-0	01	1	1012-1311
25	SWITCH; PRESSURE STAMP 5.5	8-97609-249-0	01	1	1312-
30	GOVERNOR; AIR CONT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48350-093-2	01	1	0809-0811
30	GOVERNOR; AIR CONT	1-48350-093-2	01	1	0812-1011
30	GOVERNOR; AIR CONT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48350-093-2	01	1	1012-1107
30	GOVERNOR; AIR CONT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48350-093-2	01	1	1012-1107
30	GOVERNOR; AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T>	1-48350-093-2	01	1	1108-
33	BRACKET; GOV,AIR CONT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98133-401-0	01	1	0812-1011
33	BRACKET; GOV,AIR CONT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98133-401-0	01	1	1012-1107
33	BRACKET; GOV,AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98133-401-0	01	1	1108-
33	BRACKET; GOV,AIR CONT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98120-459-0	01	1	0809-1107
33	BRACKET; GOV,AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98120-459-1	01	1	1108-
34	BOLT; BRKT,GOV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	02	1	0809-0811
34	BOLT; BRKT,GOV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	02	1	0809-0811
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28650-825-0	02	1	0812-1005
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28650-825-0	02	1	1006-1011
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28650-825-0	02	1	1006-1011
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	02	1	1012-1107
34	BOLT; BRKT,GOV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	02	1	1012-1107
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	02	1	1012-1107
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	02	1	1108-
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	02	1	1108-
38	NUT; BRKT,GOV EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	1006-1107
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	1108-
38	NUT; BRKT,GOV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	02	1	0809-0811
38	NUT; BRKT,GOV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	02	1	0809-0811
38	NUT; BRKT,GOV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	02	1	0812-1005
38	NUT; BRKT,GOV M8 FLANGE	0-91180-108-0	02	1	0812-1005
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> M8 FLANGE	0-91180-108-0	02	1	1006-1008
38	NUT; BRKT,GOV TIRE INFLATOR DEVICE<SG4> M8 FLANGE	0-91180-108-0	02	1	1006-1008
38	NUT; BRKT,GOV TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	02	1	1009-1107
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	02	1	1009-1107
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> M8 FLANGE	0-91180-108-0	02	1	1108-
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> M8 FLANGE	0-91180-108-0	02	1	1108-
58	ADAPTER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1204-1311
58	ADAPTER 4HK1-TCS ENG(RJS) (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1204-1311
58	ADAPTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1312-1509
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV),THROTTLE CONTROL SYSTEM(6XH) (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1510-
58	ADAPTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1510-
58	ADAPTER 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98035-011-0	01	1	1204-1311
58	ADAPTER 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98035-011-0	01	1	1204-1311
58	ADAPTER H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98035-011-0	01	1	1312-1509
58	ADAPTER H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV),THROTTLE CONTROL SYSTEM(6XH) (D)	8-98035-011-0	01	1	1510-
58	ADAPTER 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-09656-704-0	01	1	1204-1311
58	ADAPTER 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-09656-704-0	01	1	1204-1311
58	ADAPTER H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-09656-704-0	01	1	1312-1509
58	ADAPTER H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (E)	1-09656-704-0	01	1	1510-
58	ADAPTER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (F) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1204-1311
58	ADAPTER 4HK1-TCS ENG(RJS) EXC. H.S.A SYSTEM<6EP> (F) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1204-1311
58	ADAPTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (F) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1312-1509
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP>, THROTTLE CONTROL SYSTEM(6XH) (F) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1510-
58	ADAPTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (F) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1510-
58	ADAPTER (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1011
58	ADAPTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1012-1311
58	ADAPTER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1012-1311
58	ADAPTER 4HK1-TCS ENG(RJS) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1012-1311
58	ADAPTER (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1312-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR	1-09661-815-0	02	1	0809-
93	CONNECTOR; GOV TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0812-1008
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1009-1107
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1108-
93	CONNECTOR; GOV TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4 MALE & PT1/4 FEMALE X2 3WAY	1-09660-363-0	01	1	0812-1008
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1009-1107
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1108-
93	CONNECTOR; GOV HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0812-1005
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1006-1107
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1108-
93	CONNECTOR; GOV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0809-1107
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1108-
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-48110-290-3	01	1	1510-
99	VALVE; PROTECTION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-48110-287-0	01	1	0809-1011
99	VALVE; PROTECTION HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48110-287-0	01	1	0809-1011
99	VALVE; PROTECTION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-48110-287-1	01	1	1012-1311
99	VALVE; PROTECTION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48110-287-1	01	1	1012-1311
99	VALVE; PROTECTION 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48110-287-1	01	1	1012-1311
99	VALVE; PROTECTION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-48110-287-3	01	1	1312-
99	VALVE; PROTECTION HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48110-287-3	01	1	1312-
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48110-288-0	01	1	0809-1011
99	VALVE; PROTECTION 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48110-288-1	01	1	1012-1311
99	VALVE; PROTECTION 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48110-288-1	01	1	1012-1311
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48110-288-3	01	1	1312-1509
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (A)	1-48110-288-3	01	1	1510-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	0809-1011
102	BOLT; PROTECTION VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X16 FLANGE	0-28050-816-0	02	1	1012-1311
102	BOLT; PROTECTION VALVE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X16 FLANGE	0-28050-816-0	02	1	1012-1311
102	BOLT; PROTECTION VALVE 4HK1-TCS ENG(RJS) (B) M8X16 FLANGE	0-28050-816-0	02	1	1012-1311
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	1312-
102	BOLT; PROTECTION VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-
102	BOLT; PROTECTION VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M10X30 FLANGE	0-28651-030-0	02	1	0809-
103	BRACKET; PROTECTION VALVE 4HK1-TCS ENG(RJS) (A)	8-98162-113-1	01	1	1012-1311
103	BRACKET; PROTECTION VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98221-293-0	01	1	1312-
103	BRACKET; PROTECTION VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98034-985-1	01	1	0809-1011
103	BRACKET; PROTECTION VALVE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98034-985-1	01	1	1012-1311
103	BRACKET; PROTECTION VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98111-527-1	01	1	0809-
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	0809-
107	BOLT; VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	03	1	0809-
107	BOLT; VLV H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	02	1	0809-
108	CONNECTOR; ELBOW THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1510-
108	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1510-
108	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1510-
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1510-
108	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0812-1005
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1006-1107
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1108-
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	0809-1011
108	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1012-1311
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1012-1311
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1012-1311
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1312-1509
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	02	1	1510-
108	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1011
108	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1011
108	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1311
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1311
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1311
108	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1312-
108	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1312-
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0809-1011
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1012-1311
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1012-1311
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1312-
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-1011
108	CONNECTOR; ELBOW EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-1011
108	CONNECTOR; ELBOW EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1107
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1107
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1107
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-1311
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-1311
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-1311
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1312-1509
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1312-1509
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1510-
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1510-
114	NUT; VLV H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	02	1	0809-
153	BOLT; BRKT H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	04	1	0809-
167	COVER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48119-625-0	04	1	0907-1011
167	COVER; VALVE 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48119-625-0	04	1	1012-1311
167	COVER; VALVE 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-625-0	04	1	1012-1311
167	COVER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48119-625-0	04	1	1312-
167	COVER; VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48119-625-0	03	1	0907-1011
167	COVER; VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-625-0	03	1	0907-1011
167	COVER; VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48119-625-0	03	1	1012-1311
167	COVER; VALVE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-625-0	03	1	1012-1311
167	COVER; VALVE 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-625-0	03	1	1012-1311
167	COVER; VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48119-625-0	03	1	1312-
167	COVER; VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-625-0	03	1	1312-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-149-0	01	1	0809-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-150-0	01	1	0809-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98120-228-1	01	1	0809-
220	CONNECTOR; 3WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1510-
220	CONNECTOR; 3WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1510-
220	CONNECTOR; 3WAY HEAVY DUTY PACKAGE TRUCK VAR3<Y48> THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1510-
220	CONNECTOR; 3WAY THROTTLE CONTROL SYSTEM(6XH) (D) PT1/4 & M12 & M16 3WAY	1-09656-331-1	01	1	1510-
220	CONNECTOR; 3WAY EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> (C)	8-98131-540-0	01	1	0809-
220	CONNECTOR; 3WAY HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	0809-1011
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1012-1203
220	CONNECTOR; 3WAY 4HK1-TCS ENG(RJS) EXC. H.S.A SYSTEM<6EP> (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1012-1203
220	CONNECTOR; 3WAY HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	0809-1011
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1012-1203
220	CONNECTOR; 3WAY 4HK1-TCS ENG(RJS) (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1012-1203
220	CONNECTOR; 3WAY TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0809-1107
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1108-
231	CONNECTOR; NYLON TUBE H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0809-
231	CONNECTOR; NYLON TUBE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	0809-
237	VALVE; SAFETY	1-48320-012-2	01	1	0809-
275	CONNECTOR; 4WAY H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH) (A)	8-98035-011-0	01	1	1510-
275	CONNECTOR; 4WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> THROTTLE CONTROL SYSTEM(6XH) (A)	8-98035-011-0	01	1	1510-
275	CONNECTOR; 4WAY HEAVY DUTY PACKAGE TRUCK VAR3<Y48> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98050-414-0	01	1	1510-
275	CONNECTOR; 4WAY H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09656-704-0	01	1	0809-1011
275	CONNECTOR; 4WAY 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09656-704-0	01	1	1012-1203
275	CONNECTOR; 4WAY 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09656-704-0	01	1	1012-1203
275	CONNECTOR; 4WAY H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98024-621-0	01	1	0809-
275	CONNECTOR; 4WAY H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98035-011-0	01	1	0809-1011
275	CONNECTOR; 4WAY 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98035-011-0	01	1	1012-1203
275	CONNECTOR; 4WAY 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98035-011-0	01	1	1012-1203
290	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09680-099-0	01	1	0809-1107
290	COCK; AIR,INFLATOR 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09680-099-0	01	1	1108-
291	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	9-48319-102-0	01	1	0809-1107
291	CAP; AIR COCK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	9-48319-102-0	01	1	1108-

106 201 195 192 190 202 189 203 205 201 197 200 198 205 203 198 201 197 199 200 196 196 199 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	0809-
189	VALVE ASM; SOLENOID,HSA VLV H.S.A SYSTEM<6EP>	1-46366-247-0	01	1	0809-
190	BODY; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-234-0	01	1	0809-
192	SPRING; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-181-0	01	1	0809-
195	SCREW; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-191-0	04	1	0809-
196	PISTON; HSA VLV H.S.A SYSTEM<6EP>	1-46366-232-0	02	1	0809-
197	SPRING; INNER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-161-0	02	1	0809-
198	PIN; STRAIGHT,HSA VLV H.S.A SYSTEM<6EP>	1-46366-122-0	02	1	0809-
199	RETAINER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-121-0	02	1	0809-
200	SPRING; OUTER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-120-0	02	1	0809-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-118-1	02	1	0809-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-241-0	01	1	0809-
202	FILTER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-117-1	02	1	0809-
203	SCREW; HSA VLV H.S.A SYSTEM<6EP>	1-46366-116-1	06	1	0809-
204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	0809-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-149-0	01	1	0809-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-150-0	01	1	0809-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98120-228-1	01	1	0809-

106 107 102 34 34 38 30 93 93 93 93 33 93 108 103 237 102 108 58 108 58 220 58 220 167 232 108 108 25 58 99 275 103 237 58 220 102 58 220 108 25 167 99 108 58 275 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	SWITCH; PRESSURE STAMP 5.5	8-97609-249-0	01	1	0809-1011
25	SWITCH; PRESSURE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	01	1	1012-1311
25	SWITCH; PRESSURE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	01	1	1012-1311
25	SWITCH; PRESSURE 4HK1-TCS ENG(RJS) STAMP 5.5	8-97609-249-0	01	1	1012-1311
25	SWITCH; PRESSURE STAMP 5.5	8-97609-249-0	01	1	1312-
30	GOVERNOR; AIR CONT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48350-093-2	01	1	0809-0811
30	GOVERNOR; AIR CONT	1-48350-093-2	01	1	0812-1011
30	GOVERNOR; AIR CONT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48350-093-2	01	1	1012-1107
30	GOVERNOR; AIR CONT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48350-093-2	01	1	1012-1107
30	GOVERNOR; AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T>	1-48350-093-2	01	1	1108-
33	BRACKET; GOV,AIR CONT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98133-401-0	01	1	0812-1011
33	BRACKET; GOV,AIR CONT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98133-401-0	01	1	1012-1107
33	BRACKET; GOV,AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98133-401-0	01	1	1108-
33	BRACKET; GOV,AIR CONT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98120-459-0	01	1	0809-1107
33	BRACKET; GOV,AIR CONT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98120-459-1	01	1	1108-
34	BOLT; BRKT,GOV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	02	1	0809-0811
34	BOLT; BRKT,GOV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	02	1	0809-0811
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28650-825-0	02	1	0812-1005
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28650-825-0	02	1	1006-1011
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28650-825-0	02	1	1006-1011
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	02	1	1012-1107
34	BOLT; BRKT,GOV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	02	1	1012-1107
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	02	1	1012-1107
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	02	1	1108-
34	BOLT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	02	1	1108-
38	NUT; BRKT,GOV EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	1006-1107
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	04	1	1108-
38	NUT; BRKT,GOV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	02	1	0809-0811
38	NUT; BRKT,GOV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	02	1	0809-0811
38	NUT; BRKT,GOV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	02	1	0812-1005
38	NUT; BRKT,GOV M8 FLANGE	0-91180-108-0	02	1	0812-1005
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> M8 FLANGE	0-91180-108-0	02	1	1006-1008
38	NUT; BRKT,GOV TIRE INFLATOR DEVICE<SG4> M8 FLANGE	0-91180-108-0	02	1	1006-1008
38	NUT; BRKT,GOV TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	02	1	1009-1107
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	02	1	1009-1107
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> M8 FLANGE	0-91180-108-0	02	1	1108-
38	NUT; BRKT,GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> M8 FLANGE	0-91180-108-0	02	1	1108-
58	ADAPTER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1204-1311
58	ADAPTER 4HK1-TCS ENG(RJS) (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1204-1311
58	ADAPTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1312-1509
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV),THROTTLE CONTROL SYSTEM(6XH) (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1510-
58	ADAPTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1510-
58	ADAPTER 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98035-011-0	01	1	1204-1311
58	ADAPTER 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98035-011-0	01	1	1204-1311
58	ADAPTER H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98035-011-0	01	1	1312-1509
58	ADAPTER H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV),THROTTLE CONTROL SYSTEM(6XH) (D)	8-98035-011-0	01	1	1510-
58	ADAPTER 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-09656-704-0	01	1	1204-1311
58	ADAPTER 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-09656-704-0	01	1	1204-1311
58	ADAPTER H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-09656-704-0	01	1	1312-1509
58	ADAPTER H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (E)	1-09656-704-0	01	1	1510-
58	ADAPTER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (F) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1204-1311
58	ADAPTER 4HK1-TCS ENG(RJS) EXC. H.S.A SYSTEM<6EP> (F) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1204-1311
58	ADAPTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (F) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1312-1509
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP>, THROTTLE CONTROL SYSTEM(6XH) (F) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1510-
58	ADAPTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (F) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1510-
58	ADAPTER (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1011
58	ADAPTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1012-1311
58	ADAPTER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1012-1311
58	ADAPTER 4HK1-TCS ENG(RJS) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1012-1311
58	ADAPTER (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1312-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR	1-09661-815-0	02	1	0809-
93	CONNECTOR; GOV TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0812-1008
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1009-1107
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1108-
93	CONNECTOR; GOV TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4 MALE & PT1/4 FEMALE X2 3WAY	1-09660-363-0	01	1	0812-1008
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1009-1107
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1108-
93	CONNECTOR; GOV HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0812-1005
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1006-1107
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1108-
93	CONNECTOR; GOV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0809-1107
93	CONNECTOR; GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1108-
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-48110-290-3	01	1	1510-
99	VALVE; PROTECTION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-48110-287-0	01	1	0809-1011
99	VALVE; PROTECTION HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48110-287-0	01	1	0809-1011
99	VALVE; PROTECTION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-48110-287-1	01	1	1012-1311
99	VALVE; PROTECTION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48110-287-1	01	1	1012-1311
99	VALVE; PROTECTION 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48110-287-1	01	1	1012-1311
99	VALVE; PROTECTION EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-48110-287-3	01	1	1312-
99	VALVE; PROTECTION HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48110-287-3	01	1	1312-
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48110-288-0	01	1	0809-1011
99	VALVE; PROTECTION 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48110-288-1	01	1	1012-1311
99	VALVE; PROTECTION 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48110-288-1	01	1	1012-1311
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-48110-288-3	01	1	1312-1509
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (A)	1-48110-288-3	01	1	1510-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	0809-1011
102	BOLT; PROTECTION VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X16 FLANGE	0-28050-816-0	02	1	1012-1311
102	BOLT; PROTECTION VALVE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X16 FLANGE	0-28050-816-0	02	1	1012-1311
102	BOLT; PROTECTION VALVE 4HK1-TCS ENG(RJS) (B) M8X16 FLANGE	0-28050-816-0	02	1	1012-1311
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	1312-
102	BOLT; PROTECTION VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-
102	BOLT; PROTECTION VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M10X30 FLANGE	0-28651-030-0	02	1	0809-
103	BRACKET; PROTECTION VALVE 4HK1-TCS ENG(RJS) (A)	8-98162-113-1	01	1	1012-1311
103	BRACKET; PROTECTION VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98221-293-0	01	1	1312-
103	BRACKET; PROTECTION VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98034-985-1	01	1	0809-1011
103	BRACKET; PROTECTION VALVE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98034-985-1	01	1	1012-1311
103	BRACKET; PROTECTION VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98111-527-1	01	1	0809-
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	0809-
107	BOLT; VLV H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	03	1	0809-
107	BOLT; VLV H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	02	1	0809-
108	CONNECTOR; ELBOW THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1510-
108	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1510-
108	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1510-
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1510-
108	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0812-1005
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1006-1107
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TIRE INFLATOR DEVICE<SG4> (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1108-
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	0809-1011
108	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1012-1311
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1012-1311
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1012-1311
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1312-1509
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW	0-92134-310-0	02	1	1510-
108	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1011
108	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1011
108	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1311
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1311
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1012-1311
108	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1312-
108	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1312-
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0809-1011
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1012-1311
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1012-1311
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1312-
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-1011
108	CONNECTOR; ELBOW EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-1011
108	CONNECTOR; ELBOW EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1107
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1107
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1107
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-1311
108	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-1311
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-1311
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1312-1509
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1312-1509
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1510-
108	CONNECTOR; ELBOW H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1510-
167	COVER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48119-625-0	04	1	0907-1011
167	COVER; VALVE 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48119-625-0	04	1	1012-1311
167	COVER; VALVE 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-625-0	04	1	1012-1311
167	COVER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48119-625-0	04	1	1312-
167	COVER; VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48119-625-0	03	1	0907-1011
167	COVER; VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-625-0	03	1	0907-1011
167	COVER; VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48119-625-0	03	1	1012-1311
167	COVER; VALVE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-625-0	03	1	1012-1311
167	COVER; VALVE 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-625-0	03	1	1012-1311
167	COVER; VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48119-625-0	03	1	1312-
167	COVER; VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48119-625-0	03	1	1312-
220	CONNECTOR; 3WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1510-
220	CONNECTOR; 3WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1510-
220	CONNECTOR; 3WAY HEAVY DUTY PACKAGE TRUCK VAR3<Y48> THROTTLE CONTROL SYSTEM(6XH) (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1510-
220	CONNECTOR; 3WAY THROTTLE CONTROL SYSTEM(6XH) (D) PT1/4 & M12 & M16 3WAY	1-09656-331-1	01	1	1510-
220	CONNECTOR; 3WAY EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>,H.S.A SYSTEM<6EP> (C)	8-98131-540-0	01	1	0809-
220	CONNECTOR; 3WAY HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	0809-1011
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1012-1203
220	CONNECTOR; 3WAY 4HK1-TCS ENG(RJS) EXC. H.S.A SYSTEM<6EP> (C) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1012-1203
220	CONNECTOR; 3WAY HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	0809-1011
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1012-1203
220	CONNECTOR; 3WAY 4HK1-TCS ENG(RJS) (A) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1012-1203
220	CONNECTOR; 3WAY TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0809-1107
220	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1108-
232	VALVE; CHECK THROTTLE CONTROL SYSTEM(6XH) (B)	1-48410-531-1	01	1	1510-
232	VALVE; CHECK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0809-1011
232	VALVE; CHECK 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1012-1311
232	VALVE; CHECK 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1012-1311
232	VALVE; CHECK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1312-
237	VALVE; SAFETY	1-48320-012-2	01	1	0809-
275	CONNECTOR; 4WAY H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH) (A)	8-98035-011-0	01	1	1510-
275	CONNECTOR; 4WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> THROTTLE CONTROL SYSTEM(6XH) (A)	8-98035-011-0	01	1	1510-
275	CONNECTOR; 4WAY HEAVY DUTY PACKAGE TRUCK VAR3<Y48> THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98050-414-0	01	1	1510-
275	CONNECTOR; 4WAY H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09656-704-0	01	1	0809-1011
275	CONNECTOR; 4WAY 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09656-704-0	01	1	1012-1203
275	CONNECTOR; 4WAY 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09656-704-0	01	1	1012-1203
275	CONNECTOR; 4WAY H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98024-621-0	01	1	0809-
275	CONNECTOR; 4WAY H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98035-011-0	01	1	0809-1011
275	CONNECTOR; 4WAY 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98035-011-0	01	1	1012-1203
275	CONNECTOR; 4WAY 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98035-011-0	01	1	1012-1203

240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
240	REPAIR KIT; AIR CONT GOV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-85576-467-0	01	1	0809-0811
240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0812-1011
240	REPAIR KIT; AIR CONT GOV EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-85576-467-0	01	1	1012-1107
240	REPAIR KIT; AIR CONT GOV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-85576-467-0	01	1	1012-1107
240	REPAIR KIT; AIR CONT GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T>	1-85576-467-0	01	1	1108-

241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	REPAIR KIT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-85576-451-1	01	1	0907-1011
241	REPAIR KIT; PROTECTION VALVE 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-85576-451-1	01	1	1012-1311
241	REPAIR KIT; PROTECTION VALVE 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-451-1	01	1	1012-1311
241	REPAIR KIT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-85576-451-2	01	1	1312-
241	REPAIR KIT; PROTECTION VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-85576-452-1	01	1	0907-1011
241	REPAIR KIT; PROTECTION VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-452-1	01	1	0907-1011
241	REPAIR KIT; PROTECTION VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-85576-452-1	01	1	1012-1311
241	REPAIR KIT; PROTECTION VALVE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-452-1	01	1	1012-1311
241	REPAIR KIT; PROTECTION VALVE 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-452-1	01	1	1012-1311
241	REPAIR KIT; PROTECTION VALVE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-85576-452-2	01	1	1312-
241	REPAIR KIT; PROTECTION VALVE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-452-2	01	1	1312-

259

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	259	REPAIR KIT; VALVE THROTTLE CONTROL SYSTEM(6XH) W/GREASE	1-85576-381-0	01	1	1510-

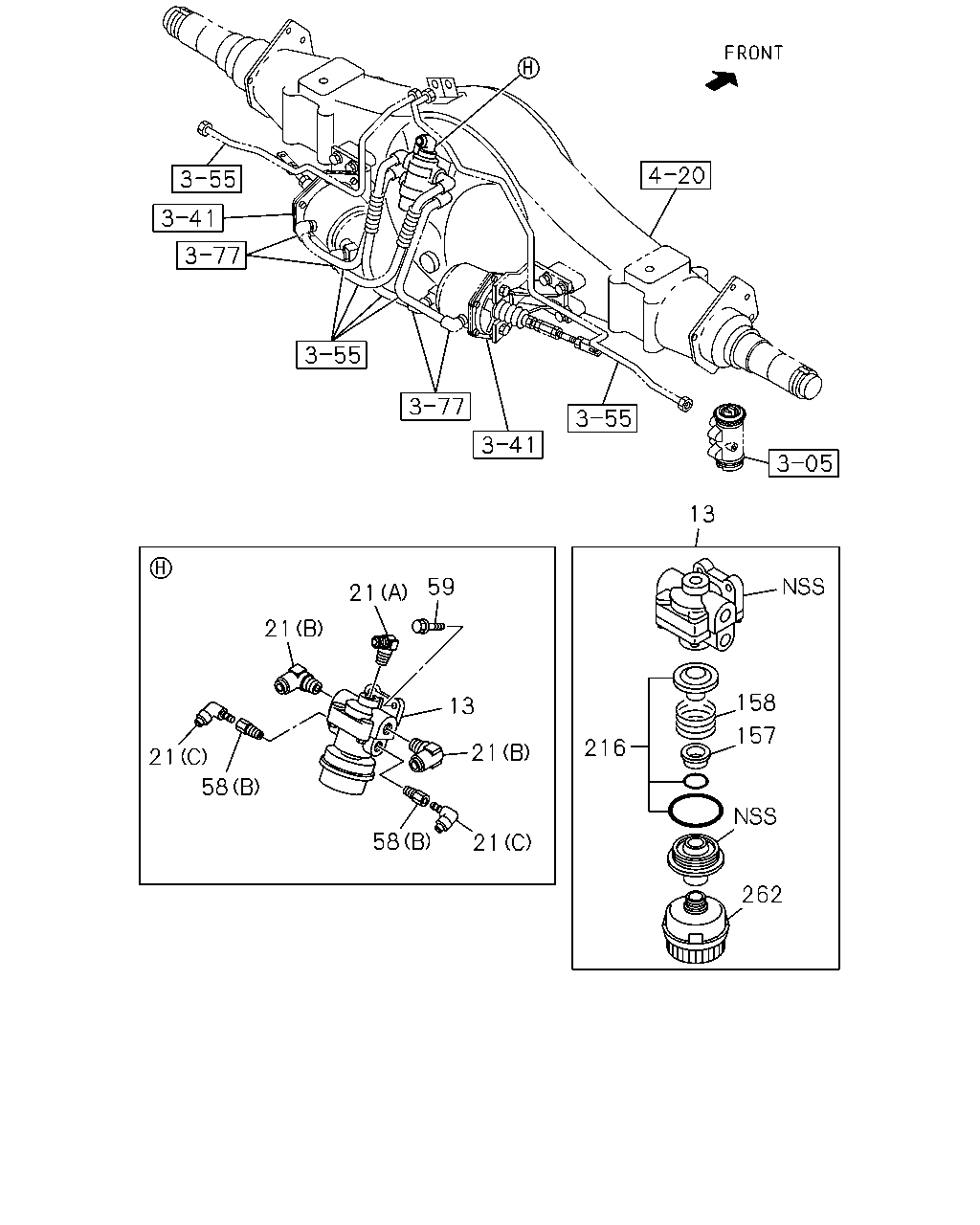

21 21 58 21 13 59 21 21 58 13 216 158 157 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV)	1-48410-781-2	01	1	1510-
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-783-0	01	1	0809-1509
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV)	1-48410-783-0	01	1	1510-
21	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-
21	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0809-
21	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN4 & DIN6 SWIVEL CONNECTOR	1-09661-816-0	02	1	0809-
58	ADAPTER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1204-1311
58	ADAPTER 4HK1-TCS ENG(RJS) (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1204-1311
58	ADAPTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1312-1509
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV),THROTTLE CONTROL SYSTEM(6XH) (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1510-
58	ADAPTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) DIN9 & RC3/8 & M20 3WAY	8-98031-239-0	01	1	1510-
58	ADAPTER 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98035-011-0	01	1	1204-1311
58	ADAPTER 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98035-011-0	01	1	1204-1311
58	ADAPTER H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98035-011-0	01	1	1312-1509
58	ADAPTER H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV),THROTTLE CONTROL SYSTEM(6XH) (D)	8-98035-011-0	01	1	1510-
58	ADAPTER 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-09656-704-0	01	1	1204-1311
58	ADAPTER 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-09656-704-0	01	1	1204-1311
58	ADAPTER H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	1-09656-704-0	01	1	1312-1509
58	ADAPTER H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (E)	1-09656-704-0	01	1	1510-
58	ADAPTER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (F) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1204-1311
58	ADAPTER 4HK1-TCS ENG(RJS) EXC. H.S.A SYSTEM<6EP> (F) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1204-1311
58	ADAPTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (F) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1312-1509
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV),H.S.A SYSTEM<6EP>, THROTTLE CONTROL SYSTEM(6XH) (F) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1510-
58	ADAPTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (F) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1510-
58	ADAPTER (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1011
58	ADAPTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1012-1311
58	ADAPTER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1012-1311
58	ADAPTER 4HK1-TCS ENG(RJS) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1012-1311
58	ADAPTER (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1312-
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN7 & DIN9 ADAPTOR	1-09661-815-0	02	1	0809-
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0809-0906
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28050-820-0	02	1	0907-
157	RETAINER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV)	1-48419-036-0	01	1	1510-
158	SPRING; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV)	9-48419-003-0	01	1	1510-
216	REPAIR KIT; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV)	1-85579-062-0	01	1	1510-
262	SILENCER; RELAY VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV)	1-48219-149-0	01	1	1510-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
