Sayfa 3-20 - Isuzu EPC

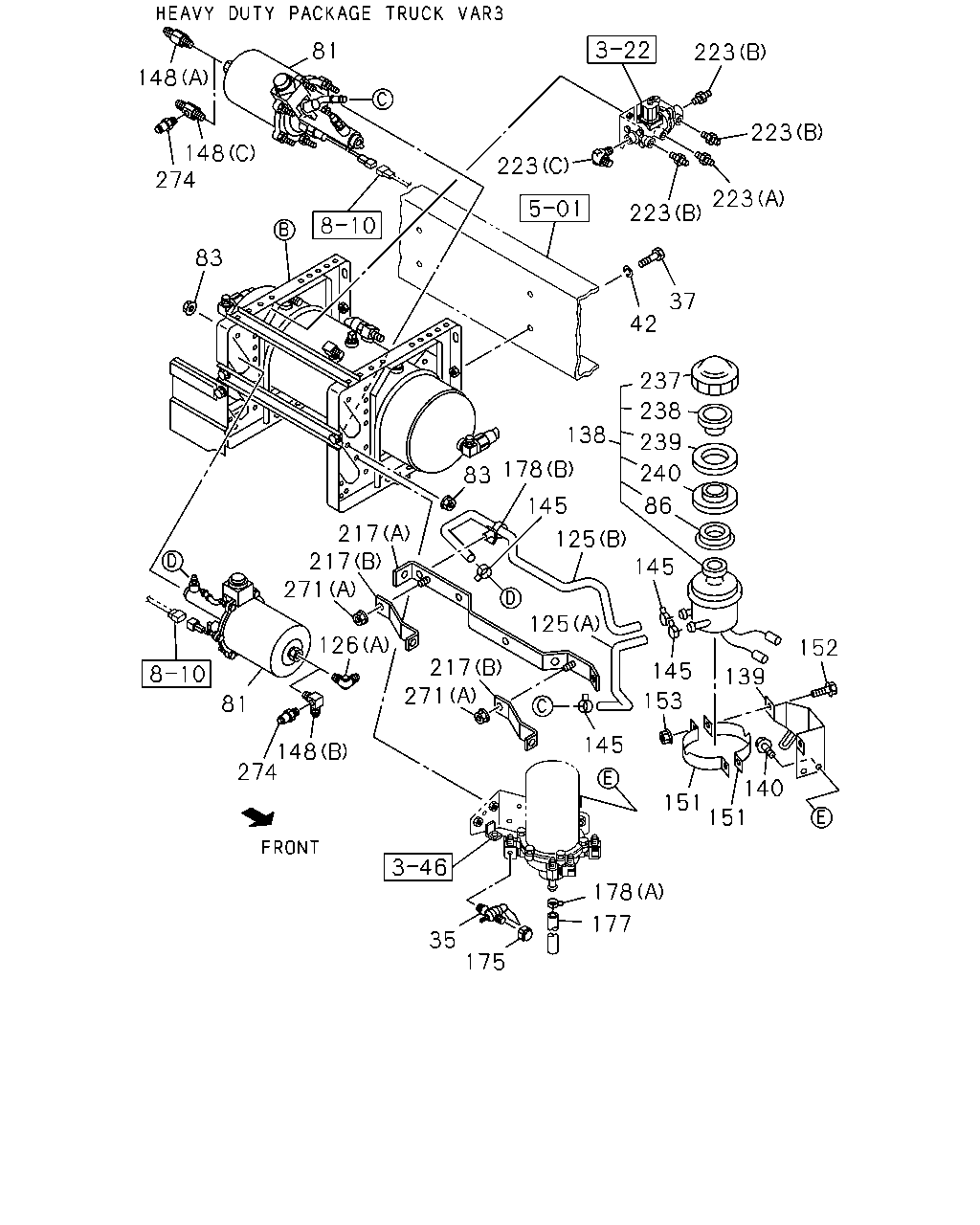

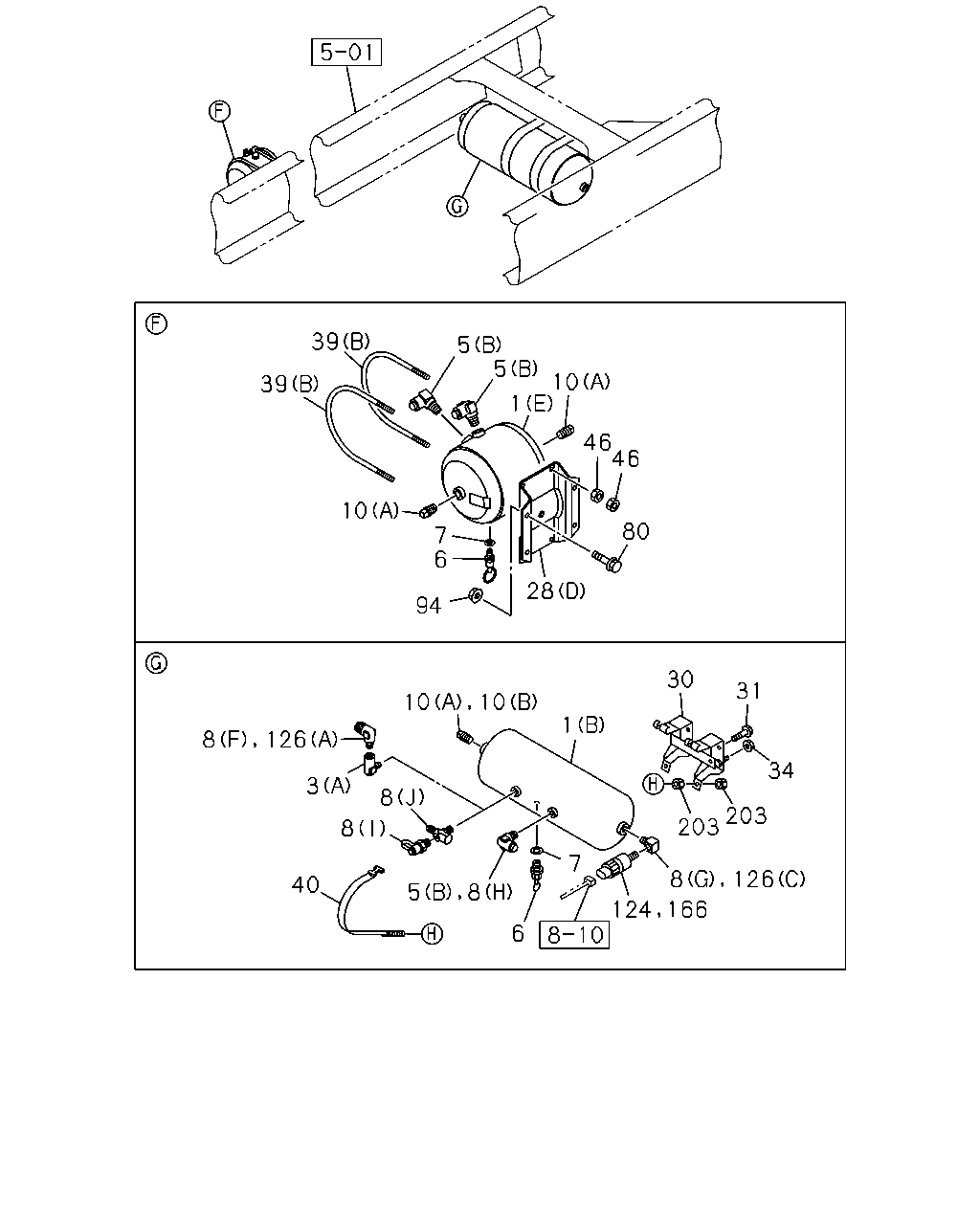

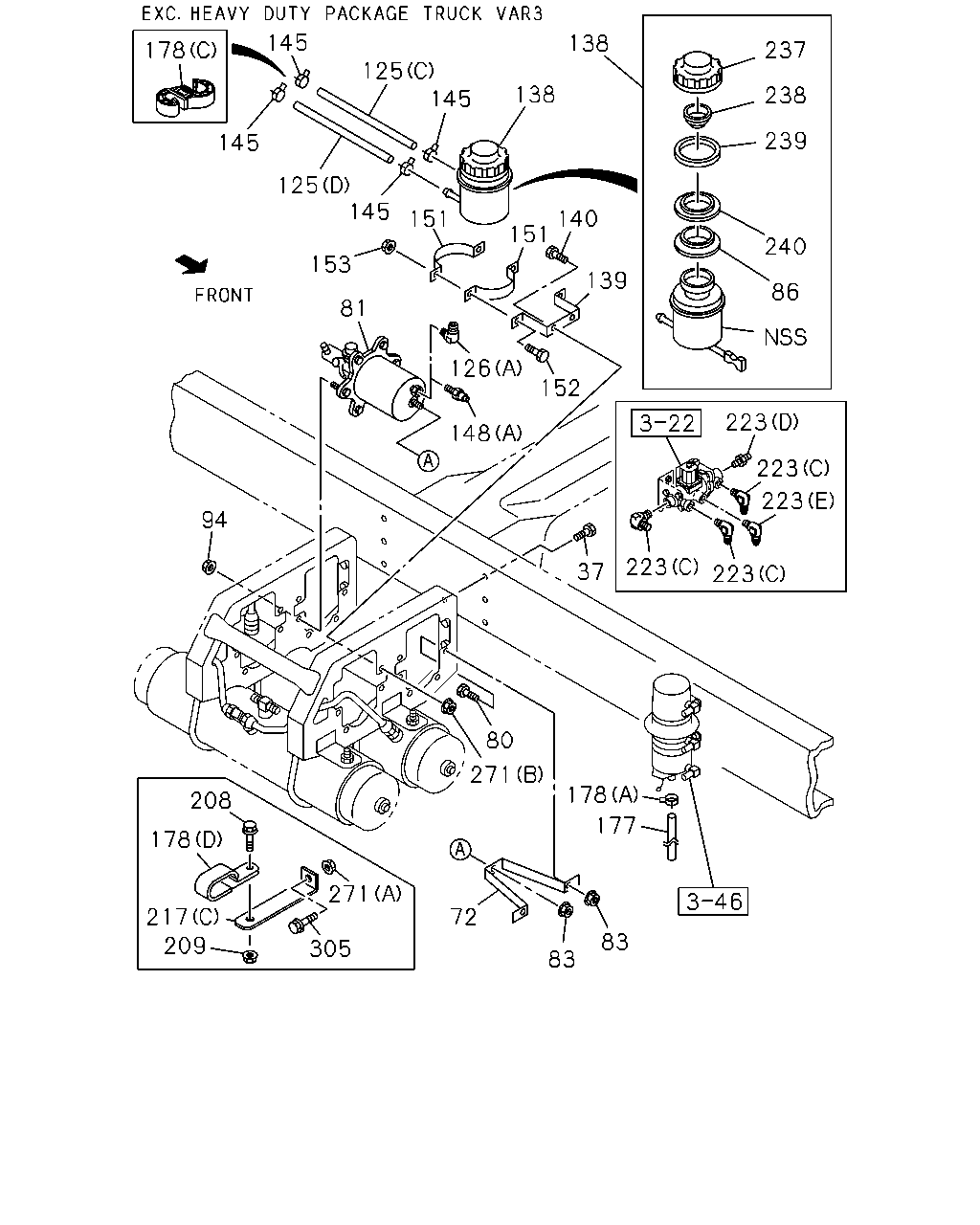

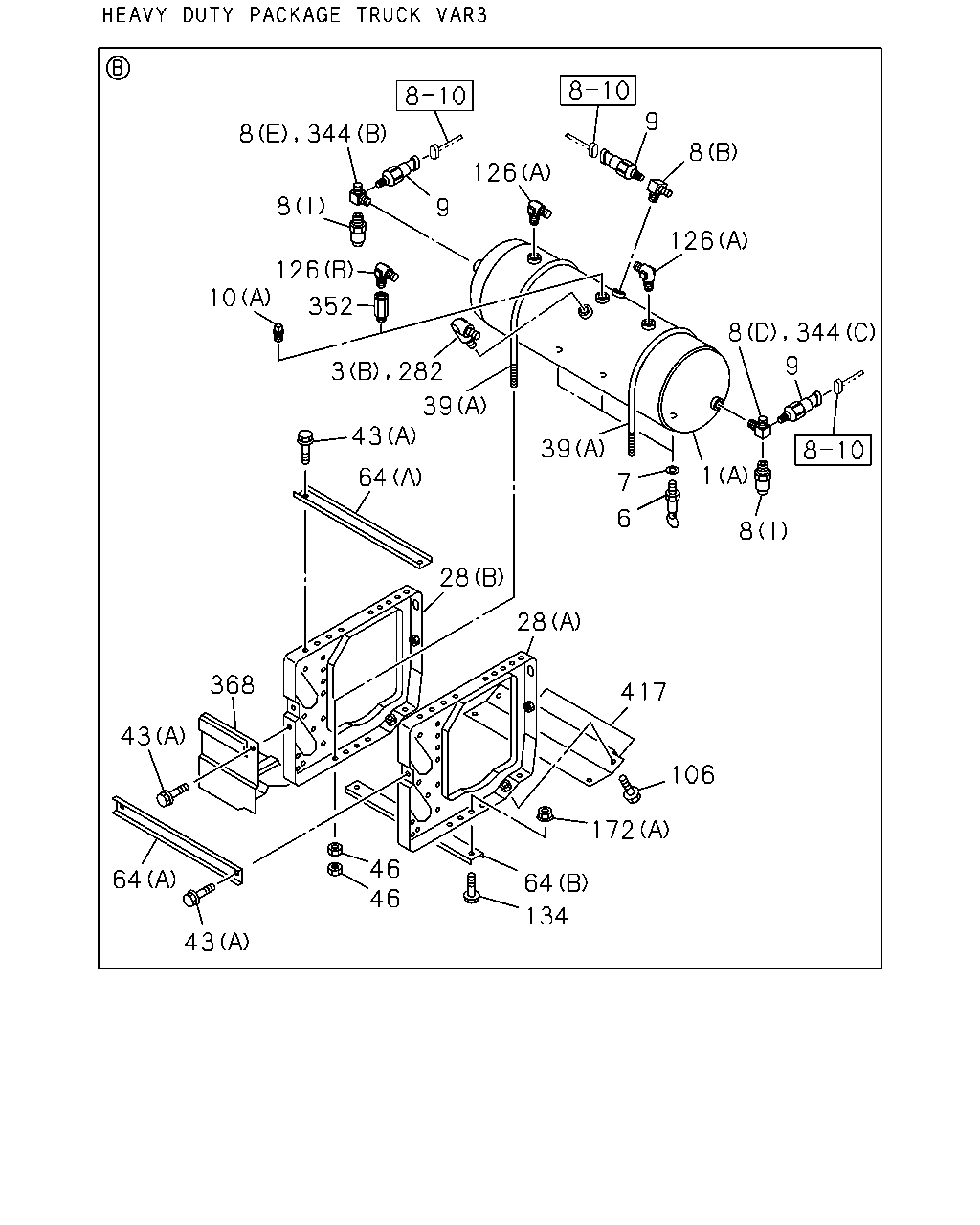

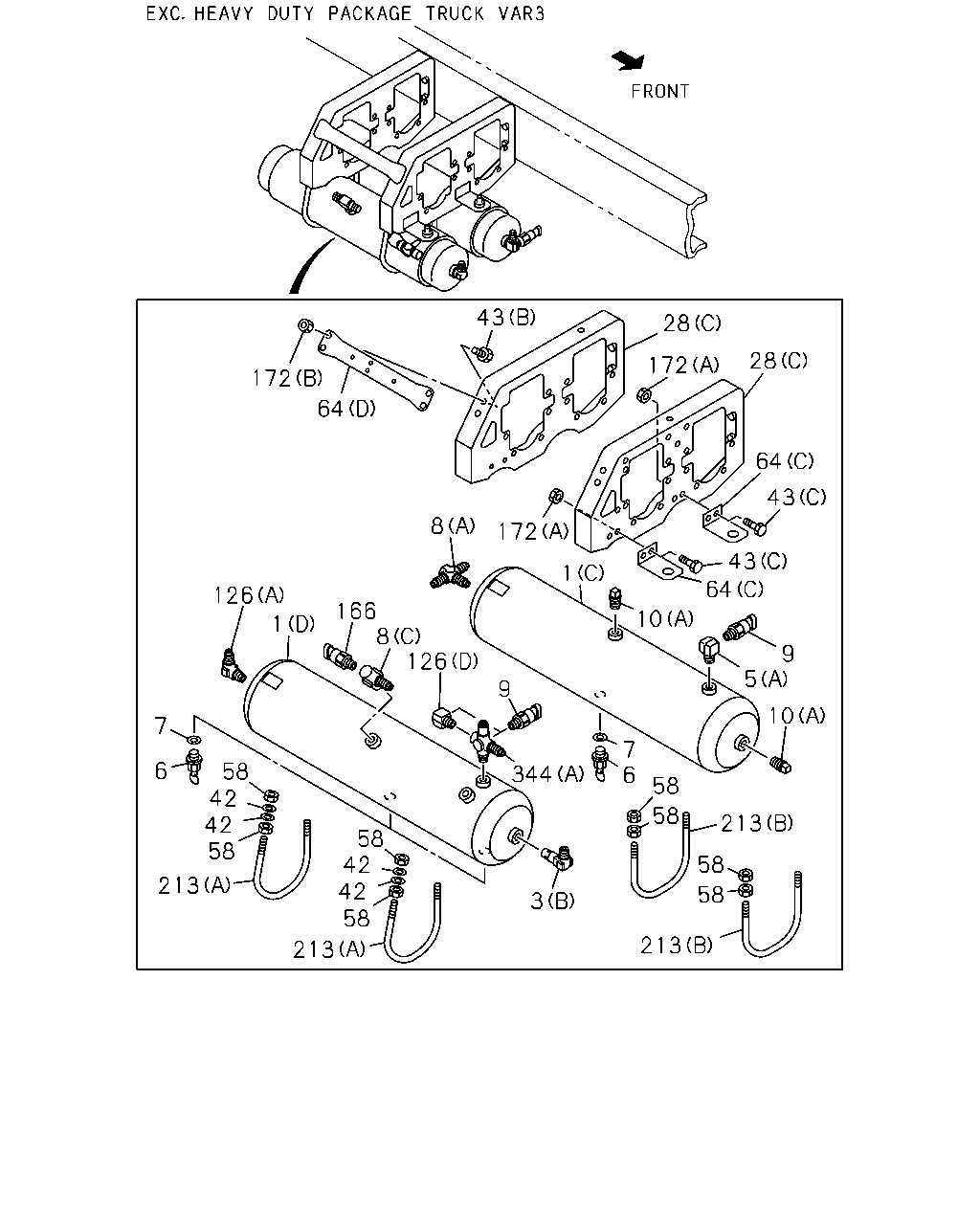

3-20 — AIR TANK (#39190) — 487 parça

39 39 5 10 1 10 7 6 94 46 80 28 1 30 31 34 203 203 8 126 124 166 6 8 5 40 8 3 126 8 8 10 10 7 5 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE REGULATION ECE(TDV) (E)	8-98081-870-1	01	1	1510-
1	TANK ASM; AIR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98018-785-3	01	1	0809-
1	TANK ASM; AIR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-48370-500-0	01	1	0809-
1	TANK ASM; AIR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-48370-501-0	01	1	0809-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-659-0	01	1	0809-1101
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1102-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0809-
3	VALVE; CHECK,AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0809-1011
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0809-1011
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1012-1107
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1012-1107
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1108-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1108-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48320-031-1	01	1	0809-1509
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (A)	1-48320-031-1	01	1	1510-
5	UNION; AIR TANK BRAKE REGULATION ECE(TDV) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1510-
5	UNION; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0809-1101
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0809-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0809-1509
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ECE(TDV)	1-48312-015-0	01	1	1510-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1510-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0809-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0809-1509
7	GASKET; DRAIN COCK BRAKE REGULATION ECE(TDV) ID=14	1-09630-145-0	01	1	1510-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	1510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (J) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	1510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (I) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1510-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-1509
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (F) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1102-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1102-
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	0809-
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0809-1509
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1510-
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0809-1509
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1510-
8	CONNECTOR; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16X2 & PT3/8 3WAY	1-09656-455-2	01	1	0809-
8	CONNECTOR; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M16 & PT3/8 ELBOW	1-09656-724-0	01	1	0809-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	01	1	1012-1101
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/8	9-09204-517-0	01	1	1102-1107
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	01	1	1102-1107
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/8	9-09204-517-0	01	1	1108-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	01	1	1108-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) PT3/8	9-09204-517-0	01	1	1108-
10	PLUG; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	02	1	0809-1509
10	PLUG; AIR TANK BRAKE REGULATION ECE(TDV) (A) PT3/8	9-09204-517-0	02	1	1510-
10	PLUG; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	02	1	1510-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/4	9-09204-526-0	01	1	0809-1101
28	BRACKET; AIR TANK BRAKE REGULATION ECE(TDV) (D)	8-98100-165-3	01	1	1510-
28	BRACKET; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98021-918-5	01	1	0809-
28	BRACKET; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98044-509-5	01	1	0809-
28	BRACKET; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-53318-338-6	02	1	0809-
30	BRACKET; AIR TANK,SUB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-894-1	01	1	0809-
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	0809-
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	0809-
39	U-BOLT; AIR TANK BRAKE REGULATION ECE(TDV) (B) L=210	1-48317-458-1	02	1	1510-
39	U-BOLT; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98022-041-0	02	1	0809-
40	BAND ASM; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-893-1	02	1	0809-
46	NUT; U-BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8	0-91110-508-0	08	1	0809-1509
46	NUT; U-BOLT BRAKE REGULATION ECE(TDV) M8	0-91110-508-0	08	1	1510-
46	NUT; U-BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8	0-91110-508-0	08	1	1510-
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10X30 FLANGE	0-28651-030-0	03	1	1510-
80	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	04	1	0809-1509
80	BOLT; BRKT EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	04	1	1510-
94	NUT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10 FLANGE	0-91180-210-0	04	1	1510-
94	NUT; BRKT FIX EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE	0-91180-210-0	10	1	0809-1307
94	NUT; BRKT FIX EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE	0-91180-210-0	06	1	1308-1509
94	NUT; BRKT FIX EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE	0-91180-210-0	06	1	1510-
124	SWITCH; AIR PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	01	1	1102-
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0809-0810
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0809-0811
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1011
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1107
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0809-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-1509
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-1509
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1510-
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1510-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1101
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	01	1	0809-1101
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	01	1	0809-1101
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	01	1	1102-
203	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	04	1	0809-

8 344 8 10 126 352 3 43 282 64 39 28 368 43 64 43 46 46 64 134 172 106 417 28 39 6 8 1 7 126 9 126 8 344 9 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE REGULATION ECE(TDV) (E)	8-98081-870-1	01	1	1510-
1	TANK ASM; AIR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98018-785-3	01	1	0809-
1	TANK ASM; AIR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-48370-500-0	01	1	0809-
1	TANK ASM; AIR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-48370-501-0	01	1	0809-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-659-0	01	1	0809-1101
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1102-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0809-
3	VALVE; CHECK,AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0809-1011
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0809-1011
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1012-1107
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1012-1107
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1108-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1108-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48320-031-1	01	1	0809-1509
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (A)	1-48320-031-1	01	1	1510-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0809-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0809-1509
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ECE(TDV)	1-48312-015-0	01	1	1510-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1510-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0809-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0809-1509
7	GASKET; DRAIN COCK BRAKE REGULATION ECE(TDV) ID=14	1-09630-145-0	01	1	1510-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	1510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (J) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	1510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (I) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1510-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-1509
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (F) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1102-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1102-
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	0809-
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0809-1509
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1510-
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0809-1509
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1510-
8	CONNECTOR; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16X2 & PT3/8 3WAY	1-09656-455-2	01	1	0809-
8	CONNECTOR; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M16 & PT3/8 ELBOW	1-09656-724-0	01	1	0809-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	03	1	0809-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	02	1	0809-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	01	1	1012-1101
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/8	9-09204-517-0	01	1	1102-1107
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	01	1	1102-1107
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/8	9-09204-517-0	01	1	1108-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	01	1	1108-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) PT3/8	9-09204-517-0	01	1	1108-
10	PLUG; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	02	1	0809-1509
10	PLUG; AIR TANK BRAKE REGULATION ECE(TDV) (A) PT3/8	9-09204-517-0	02	1	1510-
10	PLUG; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	02	1	1510-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/4	9-09204-526-0	01	1	0809-1101
28	BRACKET; AIR TANK BRAKE REGULATION ECE(TDV) (D)	8-98100-165-3	01	1	1510-
28	BRACKET; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98021-918-5	01	1	0809-
28	BRACKET; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98044-509-5	01	1	0809-
28	BRACKET; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-53318-338-6	02	1	0809-
39	U-BOLT; AIR TANK BRAKE REGULATION ECE(TDV) (B) L=210	1-48317-458-1	02	1	1510-
39	U-BOLT; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98022-041-0	02	1	0809-
43	BOLT; STAY,AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X16 FLANGE	0-28050-816-0	06	1	0809-
43	BOLT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M8X20 FLANGE	0-28650-820-0	04	1	0809-
43	BOLT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10X25 FLANGE	0-28651-025-0	04	1	0809-
46	NUT; U-BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8	0-91110-508-0	08	1	0809-1509
46	NUT; U-BOLT BRAKE REGULATION ECE(TDV) M8	0-91110-508-0	08	1	1510-
46	NUT; U-BOLT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8	0-91110-508-0	08	1	1510-
64	STAY; AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98044-510-3	02	1	0809-
64	STAY; AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98044-511-2	01	1	0809-
64	STAY; AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-48317-349-0	02	1	0809-
64	STAY; AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-53318-293-1	01	1	0809-
106	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	04	1	0809-
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0809-0810
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0809-0811
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1011
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1107
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0809-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-1509
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-1509
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1510-
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1510-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1101
134	BOLT; COVER FIX HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	04	1	0809-
172	NUT; STAY,AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	0809-
172	NUT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	04	1	0809-
172	NUT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	04	1	0809-
282	UNION; 2 WAY 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1012-1107
282	UNION; 2 WAY 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1108-
282	UNION; 2 WAY 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1108-
344	CONNECTOR; 4WAY BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-09656-726-0	01	1	1510-
344	CONNECTOR; 4WAY BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09656-767-0	01	1	1510-
344	CONNECTOR; 4WAY EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98131-623-0	01	1	0809-0810
344	CONNECTOR; 4WAY EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98134-204-0	01	1	0811-
352	CONNECTOR; STRAIGHT HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98133-234-0	01	1	0812-1011
352	CONNECTOR; STRAIGHT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98133-234-0	01	1	1012-1107
352	CONNECTOR; STRAIGHT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98133-234-0	01	1	1108-
368	COVER; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98061-625-3	01	1	0809-
417	COVER; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98111-401-0	01	1	0809-

9 7 6 58 42 42 58 58 58 58 58 6 7 9 58 42 42 58 172 43 64 8 126 1 8 166 126 344 5 10 10 1 172 43 64 43 64 28 172 28 213 213 3 213 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE REGULATION ECE(TDV) (E)	8-98081-870-1	01	1	1510-
1	TANK ASM; AIR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98018-785-3	01	1	0809-
1	TANK ASM; AIR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-48370-500-0	01	1	0809-
1	TANK ASM; AIR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-48370-501-0	01	1	0809-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48370-659-0	01	1	0809-1101
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1102-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0809-
3	VALVE; CHECK,AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0809-1011
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0809-1011
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1012-1107
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1012-1107
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1108-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1108-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48320-031-1	01	1	0809-1509
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (A)	1-48320-031-1	01	1	1510-
5	UNION; AIR TANK BRAKE REGULATION ECE(TDV) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1510-
5	UNION; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0809-1101
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0809-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0809-1509
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ECE(TDV)	1-48312-015-0	01	1	1510-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1510-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0809-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0809-1509
7	GASKET; DRAIN COCK BRAKE REGULATION ECE(TDV) ID=14	1-09630-145-0	01	1	1510-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	1510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (J) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	1510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (I) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1510-
8	CONNECTOR; AIR TANK BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-1509
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (F) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1510-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1102-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1102-
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) DIN8X2 & PT1/4 3WAY	1-09656-759-0	01	1	0809-
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0809-1509
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1510-
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0809-1509
8	CONNECTOR; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1510-
8	CONNECTOR; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16X2 & PT3/8 3WAY	1-09656-455-2	01	1	0809-
8	CONNECTOR; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M16 & PT3/8 ELBOW	1-09656-724-0	01	1	0809-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	03	1	0809-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	02	1	0809-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	01	1	1012-1101
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/8	9-09204-517-0	01	1	1102-1107
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	01	1	1102-1107
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/8	9-09204-517-0	01	1	1108-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	01	1	1108-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) PT3/8	9-09204-517-0	01	1	1108-
10	PLUG; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	02	1	0809-1509
10	PLUG; AIR TANK BRAKE REGULATION ECE(TDV) (A) PT3/8	9-09204-517-0	02	1	1510-
10	PLUG; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	02	1	1510-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/4	9-09204-526-0	01	1	0809-1101
28	BRACKET; AIR TANK BRAKE REGULATION ECE(TDV) (D)	8-98100-165-3	01	1	1510-
28	BRACKET; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98021-918-5	01	1	0809-
28	BRACKET; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98044-509-5	01	1	0809-
28	BRACKET; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-53318-338-6	02	1	0809-
42	WASHER; PL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=12.5 OD=32	0-91614-712-0	04	1	0809-
42	WASHER; PL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=8.4 OD=18	0-91610-608-0	04	1	0809-
43	BOLT; STAY,AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X16 FLANGE	0-28050-816-0	06	1	0809-
43	BOLT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M8X20 FLANGE	0-28650-820-0	04	1	0809-
43	BOLT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10X25 FLANGE	0-28651-025-0	04	1	0809-
58	NUT; BAND,AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8	0-91110-508-0	16	1	0809-
64	STAY; AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98044-510-3	02	1	0809-
64	STAY; AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98044-511-2	01	1	0809-
64	STAY; AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-48317-349-0	02	1	0809-
64	STAY; AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-53318-293-1	01	1	0809-
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0809-0810
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0809-0811
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1011
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1107
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0809-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-1509
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-1509
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1510-
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1510-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1101
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	01	1	0809-1101
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	01	1	0809-1101
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	01	1	1102-
172	NUT; STAY,AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	0809-
172	NUT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	04	1	0809-
172	NUT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	04	1	0809-
213	BOLT; U AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=97.5	1-48317-323-1	02	1	0809-
213	BOLT; U AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=195	1-48317-367-2	02	1	0809-
344	CONNECTOR; 4WAY BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-09656-726-0	01	1	1510-
344	CONNECTOR; 4WAY BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09656-767-0	01	1	1510-
344	CONNECTOR; 4WAY EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98131-623-0	01	1	0809-0810
344	CONNECTOR; 4WAY EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98134-204-0	01	1	0811-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	0809-

178 145 125 138 237 238 239 240 86 139 140 151 138 145 125 145 145 151 153 81 126 152 148 223 223 223 223 223 37 94 80 271 178 177 72 83 83 305 271 209 217 178 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X40 FLANGE	0-28651-240-0	04	1	0809-
37	BOLT; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X40 FLANGE	0-28651-240-0	06	1	0809-
72	BRACKET; AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98120-254-0	02	1	0809-1509
72	BRACKET; AIR MASTER EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98120-254-0	02	1	1510-
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10X30 FLANGE	0-28651-030-0	03	1	1510-
80	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	04	1	0809-1509
80	BOLT; BRKT EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	04	1	1510-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-663-1	02	1	0809-1509
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. ANTI LOCK BRAKE(JE5)	1-47800-663-1	02	1	1510-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-777-0	02	1	0809-0905
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-826-0	02	1	0906-
83	NUT; AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	09	1	0809-
83	NUT; AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE	0-91180-210-0	08	1	0809-
86	SEAL; DUST	1-47529-019-0	01	1	0809-
94	NUT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10 FLANGE	0-91180-210-0	04	1	1510-
94	NUT; BRKT FIX EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE	0-91180-210-0	10	1	0809-1307
94	NUT; BRKT FIX EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE	0-91180-210-0	06	1	1308-1509
94	NUT; BRKT FIX EXC. ANTI LOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE	0-91180-210-0	06	1	1510-
125	HOSE; OIL TANK TO AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98051-217-0	01	1	0809-
125	HOSE; OIL TANK TO AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98051-218-1	01	1	0809-
125	HOSE; OIL TANK TO AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	0809-
125	HOSE; OIL TANK TO AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98098-558-0	01	1	0809-
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0809-0810
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0809-0811
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1011
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1107
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0809-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-1509
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-1509
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1510-
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1510-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1101
138	TANK ASM; OIL,AIR MASTER BRAKE REGULATION ECE(TDV)	1-47530-186-0	01	1	1510-
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0809-1509
138	TANK ASM; OIL,AIR MASTER EXC. BRAKE REGULATION ECE(TDV)	1-47530-185-1	01	1	1510-
139	BRACKET; OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98051-105-0	01	1	0809-
139	BRACKET; OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47537-081-2	01	1	0809-
140	BOLT; OIL TANK TO BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	02	1	0809-
140	BOLT; OIL TANK TO BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X20 FLANGE	0-28651-020-0	02	1	0809-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0809-
148	CONNECTOR; AIR MASTER BRAKE REGULATION ECE(TDV) (C) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	1510-
148	CONNECTOR; AIR MASTER BRAKE REGULATION ECE(TDV) (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1510-
148	CONNECTOR; AIR MASTER (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0809-1509
148	CONNECTOR; AIR MASTER EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1510-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0809-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0809-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0809-
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0809-1005
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1006-1011
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1006-1011
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1012-1107
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1012-1107
177	HOSE; RUBBER,DRAIN 4HK1-TCS ENG(RJS) L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1012-1107
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1108-1509
177	HOSE; RUBBER,DRAIN 4HK1-TCS ENG(RJS) L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1108-1509
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1108-1509
177	HOSE; RUBBER,DRAIN 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1510-
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1510-
177	HOSE; RUBBER,DRAIN 4HK1-TCS ENG(RJS) EXC. BRAKE REGULATION ECE(TDV) L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1510-
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1510-
178	CLIP; HOSE 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	02	1	1108-1509
178	CLIP; HOSE 6HK1-TCN ENG(82L) BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	02	1	1510-
178	CLIP; HOSE 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	02	1	1510-
178	CLIP; HOSE AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	0809-1005
178	CLIP; HOSE AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=21	8-94242-034-0	01	1	1006-1011
178	CLIP; HOSE 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=21	8-94242-034-0	01	1	1006-1011
178	CLIP; HOSE AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=21	8-94242-034-0	01	1	1012-1107
178	CLIP; HOSE 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=21	8-94242-034-0	01	1	1012-1107
178	CLIP; HOSE 4HK1-TCS ENG(RJS) (A) ID=21	8-94242-034-0	01	1	1012-1107
178	CLIP; HOSE 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1108-1509
178	CLIP; HOSE 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1108-1509
178	CLIP; HOSE 4HK1-TCS ENG(RJS) (A) ID=21	8-94242-034-0	01	1	1108-1509
178	CLIP; HOSE 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (A) ID=21	8-94242-034-0	01	1	1510-
178	CLIP; HOSE 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ECE(TDV) (A) ID=21	8-94242-034-0	01	1	1510-
178	CLIP; HOSE 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1510-
178	CLIP; HOSE 4HK1-TCS ENG(RJS) EXC. BRAKE REGULATION ECE(TDV) (A) ID=21	8-94242-034-0	01	1	1510-
178	CLIP; HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=13-18 L=14.5	1-09709-290-0	08	1	0809-
178	CLIP; HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=12 & 12	1-09709-280-1	01	1	0809-
178	CLIP; HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) DIN15X2	9-09917-171-0	01	1	0809-
208	BOLT; CLIP EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	01	1	0809-
209	NUT; CLIP EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	01	1	0809-
217	BRACKET; RUBBER HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98082-871-0	01	1	0809-
217	BRACKET; RUBBER HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98085-273-1	02	1	0809-
217	BRACKET; RUBBER HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=112	1-47475-694-1	01	1	0809-
223	UNION H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0809-
223	UNION H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	03	1	0809-
223	UNION H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-
223	UNION H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0809-
223	UNION H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-
223	UNION H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M16 & PT3/8 ELBOW	1-09650-438-0	03	1	0809-
237	CAP; OIL TANK	1-47525-030-0	01	1	0809-
238	PLATE; BAFFLE	1-47529-022-0	01	1	0809-
239	FILTER; DUST	1-47529-017-0	01	1	0809-
240	HOLDER; FILTER	1-47529-018-0	01	1	0809-
271	NUT; BRKT,HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	0809-
271	NUT; BRKT,HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	01	1	0809-
271	NUT; BRKT,HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	02	1	0809-
305	BOLT; BRKT,HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	01	1	0809-

81 223 223 223 223 223 148 148 274 83 37 42 237 138 238 240 239 86 125 145 178 83 217 217 271 126 271 125 145 145 153 152 139 140 151 151 145 217 148 274 81 35 177 178 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	COCK; AIR,AIR TANK 4HK1-TCS ENG(RJS) TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1012-1107
35	COCK; AIR,AIR TANK 4HK1-TCS ENG(RJS) TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1108-1509
35	COCK; AIR,AIR TANK 6HK1-TCN ENG(82L) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	1-09680-099-0	01	1	1108-1509
35	COCK; AIR,AIR TANK 6HK1-TCN ENG(82L) TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ECE(TDV)	1-09680-099-0	01	1	1510-
35	COCK; AIR,AIR TANK 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	1-09680-099-0	01	1	1510-
35	COCK; AIR,AIR TANK 4HK1-TCS ENG(RJS) TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ECE(TDV)	1-09680-099-0	01	1	1510-
35	COCK; AIR,AIR TANK AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09680-099-0	01	1	0809-0811
37	BOLT; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X40 FLANGE	0-28651-240-0	04	1	0809-
37	BOLT; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X40 FLANGE	0-28651-240-0	06	1	0809-
42	WASHER; PL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=12.5 OD=32	0-91614-712-0	04	1	0809-
42	WASHER; PL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=8.4 OD=18	0-91610-608-0	04	1	0809-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-663-1	02	1	0809-1509
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. ANTI LOCK BRAKE(JE5)	1-47800-663-1	02	1	1510-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-777-0	02	1	0809-0905
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-826-0	02	1	0906-
83	NUT; AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	09	1	0809-
83	NUT; AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE	0-91180-210-0	08	1	0809-
86	SEAL; DUST	1-47529-019-0	01	1	0809-
125	HOSE; OIL TANK TO AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98051-217-0	01	1	0809-
125	HOSE; OIL TANK TO AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98051-218-1	01	1	0809-
125	HOSE; OIL TANK TO AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	0809-
125	HOSE; OIL TANK TO AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98098-558-0	01	1	0809-
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0809-0810
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0809-0811
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0812-1011
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1107
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1108-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0809-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-1101
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-1509
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1102-1509
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1510-
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1510-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1101
138	TANK ASM; OIL,AIR MASTER BRAKE REGULATION ECE(TDV)	1-47530-186-0	01	1	1510-
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0809-1509
138	TANK ASM; OIL,AIR MASTER EXC. BRAKE REGULATION ECE(TDV)	1-47530-185-1	01	1	1510-
139	BRACKET; OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98051-105-0	01	1	0809-
139	BRACKET; OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47537-081-2	01	1	0809-
140	BOLT; OIL TANK TO BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	02	1	0809-
140	BOLT; OIL TANK TO BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X20 FLANGE	0-28651-020-0	02	1	0809-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0809-
148	CONNECTOR; AIR MASTER BRAKE REGULATION ECE(TDV) (C) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	1510-
148	CONNECTOR; AIR MASTER BRAKE REGULATION ECE(TDV) (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1510-
148	CONNECTOR; AIR MASTER (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0809-1509
148	CONNECTOR; AIR MASTER EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1510-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0809-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0809-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0809-
175	CAP; AIR COCK 4HK1-TCS ENG(RJS) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1012-1107
175	CAP; AIR COCK 4HK1-TCS ENG(RJS) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1108-1509
175	CAP; AIR COCK 6HK1-TCN ENG(82L) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	9-48319-102-0	01	1	1108-1509
175	CAP; AIR COCK 6HK1-TCN ENG(82L) TIRE INFLATOR DEVICE<SG4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ECE(TDV)	9-48319-102-0	01	1	1510-
175	CAP; AIR COCK 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	9-48319-102-0	01	1	1510-
175	CAP; AIR COCK 4HK1-TCS ENG(RJS) TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ECE(TDV)	9-48319-102-0	01	1	1510-
175	CAP; AIR COCK AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	9-48319-102-0	01	1	0809-0811
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0809-1005
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1006-1011
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1006-1011
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1012-1107
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1012-1107
177	HOSE; RUBBER,DRAIN 4HK1-TCS ENG(RJS) L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1012-1107
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1108-1509
177	HOSE; RUBBER,DRAIN 4HK1-TCS ENG(RJS) L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1108-1509
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1108-1509
177	HOSE; RUBBER,DRAIN 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1510-
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1510-
177	HOSE; RUBBER,DRAIN 4HK1-TCS ENG(RJS) EXC. BRAKE REGULATION ECE(TDV) L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1510-
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1510-
178	CLIP; HOSE 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	02	1	1108-1509
178	CLIP; HOSE 6HK1-TCN ENG(82L) BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	02	1	1510-
178	CLIP; HOSE 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	02	1	1510-
178	CLIP; HOSE AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	0809-1005
178	CLIP; HOSE AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=21	8-94242-034-0	01	1	1006-1011
178	CLIP; HOSE 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=21	8-94242-034-0	01	1	1006-1011
178	CLIP; HOSE AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=21	8-94242-034-0	01	1	1012-1107
178	CLIP; HOSE 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=21	8-94242-034-0	01	1	1012-1107
178	CLIP; HOSE 4HK1-TCS ENG(RJS) (A) ID=21	8-94242-034-0	01	1	1012-1107
178	CLIP; HOSE 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1108-1509
178	CLIP; HOSE 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1108-1509
178	CLIP; HOSE 4HK1-TCS ENG(RJS) (A) ID=21	8-94242-034-0	01	1	1108-1509
178	CLIP; HOSE 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (A) ID=21	8-94242-034-0	01	1	1510-
178	CLIP; HOSE 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ECE(TDV) (A) ID=21	8-94242-034-0	01	1	1510-
178	CLIP; HOSE 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1510-
178	CLIP; HOSE 4HK1-TCS ENG(RJS) EXC. BRAKE REGULATION ECE(TDV) (A) ID=21	8-94242-034-0	01	1	1510-
178	CLIP; HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=13-18 L=14.5	1-09709-290-0	08	1	0809-
178	CLIP; HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=12 & 12	1-09709-280-1	01	1	0809-
178	CLIP; HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) DIN15X2	9-09917-171-0	01	1	0809-
217	BRACKET; RUBBER HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98082-871-0	01	1	0809-
217	BRACKET; RUBBER HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98085-273-1	02	1	0809-
217	BRACKET; RUBBER HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=112	1-47475-694-1	01	1	0809-
223	UNION H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0809-
223	UNION H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	03	1	0809-
223	UNION H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0809-
223	UNION H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0809-
223	UNION H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-
223	UNION H.S.A SYSTEM<6EP> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M16 & PT3/8 ELBOW	1-09650-438-0	03	1	0809-
237	CAP; OIL TANK	1-47525-030-0	01	1	0809-
238	PLATE; BAFFLE	1-47529-022-0	01	1	0809-
239	FILTER; DUST	1-47529-017-0	01	1	0809-
240	HOLDER; FILTER	1-47529-018-0	01	1	0809-
271	NUT; BRKT,HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	0809-
271	NUT; BRKT,HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	01	1	0809-
271	NUT; BRKT,HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	02	1	0809-
274	CONNECTOR; VLV BRAKE REGULATION ECE(TDV) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1510-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
