◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11123 - FSR(LHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#39184) — 15 parça

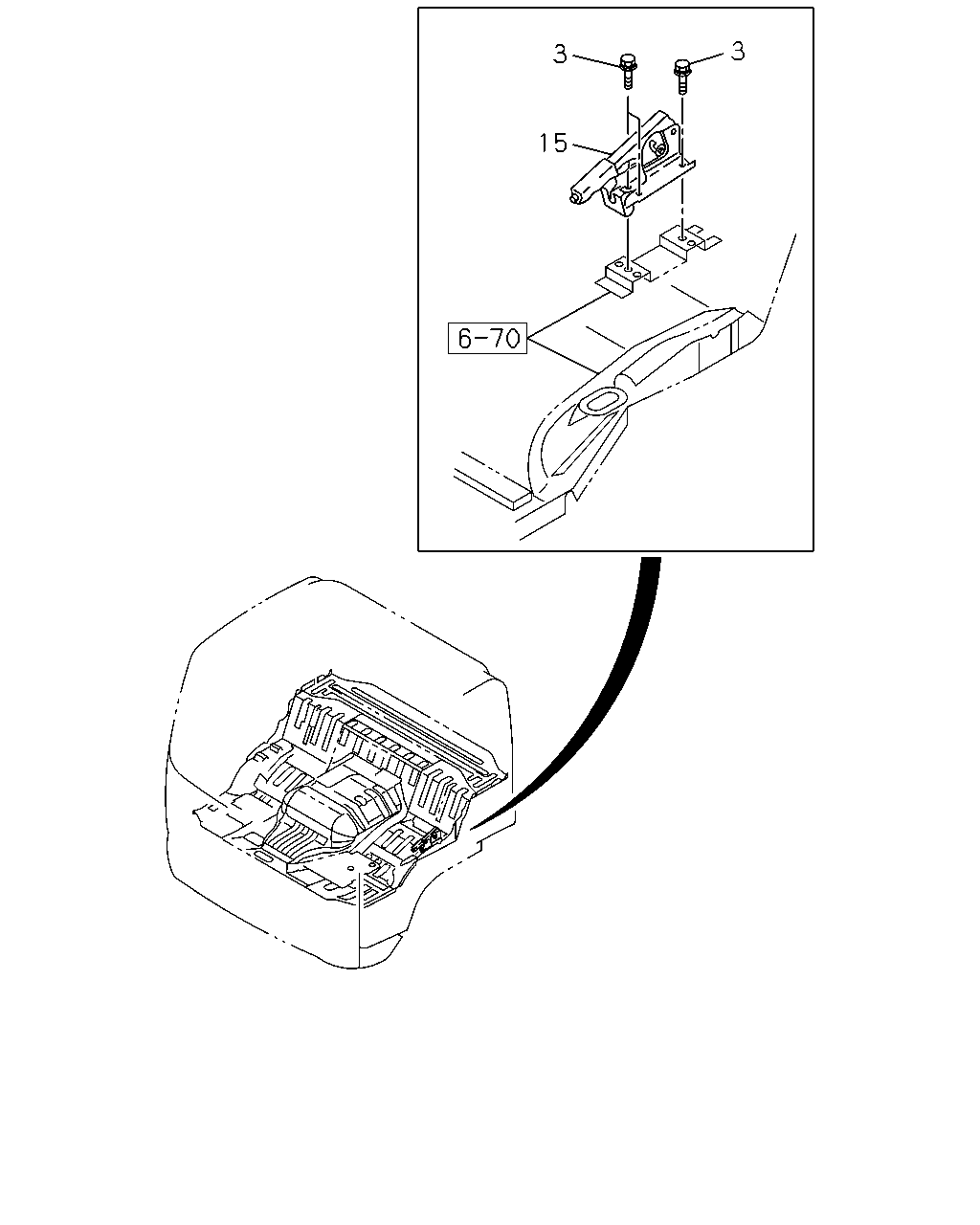

çizim 181291
3 3 15
BalonParca AdiParca NoAdetTipApplied Date
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0809-
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 0809-

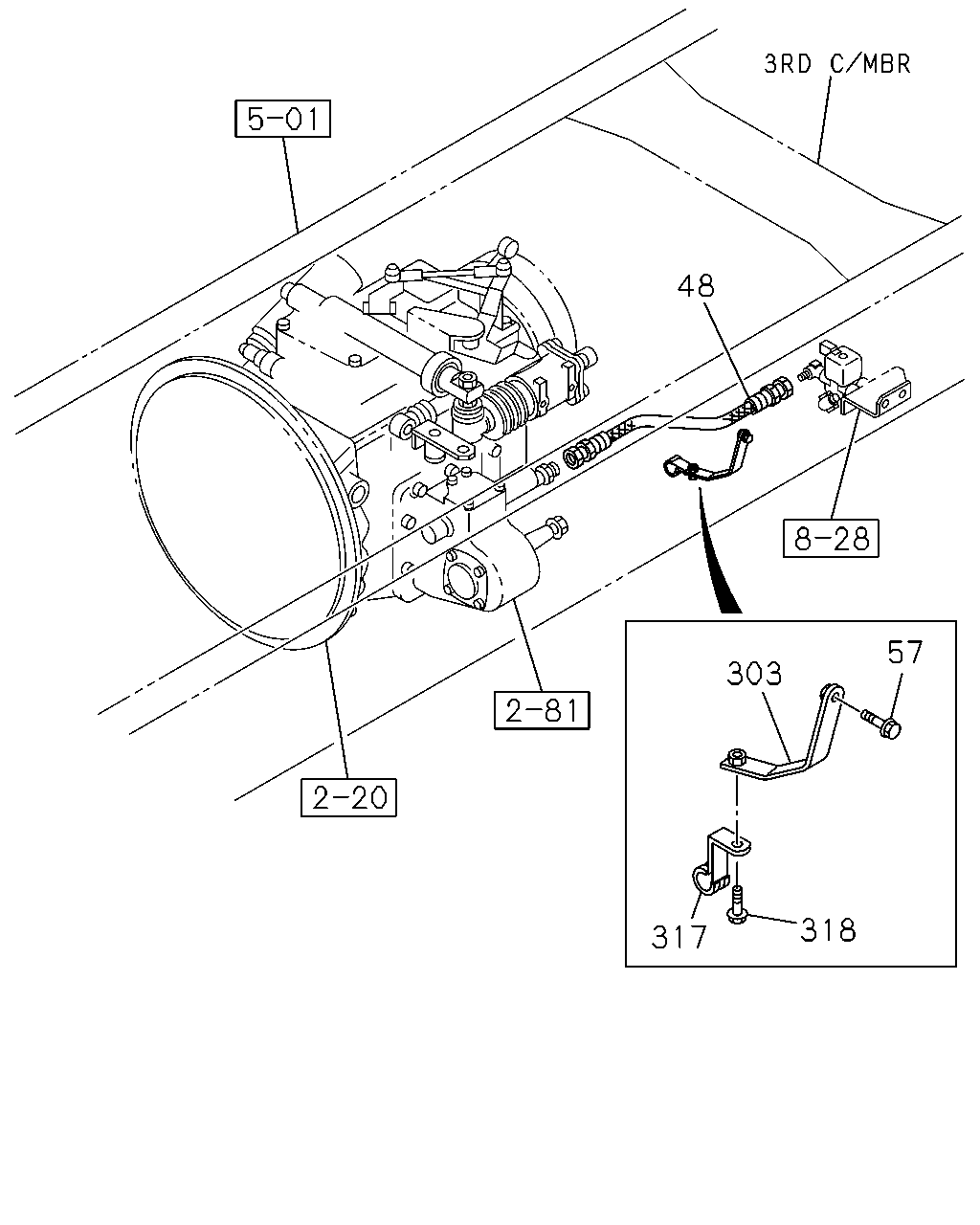

çizim 181300
48 57 303 318 317
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=540 		1-09363-612-1 01 1 1012-
48 HOSE; FLEX,PTO
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=560 		1-09363-914-0 01 1 1012-
48 HOSE; FLEX,PTO
4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=580 		1-09363-613-1 01 1 1012-
48 HOSE; FLEX,PTO
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=410 		1-09363-895-0 01 1 0809-0906
48 HOSE; FLEX,PTO
6HK1-TCN ENG(82L) MZW6P M/T(RSZ),MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=410 		1-09363-895-0 01 1 0907-
48 HOSE; FLEX,PTO
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=390 		1-09363-616-0 01 1 0809-0906
48 HOSE; FLEX,PTO
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> L=390 		1-09363-616-0 01 1 0907-
57 BOLT; BRKT
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> M10X25 FLANGE 		0-28651-025-0 01 1 1012-
303 BRACKET; CLIP
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> 		8-98136-974-0 01 1 1012-
303 BRACKET; CLIP
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) PTO CONTROL<SV6> 		8-98136-973-0 01 1 1012-
303 BRACKET; CLIP
4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) PTO CONTROL<SV6> 		8-98136-977-0 01 1 1012-
317 CLIP; NYLON TUBE
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> ID=15 L=22 H=30 		1-09701-215-1 01 1 1012-
318 BOLT; CLIP
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 01 1 1012-
