2-39 — POWER ASSISTOR (#39182) — 144 parça

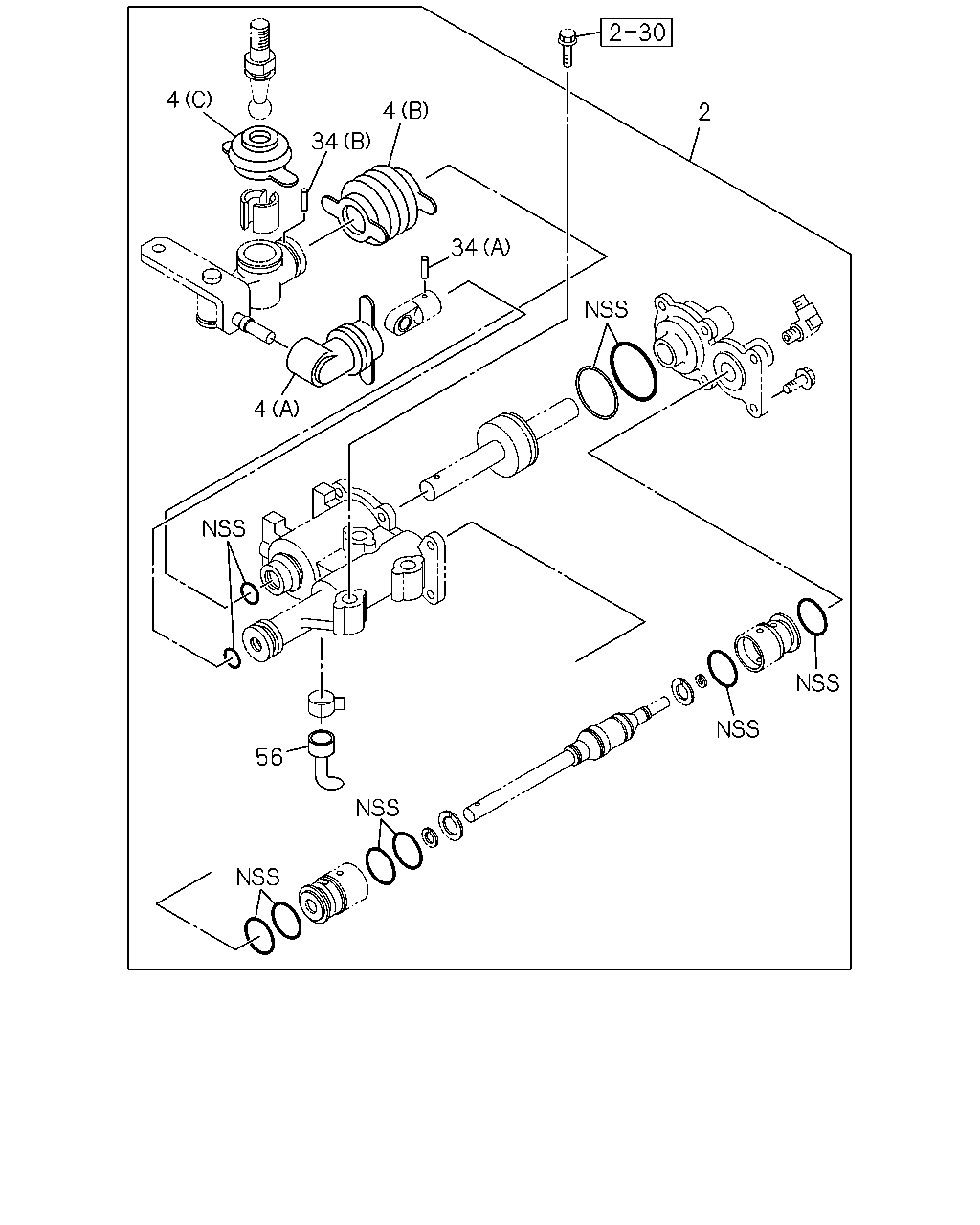

2 56 34 34 4 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	REPAIR KIT; POWER SHIFTER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-97388-035-0	01	1	1012-	●
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33738-028-0	01	1	0809-0906		●	●
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33738-028-0	01	1	0907-1011	●	●	●
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33738-028-0	01	1	1012-		●	●
2	REPAIR KIT; POWER SHIFTER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	1-33738-028-0	01	1	1012-	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0809-0906		●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0907-	●	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0809-0906		●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0907-	●	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0809-0906		●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0907-	●	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	0809-0906		●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	0907-	●	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	0809-0906		●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	0907-	●	●	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0809-0906		●	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0907-	●	●	●

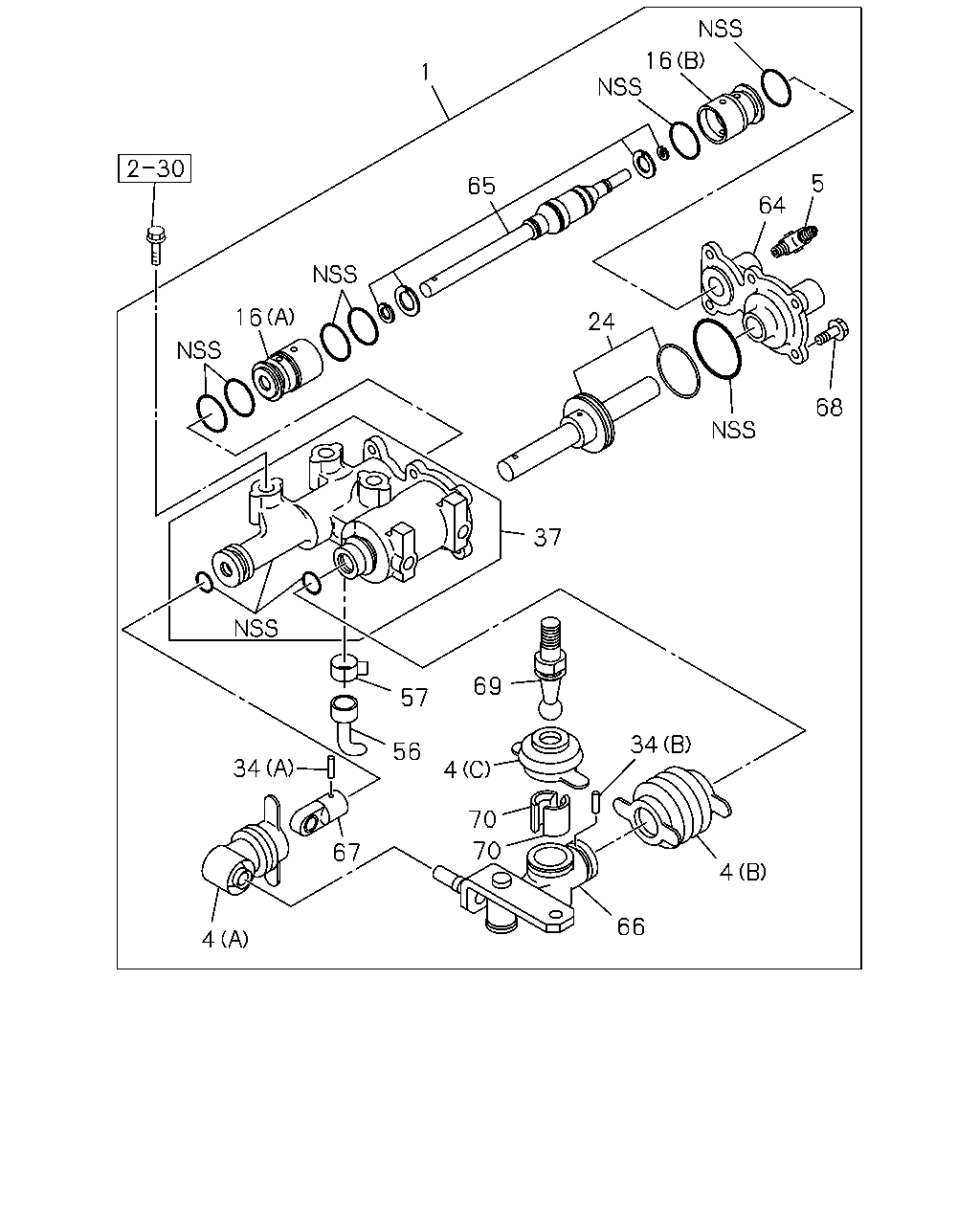

16 1 5 65 64 16 24 68 37 69 57 34 56 34 4 70 70 67 4 66 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ASSISTOR ASM; POWER,SHIFT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98022-853-1	01	1	1012-	●
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	8-98022-843-0	01	1	0809-0906		●	●
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	8-98022-843-0	01	1	0907-1011	●	●	●
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	8-98022-843-0	01	1	1012-		●	●
1	ASSISTOR ASM; POWER,SHIFT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-98022-843-0	01	1	1012-	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0809-0906		●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0907-	●	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0809-0906		●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0907-	●	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0809-0906		●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0907-	●	●	●
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	0-92124-306-0	01	1	0809-0906		●	●
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	0-92124-306-0	01	1	0907-	●	●	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	8-97388-032-0	01	1	0809-0906		●	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	8-97388-032-0	01	1	0907-	●	●	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	8-97388-033-0	01	1	0809-0906		●	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	8-97388-033-0	01	1	0907-	●	●	●
24	PISTON 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98065-242-0	01	1	1012-	●
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	0809-0906		●	●
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	0907-1011	●	●	●
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	1012-		●	●
24	PISTON 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	1012-	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	0809-0906		●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	0907-	●	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	0809-0906		●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	0907-	●	●	●
37	HOUSING; POWER SHIFTER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-97388-027-0	01	1	1012-	●
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	0809-0906		●	●
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	0907-1011	●	●	●
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	1012-		●	●
37	HOUSING; POWER SHIFTER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	1012-	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0809-0906		●	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0907-	●	●	●
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-849-0	01	1	0809-0906		●	●
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-849-0	01	1	0907-	●	●	●
64	COVER; HOUSING 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98025-483-0	01	1	1012-	●
64	COVER; HOUSING ASSISTOR SHIFT CONTROL<WX8>	1-33739-970-0	01	1	0809-0906		●	●
64	COVER; HOUSING ASSISTOR SHIFT CONTROL<WX8>	1-33739-970-0	01	1	0907-1011	●	●	●
64	COVER; HOUSING ASSISTOR SHIFT CONTROL<WX8>	1-33739-970-0	01	1	1012-		●	●
64	COVER; HOUSING 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	1-33739-970-0	01	1	1012-	●
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	8-97388-029-0	01	1	0809-0906		●	●
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	8-97388-029-0	01	1	0907-	●	●	●
66	JOINT ASM; POWER SHIFTER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-97388-137-0	01	1	1012-	●
66	JOINT ASM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-972-0	01	1	0809-0906		●	●
66	JOINT ASM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-972-0	01	1	0907-1011	●	●	●
66	JOINT ASM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-972-0	01	1	1012-		●	●
66	JOINT ASM; POWER SHIFTER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	1-33739-972-0	01	1	1012-	●
67	JOINT; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-973-0	01	1	0809-0906		●	●
67	JOINT; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-973-0	01	1	0907-	●	●	●
68	BOLT; COVER ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE	1-33739-842-0	06	1	0809-0906		●	●
68	BOLT; COVER ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE	1-33739-842-0	06	1	0907-	●	●	●
69	STUD; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-846-0	01	1	0809-0906		●	●
69	STUD; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-846-0	01	1	0907-	●	●	●
70	SEAT; BALL STUD ASSISTOR SHIFT CONTROL<WX8>	1-33659-118-0	02	1	0809-0906		●	●
70	SEAT; BALL STUD ASSISTOR SHIFT CONTROL<WX8>	1-33659-118-0	02	1	0907-	●	●	●

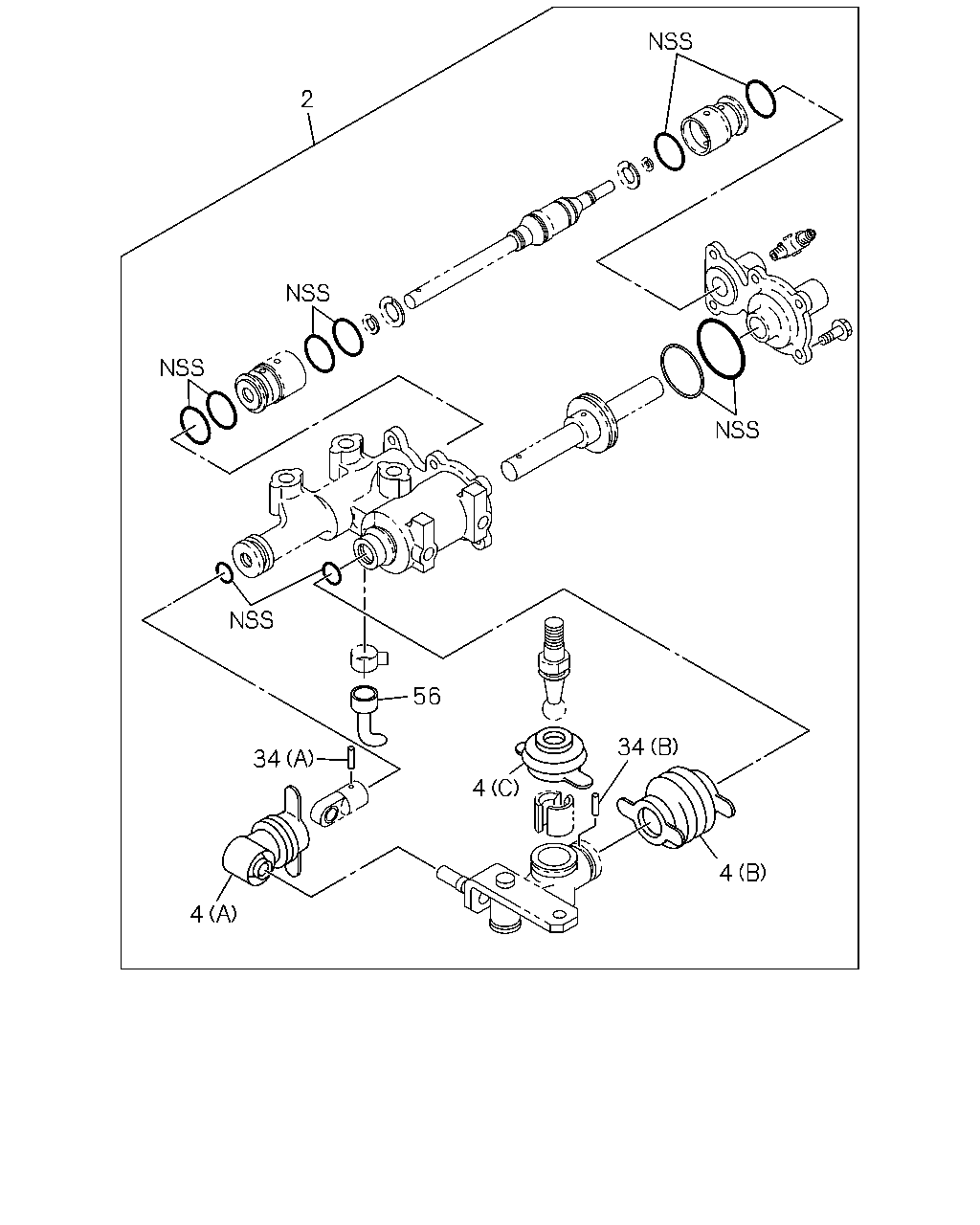

4 4 2 34 34 4 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	REPAIR KIT; POWER SHIFTER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-97388-035-0	01	1	1012-	●
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33738-028-0	01	1	0809-0906		●	●
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33738-028-0	01	1	0907-1011	●	●	●
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33738-028-0	01	1	1012-		●	●
2	REPAIR KIT; POWER SHIFTER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	1-33738-028-0	01	1	1012-	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0809-0906		●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0907-	●	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0809-0906		●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0907-	●	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0809-0906		●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0907-	●	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	0809-0906		●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	0907-	●	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	0809-0906		●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	0907-	●	●	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0809-0906		●	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0907-	●	●	●

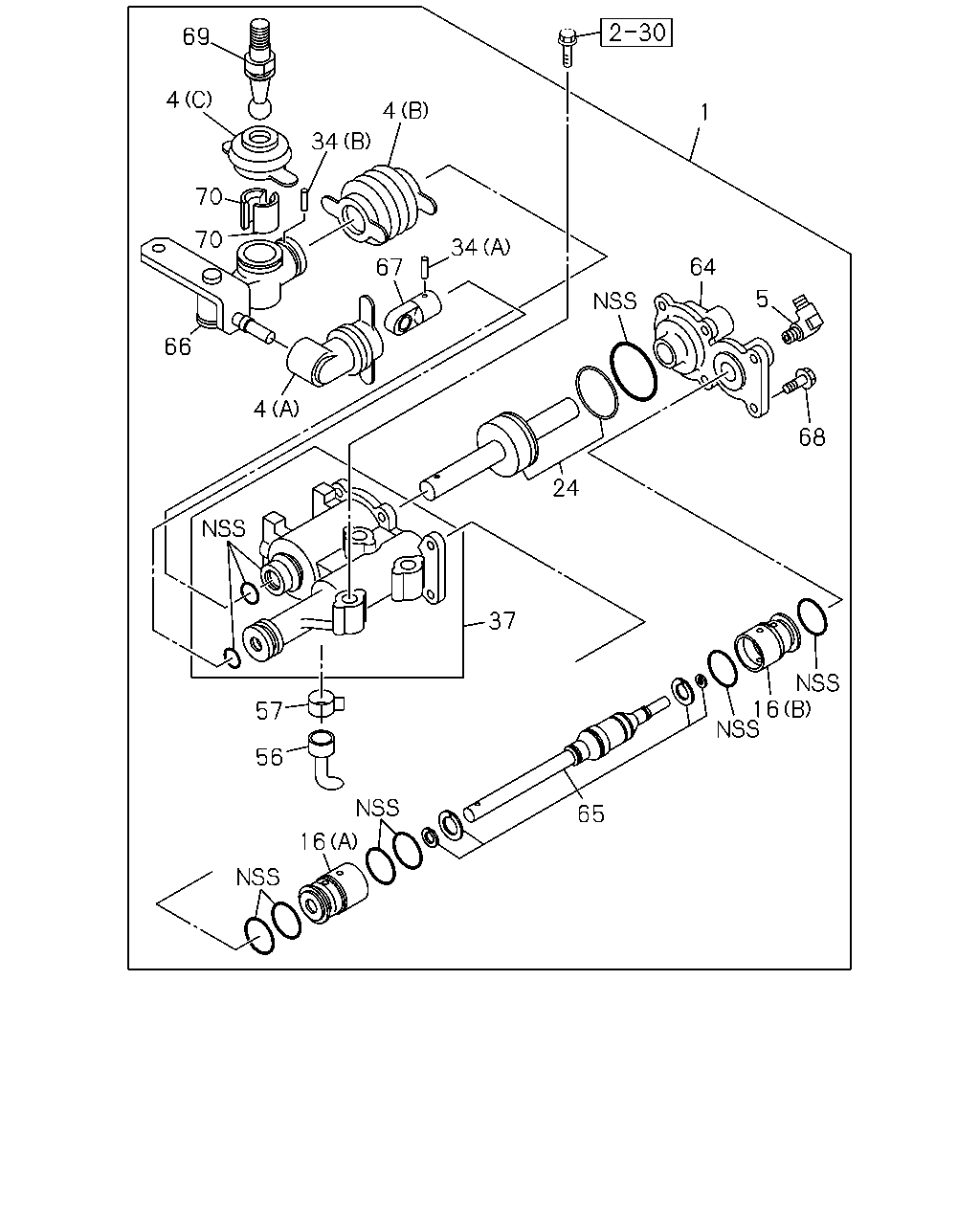

69 4 4 1 34 70 70 34 64 67 5 66 4 68 24 37 16 57 56 65 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ASSISTOR ASM; POWER,SHIFT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98022-853-1	01	1	1012-	●
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	8-98022-843-0	01	1	0809-0906		●	●
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	8-98022-843-0	01	1	0907-1011	●	●	●
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	8-98022-843-0	01	1	1012-		●	●
1	ASSISTOR ASM; POWER,SHIFT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-98022-843-0	01	1	1012-	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0809-0906		●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0907-	●	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0809-0906		●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0907-	●	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0809-0906		●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0907-	●	●	●
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	0-92124-306-0	01	1	0809-0906		●	●
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	0-92124-306-0	01	1	0907-	●	●	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	8-97388-032-0	01	1	0809-0906		●	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	8-97388-032-0	01	1	0907-	●	●	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	8-97388-033-0	01	1	0809-0906		●	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	8-97388-033-0	01	1	0907-	●	●	●
24	PISTON 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98065-242-0	01	1	1012-	●
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	0809-0906		●	●
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	0907-1011	●	●	●
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	1012-		●	●
24	PISTON 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	1012-	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	0809-0906		●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	0907-	●	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	0809-0906		●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	0907-	●	●	●
37	HOUSING; POWER SHIFTER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-97388-027-0	01	1	1012-	●
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	0809-0906		●	●
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	0907-1011	●	●	●
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	1012-		●	●
37	HOUSING; POWER SHIFTER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	1012-	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0809-0906		●	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0907-	●	●	●
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-849-0	01	1	0809-0906		●	●
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-849-0	01	1	0907-	●	●	●
64	COVER; HOUSING 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98025-483-0	01	1	1012-	●
64	COVER; HOUSING ASSISTOR SHIFT CONTROL<WX8>	1-33739-970-0	01	1	0809-0906		●	●
64	COVER; HOUSING ASSISTOR SHIFT CONTROL<WX8>	1-33739-970-0	01	1	0907-1011	●	●	●
64	COVER; HOUSING ASSISTOR SHIFT CONTROL<WX8>	1-33739-970-0	01	1	1012-		●	●
64	COVER; HOUSING 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	1-33739-970-0	01	1	1012-	●
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	8-97388-029-0	01	1	0809-0906		●	●
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	8-97388-029-0	01	1	0907-	●	●	●
66	JOINT ASM; POWER SHIFTER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-97388-137-0	01	1	1012-	●
66	JOINT ASM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-972-0	01	1	0809-0906		●	●
66	JOINT ASM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-972-0	01	1	0907-1011	●	●	●
66	JOINT ASM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-972-0	01	1	1012-		●	●
66	JOINT ASM; POWER SHIFTER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	1-33739-972-0	01	1	1012-	●
67	JOINT; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-973-0	01	1	0809-0906		●	●
67	JOINT; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-973-0	01	1	0907-	●	●	●
68	BOLT; COVER ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE	1-33739-842-0	06	1	0809-0906		●	●
68	BOLT; COVER ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE	1-33739-842-0	06	1	0907-	●	●	●
69	STUD; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-846-0	01	1	0809-0906		●	●
69	STUD; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-846-0	01	1	0907-	●	●	●
70	SEAT; BALL STUD ASSISTOR SHIFT CONTROL<WX8>	1-33659-118-0	02	1	0809-0906		●	●
70	SEAT; BALL STUD ASSISTOR SHIFT CONTROL<WX8>	1-33659-118-0	02	1	0907-	●	●	●
