2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#39181) — 67 parça

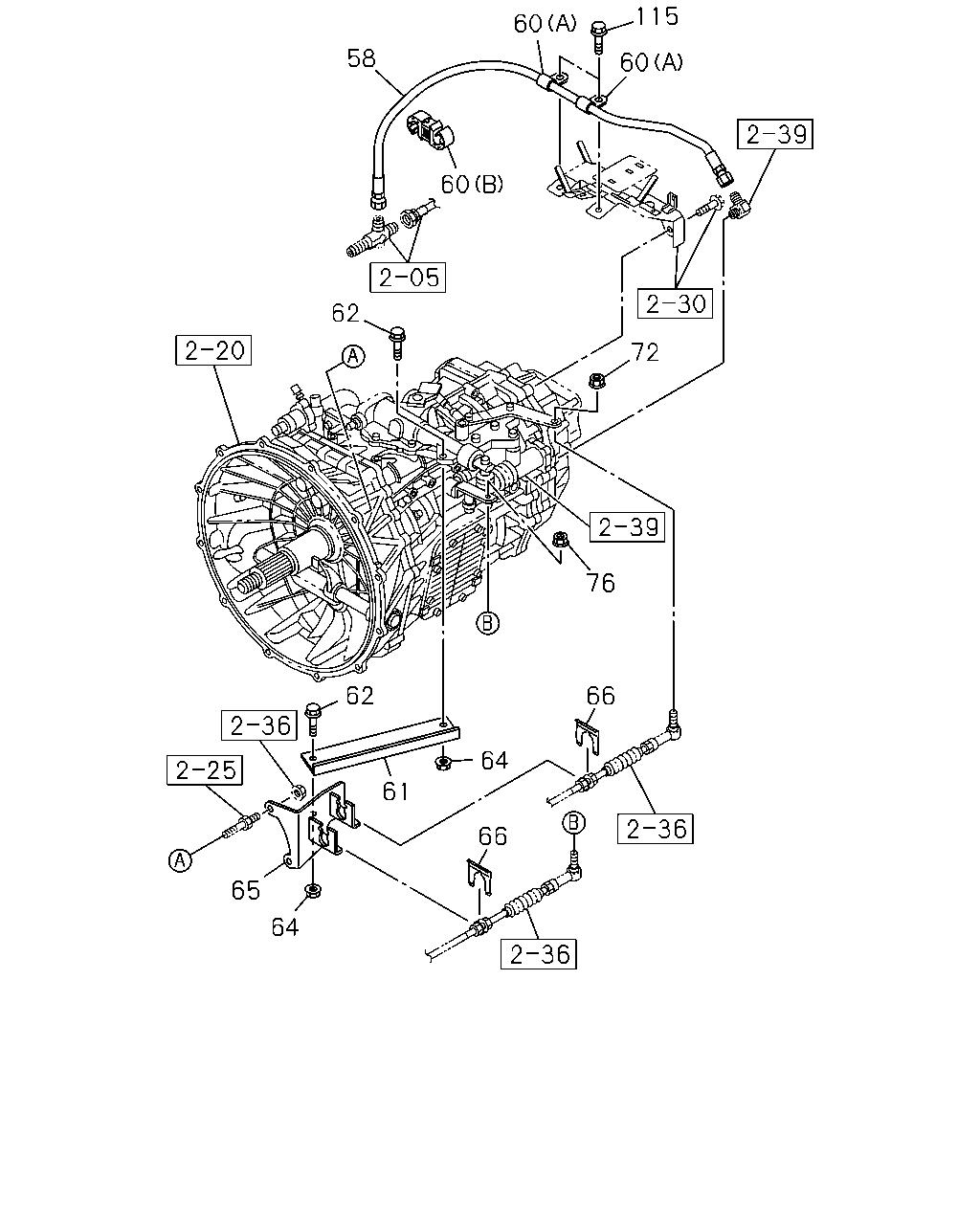

115 60 58 60 60 62 72 76 62 66 64 61 66 65 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	HOSE; FLEX,POWER ASSISTOR 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=290	1-09363-875-0	01	1	1012-
58	HOSE; FLEX,POWER ASSISTOR 4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=310	1-09363-713-0	01	1	1012-
58	HOSE; FLEX,POWER ASSISTOR 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=740	1-09363-675-0	01	1	0809-
58	HOSE; FLEX,POWER ASSISTOR 6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=640	1-09363-626-1	01	1	0809-0906
58	HOSE; FLEX,POWER ASSISTOR 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=640	1-09363-626-1	01	1	0907-
60	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (C) ID=11.8 & 7.5	1-09709-182-0	01	1	1012-
60	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20	0-95235-235-0	02	1	0809-
60	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10	1-09709-277-1	01	1	0809-
61	STAY; BRKT,TRANS CONT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98165-370-0	01	1	1012-1309
61	STAY; BRKT,TRANS CONT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98251-404-0	01	1	1310-
61	STAY; BRKT,TRANS CONT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-402-0	01	1	1012-
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-349-0	01	1	0809-
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW)	1-33657-267-0	01	1	0809-0906
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	0809-0906
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ)	1-33657-267-0	01	1	0907-
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	0907-
62	BOLT; STAY MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	01	1	0809-
62	BOLT; STAY MZX6P M/T(RSW) M10X30 FLANGE	0-28651-030-0	02	1	0809-0906
62	BOLT; STAY MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	02	1	0809-0906
62	BOLT; STAY MZX6P M/T(RSW),MZW6P M/T(RSZ) M10X30 FLANGE	0-28651-030-0	02	1	0907-
62	BOLT; STAY MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	02	1	0907-
64	NUT; STAY M10 FLANGE	0-91180-210-0	02	1	0809-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98010-158-1	01	1	1012-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98050-563-1	01	1	1012-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8>	8-98117-611-0	01	1	0809-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-831-0	01	1	0809-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8>	8-98010-159-0	01	1	0809-0906
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98010-159-0	01	1	0907-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98017-428-0	01	1	0809-0906
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98017-428-0	01	1	0907-
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0809-
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	0809-
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	0809-
115	BOLT; CLIP 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	02	1	0809-

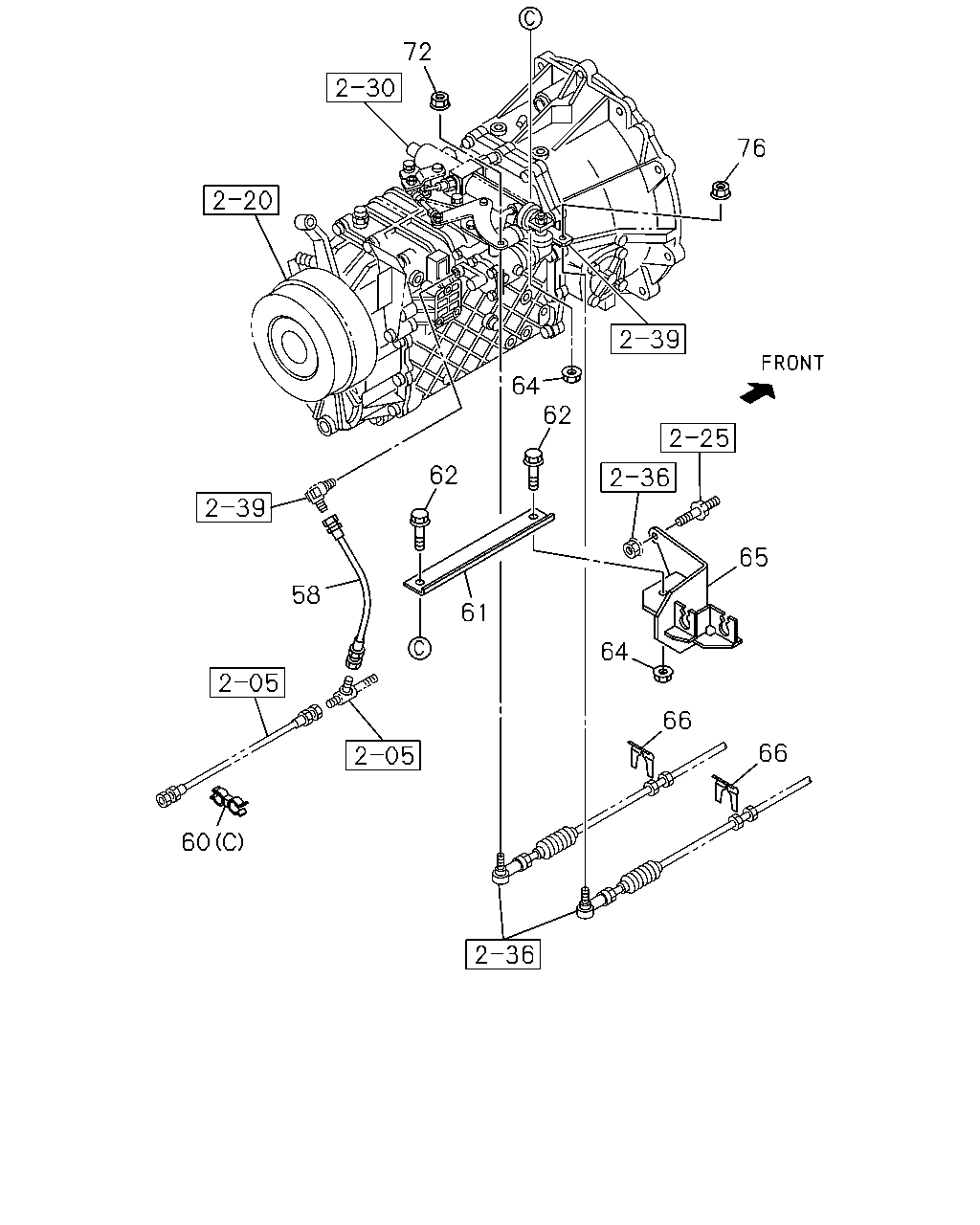

72 76 64 62 62 65 58 61 64 66 66 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	HOSE; FLEX,POWER ASSISTOR 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=290	1-09363-875-0	01	1	1012-
58	HOSE; FLEX,POWER ASSISTOR 4HK1-TCS ENG(RJS) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=310	1-09363-713-0	01	1	1012-
58	HOSE; FLEX,POWER ASSISTOR 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=740	1-09363-675-0	01	1	0809-
58	HOSE; FLEX,POWER ASSISTOR 6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=640	1-09363-626-1	01	1	0809-0906
58	HOSE; FLEX,POWER ASSISTOR 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=640	1-09363-626-1	01	1	0907-
60	CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (C) ID=11.8 & 7.5	1-09709-182-0	01	1	1012-
60	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20	0-95235-235-0	02	1	0809-
60	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10	1-09709-277-1	01	1	0809-
61	STAY; BRKT,TRANS CONT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98165-370-0	01	1	1012-1309
61	STAY; BRKT,TRANS CONT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98251-404-0	01	1	1310-
61	STAY; BRKT,TRANS CONT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-402-0	01	1	1012-
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-349-0	01	1	0809-
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW)	1-33657-267-0	01	1	0809-0906
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	0809-0906
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ)	1-33657-267-0	01	1	0907-
61	STAY; BRKT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8>	1-33657-267-0	01	1	0907-
62	BOLT; STAY MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	01	1	0809-
62	BOLT; STAY MZX6P M/T(RSW) M10X30 FLANGE	0-28651-030-0	02	1	0809-0906
62	BOLT; STAY MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	02	1	0809-0906
62	BOLT; STAY MZX6P M/T(RSW),MZW6P M/T(RSZ) M10X30 FLANGE	0-28651-030-0	02	1	0907-
62	BOLT; STAY MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE	0-28651-030-0	02	1	0907-
64	NUT; STAY M10 FLANGE	0-91180-210-0	02	1	0809-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98010-158-1	01	1	1012-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98050-563-1	01	1	1012-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8>	8-98117-611-0	01	1	0809-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-831-0	01	1	0809-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8>	8-98010-159-0	01	1	0809-0906
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98010-159-0	01	1	0907-
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98017-428-0	01	1	0809-0906
65	BRACKET; SHIFT TO SELECT,TRANS CONT 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98017-428-0	01	1	0907-
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0809-
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	0809-
76	NUT; BALL JOINT,SELECT WIRE M8 FLANGE	1-09440-049-0	01	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
