2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#39180) — 139 parça

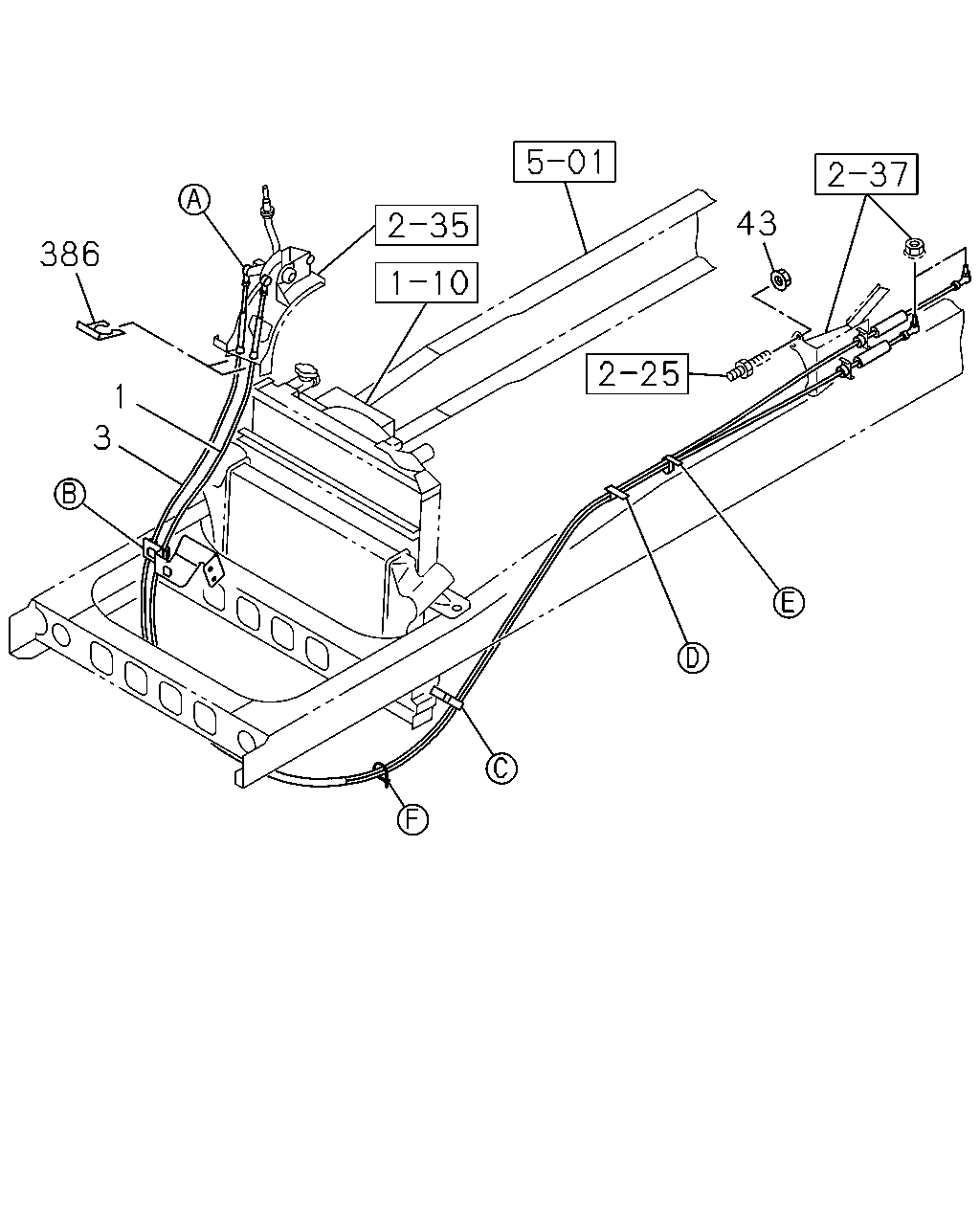

çizim 181282
43 386 1 3
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3040 		8-98041-382-3 01 1 1012-
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3090 		8-98041-381-5 01 1 1012-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3465 		8-98121-046-2 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98121-044-4 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=3410 		8-98017-513-3 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3410 		8-98017-513-4 01 1 0907-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3440 		8-98017-512-3 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3440 		8-98017-512-6 01 1 0907-
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) L=3155 		8-98041-387-4 01 1 1012-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3555 		8-98121-047-1 01 1 0809-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3580 		8-98121-045-3 01 1 0809-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=3615 		8-98017-516-3 01 1 0809-0906
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3615 		8-98017-516-3 01 1 0907-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3615 		8-98017-515-3 01 1 0809-0906
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3615 		8-98017-515-5 01 1 0907-
43 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0809-

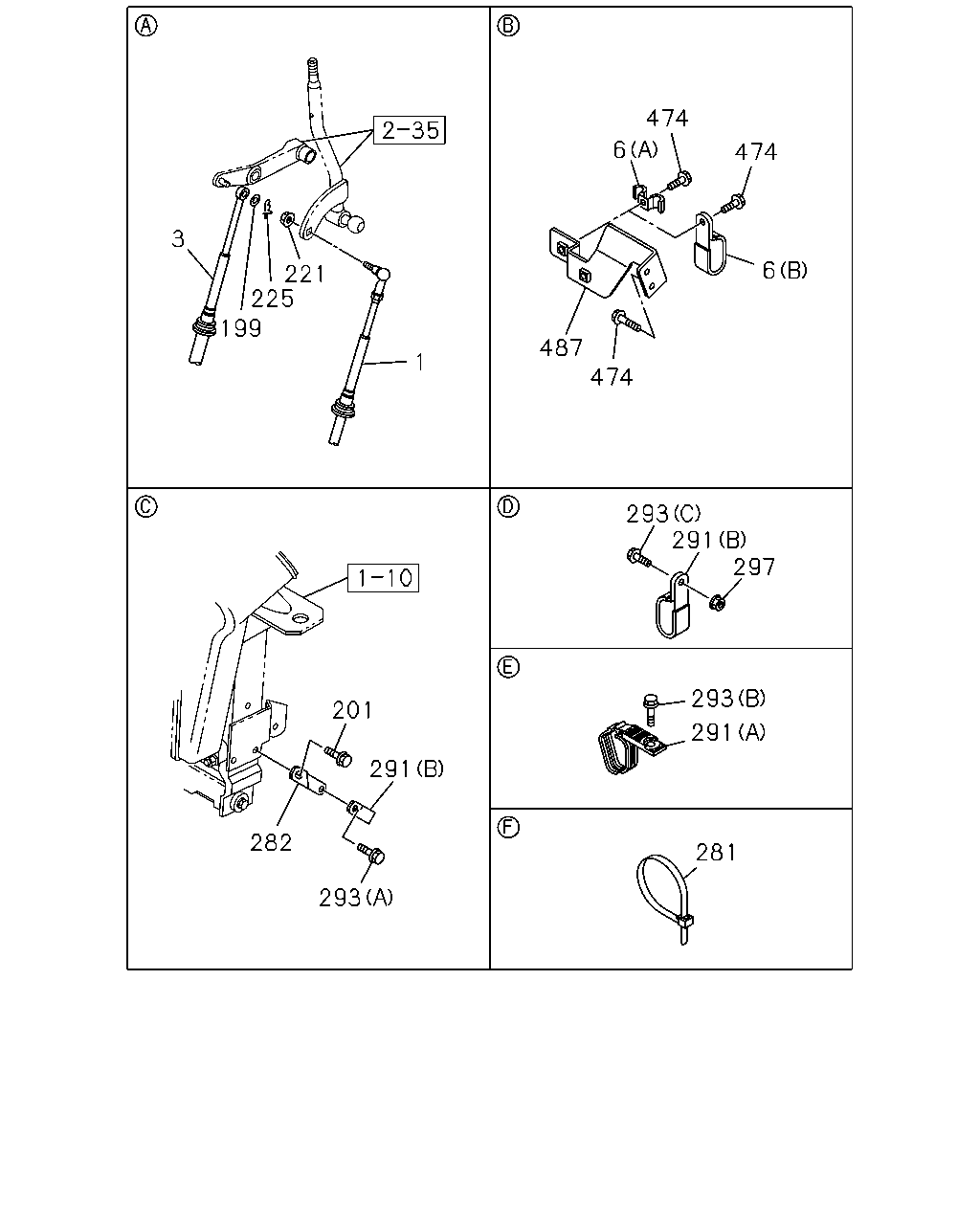

çizim 181283
474 6 474 3 6 221 225 199 487 1 474 293 291 297 293 201 291 291 282 281 293
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3040 		8-98041-382-3 01 1 1012-
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3090 		8-98041-381-5 01 1 1012-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3465 		8-98121-046-2 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98121-044-4 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=3410 		8-98017-513-3 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3410 		8-98017-513-4 01 1 0907-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3440 		8-98017-512-3 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3440 		8-98017-512-6 01 1 0907-
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) L=3155 		8-98041-387-4 01 1 1012-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3555 		8-98121-047-1 01 1 0809-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3580 		8-98121-045-3 01 1 0809-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=3615 		8-98017-516-3 01 1 0809-0906
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3615 		8-98017-516-3 01 1 0907-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3615 		8-98017-515-3 01 1 0809-0906
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3615 		8-98017-515-5 01 1 0907-
6 CLIP; CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=11X2 L=16 		0-95325-026-0 01 1 1010-1012
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0809-1009
6 CLIP; CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1010-1012
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1101-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0809-
201 BOLT; BRKT
6HK1-TCN ENG(82L) M8X16 FLANGE 		0-28050-816-0 01 1 0809-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0809-1011
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0809-
281 CLIP; BAND
6HK1-TCN ENG(82L) L=300 		1-09707-001-1 01 1 0809-
282 BRACKET; TRANS SIDE
6HK1-TCN ENG(82L) 		8-98010-418-0 01 1 0809-
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=13 & 10 & 10 L=43.5 		8-98292-921-0 01 1 1505-
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=13 & 13 L=32 		8-97389-264-0 01 1 1012-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=11X2 L=16 		0-95325-026-0 01 1 0809-1011
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=11X2 L=16 		0-95325-026-0 01 1 0809-1011
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) (B) ID=11X2 L=16 		0-95325-026-0 01 1 1012-
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=11X2 L=16 		0-95325-026-0 01 1 1012-
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) (B) ID=11X2 L=16 		0-95325-026-0 01 1 1012-
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0809-1011
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1012-1504
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1012-1504
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1505-
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M8X25 FLANGE 		0-28650-825-0 02 1 1012-
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-0906
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0907-1011
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012-
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012-
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) (B) M8X20 FLANGE 		0-28050-820-0 01 1 0809-
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) (C) M8X20 FLANGE 		0-28650-820-0 01 1 0809-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0809-1011
297 NUT; CLIP
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 1012-
297 NUT; CLIP
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 01 1 1012-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 01 1 0809-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 02 1 0809-
487 BRACKET; CONT CABLE
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98183-115-0 01 1 1012-
487 BRACKET; CONT CABLE 8-98021-921-2 01 1 0809-0901
487 BRACKET; CONT CABLE 8-98137-772-0 01 1 0902-1011
487 BRACKET; CONT CABLE
4HK1-TCS ENG(RJS) 		8-98137-772-0 01 1 1012-
487 BRACKET; CONT CABLE
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98137-772-0 01 1 1012-

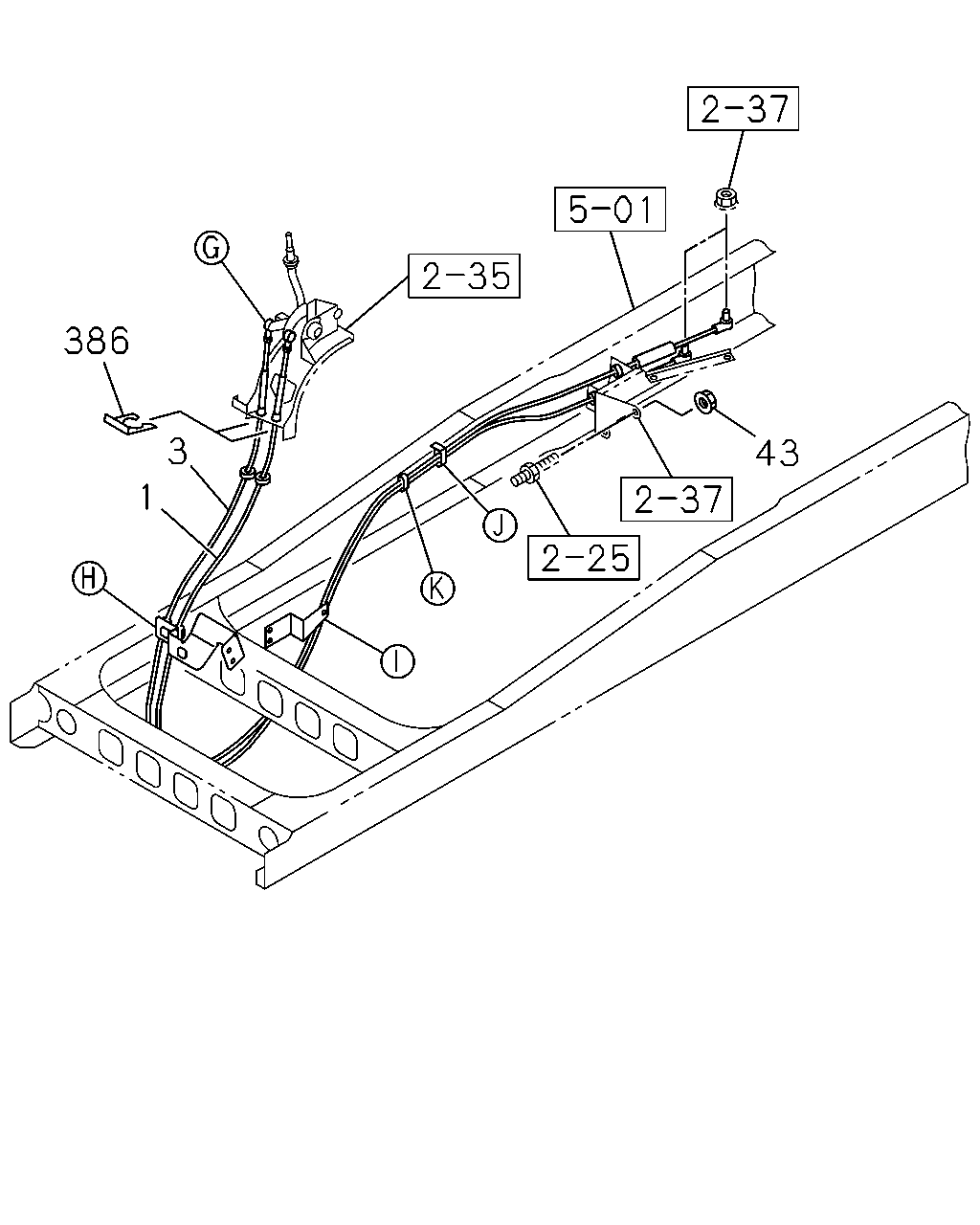

çizim 181500
386 3 43 1
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3040 		8-98041-382-3 01 1 1012-
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3090 		8-98041-381-5 01 1 1012-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3465 		8-98121-046-2 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98121-044-4 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=3410 		8-98017-513-3 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3410 		8-98017-513-4 01 1 0907-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3440 		8-98017-512-3 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3440 		8-98017-512-6 01 1 0907-
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) L=3155 		8-98041-387-4 01 1 1012-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3555 		8-98121-047-1 01 1 0809-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3580 		8-98121-045-3 01 1 0809-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=3615 		8-98017-516-3 01 1 0809-0906
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3615 		8-98017-516-3 01 1 0907-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3615 		8-98017-515-3 01 1 0809-0906
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3615 		8-98017-515-5 01 1 0907-
43 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0809-

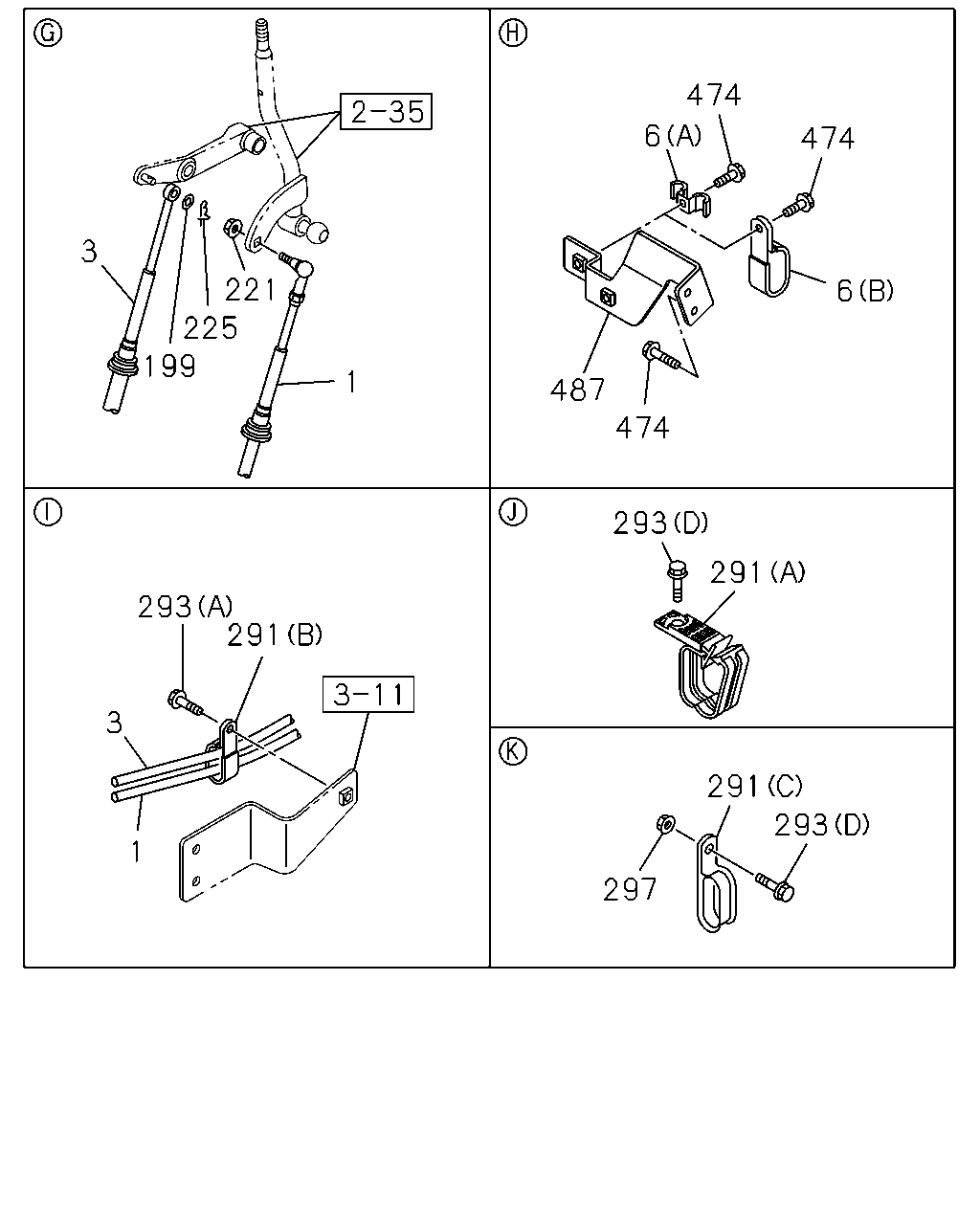

çizim 181589
474 6 474 3 221 6 225 199 1 487 474 293 291 293 291 3 291 293 1 297
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3040 		8-98041-382-3 01 1 1012-
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3090 		8-98041-381-5 01 1 1012-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3465 		8-98121-046-2 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98121-044-4 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=3410 		8-98017-513-3 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3410 		8-98017-513-4 01 1 0907-
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3440 		8-98017-512-3 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3440 		8-98017-512-6 01 1 0907-
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) L=3155 		8-98041-387-4 01 1 1012-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3555 		8-98121-047-1 01 1 0809-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3580 		8-98121-045-3 01 1 0809-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=3615 		8-98017-516-3 01 1 0809-0906
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3615 		8-98017-516-3 01 1 0907-
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3615 		8-98017-515-3 01 1 0809-0906
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3615 		8-98017-515-5 01 1 0907-
6 CLIP; CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=11X2 L=16 		0-95325-026-0 01 1 1010-1012
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0809-1009
6 CLIP; CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1010-1012
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1101-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0809-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0809-1011
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0809-
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=13 & 10 & 10 L=43.5 		8-98292-921-0 01 1 1505-
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=13 & 13 L=32 		8-97389-264-0 01 1 1012-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=11X2 L=16 		0-95325-026-0 01 1 0809-1011
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=11X2 L=16 		0-95325-026-0 01 1 0809-1011
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) (B) ID=11X2 L=16 		0-95325-026-0 01 1 1012-
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=11X2 L=16 		0-95325-026-0 01 1 1012-
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) (B) ID=11X2 L=16 		0-95325-026-0 01 1 1012-
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0809-1011
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1012-1504
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1012-1504
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1505-
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) M8X25 FLANGE 		0-28650-825-0 02 1 1012-
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-0906
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0907-1011
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012-
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012-
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) (B) M8X20 FLANGE 		0-28050-820-0 01 1 0809-
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) (C) M8X20 FLANGE 		0-28650-820-0 01 1 0809-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0809-1011
297 NUT; CLIP
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 1012-
297 NUT; CLIP
6HK1-TCN ENG(82L) M8 FLANGE 		0-91180-108-0 01 1 1012-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 01 1 0809-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 02 1 0809-
487 BRACKET; CONT CABLE
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98183-115-0 01 1 1012-
487 BRACKET; CONT CABLE 8-98021-921-2 01 1 0809-0901
487 BRACKET; CONT CABLE 8-98137-772-0 01 1 0902-1011
487 BRACKET; CONT CABLE
4HK1-TCS ENG(RJS) 		8-98137-772-0 01 1 1012-
487 BRACKET; CONT CABLE
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98137-772-0 01 1 1012-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
