6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#39174) — 10 parça

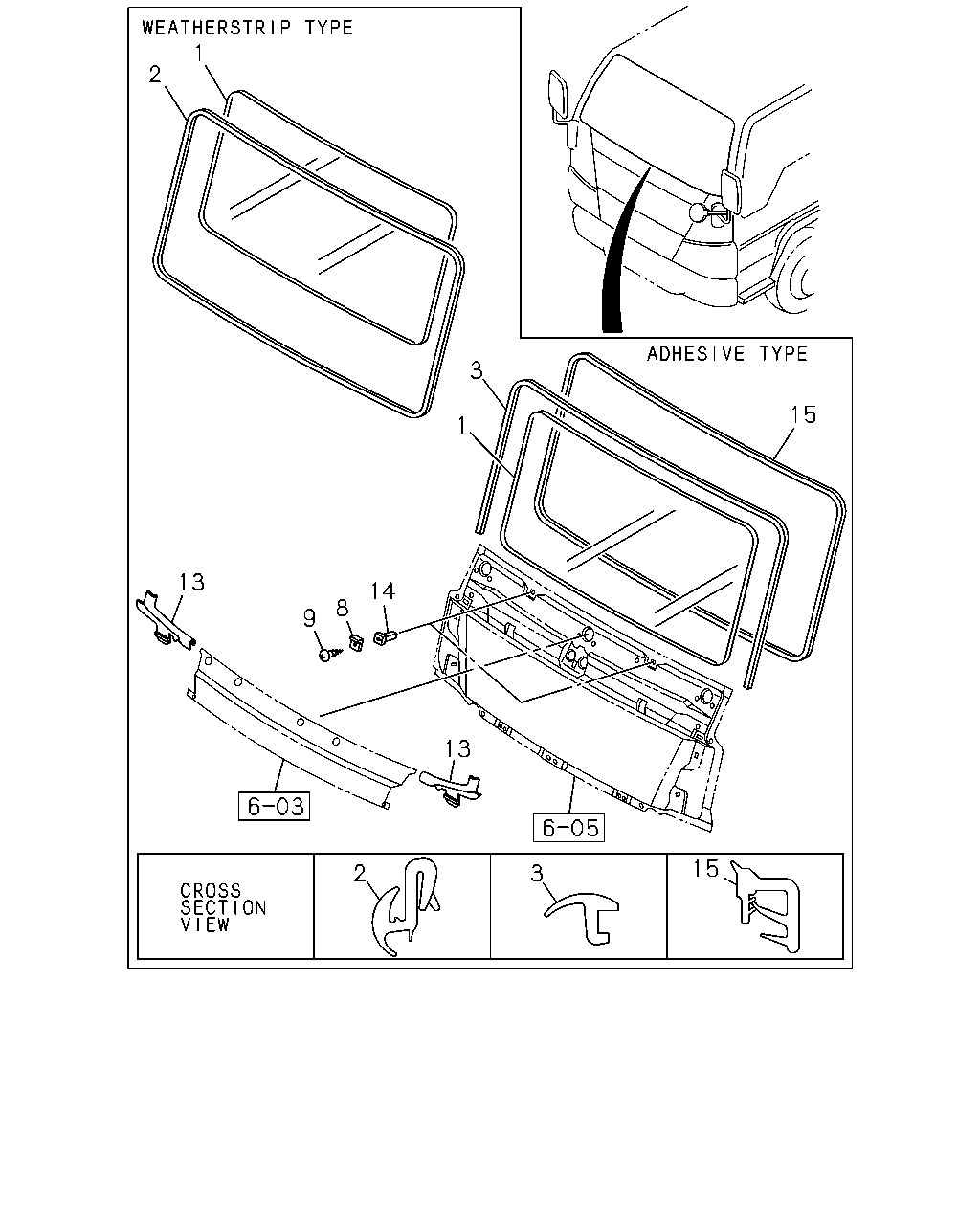

çizim 58344
1 2 3 15 1 13 14 8 9 13 15 2 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; WINDSHIELD
THA 		8-97922-152-0 01 1 0701- ● ●
2 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-350-4 01 1 0701- ● ●
3 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-624-3 01 1 0701- ● ●
8 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-1 02 1 0701- ● ●
9 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> M5X14 THA 		8-94279-325-0 02 1 0701- ● ●
13 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-618-3 01 1 0701- ● ●
13 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-617-4 01 1 0701- ● ●
14 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 14.5X14.5 BLACK THA 		8-94279-714-0 04 1 0701- ● ●
14 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0701- ● ●
15 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY 		8-97582-815-7 01 1 0701- ● ●
