◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51132 - NQR BUS CHAS(THAI) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#39173) — 26 parça

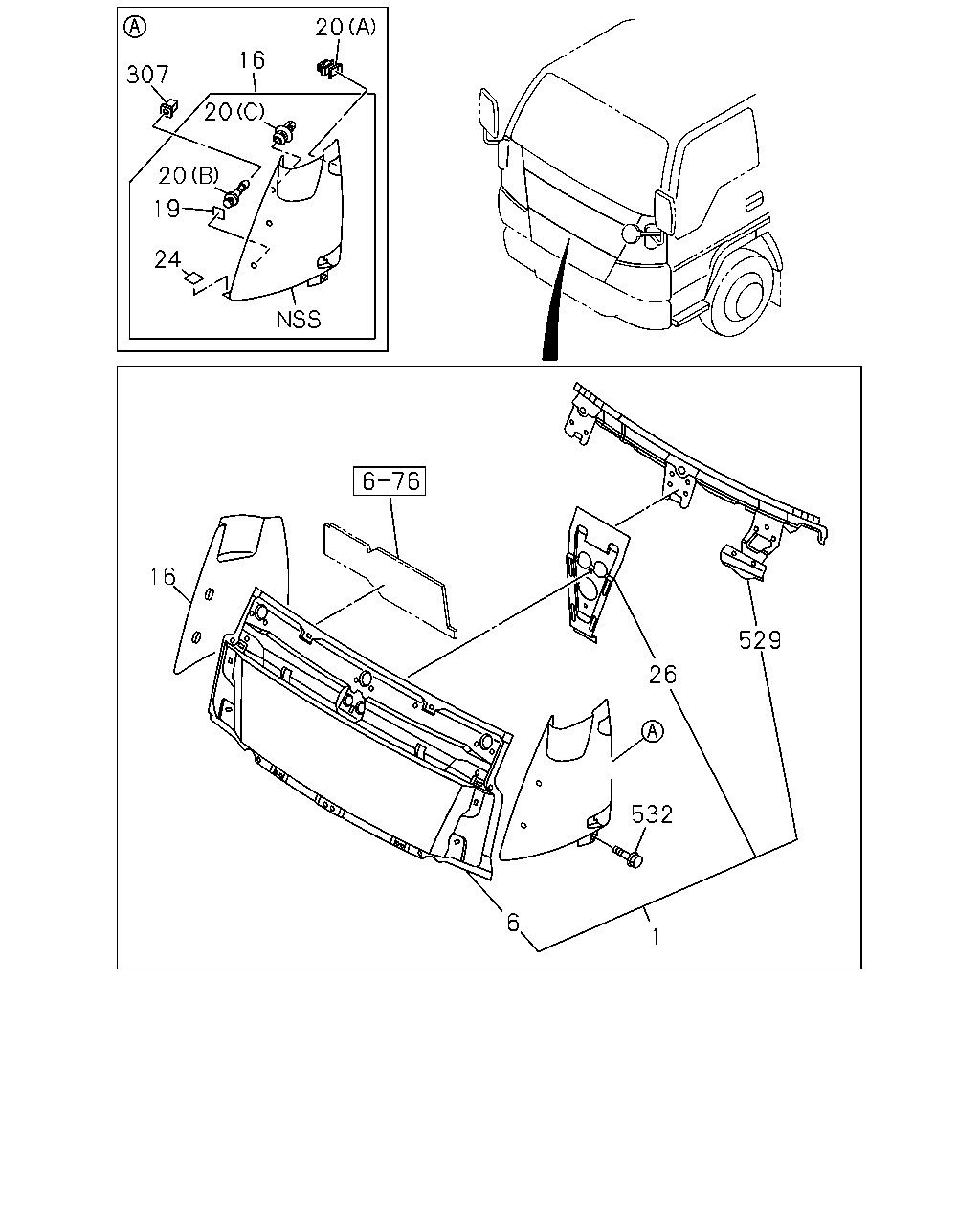

çizim 56815
20 16 307 20 20 19 24 16 529 26 532 6 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
THA 		8-97916-249-0 01 1 0701- ● ●
6 PANEL; FRONT
THA 		8-97916-511-0 01 1 0701- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE<890> BLUE 		8-97582-459-5 01 1 0701- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE<890> BLUE 		8-97582-475-5 01 1 0701- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE<951> WHITE 		8-97404-570-5 01 1 0701- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE<951> WHITE 		8-97404-569-5 01 1 0701- ● ●
19 SEAL; FRT SIDE PANEL 8-97581-676-0 04 1 0701-1008 ● ●
20 CLIP; FRT PANEL SIDE
(B) D4.2X13 		1-09983-161-0 04 1 0701- ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97581-632-1 04 1 0701- ● ●
20 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0701- ● ●
24 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 0701- ● ●
26 PANEL; REINF,FRT PANEL CENTER,INNER 8-97851-275-0 01 1 0701- ● ●
42 FINISHER; FRT PANEL,SIDE 8-97581-613-3 01 1 0701- ● ●
42 FINISHER; FRT PANEL,SIDE 8-97581-614-3 01 1 0701- ● ●
307 GROMMET; FRT PANEL 8-97583-397-0 04 1 0701- ● ●
529 REINFORCEMENT; PANEL
THA 		8-97867-730-0 01 1 0701- ● ●
532 BOLT; FRT PANEL
M6X16 W/PL WASHER 		8-97803-781-0 02 1 0701- ● ●
çizim 58366
522 525 16 21
BalonParca AdiParca NoAdetTipApplied Date A B
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE<890> BLUE 		8-97582-459-5 01 1 0701- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE<890> BLUE 		8-97582-475-5 01 1 0701- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE<951> WHITE 		8-97404-570-5 01 1 0701- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE<951> WHITE 		8-97404-569-5 01 1 0701- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0701- ● ●
42 FINISHER; FRT PANEL,SIDE 8-97581-613-3 01 1 0701- ● ●
42 FINISHER; FRT PANEL,SIDE 8-97581-614-3 01 1 0701- ● ●
522 PROTECTOR; SILL SIDE
GRAY 		8-97582-193-3 01 1 0701- ● ●
525 SEAL; FENDER
OD=25 BLACK THA 		1-76798-019-0 03 1 0701- ● ●
