6-03 — RADIATOR GRILLE (#39172) — 16 parça

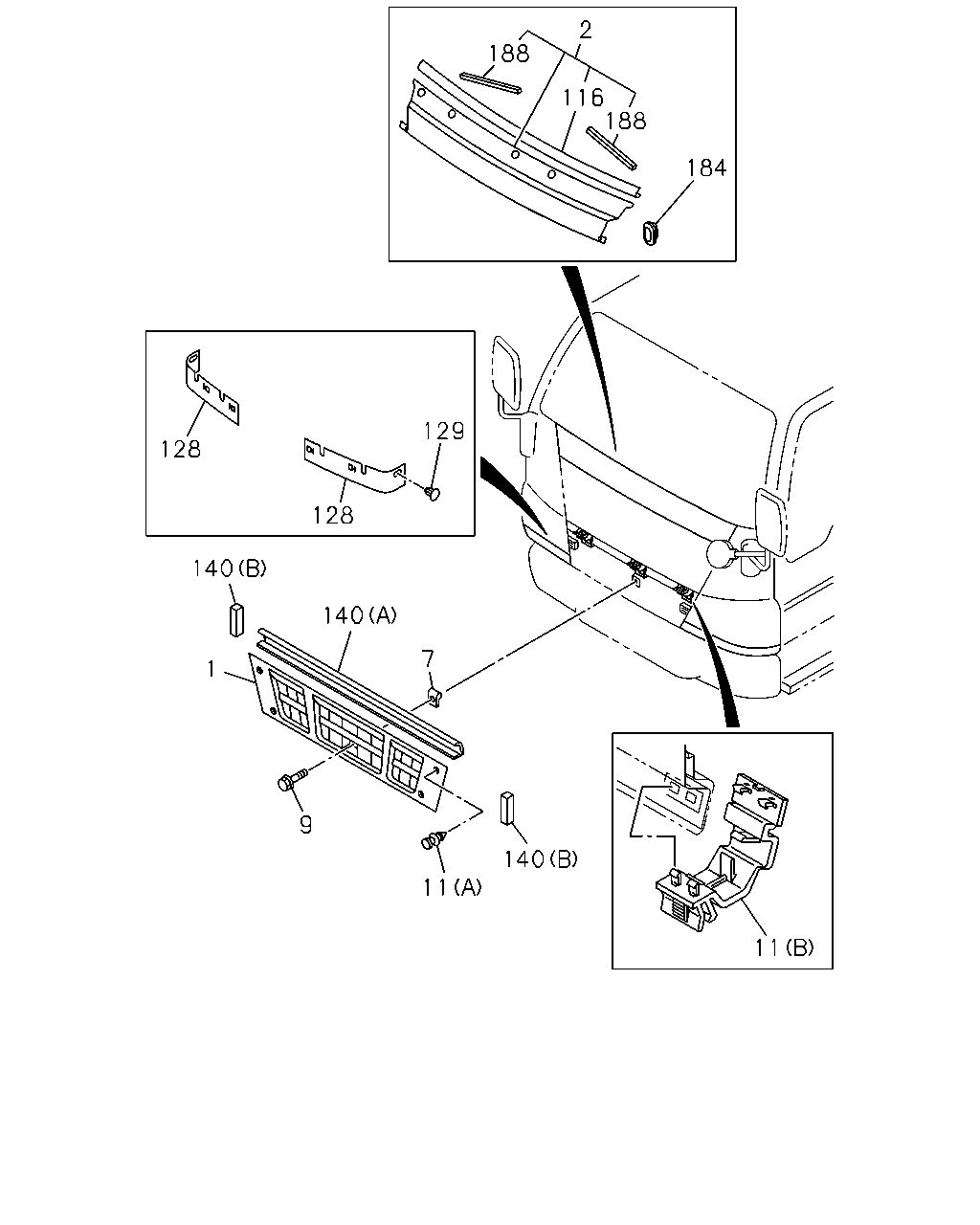

çizim 58393
2 188 116 188 184 129 128 128 140 140 7 1 9 140 11 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
BODY COLOR ARC WHITE<951> WHITE 		8-97404-579-4 01 1 0701- ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE<890> BLUE 		8-97583-048-4 01 1 0701- ● ●
2 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97583-951-2 01 1 0701- ● ●
2 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-680-5 01 1 0701- ● ●
7 NUT; SPIRE,RAD GRILLE 8-98014-760-0 01 1 0701- ● ●
9 SCREW; RAD GRILLE
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0701-0805 ● ●
9 SCREW; RAD GRILLE
M6X20 W/PL WASHER 		8-98059-504-0 01 1 0806- ● ●
11 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 04 1 0701- ● ●
11 CLIP; RAD GRILLE
(A) 		8-97581-651-2 04 1 0701- ● ●
116 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97581-656-1 01 1 0701- ● ●
128 COVER; HEADLAMP GRILLE 8-98015-934-0 02 1 0701- ● ●
129 CLIP; COVER HEADLAMP GRILLE
D=6.5 THA 		8-97855-279-0 02 1 0701- ● ●
140 SEAL; RAD GRILLE
(A) 		8-97581-665-0 01 1 0701- ● ●
140 SEAL; RAD GRILLE
(B) 		8-97583-411-1 02 1 0701- ● ●
184 GROMMET; ORNAMENT 8-97581-668-0 02 1 0701- ● ●
188 SEAL; ORNAMENT 8-97584-800-0 02 1 0701- ● ●
