Isuzu WW
▶
TRUCKS
▶
NQR
▶
51132 - NQR BUS CHAS(THAI)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

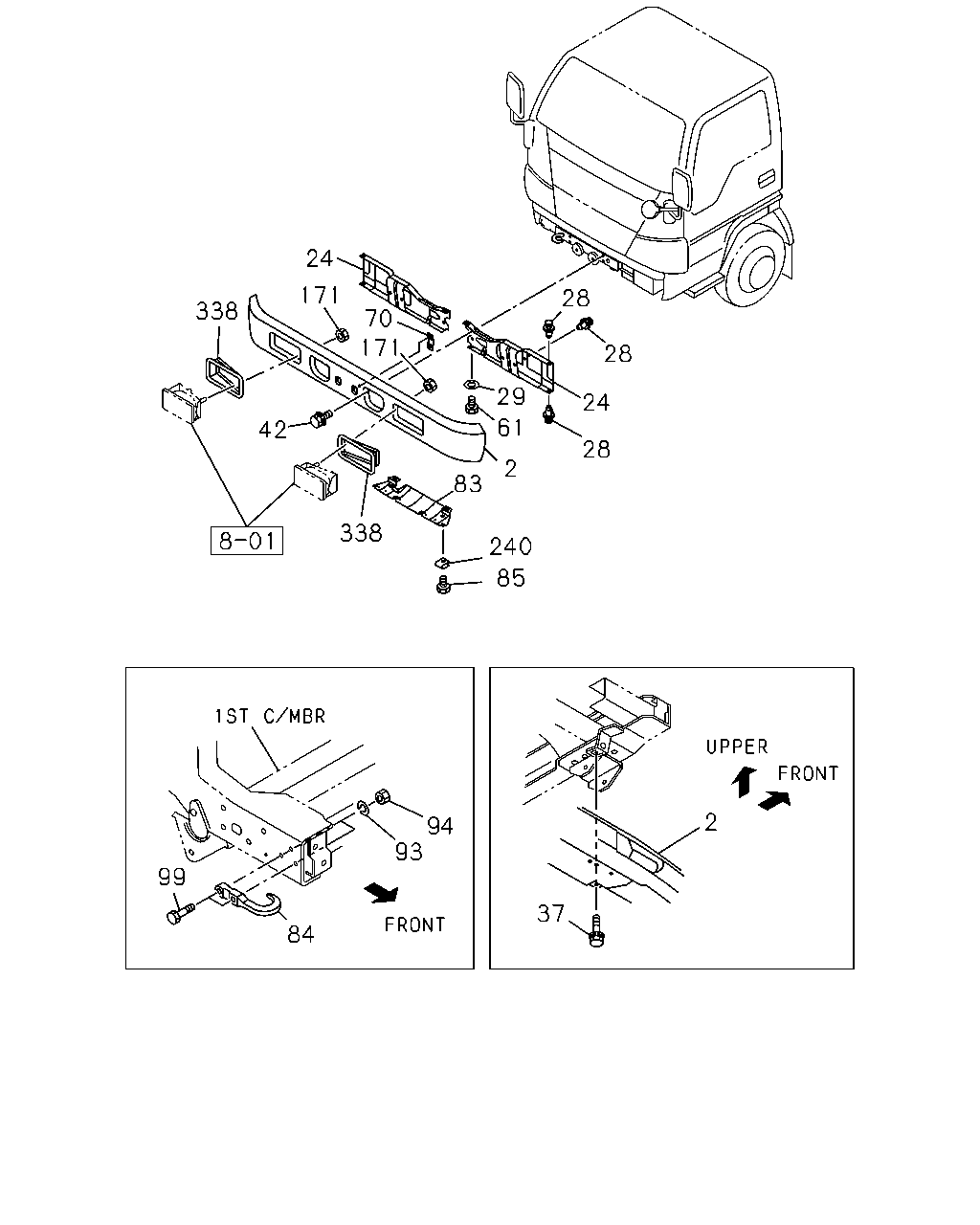

6-01 - FRONT BUMPER
▶
6-01 — FRONT BUMPER
(#39171) — 26 parça
Tümü
A - NPC5SF
B - NPC5SN
24
28
171
70
171
338
28
29
24
61
42
28
2
83
338
240
85
2
94
93
99
37
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
BUMPER; FRT,CENTER
BODY COLOR ARC WHITE<951> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE
8-97581-578-0
01
1
0701-
●
●
2
BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE<890> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE
8-97581-579-0
01
1
0701-
●
●
2
BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> DARK GRAY
8-97589-231-0
01
1
0701-
●
●
24
BAR; FRT BUMPER
8-97073-672-4
01
1
0701-
●
●
24
BAR; FRT BUMPER
8-97073-671-4
01
1
0701-
●
●
28
FASTENER; BACK BAR
D5.8 SCREW & GROMMET NYLON THA
8-94242-150-0
08
1
0701-
●
●
29
WASHER; FRT BUMPER
ID=8.5
8-94167-476-0
02
1
0701-
●
●
37
BOLT; BRKT TO BUMPER LWR
M8X22 W/LK&PL WASHER
8-94279-148-1
02
1
0701-
●
●
42
BOLT; BUMPER
M10X35 W/LK&PL WASHER
8-97101-865-0
04
1
0701-
●
●
61
BOLT; BACK BAR
M8X18 W/LK WASHER
0-50040-818-0
02
1
0701-0909
●
●
61
BOLT; BACK BAR
M8X18 W/LK WASHER
0-50540-818-0
02
1
0910-
●
●
70
BRACKET; LICENSE PLATE,FRT
8-94151-164-1
02
1
0701-
●
●
83
GUIDE; AIR,FRT BUMPER
8-97076-719-2
01
1
0701-
●
●
84
HOOK
THA
8-97918-519-0
01
1
0701-
●
●
85
BOLT; AIR GUIDE,FRT BUMPER
M6X22 W/PL WASHER THA
8-97012-072-0
04
1
0701-
●
●
93
WASHER; LK,HOOK
ID=14.2
0-91510-814-0
02
1
0701-
●
●
94
NUT; HOOK
M14
0-91110-514-0
02
1
0701-
●
●
99
BOLT; HOOK
M14X50
0-10856-450-0
02
1
0701-
●
●
171
NUT; BACK BAR
M8 FLANGE
1-09464-018-1
06
1
0701-
●
●
240
NUT; AIR GUIDE,FRT BUMPER
M6 SPIRE NUT
8-97210-973-1
04
1
0701-
●
●
338
BEZEL; FOG LAMP
BODY COLOR ARC WHITE<951> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE
8-97097-873-0
01
1
0701-
●
●
338
BEZEL; FOG LAMP
BODY COLOR ARC WHITE<951> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE
8-97097-869-0
01
1
0701-
●
●
338
BEZEL; FOG LAMP
BODY COLOR MARINE BLUE<890> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE
8-97097-871-0
01
1
0701-
●
●
338
BEZEL; FOG LAMP
BODY COLOR MARINE BLUE<890> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE
8-97097-867-0
01
1
0701-
●
●
338
BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9> DARK GRAY
8-97589-233-0
01
1
0701-
●
●
338
BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9> DARK GRAY
8-97589-232-0
01
1
0701-
●
●
