Isuzu WW
▶
TRUCKS
▶
NQR
▶
51132 - NQR BUS CHAS(THAI)
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

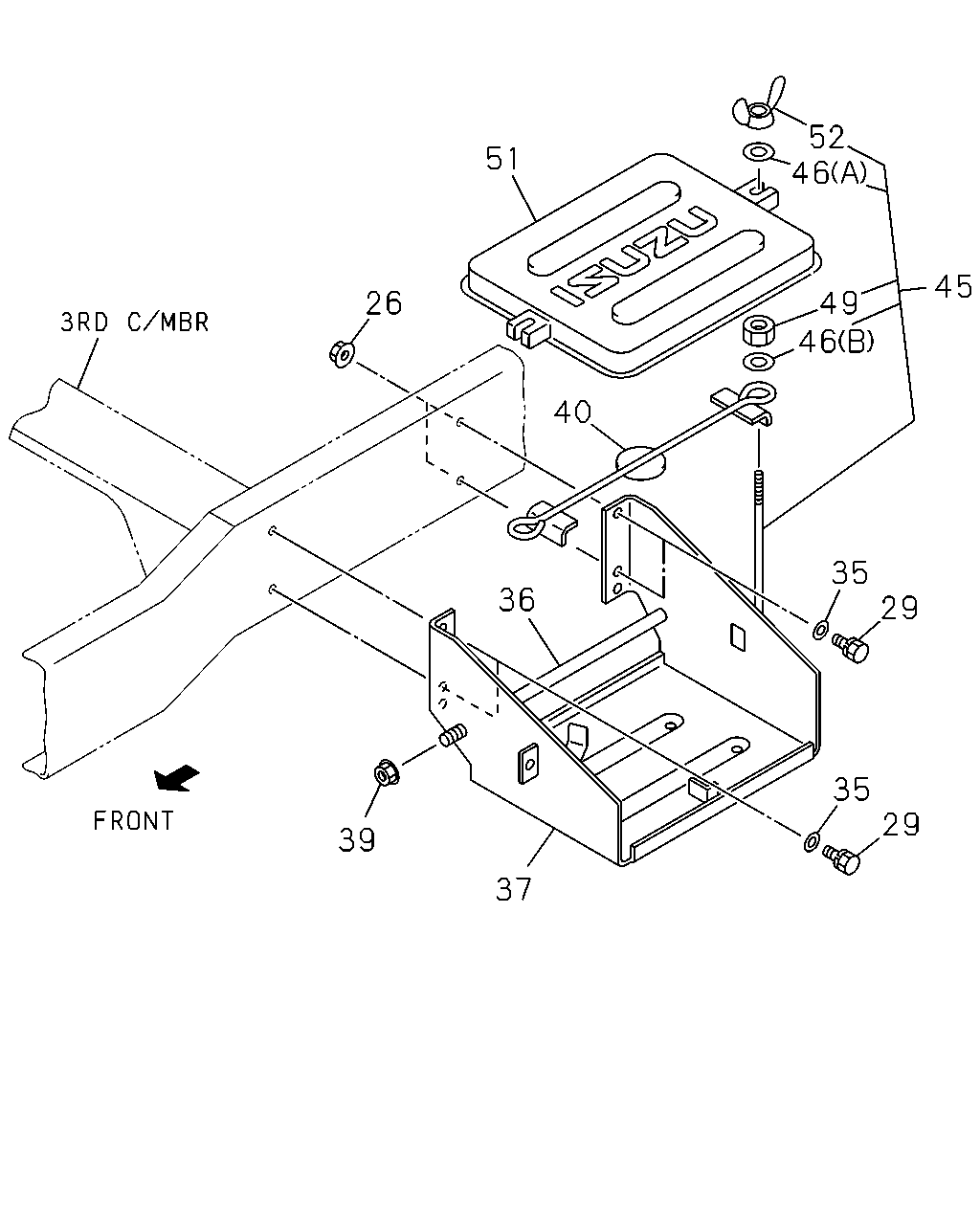

5-20 — BATTERY CARRIER
(#39169) — 13 parça
Tümü
A - NPC5SF
B - NPC5SN
52
46
51
45
26
49
46
40
35
29
36
35
29
39
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
26
NUT; BRKT
M10 FLANGE
0-91150-210-0
02
1
0701-
●
●
29
BOLT; BRKT TO FRAME
M10X30 W/LK WASHER
0-50541-030-0
04
1
0701-
●
●
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22
0-91610-610-0
04
1
0701-
●
●
36
STOPPER; BATTERY
BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> THA
8-94145-894-0
01
1
0701-
●
●
37
BRACKET; BATTERY
THA
8-97915-703-2
01
1
0701-
●
●
39
NUT; STOPPER,BATTERY
BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> M6 FLANGE
0-91180-106-0
01
1
0701-
●
●
40
CLAMP; BATTERY
THA
8-97910-232-0
01
1
0701-
●
●
45
ROD; TENSION,BATTERY
THA
8-97915-640-1
02
1
0701-
●
●
46
WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18
0-91610-608-0
02
1
0701-
●
●
46
WASHER; PL,BATTERY TO CARRIER
(B) ID=8.4 OD=22
0-91614-708-0
02
1
0701-
●
●
49
NUT; ROD,BATTERY
M8
0-91110-508-0
02
1
0701-
●
●
51
COVER; BATTERY
THA
8-97915-940-0
01
1
0701-
●
●
52
NUT; WING,COVER FIX
M8 WING NUT
0-91118-408-0
02
1
0701-
●
●
