◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51132 - NQR BUS CHAS(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#39165) — 10 parça

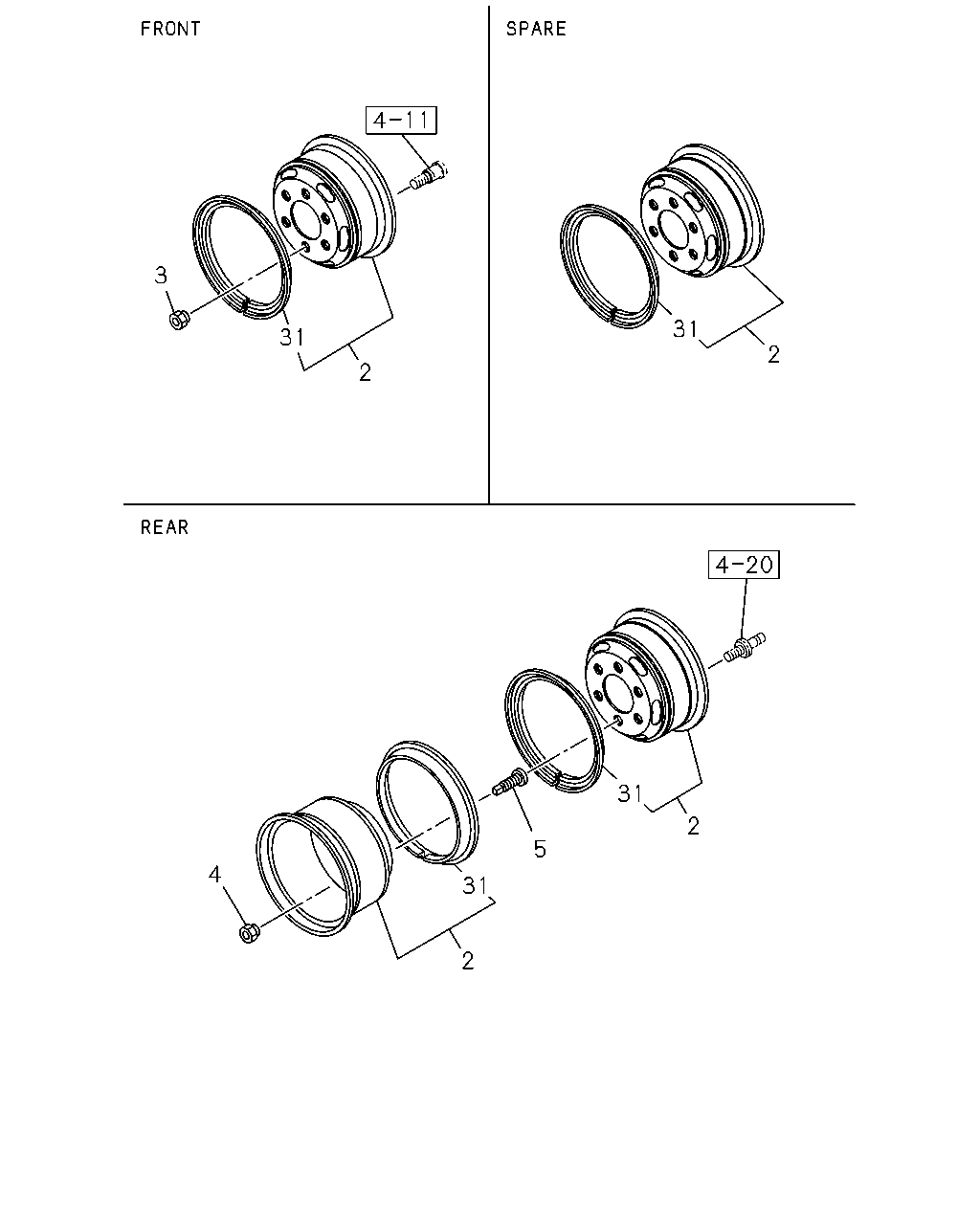

çizim 58663
3 31 31 2 2 31 2 5 4 31 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-97915-604-0 01 1 0701- ● ●
2 WHEEL; DISC
TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-97915-604-0 06 1 0701- ● ●
3 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		8-97359-808-0 06 1 0701- ● ●
3 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		8-97359-807-0 06 1 0701- ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD THA 		8-97916-121-0 06 1 0701- ● ●
4 NUT; WHEEL,RR AXLE
M30 THA 		8-97916-066-0 06 1 0701- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD THA 		8-97916-676-0 06 1 0701- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD THA 		8-97916-065-0 06 1 0701- ● ●
31 RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK THA 		8-97916-942-0 01 1 0701- ● ●
31 RING; SIDE,DISC WHEEL
TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 16X6.00GS STAMP, BLACK THA 		8-97916-942-0 06 1 0701- ● ●
