◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51132 - NQR BUS CHAS(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#39160) — 26 parça

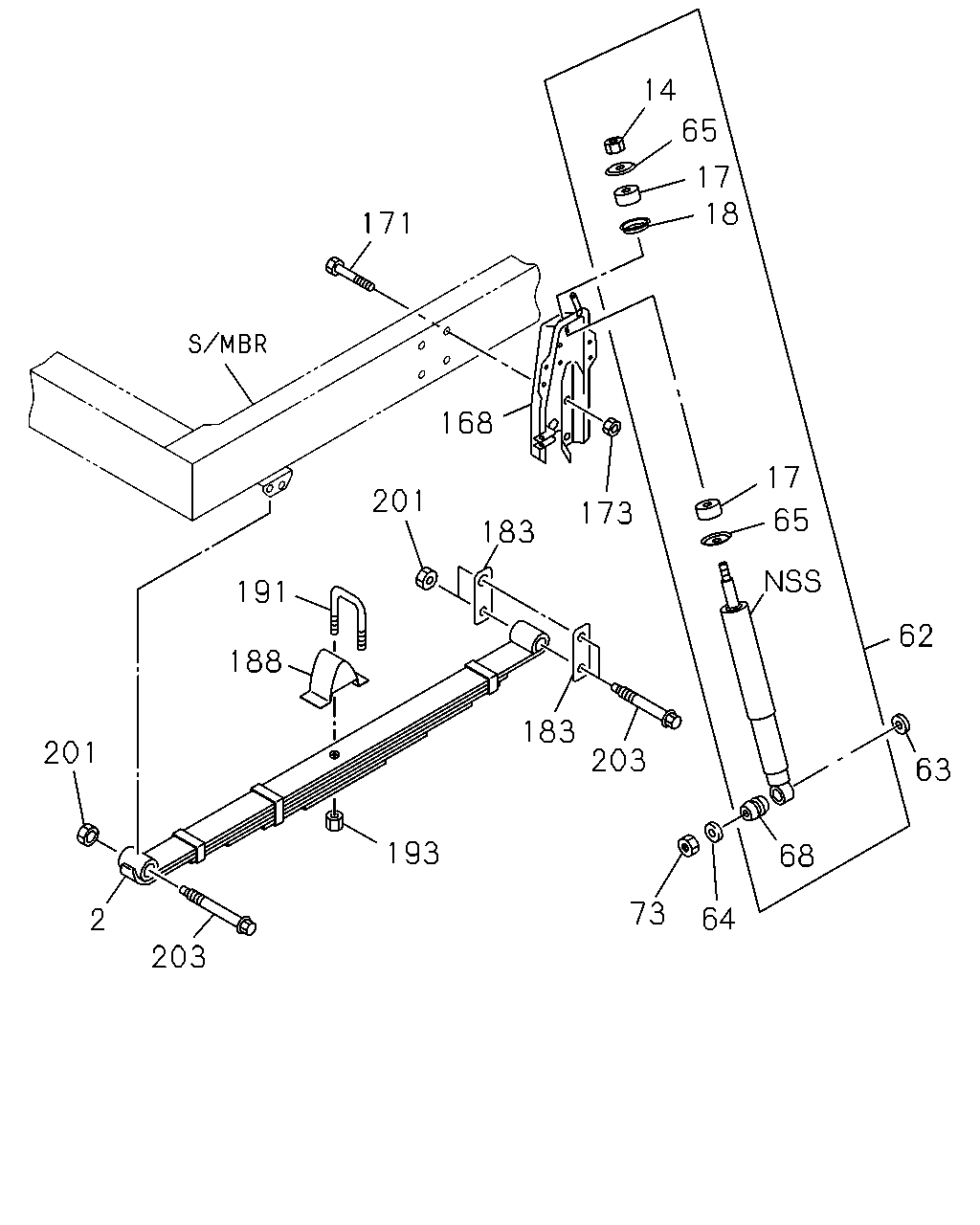

çizim 58661
14 65 17 18 171 168 17 201 173 65 183 191 62 188 183 201 203 63 193 68 73 64 2 203
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF THA 		8-97923-600-0 01 1 0701-0701 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA 		8-97923-641-0 01 1 0701- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF THA 		8-97923-602-0 01 1 0701-0701 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA 		8-97923-642-0 01 1 0701- ● ●
14 NUT; S/ABS,UPR
THA 		8-97915-859-0 02 1 0701- ● ●
17 BUSHING; RUBBER,S/ABS
THA 		8-97913-678-0 04 1 0701- ● ●
18 WASHER; CENTERING,S/ABS
THA 		8-97913-681-0 02 1 0701- ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97915-710-1 02 1 0701- ● ●
63 WASHER; PL,S/ABS,LWR
ID=21 OD=40 		0-91614-620-0 02 1 0701- ● ●
64 WASHER; S/ABS,LWR
ID=15 		8-97360-056-0 02 1 0701- ● ●
65 WASHER; S/ABS
THA 		8-97914-146-0 04 1 0701- ● ●
68 BUSHING; S/ABS
THA 		8-97915-860-0 02 1 0701- ● ●
73 NUT; BRKT,SHOCK
M14 		0-91110-514-0 02 1 0701- ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97102-611-2 01 1 0701- ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97240-796-1 01 1 0701- ● ●
171 BOLT; S/ABS BRKT
M12X35 FLANGE 		0-28681-235-0 08 1 0701-0701 ● ●
171 BOLT; S/ABS BRKT
M12X35 FLANGE 		0-28651-235-0 08 1 0702- ● ●
173 NUT; S/ABS
M12 		8-97360-126-0 08 1 0701- ● ●
183 SHACKLE; FRT SUSP
THA 		8-97916-536-0 04 1 0701- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
THA 		8-97914-243-0 02 1 0701- ● ●
191 U-BOLT; FRT SPR
L=165 THA 		8-97923-612-0 04 1 0701- ● ●
193 NUT; U BOLT
M14 FLANGE 		8-97360-124-0 08 1 0701-0702 ● ●
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 0703- ● ●
201 NUT; PIN LK
M16 FLANGE 		8-97360-125-0 06 1 0701- ● ●
203 PIN; SPR TO SHACKLE
KD PREPARATORY PACK<6HF> L=122 THA 		8-97916-533-0 06 1 0701- ● ●
203 PIN; SPR TO SHACKLE
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97360-110-0 06 1 0701- ● ●
