Sayfa 0-14 - Isuzu EPC

0-14 — CAMSHAFT AND VALVE (#3916) — 481 parça

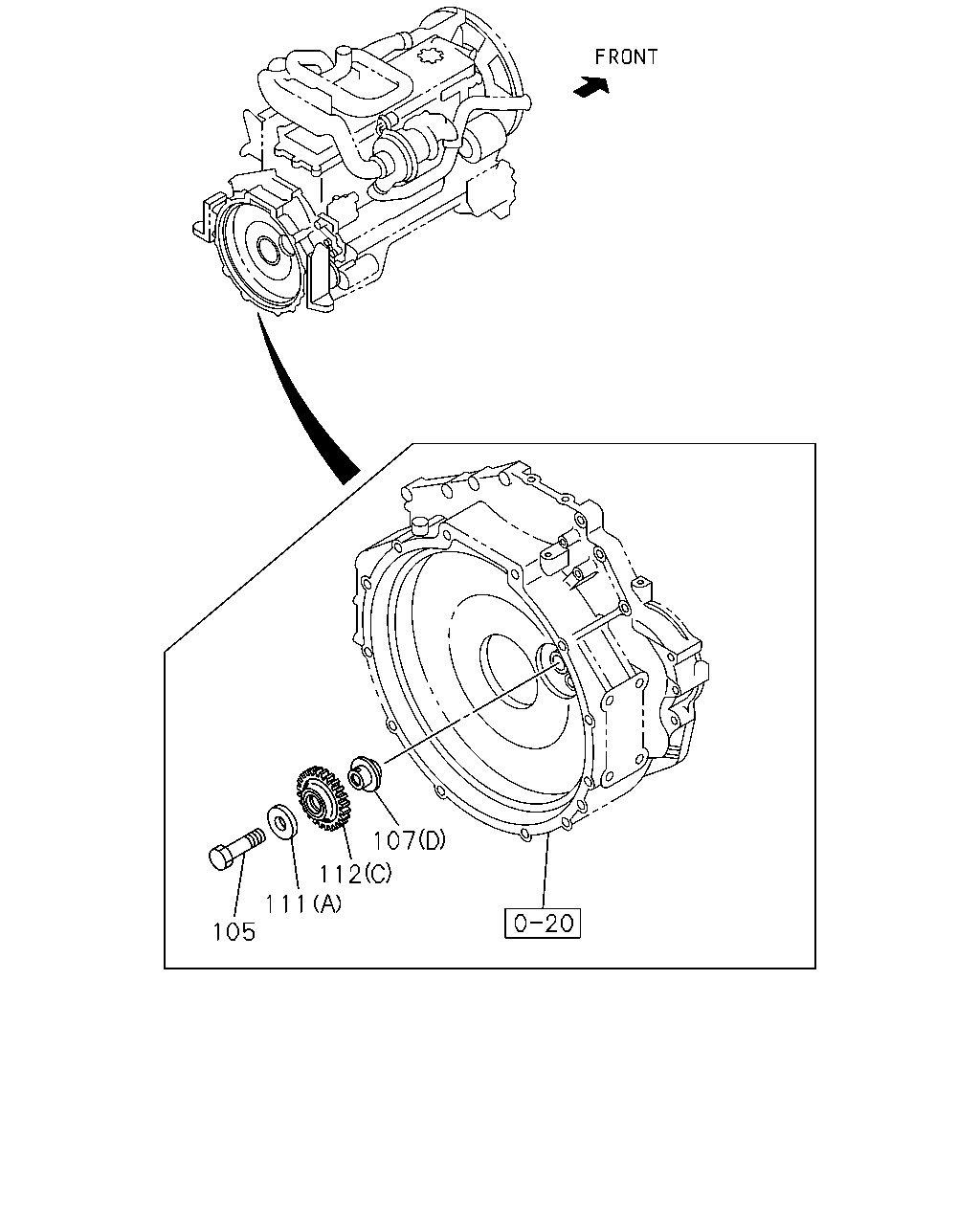

107 112 111 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
105	BOLT; IDLE GEAR SHAFT EURO2 SPECIFICATION<THN> M14X65	8-97066-798-0	01	1	9710-0010	●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	9710-0010		●
105	BOLT; IDLE GEAR SHAFT EURO2 SPECIFICATION<THN> M14X65	8-97066-798-0	01	1	0011-	●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	0011-		●
105	BOLT; IDLE GEAR SHAFT HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M14X65	8-97066-798-0	01	1	0011-			●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9510-0004	●			●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	0005-0009	●			●
107	SHAFT; IDLE GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-97104-380-0	01	1	0005-0009			●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	0010-0609				●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (B)	8-97104-380-0	01	1	0010-0609	●
107	SHAFT; IDLE GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-97104-380-0	01	1	0010-0609			●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	0610-				●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (B)	8-98060-780-0	01	1	0610-	●
107	SHAFT; IDLE GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-98060-780-0	01	1	0610-			●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9510-9805	●	●		●
107	SHAFT; IDLE GEAR (A)	8-97189-244-0	01	1	9806-0004	●	●		●
107	SHAFT; IDLE GEAR (A)	8-97189-244-1	01	1	0005-0204	●	●	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0205-0607	●	●	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0608-	●	●	●	●	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (A)	8-94395-073-2	01	1	9710-0004	●
107	SHAFT; IDLE GEAR (A)	8-94395-073-2	01	1	9710-0004		●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (C)	8-94395-073-2	01	1	0005-0010	●		●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	0005-0010		●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (C)	8-94395-073-2	01	1	0011-0205	●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	0011-0205		●
107	SHAFT; IDLE GEAR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	8-94395-073-2	01	1	0011-0205			●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (C)	8-97602-588-0	01	1	0206-0607	●
107	SHAFT; IDLE GEAR (C)	8-97602-588-0	01	1	0206-0607		●
107	SHAFT; IDLE GEAR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	8-97602-588-0	01	1	0206-0607			●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (C)	8-97602-588-0	01	1	0608-	●
107	SHAFT; IDLE GEAR (C)	8-97602-588-0	01	1	0608-		●			●
107	SHAFT; IDLE GEAR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	8-97602-588-0	01	1	0608-			●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (D)	8-94395-096-0	01	1	9710-0010	●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	9710-0010		●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (D)	8-94395-096-0	01	1	0011-0304	●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	0011-0304		●
107	SHAFT; IDLE GEAR HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (D)	8-94395-096-0	01	1	0011-0304			●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (D)	8-94334-682-1	01	1	0305-	●
107	SHAFT; IDLE GEAR (D)	8-94334-682-1	01	1	0305-		●
107	SHAFT; IDLE GEAR HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (D)	8-94334-682-1	01	1	0305-			●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	0005-0306				●
111	COLLAR; THRUST,IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-94370-688-0	02	1	0005-0306	●
111	COLLAR; THRUST,IDLE GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) ID=14.5 OD=46	8-94370-688-0	02	1	0005-0306			●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	02	1	0307-				●
111	COLLAR; THRUST,IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-97209-728-2	02	1	0307-	●
111	COLLAR; THRUST,IDLE GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) ID=14.5 OD=46	8-97209-728-2	02	1	0307-			●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9510-9709	●			●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (A) ID=24 OD=70	8-94394-097-1	01	1	9710-0004	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=24 OD=70	8-94394-097-1	01	1	9710-0004		●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (B) ID=24 OD=70	8-94394-097-1	01	1	0005-0010	●		●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0005-0010		●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (B) ID=24 OD=70	8-94394-097-1	01	1	0011-0607	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0011-0607		●
111	COLLAR; THRUST,IDLE GEAR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=24 OD=70	8-94394-097-1	01	1	0011-0607			●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (B) ID=24 OD=70	8-94394-097-1	01	1	0608-	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0608-		●			●
111	COLLAR; THRUST,IDLE GEAR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=24 OD=70	8-94394-097-1	01	1	0608-			●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9710-0004	●	●		●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-94370-688-0	01	1	0005-0005	●		●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	01	1	0005-0005		●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	01	1	0005-0005		●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-94370-688-0	01	1	0006-0010	●		●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	01	1	0006-0010		●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-94370-688-0	01	1	0011-0302	●		●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	01	1	0011-0302		●
111	COLLAR; THRUST,IDLE GEAR HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-94370-688-0	01	1	0011-0302			●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-94370-688-0	01	1	0303-0306	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	01	1	0303-0306		●
111	COLLAR; THRUST,IDLE GEAR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) ID=14.5 OD=46	8-94370-688-0	01	1	0303-0306			●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-97209-728-2	01	1	0307-0607	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	01	1	0307-0607		●
111	COLLAR; THRUST,IDLE GEAR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) ID=14.5 OD=46	8-97209-728-2	01	1	0307-0607			●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-97209-728-2	01	1	0608-	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	01	1	0608-		●			●
111	COLLAR; THRUST,IDLE GEAR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) ID=14.5 OD=46	8-97209-728-2	01	1	0608-			●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9510-0004	●			●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	0005-0009	●			●
112	GEAR; IDLE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) Z=72-30	8-94395-107-1	01	1	0005-0009			●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	0010-0609				●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94395-107-1	01	1	0010-0609	●
112	GEAR; IDLE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) Z=72-30	8-94395-107-1	01	1	0010-0609			●
112	GEAR; IDLE (B) Z=72-30	8-97227-074-0	01	1	0610-				●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30	8-97227-074-0	01	1	0610-	●
112	GEAR; IDLE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) Z=72-30	8-97227-074-0	01	1	0610-			●
112	GEAR; IDLE (A) Z=61	8-97094-546-1	01	1	9510-0004	●			●
112	GEAR; IDLE (A) Z=61	8-97094-546-2	01	1	0005-				●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (A) Z=61	8-97094-546-2	01	1	0005-	●
112	GEAR; IDLE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) Z=61	8-97094-546-2	01	1	0005-			●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (A) Z=61	8-94393-439-3	01	1	9710-0004	●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	9710-0004		●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (A) Z=61	8-94393-439-3	01	1	0005-0010	●		●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	0005-0010		●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (A) Z=61	8-94393-439-3	01	1	0011-0607	●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	0011-0607		●
112	GEAR; IDLE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) Z=61	8-94393-439-3	01	1	0011-0607			●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (A) Z=61	8-94393-439-4	01	1	0608-	●
112	GEAR; IDLE (A) Z=61	8-94393-439-4	01	1	0608-		●			●
112	GEAR; IDLE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) Z=61	8-94393-439-4	01	1	0608-			●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94394-092-3	01	1	9710-0004	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	9710-0004		●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94394-092-3	01	1	0005-0010	●		●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0005-0010		●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94394-092-3	01	1	0011-0607	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0011-0607		●
112	GEAR; IDLE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) Z=72-30	8-94394-092-3	01	1	0011-0607			●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94394-092-3	01	1	0608-	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0608-		●			●
112	GEAR; IDLE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) Z=72-30	8-94394-092-3	01	1	0608-			●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (C) Z=34	8-94394-509-2	01	1	9710-0010	●
112	GEAR; IDLE (C) Z=34	8-94394-509-2	01	1	9710-0010		●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (C) Z=34	8-94394-509-3	01	1	0011-	●
112	GEAR; IDLE (C) Z=34	8-94394-509-3	01	1	0011-		●
112	GEAR; IDLE HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (C) Z=34	8-94394-509-3	01	1	0011-			●

75 83 53 81 83 81 78 95 84 75 78 212 61 61 63 62 212 65 62 65 65 63 65 65 65 65 71 65 71 71 68 68 37 71 72 68 68 37 1 72 72 72 71 37 71 71 71 37 5 4 38 9 5 4 37 37 241 8 37 37 7 115 114

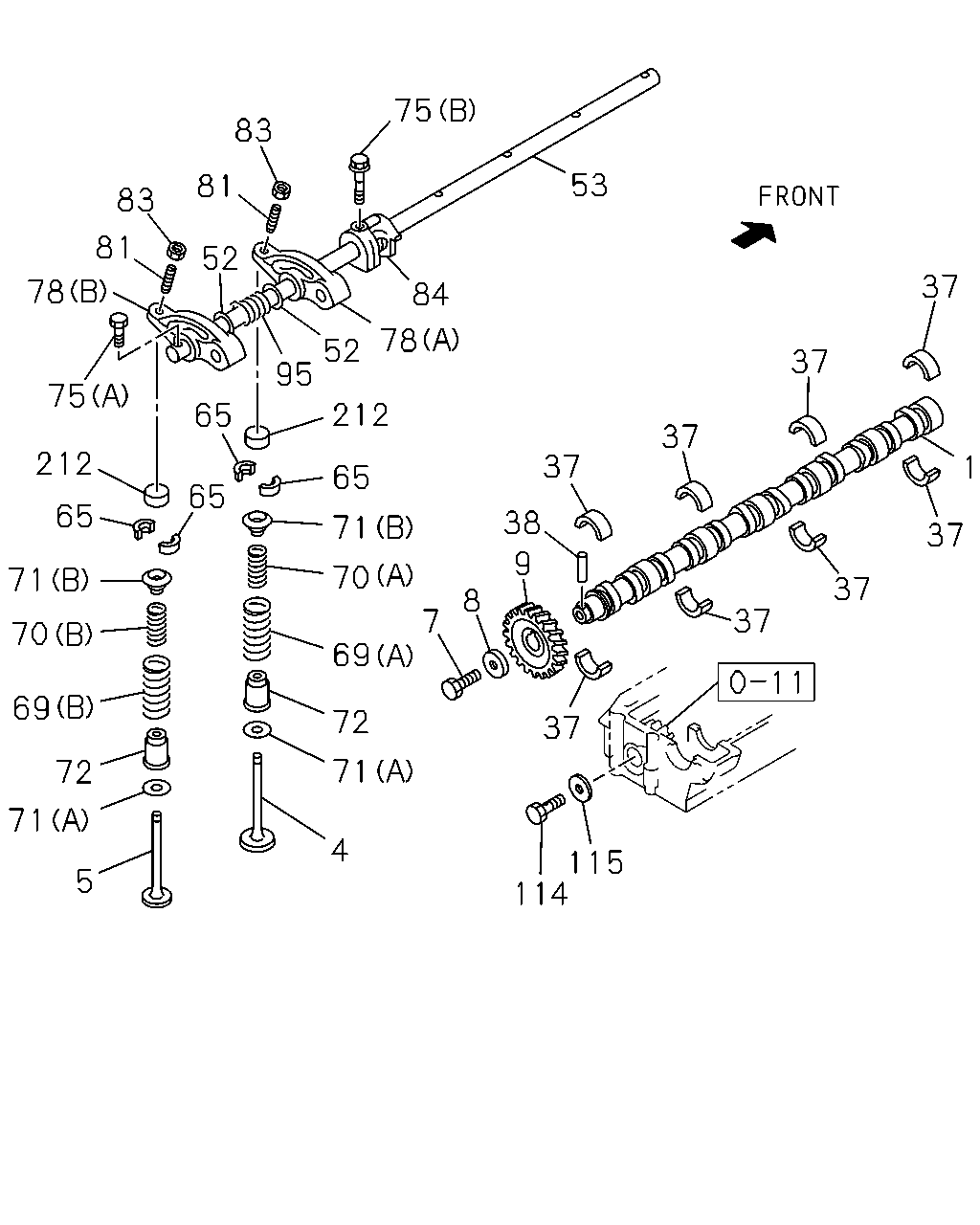

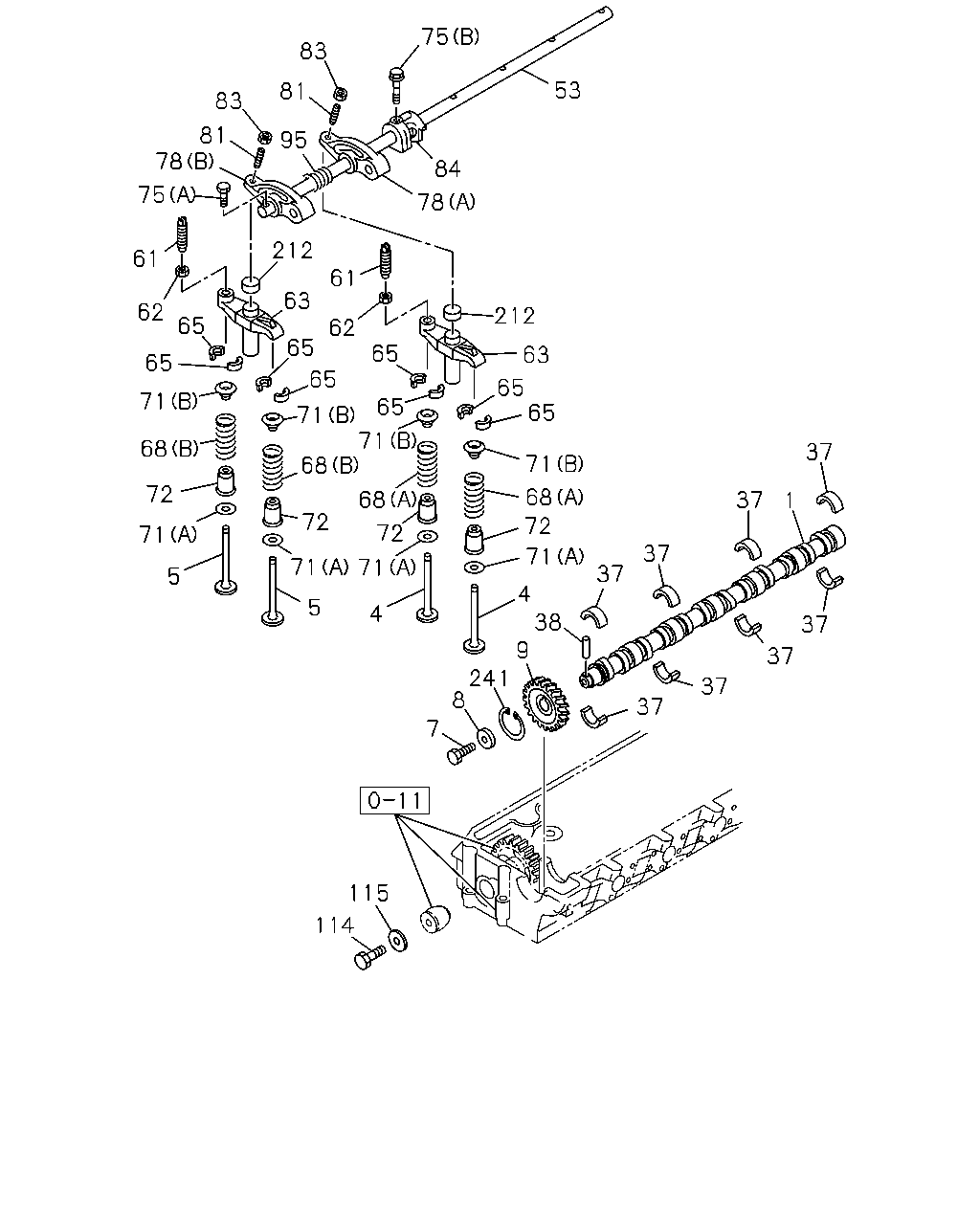

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	CAMSHAFT	8-94395-576-2	01	1	9510-1311				●
1	CAMSHAFT	8-98227-259-1	01	1	1312-				●
1	CAMSHAFT	8-94395-758-2	01	1	9511-1311	●	●
1	CAMSHAFT	8-98227-258-1	01	1	1312-	●	●
1	CAMSHAFT	8-94390-469-1	01	1	0005-0607			●
1	CAMSHAFT	8-94390-469-1	01	1	0608-1311			●		●
1	CAMSHAFT	8-98227-260-1	01	1	1312-			●		●
4	VALVE; INL	8-94395-882-2	12	1	0608-					●
4	VALVE; INL	8-94394-160-2	06	1	9510-				●
4	VALVE; INL	8-94395-113-1	06	1	9511-	●	●
4	VALVE; INL	8-94395-881-3	12	1	0005-			●
5	VALVE; EXH	8-94395-462-2	06	1	9510-	●	●		●
5	VALVE; EXH	8-94395-883-0	12	1	0005-0206			●
5	VALVE; EXH	8-97209-876-2	12	1	0207-0607			●
5	VALVE; EXH	8-97209-876-4	12	1	0608-			●		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9510-0004	●	●		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0005-0607	●	●	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0608-	●	●	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9510-0004	●	●		●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0005-0607	●	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0608-	●	●	●	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9510-0607	●	●		●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0608-	●	●		●	●
9	GEAR; CM/SHF Z=35	8-94390-151-0	01	1	0005-			●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0307-0312			●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0401-0607	●	●	●	●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0608-0706	●	●	●	●	●
37	METAL; CM/SHF UPPER B=16	8-97386-189-0	04	1	0707-	●	●	●	●	●
37	METAL; CM/SHF	8-94393-380-0	14	1	9510-9608	●			●
37	METAL; CM/SHF	8-94363-100-1	08	1	9609-0206	●	●		●
37	METAL; CM/SHF B=22	8-97602-698-0	08	1	0207-0312	●	●		●
37	METAL; CM/SHF LOWER B=22	8-97602-698-0	04	1	0401-	●	●		●
37	METAL; CM/SHF	8-94390-311-1	08	1	0005-0206			●
37	METAL; CM/SHF B=26	8-97602-699-0	08	1	0207-0306			●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	0307-0607			●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	0608-			●		●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	9510-0004	●	●		●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	0005-0607	●	●	●	●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	0608-	●	●	●	●	●
53	SHAFT; ROCKER ARM	8-94393-984-4	01	1	9510-	●	●		●
53	SHAFT; ROCKER ARM	8-94392-996-1	01	1	0005-0607			●
53	SHAFT; ROCKER ARM	8-94392-996-1	01	1	0608-0610			●		●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	0611-			●		●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	0005-0607			●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	0608-			●		●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	0005-0607			●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	0608-			●		●
63	BRIDGE	8-94392-002-3	12	1	0005-0607			●
63	BRIDGE	8-94392-002-3	12	1	0608-			●		●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9510-	●	●		●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0005-0607			●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0608-			●		●
68	SPRING; VLV (A) INLET MARK BLUE	8-94395-884-0	12	1	0005-0607			●
68	SPRING; VLV (A) INLET MARK BLUE	8-94395-884-0	12	1	0608-			●		●
68	SPRING; VLV (B) EXHAUST MARK WHITE	8-94395-885-1	12	1	0005-0607			●
68	SPRING; VLV (B) EXHAUST MARK WHITE	8-94395-885-1	12	1	0608-			●		●
71	SEAT; SPR (B) OD=38	8-94385-029-2	12	1	9510-	●	●		●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	9510-	●	●		●
71	SEAT; SPR (B) OD=32.8 T=12.75	8-94390-783-2	24	1	0005-0607			●
71	SEAT; SPR (B) OD=32.8 T=12.75	8-94390-783-2	24	1	0608-			●		●
71	SEAT; SPR (A) ID=14.3 T=1.0	8-94391-468-0	24	1	0005-0607			●
71	SEAT; SPR (A) ID=14.3 T=1.0	8-94391-468-0	24	1	0608-			●		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9510-	●	●		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	24	1	0005-0607			●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	24	1	0608-0707			●		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	0708-			●		●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28080-840-0	04	1	0005-0006			●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28080-840-0	02	1	0007-0512			●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-0607			●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	0608-			●		●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9510-0512	●	●		●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28050-835-0	02	1	0601-	●	●		●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9510-0004	●	●		●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0005-0607	●	●	●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0608-	●	●	●	●	●
78	ARM; ROCKER (A) INLET	8-94394-424-0	06	1	9510-9512	●			●
78	ARM; ROCKER (B) EXHAUST	8-94397-362-1	06	1	9510-9601	●			●
78	ARM; ROCKER (A) INLET	8-97074-614-1	06	1	9601-	●	●		●
78	ARM; ROCKER (B) EXHAUST	8-97014-258-2	06	1	9602-	●	●		●
78	ARM; ROCKER (A) INLET	8-94392-992-0	06	1	0005-0211			●
78	ARM; ROCKER (A) INLET	8-97306-421-2	06	1	0212-0607			●
78	ARM; ROCKER (A) INLET	8-97306-421-3	06	1	0608-			●		●
78	ARM; ROCKER (B) EXHAUST	8-94392-993-0	06	1	0005-0211			●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-2	06	1	0212-0607			●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	06	1	0608-			●		●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9510-0004	●	●		●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0005-0607	●	●	●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0608-	●	●	●	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	24	1	0005-0006			●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0007-0512	●	●	●	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0601-0607	●	●	●	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0608-	●	●	●	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	12	1	9510-9705	●			●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9706-0006	●	●		●
84	BRACKET; ROCKER SHAFT,INTER	8-94388-109-3	05	1	9510-	●	●		●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	0005-0607			●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	0608-			●		●
95	SPRING; ROCKER SHAFT	8-94397-263-0	06	1	9510-	●	●		●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0005-0607			●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0608-			●		●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	9510-0004	●	●		●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0005-0607	●	●	●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0608-	●	●	●	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9510-0004	●	●		●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	0005-0306	●	●	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0307-0607	●	●	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0608-	●	●	●	●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	9510-0004	●	●		●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0005-0607	●	●	●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0608-	●	●	●	●	●
241	RING; FRICTION	8-94390-562-0	01	1	0005-0311			●
241	RING; FRICTION	8-97603-297-0	01	1	0312-			●

107 112 101 112 107 106 101 111 107 112 101 101 111 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
101	BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9510-9611	●			●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9612-9802	●	●		●
101	BOLT; THRUST COLLAR (A) M14X60	9-91666-460-0	01	1	9510-0004	●			●
101	BOLT; THRUST COLLAR (A) M14X60	9-91666-460-0	01	1	0005-0009	●			●
101	BOLT; THRUST COLLAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M14X60	9-91666-460-0	01	1	0005-0009			●
101	BOLT; THRUST COLLAR (A) M14X60	9-91666-460-0	01	1	0010-0512				●
101	BOLT; THRUST COLLAR EXC. EURO2 SPECIFICATION<THN> (A) M14X60	9-91666-460-0	01	1	0010-0512	●
101	BOLT; THRUST COLLAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M14X60	9-91666-460-0	01	1	0010-0512			●
101	BOLT; THRUST COLLAR (A) M14X60	0-16956-460-0	01	1	0601-				●
101	BOLT; THRUST COLLAR EXC. EURO2 SPECIFICATION<THN> (A) M14X60	0-16956-460-0	01	1	0601-	●
101	BOLT; THRUST COLLAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M14X60	0-16956-460-0	01	1	0601-			●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9510-0004	●	●		●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	0005-0512	●	●	●	●
101	BOLT; THRUST COLLAR (C) M14X30	0-23951-430-0	01	1	0601-0607	●	●	●	●
101	BOLT; THRUST COLLAR (C) M14X30	0-23951-430-0	01	1	0608-	●	●	●	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9803-0004	●	●		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0005-0512	●	●	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-0607	●	●	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0608-	●	●	●	●	●
101	BOLT; THRUST COLLAR EURO2 SPECIFICATION<THN> (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	9710-0004	●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	9710-0004		●
101	BOLT; THRUST COLLAR EURO2 SPECIFICATION<THN> (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0005-0010	●		●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0005-0010		●
101	BOLT; THRUST COLLAR EURO2 SPECIFICATION<THN> (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0011-0607	●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0011-0607		●
101	BOLT; THRUST COLLAR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0011-0607			●
101	BOLT; THRUST COLLAR EURO2 SPECIFICATION<THN> (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0608-	●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0608-		●			●
101	BOLT; THRUST COLLAR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	0608-			●
106	WASHER; IDLE GEAR SHAFT EURO2 SPECIFICATION<THN> ID=14.2 OD=23	1-09503-031-0	01	1	0011-0607	●
106	WASHER; IDLE GEAR SHAFT ID=14.2 OD=23	1-09503-031-0	01	1	0011-0607		●
106	WASHER; IDLE GEAR SHAFT EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=14.2 OD=23	1-09503-031-0	01	1	0011-0607			●
106	WASHER; IDLE GEAR SHAFT EURO2 SPECIFICATION<THN> ID=14.2 OD=23	1-09503-031-0	01	1	0608-	●
106	WASHER; IDLE GEAR SHAFT ID=14.2 OD=23	1-09503-031-0	01	1	0608-		●			●
106	WASHER; IDLE GEAR SHAFT EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=14.2 OD=23	1-09503-031-0	01	1	0608-			●
106	WASHER; IDLE GEAR SHAFT EURO2 SPECIFICATION<THN> ID=14.2 OD=23	1-09503-031-0	01	1	9710-0004	●
106	WASHER; IDLE GEAR SHAFT ID=14.2 OD=23	1-09503-031-0	01	1	9710-0004		●
106	WASHER; IDLE GEAR SHAFT EURO2 SPECIFICATION<THN> ID=14.2 OD=23	1-09503-031-0	01	1	0005-0010	●		●
106	WASHER; IDLE GEAR SHAFT ID=14.2 OD=23	1-09503-031-0	01	1	0005-0010		●
106	WASHER; IDLE GEAR SHAFT EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> ID=14.5 OD=46	8-94370-688-0	01	1	0011-0306			●
106	WASHER; IDLE GEAR SHAFT EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> ID=14.5 OD=46	8-97209-728-2	01	1	0307-			●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9510-0004	●			●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	0005-0009	●			●
107	SHAFT; IDLE GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-97104-380-0	01	1	0005-0009			●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	0010-0609				●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (B)	8-97104-380-0	01	1	0010-0609	●
107	SHAFT; IDLE GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-97104-380-0	01	1	0010-0609			●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	0610-				●
107	SHAFT; IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (B)	8-98060-780-0	01	1	0610-	●
107	SHAFT; IDLE GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-98060-780-0	01	1	0610-			●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9510-9805	●	●		●
107	SHAFT; IDLE GEAR (A)	8-97189-244-0	01	1	9806-0004	●	●		●
107	SHAFT; IDLE GEAR (A)	8-97189-244-1	01	1	0005-0204	●	●	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0205-0607	●	●	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0608-	●	●	●	●	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (A)	8-94395-073-2	01	1	9710-0004	●
107	SHAFT; IDLE GEAR (A)	8-94395-073-2	01	1	9710-0004		●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (C)	8-94395-073-2	01	1	0005-0010	●		●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	0005-0010		●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (C)	8-94395-073-2	01	1	0011-0205	●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	0011-0205		●
107	SHAFT; IDLE GEAR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	8-94395-073-2	01	1	0011-0205			●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (C)	8-97602-588-0	01	1	0206-0607	●
107	SHAFT; IDLE GEAR (C)	8-97602-588-0	01	1	0206-0607		●
107	SHAFT; IDLE GEAR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	8-97602-588-0	01	1	0206-0607			●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (C)	8-97602-588-0	01	1	0608-	●
107	SHAFT; IDLE GEAR (C)	8-97602-588-0	01	1	0608-		●			●
107	SHAFT; IDLE GEAR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	8-97602-588-0	01	1	0608-			●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (D)	8-94395-096-0	01	1	9710-0010	●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	9710-0010		●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (D)	8-94395-096-0	01	1	0011-0304	●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	0011-0304		●
107	SHAFT; IDLE GEAR HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (D)	8-94395-096-0	01	1	0011-0304			●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (D)	8-94334-682-1	01	1	0305-	●
107	SHAFT; IDLE GEAR (D)	8-94334-682-1	01	1	0305-		●
107	SHAFT; IDLE GEAR HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (D)	8-94334-682-1	01	1	0305-			●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	0005-0306				●
111	COLLAR; THRUST,IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-94370-688-0	02	1	0005-0306	●
111	COLLAR; THRUST,IDLE GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) ID=14.5 OD=46	8-94370-688-0	02	1	0005-0306			●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	02	1	0307-				●
111	COLLAR; THRUST,IDLE GEAR EXC. EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-97209-728-2	02	1	0307-	●
111	COLLAR; THRUST,IDLE GEAR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) ID=14.5 OD=46	8-97209-728-2	02	1	0307-			●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9510-9709	●			●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (A) ID=24 OD=70	8-94394-097-1	01	1	9710-0004	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=24 OD=70	8-94394-097-1	01	1	9710-0004		●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (B) ID=24 OD=70	8-94394-097-1	01	1	0005-0010	●		●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0005-0010		●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (B) ID=24 OD=70	8-94394-097-1	01	1	0011-0607	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0011-0607		●
111	COLLAR; THRUST,IDLE GEAR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=24 OD=70	8-94394-097-1	01	1	0011-0607			●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (B) ID=24 OD=70	8-94394-097-1	01	1	0608-	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=24 OD=70	8-94394-097-1	01	1	0608-		●			●
111	COLLAR; THRUST,IDLE GEAR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=24 OD=70	8-94394-097-1	01	1	0608-			●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	02	1	9710-0004	●	●		●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-94370-688-0	01	1	0005-0005	●		●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	01	1	0005-0005		●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	01	1	0005-0005		●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-94370-688-0	01	1	0006-0010	●		●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	01	1	0006-0010		●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-94370-688-0	01	1	0011-0302	●		●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	01	1	0011-0302		●
111	COLLAR; THRUST,IDLE GEAR HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-94370-688-0	01	1	0011-0302			●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-94370-688-0	01	1	0303-0306	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-94370-688-0	01	1	0303-0306		●
111	COLLAR; THRUST,IDLE GEAR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) ID=14.5 OD=46	8-94370-688-0	01	1	0303-0306			●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-97209-728-2	01	1	0307-0607	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	01	1	0307-0607		●
111	COLLAR; THRUST,IDLE GEAR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) ID=14.5 OD=46	8-97209-728-2	01	1	0307-0607			●
111	COLLAR; THRUST,IDLE GEAR EURO2 SPECIFICATION<THN> (A) ID=14.5 OD=46	8-97209-728-2	01	1	0608-	●
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	01	1	0608-		●			●
111	COLLAR; THRUST,IDLE GEAR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) ID=14.5 OD=46	8-97209-728-2	01	1	0608-			●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9510-0004	●			●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	0005-0009	●			●
112	GEAR; IDLE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) Z=72-30	8-94395-107-1	01	1	0005-0009			●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	0010-0609				●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94395-107-1	01	1	0010-0609	●
112	GEAR; IDLE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) Z=72-30	8-94395-107-1	01	1	0010-0609			●
112	GEAR; IDLE (B) Z=72-30	8-97227-074-0	01	1	0610-				●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (B) Z=72-30	8-97227-074-0	01	1	0610-	●
112	GEAR; IDLE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) Z=72-30	8-97227-074-0	01	1	0610-			●
112	GEAR; IDLE (A) Z=61	8-97094-546-1	01	1	9510-0004	●			●
112	GEAR; IDLE (A) Z=61	8-97094-546-2	01	1	0005-				●
112	GEAR; IDLE EXC. EURO2 SPECIFICATION<THN> (A) Z=61	8-97094-546-2	01	1	0005-	●
112	GEAR; IDLE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) Z=61	8-97094-546-2	01	1	0005-			●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (A) Z=61	8-94393-439-3	01	1	9710-0004	●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	9710-0004		●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (A) Z=61	8-94393-439-3	01	1	0005-0010	●		●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	0005-0010		●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (A) Z=61	8-94393-439-3	01	1	0011-0607	●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	0011-0607		●
112	GEAR; IDLE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) Z=61	8-94393-439-3	01	1	0011-0607			●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (A) Z=61	8-94393-439-4	01	1	0608-	●
112	GEAR; IDLE (A) Z=61	8-94393-439-4	01	1	0608-		●			●
112	GEAR; IDLE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) Z=61	8-94393-439-4	01	1	0608-			●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94394-092-3	01	1	9710-0004	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	9710-0004		●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94394-092-3	01	1	0005-0010	●		●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0005-0010		●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94394-092-3	01	1	0011-0607	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0011-0607		●
112	GEAR; IDLE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) Z=72-30	8-94394-092-3	01	1	0011-0607			●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (B) Z=72-30	8-94394-092-3	01	1	0608-	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	0608-		●			●
112	GEAR; IDLE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) Z=72-30	8-94394-092-3	01	1	0608-			●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (C) Z=34	8-94394-509-2	01	1	9710-0010	●
112	GEAR; IDLE (C) Z=34	8-94394-509-2	01	1	9710-0010		●
112	GEAR; IDLE EURO2 SPECIFICATION<THN> (C) Z=34	8-94394-509-3	01	1	0011-	●
112	GEAR; IDLE (C) Z=34	8-94394-509-3	01	1	0011-		●
112	GEAR; IDLE HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (C) Z=34	8-94394-509-3	01	1	0011-			●

75 83 53 81 83 81 52 37 84 78 52 95 37 75 212 65 37 212 37 1 65 65 65 38 71 37 9 71 37 8 37 7 72 37 71 72 71 4 115 114 5 70 69 70 69 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	CAMSHAFT	8-94395-576-2	01	1	9510-1311				●
1	CAMSHAFT	8-98227-259-1	01	1	1312-				●
1	CAMSHAFT	8-94395-758-2	01	1	9511-1311	●	●
1	CAMSHAFT	8-98227-258-1	01	1	1312-	●	●
1	CAMSHAFT	8-94390-469-1	01	1	0005-0607			●
1	CAMSHAFT	8-94390-469-1	01	1	0608-1311			●		●
1	CAMSHAFT	8-98227-260-1	01	1	1312-			●		●
4	VALVE; INL	8-94395-882-2	12	1	0608-					●
4	VALVE; INL	8-94394-160-2	06	1	9510-				●
4	VALVE; INL	8-94395-113-1	06	1	9511-	●	●
4	VALVE; INL	8-94395-881-3	12	1	0005-			●
5	VALVE; EXH	8-94395-462-2	06	1	9510-	●	●		●
5	VALVE; EXH	8-94395-883-0	12	1	0005-0206			●
5	VALVE; EXH	8-97209-876-2	12	1	0207-0607			●
5	VALVE; EXH	8-97209-876-4	12	1	0608-			●		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9510-0004	●	●		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0005-0607	●	●	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0608-	●	●	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9510-0004	●	●		●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0005-0607	●	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0608-	●	●	●	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9510-0607	●	●		●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0608-	●	●		●	●
9	GEAR; CM/SHF Z=35	8-94390-151-0	01	1	0005-			●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0307-0312			●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0401-0607	●	●	●	●
37	METAL; CM/SHF UPPER B=16	8-97356-939-0	04	1	0608-0706	●	●	●	●	●
37	METAL; CM/SHF UPPER B=16	8-97386-189-0	04	1	0707-	●	●	●	●	●
37	METAL; CM/SHF	8-94393-380-0	14	1	9510-9608	●			●
37	METAL; CM/SHF	8-94363-100-1	08	1	9609-0206	●	●		●
37	METAL; CM/SHF B=22	8-97602-698-0	08	1	0207-0312	●	●		●
37	METAL; CM/SHF LOWER B=22	8-97602-698-0	04	1	0401-	●	●		●
37	METAL; CM/SHF	8-94390-311-1	08	1	0005-0206			●
37	METAL; CM/SHF B=26	8-97602-699-0	08	1	0207-0306			●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	0307-0607			●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	0608-			●		●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	9510-0004	●	●		●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	0005-0607	●	●	●	●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	0608-	●	●	●	●	●
52	WASHER; ROCKER ARM SHAFT	8-94362-105-0	12	1	9510-	●	●		●
53	SHAFT; ROCKER ARM	8-94393-984-4	01	1	9510-	●	●		●
53	SHAFT; ROCKER ARM	8-94392-996-1	01	1	0005-0607			●
53	SHAFT; ROCKER ARM	8-94392-996-1	01	1	0608-0610			●		●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	0611-			●		●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9510-	●	●		●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0005-0607			●
65	COLLAR; SPLIT	5-12565-004-0	48	1	0608-			●		●
69	SPRING; VLV,OUTER (B) EXHAUST MARK YELLOW	8-94393-310-0	06	1	9510-	●	●		●
69	SPRING; VLV,OUTER (A) INLET	8-94394-996-0	06	1	9510-0111	●	●		●
69	SPRING; VLV,OUTER (A) INLET MARK PINK	8-97120-912-0	06	1	0112-	●	●		●
70	SPRING; VLV,INNER (A) INLET	8-94395-266-0	06	1	9510-0111	●	●		●
70	SPRING; VLV,INNER (A) INLET MARK PINK	8-97120-911-0	06	1	0112-	●	●		●
70	SPRING; VLV,INNER (B) EXHAUST MARK YELLOW	8-94397-500-0	06	1	9510-	●	●		●
71	SEAT; SPR (B) OD=38	8-94385-029-2	12	1	9510-	●	●		●
71	SEAT; SPR (A) ID=14.3 T=0.5	8-94396-014-0	12	1	9510-	●	●		●
71	SEAT; SPR (B) OD=32.8 T=12.75	8-94390-783-2	24	1	0005-0607			●
71	SEAT; SPR (B) OD=32.8 T=12.75	8-94390-783-2	24	1	0608-			●		●
71	SEAT; SPR (A) ID=14.3 T=1.0	8-94391-468-0	24	1	0005-0607			●
71	SEAT; SPR (A) ID=14.3 T=1.0	8-94391-468-0	24	1	0608-			●		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9510-	●	●		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	24	1	0005-0607			●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	24	1	0608-0707			●		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	0708-			●		●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28080-840-0	04	1	0005-0006			●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28080-840-0	02	1	0007-0512			●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-0607			●
75	BOLT; BRKT (A) M8X40 FLANGE	0-28050-840-0	02	1	0608-			●		●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9510-0512	●	●		●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28050-835-0	02	1	0601-	●	●		●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9510-0004	●	●		●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0005-0607	●	●	●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	0608-	●	●	●	●	●
78	ARM; ROCKER (A) INLET	8-94394-424-0	06	1	9510-9512	●			●
78	ARM; ROCKER (B) EXHAUST	8-94397-362-1	06	1	9510-9601	●			●
78	ARM; ROCKER (A) INLET	8-97074-614-1	06	1	9601-	●	●		●
78	ARM; ROCKER (B) EXHAUST	8-97014-258-2	06	1	9602-	●	●		●
78	ARM; ROCKER (A) INLET	8-94392-992-0	06	1	0005-0211			●
78	ARM; ROCKER (A) INLET	8-97306-421-2	06	1	0212-0607			●
78	ARM; ROCKER (A) INLET	8-97306-421-3	06	1	0608-			●		●
78	ARM; ROCKER (B) EXHAUST	8-94392-993-0	06	1	0005-0211			●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-2	06	1	0212-0607			●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	06	1	0608-			●		●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9510-0004	●	●		●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0005-0607	●	●	●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	0608-	●	●	●	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	24	1	0005-0006			●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	0007-0512	●	●	●	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0601-0607	●	●	●	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0608-	●	●	●	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	12	1	9510-9705	●			●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9706-0006	●	●		●
84	BRACKET; ROCKER SHAFT,INTER	8-94388-109-3	05	1	9510-	●	●		●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	0005-0607			●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	0608-			●		●
95	SPRING; ROCKER SHAFT	8-94397-263-0	06	1	9510-	●	●		●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0005-0607			●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	0608-			●		●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	9510-0004	●	●		●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0005-0607	●	●	●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	0608-	●	●	●	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9510-0004	●	●		●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	0005-0306	●	●	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0307-0607	●	●	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0608-	●	●	●	●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	9510-0004	●	●		●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0005-0607	●	●	●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	0608-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
