◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51132 - NQR BUS CHAS(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#39158) — 13 parça

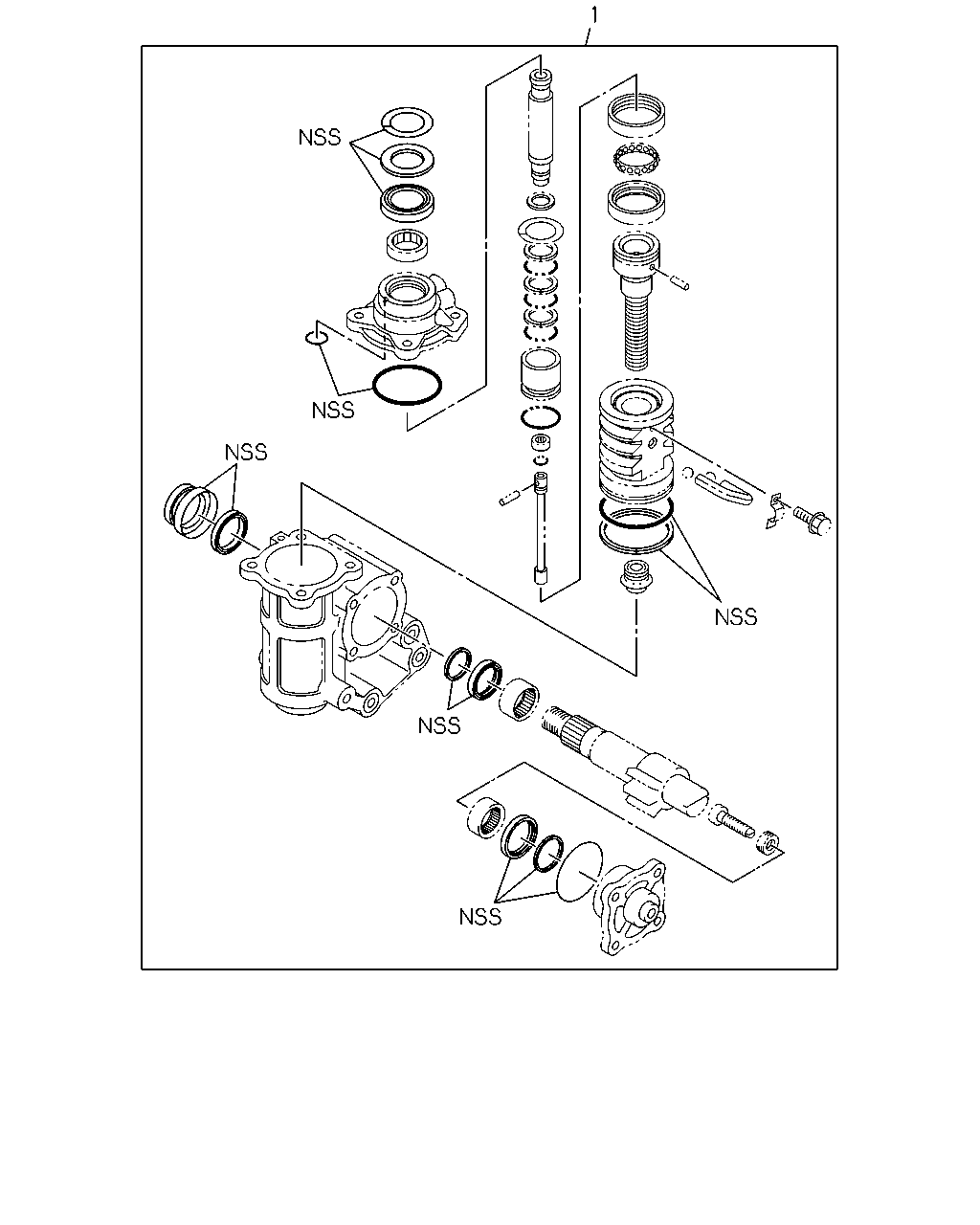

çizim 13934
1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97287-197-7 		8-98172-286-0 01 1 -

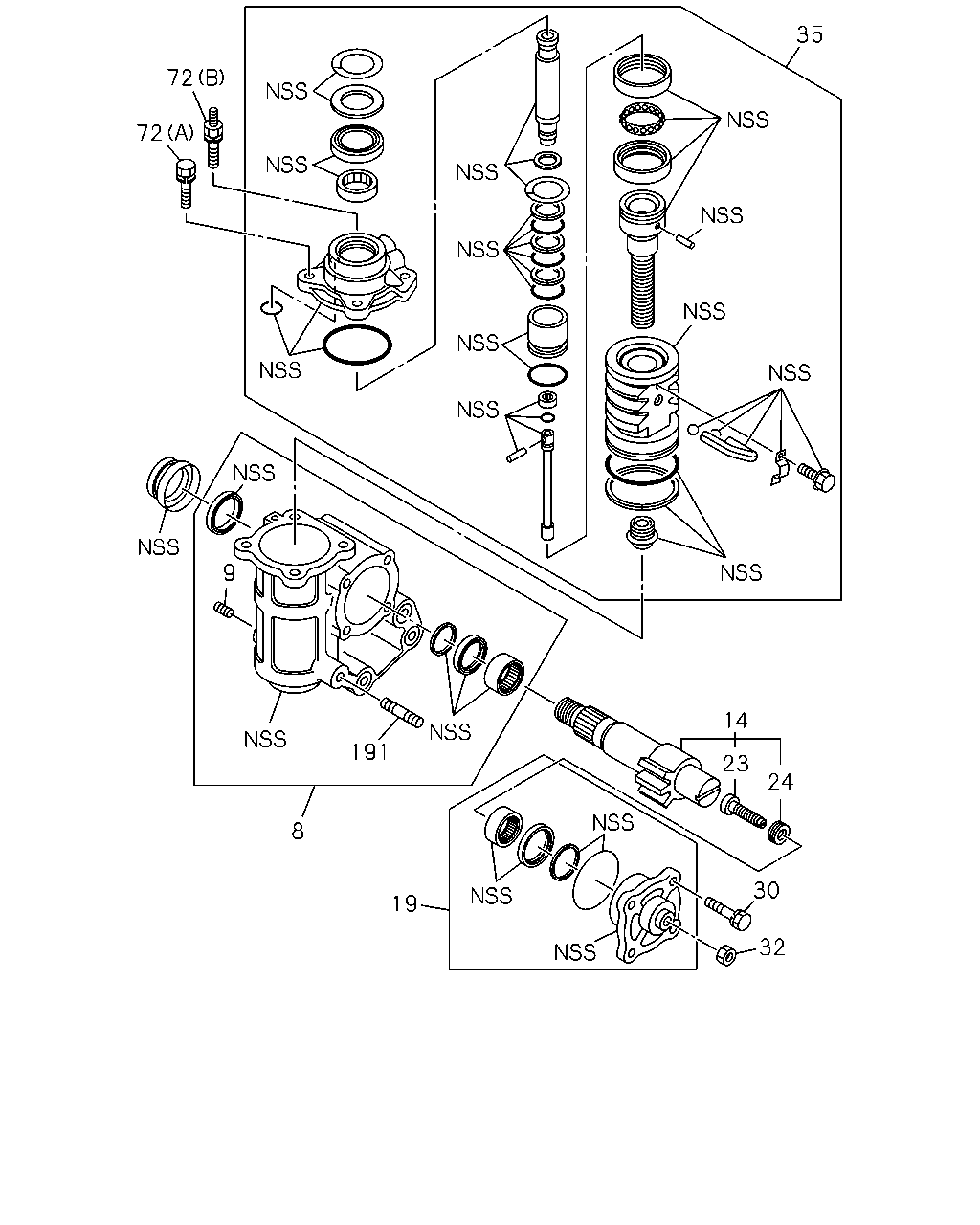

çizim 58481
35 72 72 9 14 191 23 24 8 30 19 32
BalonParca AdiParca NoAdetTipApplied Date
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97287-197-7 		8-97119-776-2 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97287-197-7 		8-97014-820-0 02 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97287-197-7 		8-97287-202-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97287-197-7 		8-98036-333-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97287-197-7 		8-97014-842-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 8-97287-197-7 		8-97014-841-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 8-97287-197-7 		8-98036-336-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97287-197-7 		8-98036-337-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97287-197-7 		8-98112-933-1 01 1 -
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: A = 8-97287-197-7 		8-97078-178-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
(A) ASM PART: A = 8-97287-197-7 		8-98036-335-0 03 1 -
191 STUD; STRG UNIT
ASM PART: A = 8-97287-197-7 		8-97078-173-0 01 1 -
