◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51132 - NQR BUS CHAS(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#39156) — 37 parça

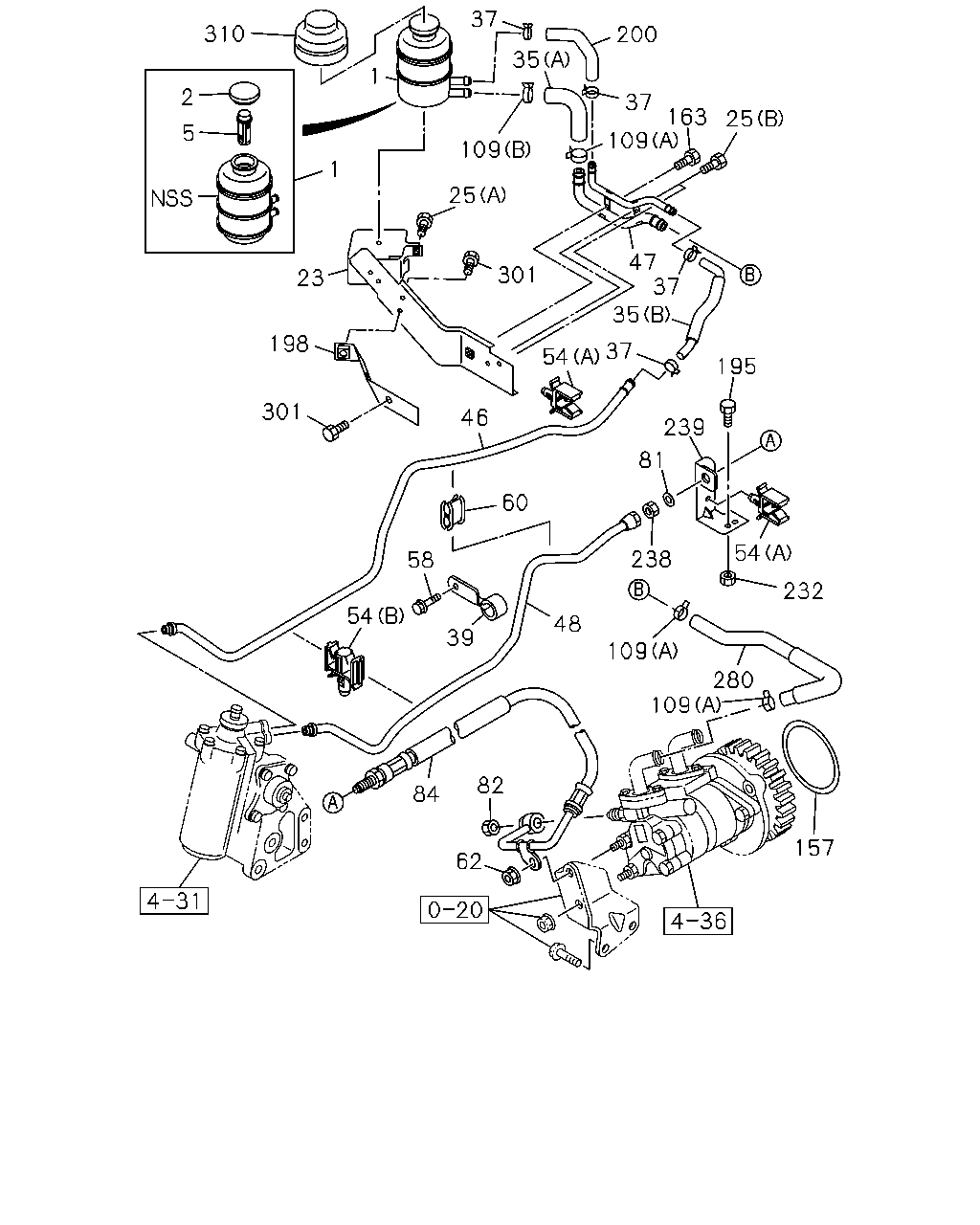

çizim 13230
37 310 200 35 1 2 37 163 25 5 109 109 1 25 47 37 301 23 35 198 37 54 195 301 46 239 81 60 54 238 58 232 54 48 39 109 280 109 82 84 157 62
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S 8-97107-987-0 01 1 0701- ● ●
2 CAP; OIL TANK,P/S 8-94146-153-2 01 1 0701- ● ●
5 STRAINER; OIL TANK,P/S 8-97094-732-0 01 1 0701- ● ●
23 BRACKET; OIL TANK,P/S 8-97101-040-1 01 1 0701- ● ●
25 BOLT; OIL TANK BRKT
(A) M6X20 FLANGE 		0-28450-620-0 01 1 0701- ● ●
25 BOLT; OIL TANK BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0701- ● ●
35 HOSE; RETURN,P/S TANK
(A) 		8-97080-108-1 01 1 0701- ● ●
35 HOSE; RETURN,P/S TANK
(B) 		8-97096-949-1 01 1 0701- ● ●
37 CLIP; HOSE,P/S
ID=16 		8-94238-568-0 04 1 0701-0911 ● ●
37 CLIP; HOSE,P/S
ID=16 THA 		8-98008-098-0 04 1 0912- ● ●
39 CLIP; FLEX HOSE
ID=28 L=60 		1-09700-585-1 01 1 0701- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 8-98025-821-0 01 1 0701- ● ●
47 PIPE; RETURN 8-97378-860-0 01 1 0701- ● ●
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 8-97386-420-0 01 1 0701- ● ●
54 CLIP; OIL PIPE
(A) ID=10 H=40 		8-94462-219-0 02 1 0701- ● ●
54 CLIP; OIL PIPE
(B) ID=10X2 H=37.5 		8-97018-546-0 01 1 0701- ● ●
58 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0701- ● ●
60 CLAMP; PIPE,RETURN
ID=10X2 H=22 THA 		8-94252-455-2 01 1 0701- ● ●
62 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 0701- ● ●
81 WASHER; LK,FLEX HOSE
ID=16.5 TOOTH LK INT 		0-91541-216-0 01 1 0701- ● ●
82 NUT; FLEX HOSE,P/S
M12 SELF LOCK 		8-97028-390-1 01 1 0701- ● ●
84 HOSE; FLEX,P/S 8-97358-387-2 01 1 0701- ● ●
109 CLIP; RUBBER HOSE
(A) ID=21 		8-94242-034-0 03 1 0701-0911 ● ●
109 CLIP; RUBBER HOSE
(A) ID=21 		8-98150-355-0 03 1 0912- ● ●
109 CLIP; RUBBER HOSE
(B) ID=22 		8-94382-401-0 01 1 0701-1003 ● ●
109 CLIP; RUBBER HOSE
(B) ID=22 		8-97359-141-0 01 1 1004- ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). KD PREPARATORY PACK<6HF> 		8-97101-875-2 01 1 0701- ● ●
163 BOLT; OIL PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0701- ● ●
195 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0701- ● ●
198 STAY; OIL TANK,POWER STEERING 8-97081-778-2 01 1 0701- ● ●
200 HOSE; RUBBER,RETURN 8-97080-109-0 01 1 0701- ● ●
232 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0701- ● ●
238 NUT; FLEX HOSE
M16 		8-94370-339-0 01 1 0701- ● ●
239 BRACKET; FLEX HOSE 8-97033-926-2 01 1 0701- ● ●
280 HOSE; P/S OIL PUMP,INL 8-97218-729-0 01 1 0701- ● ●
301 BOLT; STAY,OIL TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0701- ● ●
310 COVER; OIL TANK 8-97103-394-0 01 1 0701- ● ●
