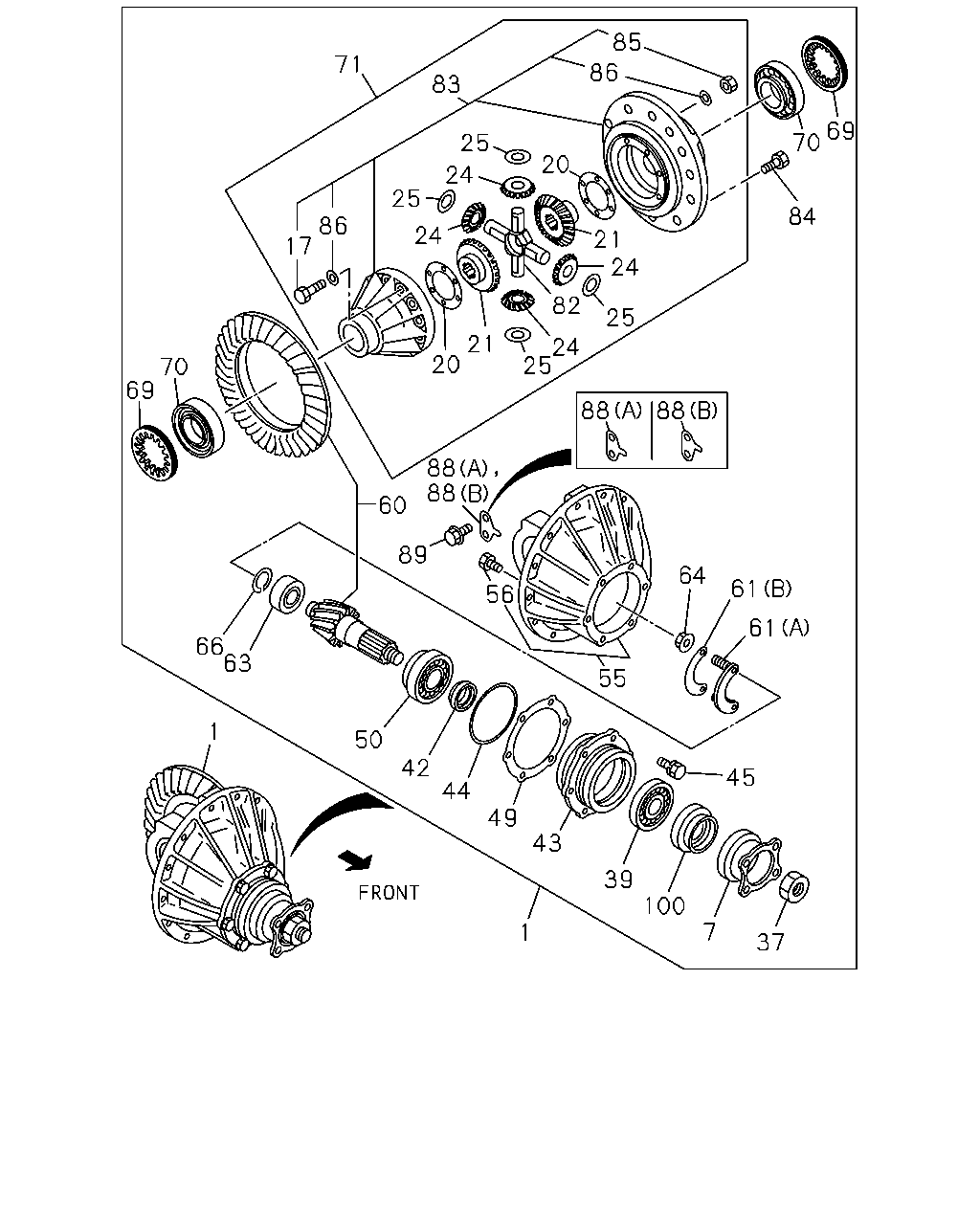

4-25 — REAR FINAL DRIVE (#39152) — 54 parça

85 71 86 83 69 70 25 20 24 25 84 86 17 24 21 24 82 25 21 20 24 25 70 69 88 88 60 89 64 61 56 61 66 63 55 1 50 42 45 44 49 43 39 100 7 1 37 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR 41/9	8-97367-507-0	01	1	0701-	●
1	DRIVE ASM; FINAL,RR 41/10	8-97367-506-0	01	1	0701-		●
7	FLANGE; FINAL	8-97047-095-2	01	1	0701-	●	●
17	BOLT; DIFF CAGE SETTING	8-97047-295-0	12	1	0701-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0701-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0701-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0701-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0701-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0701-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0701-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0701-	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-093-0	02	1	0701-1004	●	●
21	GEAR; SIDE,DIFF Z=16	8-98165-935-0	02	1	1005-	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0701-1004	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-	●	●
25	WASHER; THRUST,PINION	1-41552-020-0	04	1	0701-	●	●
37	NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0701-	●	●
39	BEARING; FINAL PINION KOYO	5-09812-062-1	01	1	0701-	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	0701-	●	●
42	COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0701-	●	●
43	CAGE; FINAL PINION	8-97047-098-0	01	1	0701-	●	●
44	GASKET; PINION CAGE	8-97048-053-0	01	1	0701-	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0701-0909	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0701-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0701-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0701-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0701-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.50	8-97048-419-0	AR	1	0701-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0701-	●	●
50	BEARING; FINAL PINION KOYO	1-09812-042-1	01	1	0701-	●	●
55	CARRIER; DIFF	8-97094-637-0	01	1	0701-	●	●
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0701-	●	●
60	GEAR SET; FINAL DRIVE,RR 41/9	8-97078-635-1	01	1	0701-	●
60	GEAR SET; FINAL DRIVE,RR 41/10	8-97061-846-0	01	1	0701-		●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0701-	●	●
61	RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0701-	●	●
63	BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0701-	●	●
63	BEARING; PINION PILOT KOYO	8-97047-928-0	01	1	0701-	●	●
64	NUT; RET M6 FLANGE	0-91180-106-0	02	1	0701-	●	●
66	RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0701-	●	●
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0701-	●	●
70	BEARING; DIFF CAGE KOYO ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0701-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97047-099-1	01	1	0701-	●	●
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	0701-1004	●	●
82	SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-	●	●
83	CAGE ASM; DIFF	8-97047-101-1	01	1	0701-	●	●
84	BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0701-	●	●
85	NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	0701-	●	●
86	WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0701-	●	●
88	PLATE; LK,ADJ NUT (B)	8-97087-821-0	AR	1	0701-	●	●
88	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	0701-	●	●
89	BOLT; LK PLATE M8X16 FLANGE	0-28050-816-0	04	1	0701-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0701-	●	●
