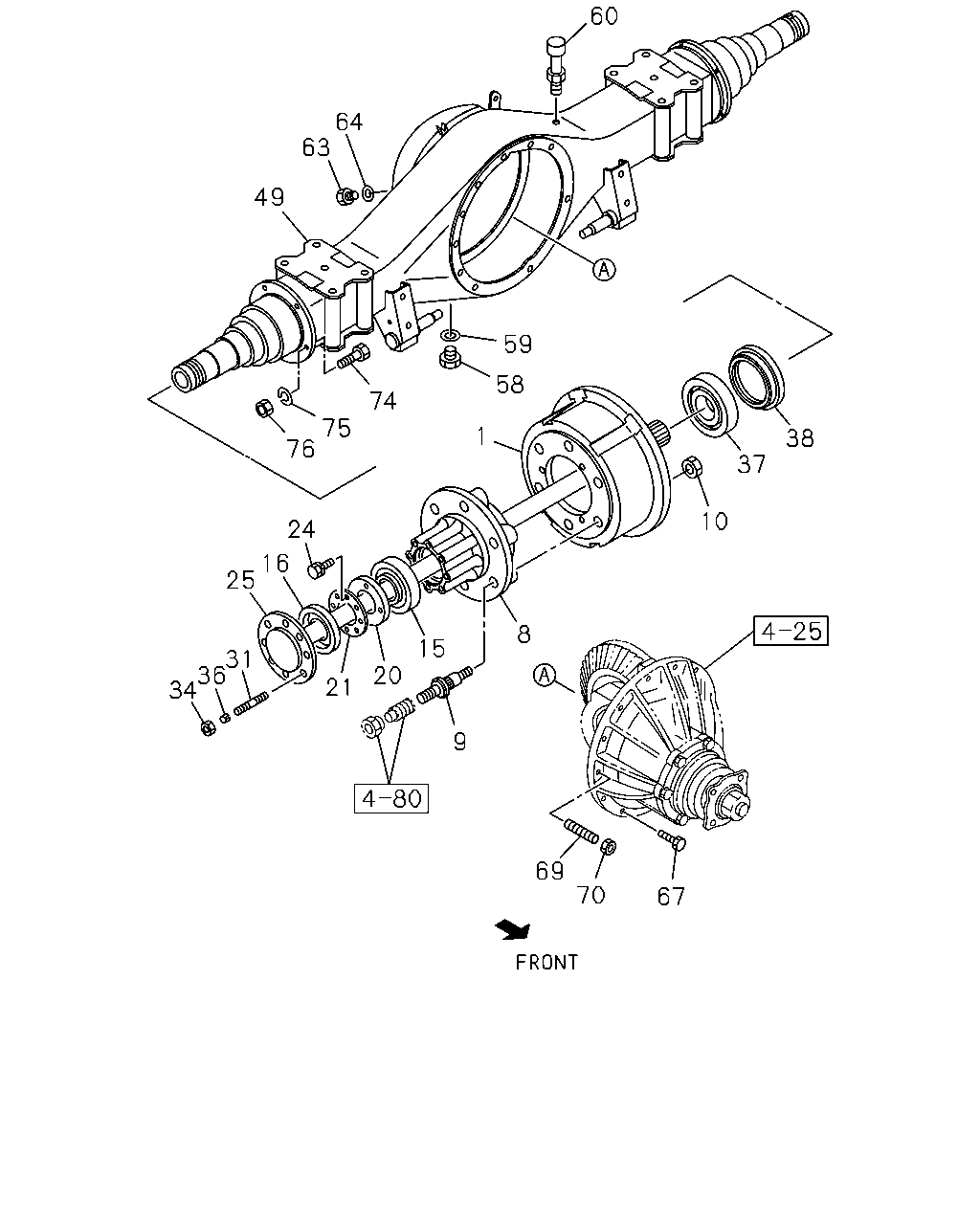

1 |
DRUM; BRK,RR
THA
|
8-97940-563-0 |
04 |
1 |
0701- |
● |
● |
| |
8 |
HUB; RR AXLE
THA
|
8-97942-200-0 |
04 |
1 |
0701- |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-1 |
18 |
1 |
0701- |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
M20X28,M22X57 RH THREAD
|
8-97081-584-1 |
18 |
1 |
0701- |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22
|
9-09110-522-0 |
12 |
1 |
0701- |
● |
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22
|
0-91110-522-0 |
12 |
1 |
0701- |
● |
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
NSK
THA
|
9-00093-607-0 |
02 |
1 |
0701- |
● |
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
TKK
|
8-94336-317-2 |
02 |
1 |
0701- |
● |
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
NOK
|
8-94367-960-1 |
02 |
1 |
0701- |
● |
● |
| |
20 |
NUT; BRG,RR HUB
M55
|
8-97137-094-0 |
02 |
1 |
0701- |
● |
● |
| |
21 |
WASHER; LK,BRG NUT
ID=55
|
9-09653-002-0 |
02 |
1 |
0701- |
● |
● |
| |
24 |
BOLT; LK WASHER
M6X10 FLANGE
|
0-28050-610-0 |
04 |
1 |
0701- |
● |
● |
| |
25 |
SHAFT; AXLE,RR
L=885
|
8-97134-439-0 |
02 |
1 |
0701- |
● |
● |
| |
31 |
STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
5-09300-066-1 |
16 |
1 |
0701-0802 |
● |
● |
| |
31 |
STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
8-97359-803-0 |
16 |
1 |
0803- |
● |
● |
| |
34 |
NUT; AXLE SHAFT
M10 FLANGE
|
0-91180-210-0 |
16 |
1 |
0701- |
● |
● |
| |
36 |
WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
9-09855-207-0 |
16 |
1 |
0701-0802 |
● |
● |
| |
36 |
WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
8-97360-004-0 |
16 |
1 |
0803- |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
NSK
THA
|
8-97122-938-0 |
02 |
1 |
0701- |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
KOYO
THA
|
8-97123-119-0 |
02 |
1 |
0701- |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
NOK
|
8-97147-681-0 |
02 |
1 |
0701- |
● |
● |
| |
49 |
CASE; RR AXLE
|
8-97287-599-2 |
01 |
1 |
0701- |
● |
● |
| |
58 |
PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97307-060-0 |
01 |
1 |
0701- |
● |
● |
| |
59 |
GASKET; DRAIN PLUG
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
0701- |
● |
● |
| |
60 |
BREATHER; RR AXLE CASE
L=29
|
8-98006-960-0 |
01 |
1 |
0701- |
● |
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
M20X10.5
|
8-98009-333-0 |
01 |
1 |
0701- |
● |
● |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
THA
|
8-94462-734-0 |
01 |
1 |
0701- |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50061-040-0 |
07 |
1 |
0701-0909 |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50561-040-0 |
07 |
1 |
0910- |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER
|
0-50061-050-0 |
04 |
1 |
0701-0909 |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER
|
0-50561-050-0 |
04 |
1 |
0910- |
● |
● |
| |
69 |
STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97359-802-0 |
02 |
1 |
0701- |
● |
● |
| |
70 |
NUT; CARRIER
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0701- |
● |
● |
| |
74 |
BOLT; RR BRK ASM SETTING
M14X40
|
8-97357-301-1 |
12 |
1 |
0701-0805 |
● |
● |
| |
74 |
BOLT; RR BRK ASM SETTING
M14X40
|
8-98007-879-0 |
12 |
1 |
0806- |
● |
● |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
0-91510-814-0 |
12 |
1 |
0701- |
● |
● |
| |
76 |
NUT; RR BRK ASM SETTING
M14
|
0-91110-514-0 |
12 |
1 |
0701- |
● |
● |
