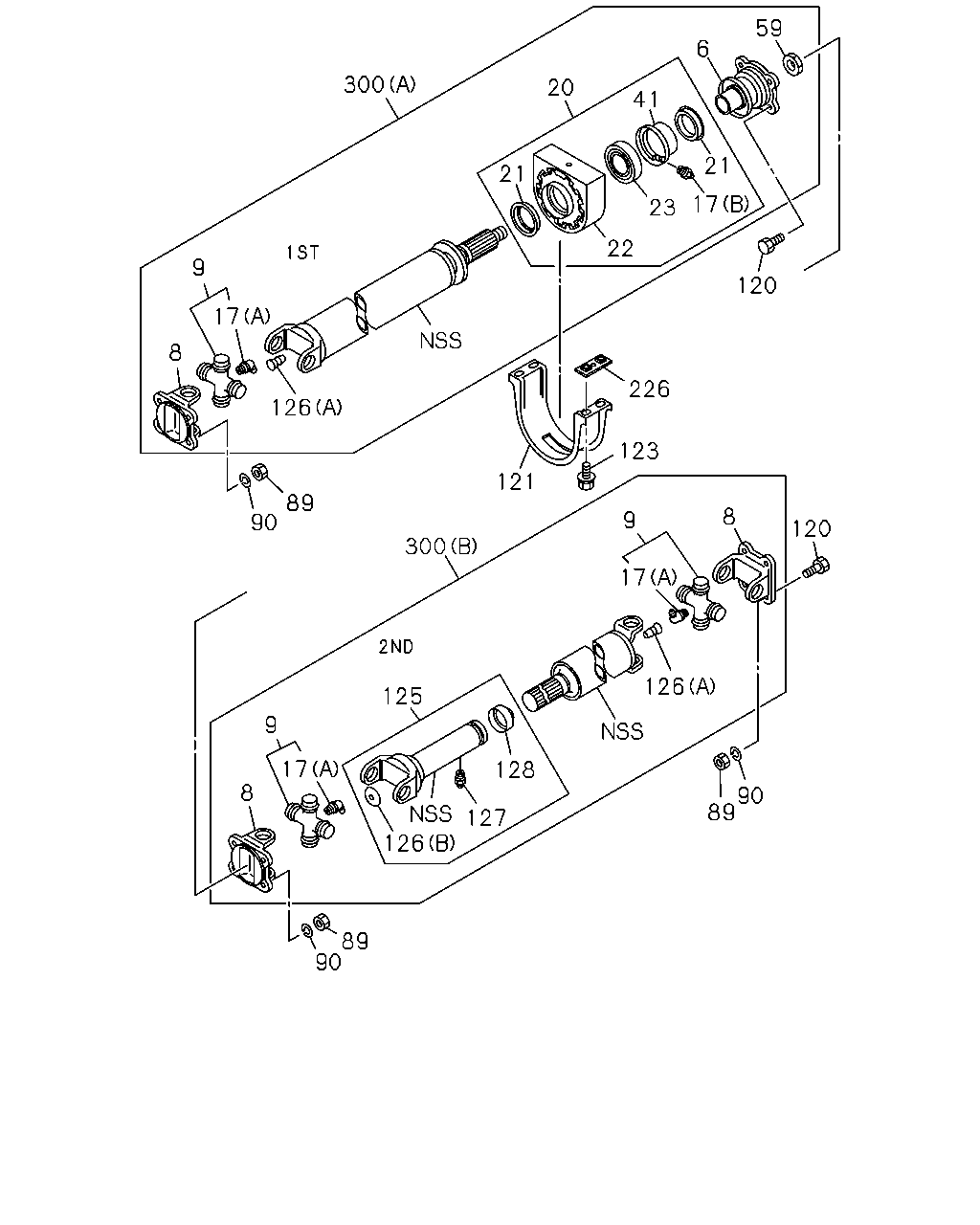

4-01 — PROPELLER SHAFT (#39148) — 37 parça

59 6 300 20 41 21 21 17 23 22 9 120 17 8 226 126 123 121 89 90 8 9 120 300 17 126 125 9 17 128 8 90 89 127 126 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	COUPLING ASM; DRIVER,PROP SHAFT	1-37245-115-0	01	1	0701-	●	●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	01	1	0701-	●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	0701-	●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	03	1	0701-		●
9	JOURNAL ASM; PROP SHAFT	1-37300-103-0	01	1	0701-	●
9	JOURNAL ASM; PROP SHAFT	1-37300-103-0	02	1	0701-	●
9	JOURNAL ASM; PROP SHAFT	1-37300-103-0	03	1	0701-		●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	01	1	0701-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	0701-	●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/16 ELBOW 40?	8-97240-194-0	01	1	0701-	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	03	1	0701-		●
20	BEARING ASM; CTR,PROP SHAFT	8-97131-143-1	01	1	0701-	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0701-	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	8-97131-125-0	01	1	0701-	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0701-	●	●
41	COVER; CENTER BRG,PROP SHAFT	1-37529-068-0	01	1	0701-	●	●
59	NUT; RET TO SUPPORT M30	8-97160-857-0	01	1	0701-	●	●
89	NUT; YOKE TO RR AXLE M12	8-97365-450-0	12	1	0701-	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	0-91510-812-0	12	1	0701-	●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-97365-451-0	08	1	0701-	●	●
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0701-	●	●
123	BOLT; RET M10X25 FLANGE	0-28651-025-0	04	1	0701-	●	●
125	YOKE ASM; SPLINED,PROP SHAFT L=183	8-98040-513-0	01	1	0701-	●	●
126	PLUG; SPLINED YOKE (B)	1-09600-014-0	02	1	0701-	●
126	PLUG; SPLINED YOKE (A) THA	1-09600-023-0	01	1	0701-	●
126	PLUG; SPLINED YOKE (A) THA	1-09600-023-0	01	1	0701-	●
126	PLUG; SPLINED YOKE (B)	1-09600-014-0	01	1	0701-		●
126	PLUG; SPLINED YOKE (A) THA	1-09600-023-0	02	1	0701-		●
127	NIPPLE; GREASE,SPLINED YOKE PT1/8 STRAIGHT	0-90301-410-0	02	1	0701-	●
127	NIPPLE; GREASE,SPLINED YOKE PT1/8 STRAIGHT	0-90301-410-0	01	1	0701-		●
128	SEAL; SLEEVE	1-37247-001-1	02	1	0701-	●
128	SEAL; SLEEVE	1-37247-001-1	01	1	0701-		●
226	PLATE; LK,CENTER BRG	8-97371-572-0	02	1	0701-	●	●
300	SHAFT ASM; PROP,RR (B) L=1080	8-97214-108-0	01	1	0701-	●
300	SHAFT ASM; PROP,RR (A) L=608	8-97360-238-0	01	1	0701-	●
300	SHAFT ASM; PROP,RR (B) L=1424	8-97214-110-0	01	1	0701-		●
300	SHAFT ASM; PROP,RR (A) L=1058	8-97360-239-0	01	1	0701-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
