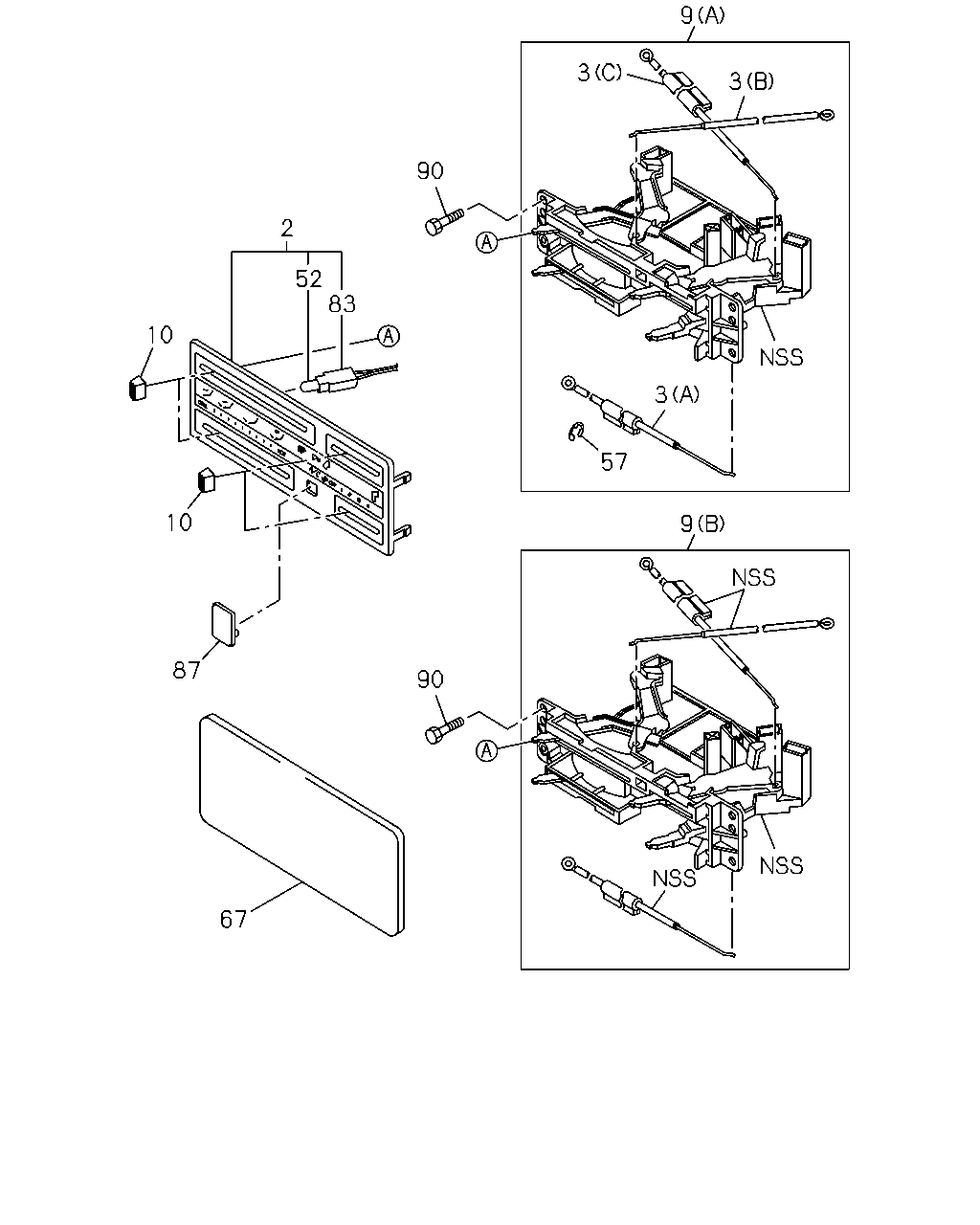

8-65 — CONTROL LEVER; HEATER AND AIR CON (#39142) — 16 parça

9 3 3 90 2 52 83 10 3 57 10 9 87 90 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	08.852 PANEL ASM; CONT,ILLUMINATION	8-97048-331-2	01	1	0608-	●	●
3	09.787 CABLE; HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) (A) MIX	8-97085-617-2	01	1	0608-	●	●
3	09.787 CABLE; HTR CONT LVR EXC. FORGED AIR VENTILATION(C39) (B) MODE	8-97085-618-1	01	1	0608-	●	●
3	09.787 CABLE; HTR CONT LVR EXC. FORGED AIR VENTILATION(C39) (C) FRESH	8-97085-619-2	01	1	0608-	●	●
9	08.852 LEVER ASM; HTR & A/C CONT AIR CONDITIONER MANUAL CONT(C60) (A)	8-97048-613-4	01	1	0608-	●	●
9	08.852 LEVER ASM; HTR & A/C CONT FORGED AIR VENTILATION(C39) (B)	8-97381-351-0	01	1	0608-	●	●
9	08.852 LEVER ASM; HTR & A/C CONT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97073-346-0	01	1	0608-	●	●
10	08.852 KNOB; CONT LEVER AIR CONDITIONER MANUAL CONT(C60)	8-97114-430-0	04	1	0608-	●	●
10	08.852 KNOB; CONT LEVER FORGED AIR VENTILATION(C39)	8-97114-430-0	02	1	0608-	●	●
10	08.852 KNOB; CONT LEVER EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-97114-430-0	03	1	0608-	●	●
52	08.991 BULB; PANEL ILLUMINATION 28V 65MA	8-97182-225-0	01	1	0608-	●	●
57	09.787 RING; SNAP,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60)	8-97262-535-0	01	1	0608-	●	●
67	08.849 CAP; BEZEL,CONT LEVER EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97071-228-0	01	1	0608-	●	●
83	08.849 HARNESS; CONT PANEL	8-97308-566-0	01	1	0608-	●	●
87	08.849 CAP; A/C SWITCH EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97065-448-2	01	1	0608-	●	●
90	08.849 BOLT; CONT PANEL 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	03	1	0608-	●	●
