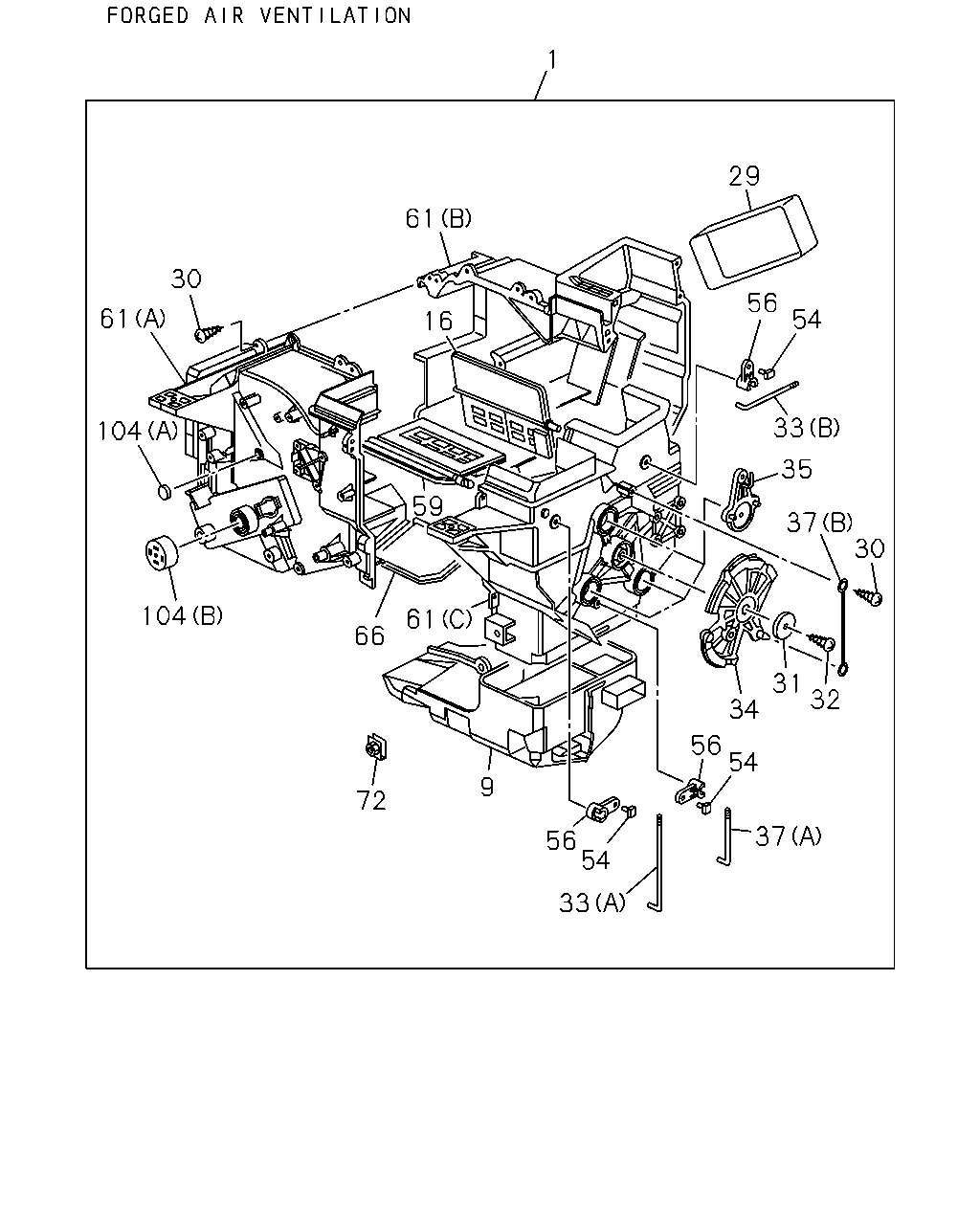

8-60 — HEATER UNIT; FRONT (#39141) — 51 parça

1 61 30 61 104 67 104 29 72 9 66 59 16 56 54 33 35 32 31 34 54 37 56 61 56 54 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39)	8-97381-200-0	01	1	0608-	●	●
1	08.845 HEATER UNIT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-97166-608-3	01	1	0608-	●	●
9	08.854 DUCT; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97087-555-0	01	1	0608-	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97087-559-2	01	1	0608-	●	●
29	08.857 COVER; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97102-661-0	01	1	0608-	●	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) 08.852 M4X16	8-94324-850-0	11	1	0608-	●	●
30	08.845 SCREW; HTR UNIT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	10	1	0608-	●	●
31	08.852 WASHER; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94129-950-0	01	1	0608-	●	●
32	08.852 SCREW; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20	9-09829-324-1	01	1	0608-	●	●
33	09.786 ROD; SHUTTER LEVER EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-568-1	01	1	0608-	●	●
33	09.786 ROD; SHUTTER LEVER EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-97087-569-1	01	1	0608-	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97166-657-0	01	1	0608-	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97087-565-0	03	1	0608-	●	●
37	08.852 ROD; LEVER EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-570-1	01	1	0608-	●	●
37	08.852 ROD; LEVER FORGED AIR VENTILATION(C39) (B)	8-98008-959-0	01	1	0608-	●	●
54	08.854 CLIP; SHUTTER LEVER EXC. AIR CONDITIONER MANUAL CONT(C60)	1-83574-136-0	03	1	0608-	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97096-142-0	03	1	0608-	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97087-558-2	01	1	0608-	●	●
61	08.854 CASE; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-97087-552-0	01	1	0608-	●	●
61	08.854 CASE; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) (C)	8-97087-553-0	01	1	0608-	●	●
61	08.854 CASE; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-97115-147-3	01	1	0608-	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97087-560-2	01	1	0608-	●	●
67	08.854 CLIP; HTR UNIT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	01	1	0608-	●	●
72	08.845 NUT; CASE,HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97085-613-0	02	1	0608-	●	●
104	08.854 CAP; CASE,HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) 08.845 (A)	8-94328-657-0	04	1	0608-	●	●
104	08.854 CAP; CASE,HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-94387-703-0	01	1	0608-	●	●

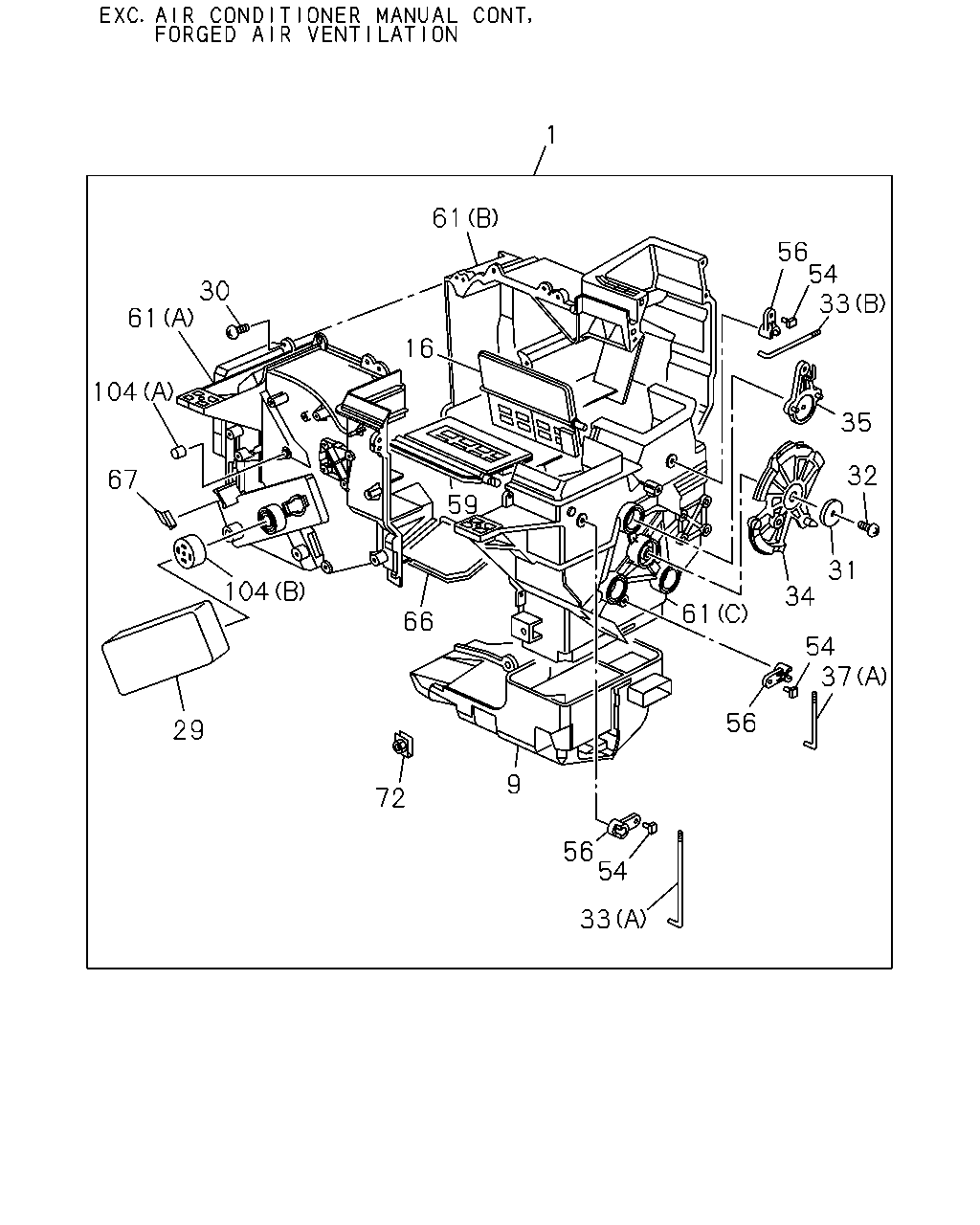

1 29 61 30 56 61 54 16 33 104 35 59 37 30 104 61 66 31 32 34 56 54 9 72 37 56 54 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39)	8-97381-200-0	01	1	0608-	●	●
1	08.845 HEATER UNIT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60)	8-97166-608-3	01	1	0608-	●	●
9	08.854 DUCT; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97087-555-0	01	1	0608-	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97087-559-2	01	1	0608-	●	●
29	08.857 COVER; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97102-661-0	01	1	0608-	●	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39) 08.852 M4X16	8-94324-850-0	11	1	0608-	●	●
30	08.845 SCREW; HTR UNIT EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	10	1	0608-	●	●
31	08.852 WASHER; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94129-950-0	01	1	0608-	●	●
32	08.852 SCREW; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20	9-09829-324-1	01	1	0608-	●	●
33	09.786 ROD; SHUTTER LEVER EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-568-1	01	1	0608-	●	●
33	09.786 ROD; SHUTTER LEVER EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-97087-569-1	01	1	0608-	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97166-657-0	01	1	0608-	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97087-565-0	03	1	0608-	●	●
37	08.852 ROD; LEVER EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-570-1	01	1	0608-	●	●
37	08.852 ROD; LEVER FORGED AIR VENTILATION(C39) (B)	8-98008-959-0	01	1	0608-	●	●
54	08.854 CLIP; SHUTTER LEVER EXC. AIR CONDITIONER MANUAL CONT(C60)	1-83574-136-0	03	1	0608-	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97096-142-0	03	1	0608-	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97087-558-2	01	1	0608-	●	●
61	08.854 CASE; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-97087-552-0	01	1	0608-	●	●
61	08.854 CASE; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) (C)	8-97087-553-0	01	1	0608-	●	●
61	08.854 CASE; HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-97115-147-3	01	1	0608-	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97087-560-2	01	1	0608-	●	●
72	08.845 NUT; CASE,HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97085-613-0	02	1	0608-	●	●
104	08.854 CAP; CASE,HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) 08.845 (A)	8-94328-657-0	04	1	0608-	●	●
104	08.854 CAP; CASE,HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-94387-703-0	01	1	0608-	●	●
