◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51124 - NPR/NQR(RHD) EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-45 - HEATER PIPING ▶

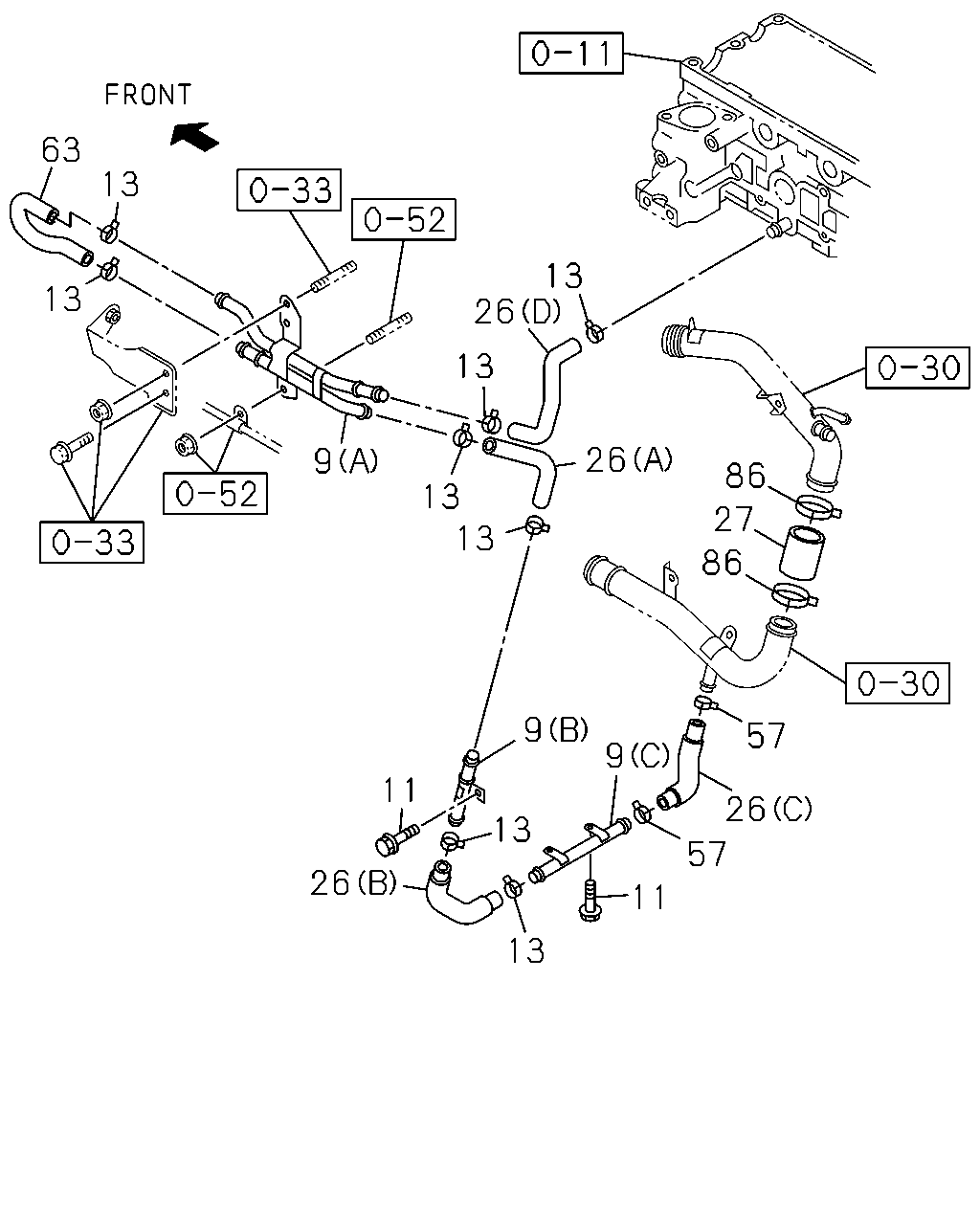

8-45 — HEATER PIPING (#39140) — 15 parça
çizim 58905
63 13 13 26 13 13 26 9 86 13 13 27 86 9 57 9 11 26 13 57 26 11 13
BalonParca AdiParca NoAdetTipApplied Date A B
9 08.846 PIPE; HTR
(B) 		8-97381-481-3 01 1 0608- ● ●
9 08.846 PIPE; HTR
(C) 		8-97383-035-1 01 1 0608- ● ●
9 08.846 PIPE; HTR
(A) 		8-98028-829-1 01 1 0608- ● ●
11 08.845 BOLT; HTR PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 03 1 0608- ● ●
13 08.846 CLIP; HTR HOSE
01.166 ID=20.8 		8-94125-862-1 02 1 0608- ● ●
13 08.846 CLIP; HTR HOSE
01.166 ID=20.8 		8-94125-862-1 06 1 0608- ● ●
26 08.846 HOSE; HTR
(A) 		0-03516-240-0 01 1 0608-0910 ● ●
26 08.846 HOSE; HTR
(A) 		8-98143-868-0 01 1 0911- ● ●
26 08.846 HOSE; HTR
(D) 		8-97383-048-1 01 1 0608- ● ●
26 08.846 HOSE; HTR
(B) 		8-98000-099-1 01 1 0608- ● ●
26 08.846 HOSE; HTR
(C) 		8-98000-101-2 01 1 0608- ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI 8-98009-701-0 01 1 0608- ● ●
57 08.846 CLIP; HOSE
01.166 ID=20.8 		8-94125-862-1 02 1 0608- ● ●
63 08.846 HOSE; WATER 8-98015-119-3 01 1 0608- ● ●
86 08.846 CLIP; HTR HOSE
01.166 ID=40.5 		8-97313-472-0 02 1 0608- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
