Isuzu WW
▶
TRUCKS
▶
NPR
▶
51124 - NPR/NQR(RHD) EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#39139) — 30 parça
Tümü
A - NPC5SF
B - NPN5SF
◀
[840A] (NO.1) (22 parça)
[840A] (NO.2) (4 parça)
[840A] (NO.4) (2 parça)
[840A] (NO.3) (2 parça)
▶

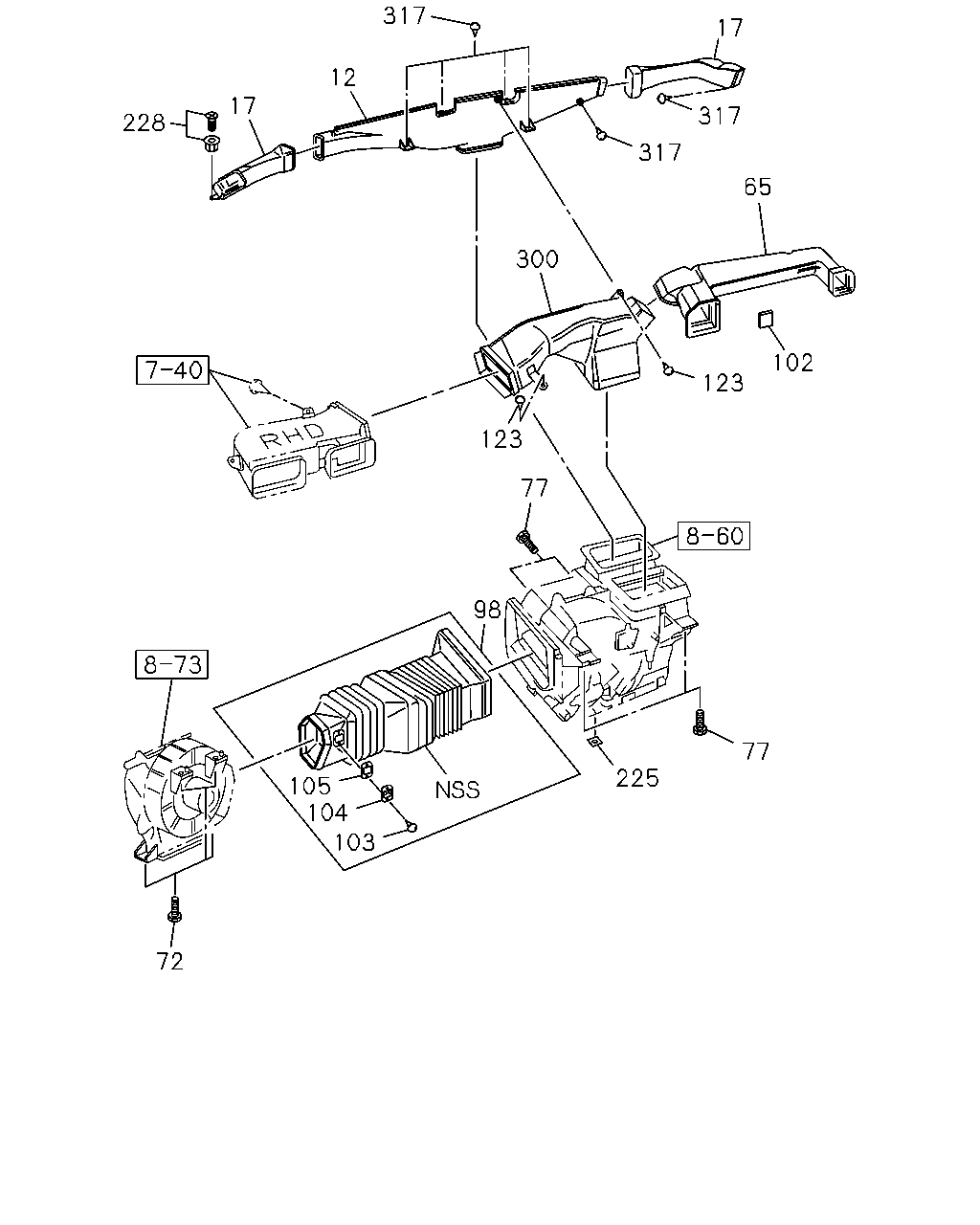

317
17
12
17
317
228
317
65
300
102
123
123
77
98
77
225
105
104
103
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
09.779 NOZZLE; DEFROSTER
EXC. FORGED AIR VENTILATION(C39)
8-97134-965-0
01
1
0608-
●
●
17
09.779 NOZZLE; DEFROSTER,SIDE
EXC. FORGED AIR VENTILATION(C39)
8-97262-701-0
01
1
0608-
●
●
17
09.779 NOZZLE; DEFROSTER,SIDE
EXC. FORGED AIR VENTILATION(C39)
8-97262-689-0
01
1
0608-
●
●
65
09.786 DUCT; VENT,DRIVER SIDE
8-97262-691-0
01
1
0608-
●
●
72
08.857 BOLT; BLOWER UNIT
03.162 M6X20 FLANGE
0-28650-620-0
02
1
0608-
●
●
72
08.857 BOLT; BLOWER UNIT
M8X35
8-97103-452-0
02
1
0608-
●
●
77
08.845 BOLT; HTR UNIT
03.162 M6X20 FLANGE
0-28650-620-0
02
1
0608-
●
●
77
08.845 BOLT; HTR UNIT
M8X25
8-97103-451-0
02
1
0608-
●
●
98
09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97358-598-0
01
1
0608-
●
●
102
09.262 LINING; HTR DUCT
EXC. FORGED AIR VENTILATION(C39)
8-97145-038-0
01
1
0608-
●
●
103
08.855 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.789 M4X16 TAPPING
1-83579-114-0
02
1
0608-
●
●
104
08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97358-389-0
01
1
0608-
●
●
105
08.856 PLATE; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97020-761-0
01
1
0608-
●
●
123
09.786 SCREW; DUCT
FORGED AIR VENTILATION(C39) 09.264 M5X12 W/PL WASHER
8-97147-069-0
01
1
0608-0612
●
●
123
09.786 SCREW; DUCT
FORGED AIR VENTILATION(C39) 04.681 M5X12 TAPPING
0-72180-512-0
01
1
0701-
●
●
123
09.786 SCREW; DUCT
EXC. FORGED AIR VENTILATION(C39) 09.264 M5X12 W/PL WASHER
8-97147-069-0
02
1
0608-0612
●
●
123
09.786 SCREW; DUCT
EXC. FORGED AIR VENTILATION(C39) 04.681 M5X12 TAPPING
0-72180-512-0
02
1
0701-
●
●
225
08.845 SEAL; WATER
8-97856-616-0
04
1
0608-
●
●
228
09.780 CLIP; DEFROSTER
EXC. FORGED AIR VENTILATION(C39) 12.934 D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
01
1
0608-
●
●
300
09.264 DUCT; VENT,CENTER
8-97262-687-0
01
1
0608-
●
●
317
09.264 SCREW; DEFROSTER NOZZLE
EXC. FORGED AIR VENTILATION(C39) M5X12 W/PL WASHER
8-97147-069-0
06
1
0608-0612
●
●
317
09.264 SCREW; DEFROSTER NOZZLE
EXC. FORGED AIR VENTILATION(C39) 04.681 M5X12 TAPPING
0-72180-512-0
06
1
0701-
●
●

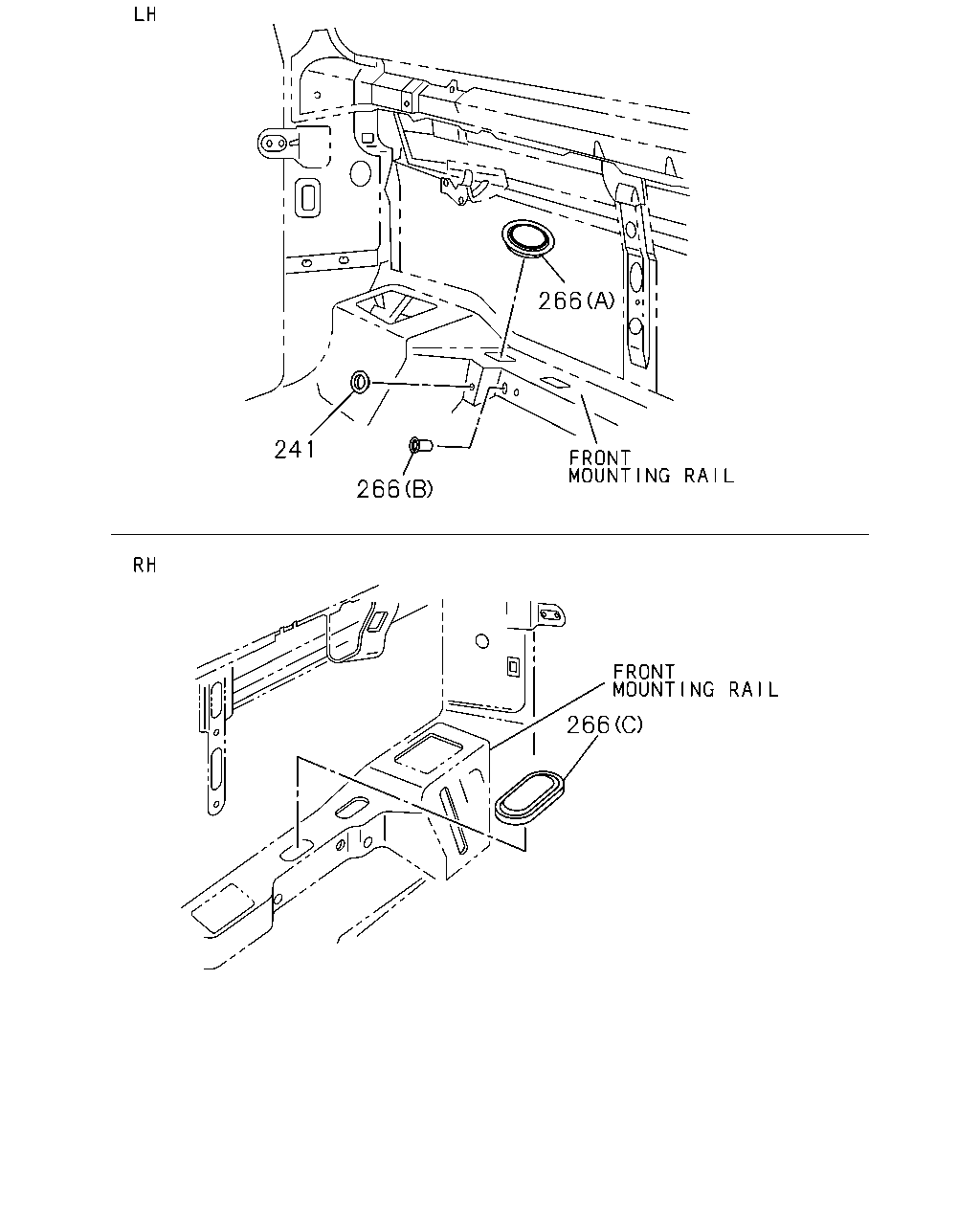

266
241
266
266
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
241
16.550 PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97037-392-0
01
1
0608-
●
●
266
08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) H=78 B=37
8-97036-019-0
01
1
0608-
●
●
266
08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) H=69.5 B=29.5
8-97036-020-0
01
1
0608-
●
●
266
08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.211 (B) OD=13
9-09756-019-0
01
1
0608-
●
●

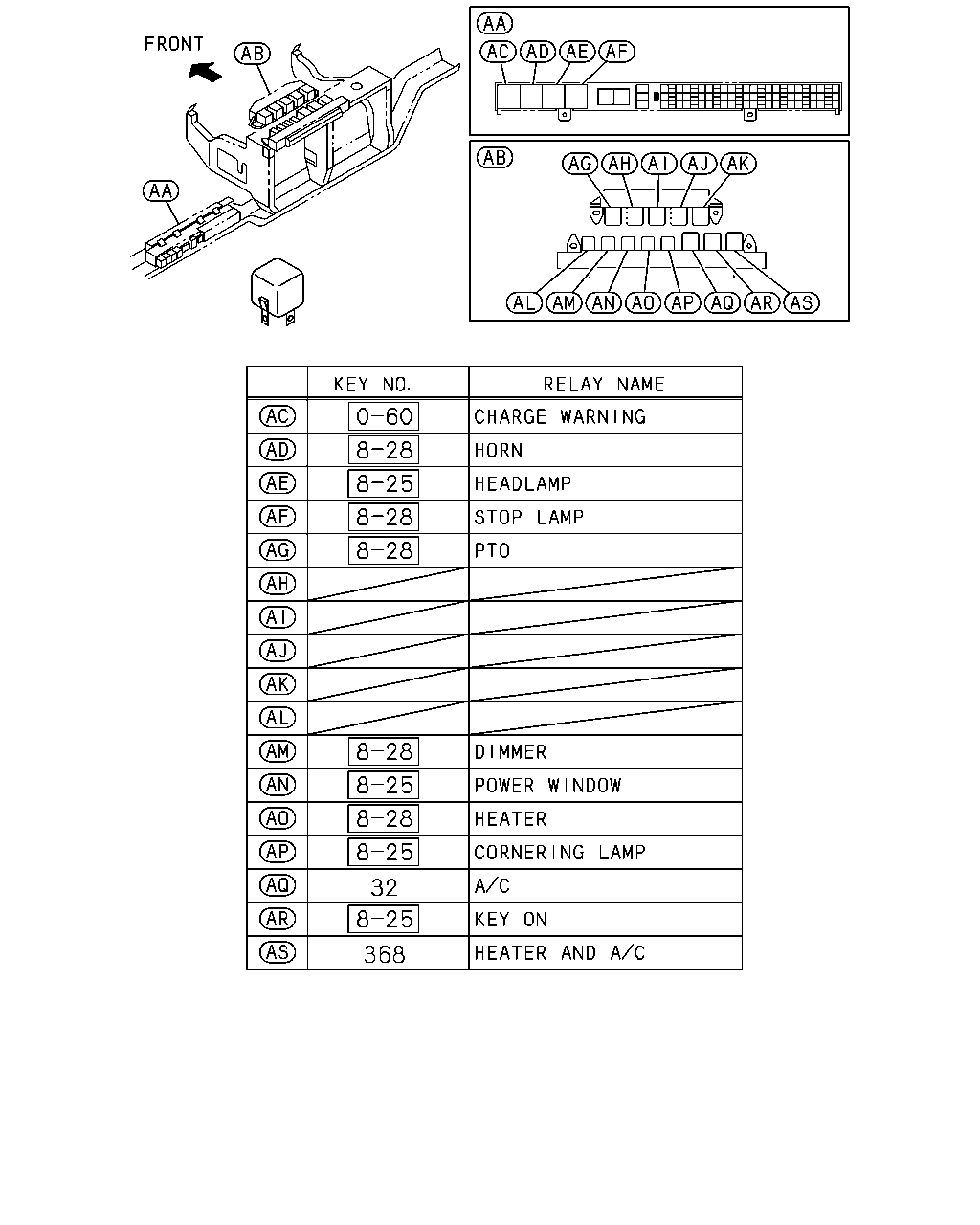

32
368
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
32
02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A MATSUSHITA
8-97262-933-0
01
1
0608-
●
●
368
09.277 RELAY; HEATER AND A/C
02.510 24V 12.5A MATSUSHITA
8-97262-933-0
01
1
0608-
●
●
371
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
370
08.866 PLATE; BAFFLE,BLOWER UNIT
8-97856-129-2
01
1
0608-
●
●
371
08.866 FASTENER; BAFFLE PLATE
12.934 D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
01
1
0608-
●
●
