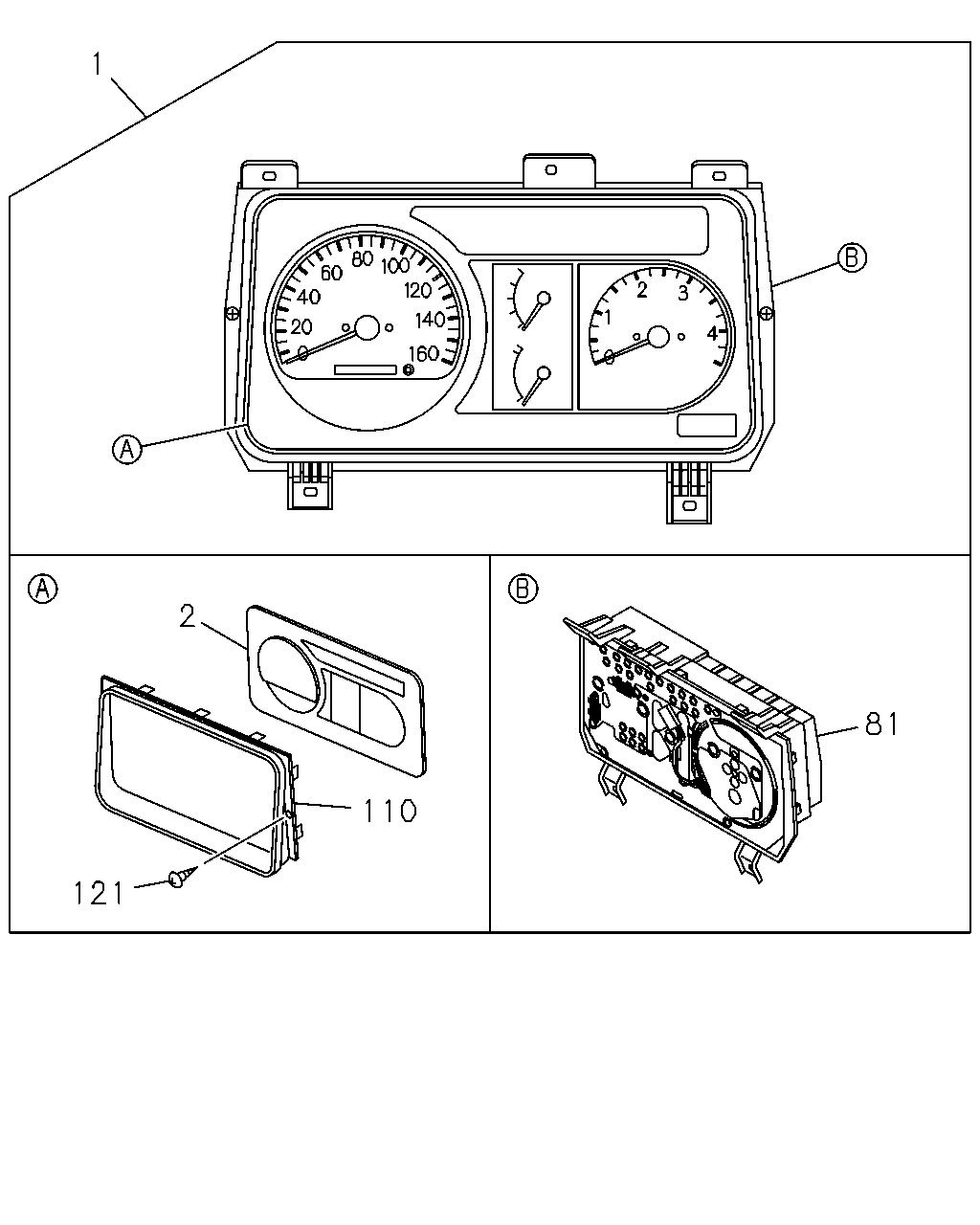

8-21 — METER ASM (#39135) — 21 parça

1 2 81 110 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.735 METER COMPL; CLUSTER	8-98000-514-4	01	1	0608-	●	●
2	09.735 PANEL; CLUSTER	8-97185-047-0	01	1	0608-	●	●
81	09.735 METER SUB ASM 09.743	8-98003-835-0	01	1	0608-	●	●
110	09.748 GLASS; CLUSTER METER	8-97185-045-0	01	1	0608-	●	●
121	09.744 SCREW; PANEL FIX,CLUSTER METER	8-97185-100-0	02	1	0608-	●	●

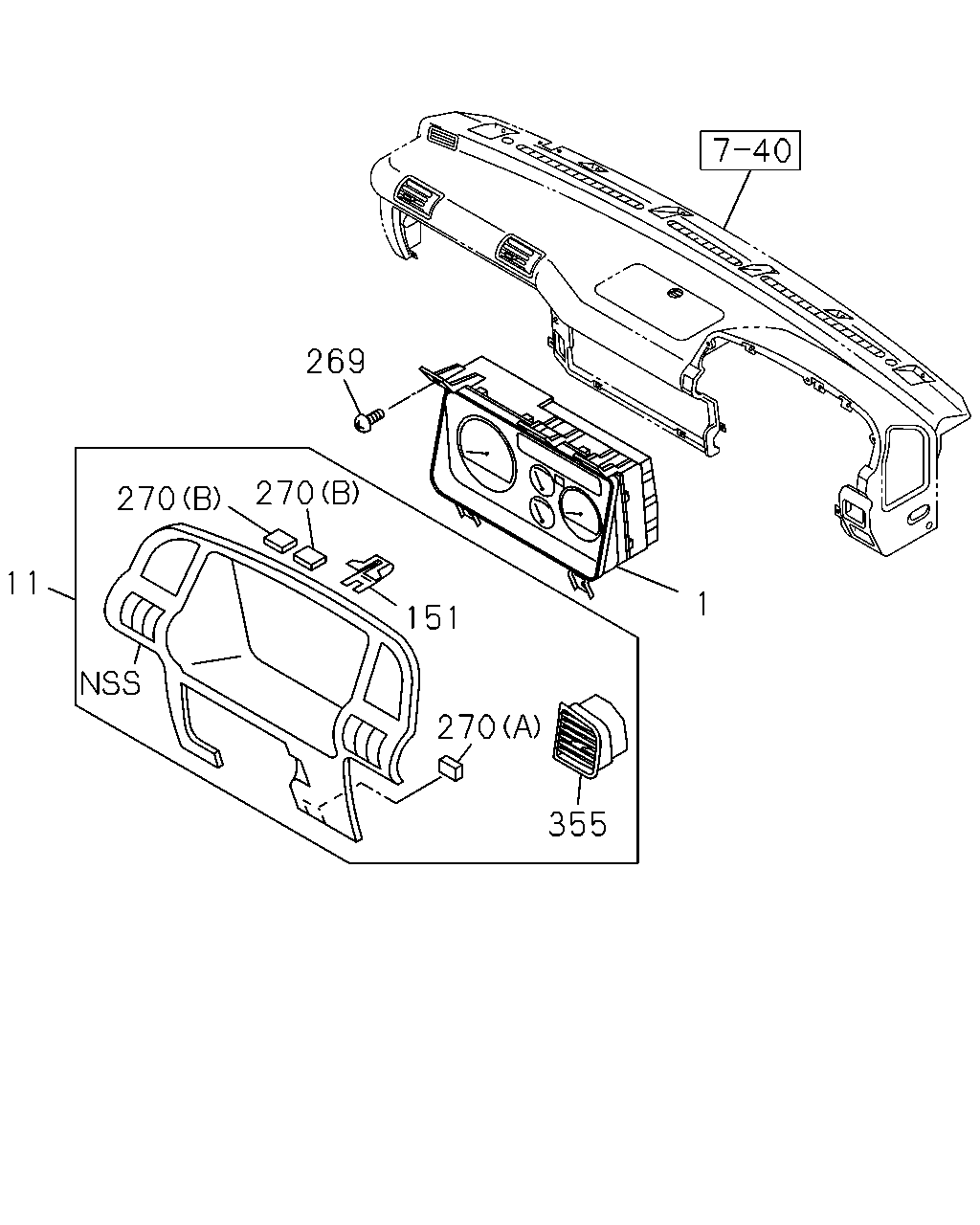

269 270 270 11 1 151 270 355

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.735 METER COMPL; CLUSTER	8-98000-514-4	01	1	0608-	●	●
11	09.743 CLUSTER ASM; METER BLACK	8-97195-965-2	01	1	0608-	●	●
151	09.747 CLIP; METER CLUSTER	8-97217-066-0	07	1	0608-	●	●
269	09.743 SCREW; METER CLUSTER 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0608-	●	●
270	09.743 CUSHION; METER CLUSTER 16.085 (A) 15X30 T=5	8-94270-366-2	01	1	0608-	●	●
270	09.743 CUSHION; METER CLUSTER (B) 6X30 T=2	8-94270-378-1	02	1	0608-	●	●
355	09.748 GRILLE; VENT BLACK	8-97195-967-1	01	1	0608-	●	●
355	09.748 GRILLE; VENT BLACK	8-97195-966-1	01	1	0608-	●	●

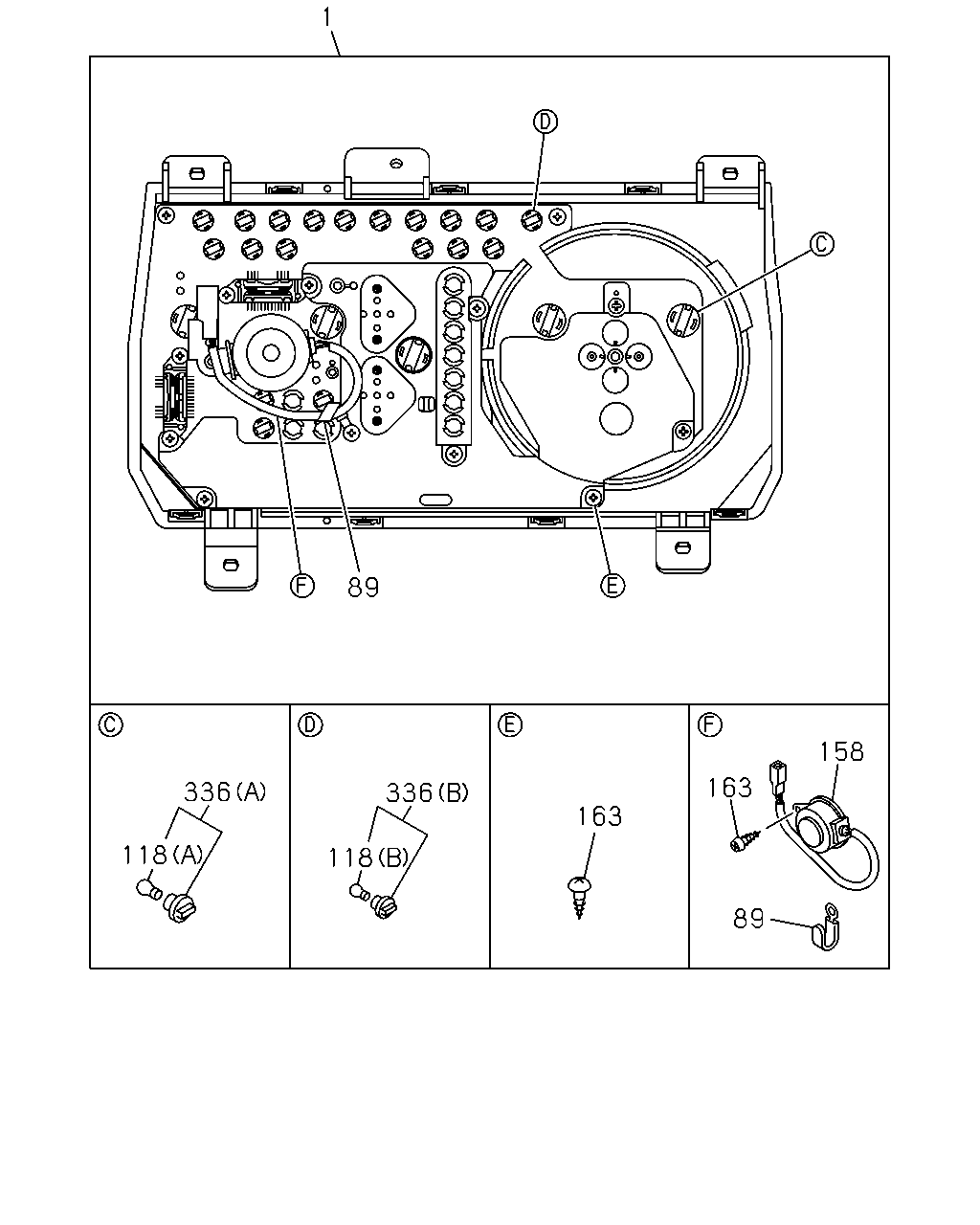

1 89 158 163 336 336 163 118 118 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.735 METER COMPL; CLUSTER	8-98000-514-4	01	1	0608-	●	●
89	09.761 CLIP; HARNESS	8-97253-928-0	01	1	0608-	●	●
118	08.991 BULB; CLUSTER METER (B) 28V 1.8W	8-97305-177-0	20	1	0608-	●	●
118	08.991 BULB; CLUSTER METER (A) 28V 3W	8-97305-178-0	05	1	0608-	●	●
158	09.765 BUZZER; VAC WARNING	8-98003-830-0	01	1	0608-	●	●
163	08.977 SCREW; BUZZER	8-97185-099-0	02	1	0608-	●	●
336	02.575 LAMP ASM; WARNING (B)	8-97185-091-0	20	1	0608-	●	●
336	02.575 LAMP ASM; WARNING (A)	8-97185-093-0	05	1	0608-	●	●
