◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51124 - NPR/NQR(RHD) EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#39134) — 140 parça

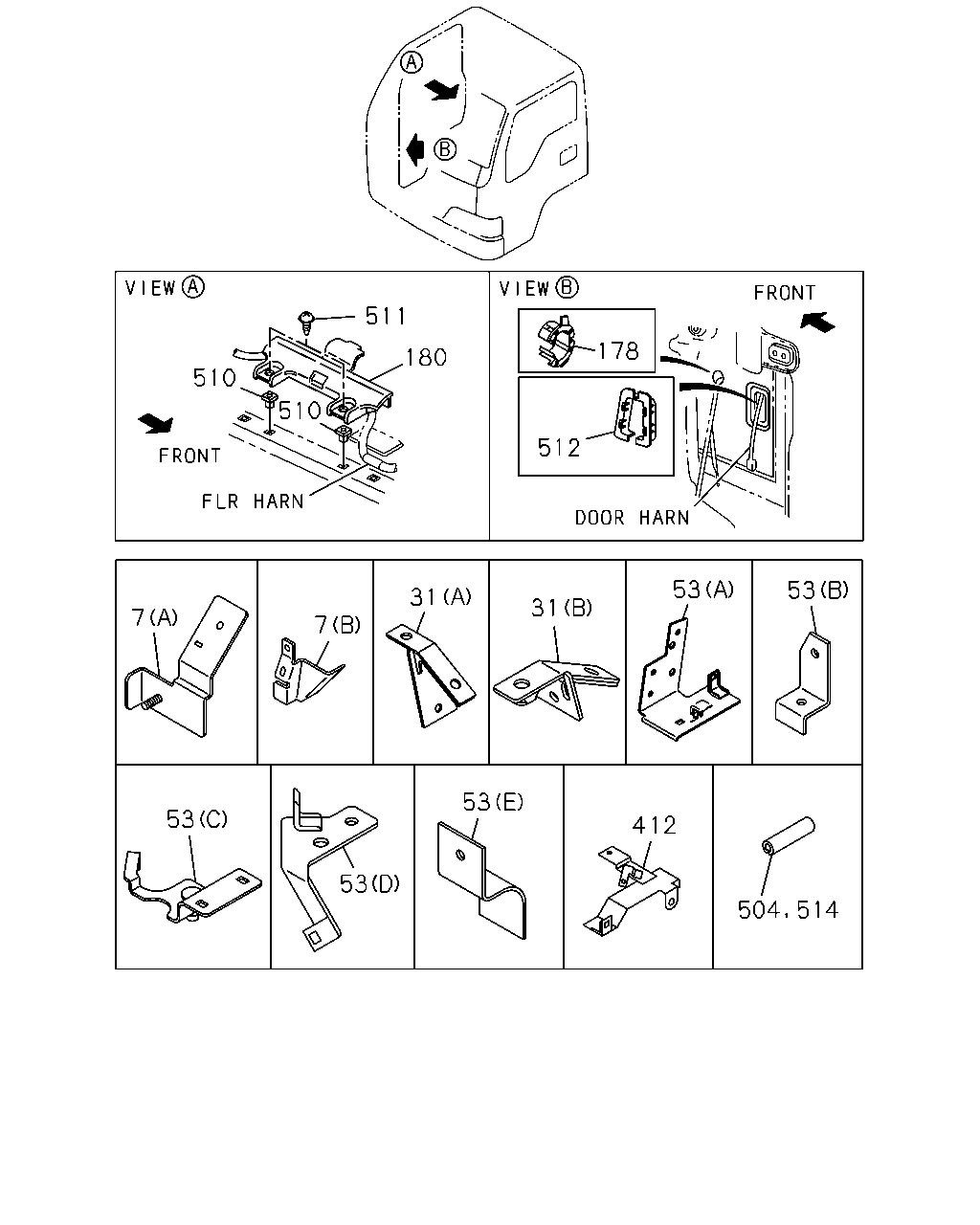

çizim 13759
511 178 180 510 510 512 53 53 31 31 7 7 53 53 412 53 504 514
BalonParca AdiParca NoAdetTipApplied Date A B
7 02.559 BRACKET; CONNECTOR
(A) 		8-98003-671-1 01 1 0608- ● ●
7 02.559 BRACKET; CONNECTOR
(B) 		8-98037-564-1 01 1 0608- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(A) 		8-97362-859-0 02 1 0608- ● ●
31 02.559 BRACKET; HARNESS CLIP,PIPE
(B) 		8-98019-633-0 01 1 0608- ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-97357-140-0 01 1 0608- ● ●
53 02.483 BRACKET; HARNESS
(B) 		8-97359-614-0 01 1 0608- ● ●
53 02.483 BRACKET; HARNESS
(C) 		8-98003-048-0 01 1 0608- ● ●
53 02.483 BRACKET; HARNESS
(D) 		8-98026-091-0 01 1 0608- ● ●
53 02.483 BRACKET; HARNESS
(E) 		8-98042-587-0 01 1 0608- ● ●
178 02.559 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 0608- ● ●
180 02.559 COVER; HARNESS 8-97856-130-4 02 1 0608- ● ●
412 02.559 BRACKET; HARNESS,TRANS
M/T MYY6S(RST) 		8-97324-451-1 01 1 0608- ●
412 02.559 BRACKET; HARNESS,TRANS
M/T MYY5T(RSM) 		8-97324-451-1 01 1 0608- ●
504 02.559 PROTECTOR; HARNESS
03.008 L=80 		5-22439-006-0 01 1 0608- ● ●
504 02.559 PROTECTOR; HARNESS
04.785 L=200 		8-97096-423-0 01 1 0608- ● ●
510 02.559 GROMMET; SCREW
04.931 H=15 		8-94463-268-1 04 1 0608- ● ●
511 02.559 SCREW; HARNESS COVER
16.800 M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 0608-0702 ● ●
511 02.559 SCREW; HARNESS COVER
04.681 M5X12 TAPPING 		0-72180-512-0 04 1 0703- ● ●
512 02.559 PROTECTOR; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0608- ● ●
512 02.559 PROTECTOR; HARNESS
POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0608- ● ●
512 02.559 PROTECTOR; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97072-950-0 02 1 0608- ● ●
512 02.559 PROTECTOR; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> 		8-97072-950-0 02 1 0608- ● ●
514 02.559 FINISHER; HARNESS
16.550 L=120 SERVICED BY L=2040 		1-71997-513-1 02 1 0608- ● ●
514 02.559 FINISHER; HARNESS
16.550 L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0608- ● ●
514 02.559 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0608- ● ●
çizim 57126
16 48 48 48 16 48 22 48 16 48 48 22 22 16 16 264
BalonParca AdiParca NoAdetTipApplied Date A B
16 02.559 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) L=155 		8-97173-307-0 04 1 1011- ●
16 02.559 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> (B) L=155 		8-97173-307-0 04 1 1011- ●
16 02.559 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (B) L=155 		8-97173-307-0 04 1 1011- ●
16 02.559 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> (B) L=155 		8-97173-307-0 04 1 1011- ●
16 02.559 CLIP; HARNESS
(C) L=135 		1-09987-143-1 02 1 0608- ● ●
16 02.559 CLIP; HARNESS
16.065 (D) 1 SET=5 PIECE 		1-09987-214-0 02 1 0608- ● ●
16 02.559 CLIP; HARNESS
01.240 (E) ID=14 L=47 		5-09700-319-0 11 1 0608- ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=16 		8-94413-325-0 02 1 0608- ● ●
16 02.559 CLIP; HARNESS
01.166 (G) ID=22 & 22 		8-94464-837-0 01 1 0608- ● ●
16 02.559 CLIP; HARNESS
(H) ID=15-32 		8-97174-404-0 03 1 0608- ● ●
16 02.559 CLIP; HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (I) L=140 		5-09707-031-1 01 1 0608- ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 04 1 0608-1009 ● ●
16 02.559 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) L=155 		8-97173-307-0 04 1 0608-1009 ● ●
16 02.559 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> (B) L=155 		8-97173-307-0 04 1 0608-1009 ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 05 1 1010-1010 ● ●
16 02.559 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) L=155 		8-97173-307-0 05 1 1010-1010 ● ●
16 02.559 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> (B) L=155 		8-97173-307-0 05 1 1010-1010 ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 06 1 1011- ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=100 		8-94327-067-1 04 1 0608- ● ●
16 02.559 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) L=100 		8-94327-067-1 04 1 0608- ● ●
16 02.559 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> (A) L=100 		8-94327-067-1 04 1 0608- ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 10 1 0608-1009 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 11 1 1010-1010 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 05 1 1011- ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 05 1 1011- ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (B) L=155 		8-97173-307-0 05 1 1011- ● ●
22 02.559 CLIP; ENG HARNESS
03.162 (A) L=140 		5-09707-031-1 01 1 0608- ● ●
22 02.559 CLIP; ENG HARNESS
03.425 (B) ID=6 & 8.3 		8-94167-742-0 01 1 0608- ● ●
22 02.559 CLIP; ENG HARNESS
03.162 (C) ID=13.2 & 14.5 		8-94475-649-0 01 1 0608- ● ●
22 02.559 CLIP; ENG HARNESS
04.104 (D) ID=12 & 6.8 		8-97125-842-0 01 1 0608- ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 01 1 0608- ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 02 1 0608- ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (D) L=140 		5-09707-031-1 01 1 0608- ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=9 		8-97063-874-0 01 1 0608- ● ●
48 02.559 CLIP; FRAME HARNESS
(B) ID=40 L=90 		1-09701-290-0 04 1 0608- ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0608- ● ●
48 02.559 CLIP; FRAME HARNESS
(E) T=6.0 		5-09709-024-0 01 1 0608- ● ●
48 02.559 CLIP; FRAME HARNESS
03.115 (F) T=9 & 10.5 		8-97041-091-0 02 1 0608- ● ●
48 02.559 CLIP; FRAME HARNESS
(H) ID=42 W/STUD 		8-97363-356-0 01 1 0608- ● ●
264 02.559 CLIP; HARNESS,HEADLAMP
02.694 ID=6 & 10-13 		8-97069-515-0 01 1 0608- ● ●
çizim 57304
139 377 386 313 377 386 480 38 516 239 38 139 239 19 38 219 294 515 219 294 515 219 294 519 139
BalonParca AdiParca NoAdetTipApplied Date A B
19 02.559 BOLT; PROTECTOR
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0608- ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0608- ● ●
38 02.559 BOLT; CLIP,HARNESS
06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0608- ● ●
38 02.559 BOLT; CLIP,HARNESS
02.277 (C) M10X35 FLANGE 		0-28651-035-0 01 1 0608- ● ●
139 02.559 BOLT; BRKT
02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 0608- ● ●
139 02.559 BOLT; BRKT
(C) 		8-97028-451-3 01 1 0608- ● ●
139 02.559 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0608- ● ●
219 02.559 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0608- ● ●
219 02.559 NUT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0608- ● ●
219 02.559 NUT
03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0608- ● ●
239 02.559 BOLT; GRAND
02.343 (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0608-1004 ● ●
239 02.559 BOLT; GRAND
02.343 (B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ●
294 02.559 NUT
M/T MYY6S(RST) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0608- ●
294 02.559 NUT
M/T MYY5T(RSM) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0608- ●
294 02.559 NUT
M/T MYY6S(RST) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0608- ●
294 02.559 NUT
M/T MYY5T(RSM) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0608- ●
294 02.559 NUT
01.062 (C) M6 FLANGE 		0-91180-106-0 01 1 0608- ● ●
294 02.559 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0608- ● ●
313 02.559 BOLT; BRKT
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0608- ● ●
377 02.559 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0608-1004 ● ●
377 02.559 BOLT; CAB EARTH
02.343 (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ●
386 02.559 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0608-1004 ● ●
386 02.559 BOLT; GRAND HARNESS
02.343 (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ●
480 02.483 BOLT; BRKT
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0608- ● ●
515 02.559 NUT; BRKT
01.062 (B) M6 FLANGE 		0-91180-106-0 03 1 0608- ● ●
515 02.559 NUT; BRKT
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0608- ● ●
515 02.559 NUT; BRKT
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0608- ● ●
516 02.559 BOLT; HARNESS
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0608- ● ●
519 02.559 NUT; EARTH CABLE
03.162 M10 FLANGE 		0-91180-110-0 01 1 0608- ● ●
çizim 58881
16 22 48 220 488 16 142 14 16 205 16
BalonParca AdiParca NoAdetTipApplied Date A B
14 02.559 CLIP; BAND,HARNESS
03.430 L=200 		8-94464-835-0 01 1 0608- ● ●
16 02.559 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) L=155 		8-97173-307-0 04 1 1011- ●
16 02.559 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> (B) L=155 		8-97173-307-0 04 1 1011- ●
16 02.559 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (B) L=155 		8-97173-307-0 04 1 1011- ●
16 02.559 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> (B) L=155 		8-97173-307-0 04 1 1011- ●
16 02.559 CLIP; HARNESS
(C) L=135 		1-09987-143-1 02 1 0608- ● ●
16 02.559 CLIP; HARNESS
16.065 (D) 1 SET=5 PIECE 		1-09987-214-0 02 1 0608- ● ●
16 02.559 CLIP; HARNESS
01.240 (E) ID=14 L=47 		5-09700-319-0 11 1 0608- ● ●
16 02.559 CLIP; HARNESS
02.343 (F) ID=16 		8-94413-325-0 02 1 0608- ● ●
16 02.559 CLIP; HARNESS
01.166 (G) ID=22 & 22 		8-94464-837-0 01 1 0608- ● ●
16 02.559 CLIP; HARNESS
(H) ID=15-32 		8-97174-404-0 03 1 0608- ● ●
16 02.559 CLIP; HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (I) L=140 		5-09707-031-1 01 1 0608- ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 04 1 0608-1009 ● ●
16 02.559 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) L=155 		8-97173-307-0 04 1 0608-1009 ● ●
16 02.559 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> (B) L=155 		8-97173-307-0 04 1 0608-1009 ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 05 1 1010-1010 ● ●
16 02.559 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) L=155 		8-97173-307-0 05 1 1010-1010 ● ●
16 02.559 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> (B) L=155 		8-97173-307-0 05 1 1010-1010 ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 06 1 1011- ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=100 		8-94327-067-1 04 1 0608- ● ●
16 02.559 CLIP; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A) L=100 		8-94327-067-1 04 1 0608- ● ●
16 02.559 CLIP; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> (A) L=100 		8-94327-067-1 04 1 0608- ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 10 1 0608-1009 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 11 1 1010-1010 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 05 1 1011- ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 05 1 1011- ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (B) L=155 		8-97173-307-0 05 1 1011- ● ●
22 02.559 CLIP; ENG HARNESS
03.162 (A) L=140 		5-09707-031-1 01 1 0608- ● ●
22 02.559 CLIP; ENG HARNESS
03.425 (B) ID=6 & 8.3 		8-94167-742-0 01 1 0608- ● ●
22 02.559 CLIP; ENG HARNESS
03.162 (C) ID=13.2 & 14.5 		8-94475-649-0 01 1 0608- ● ●
22 02.559 CLIP; ENG HARNESS
04.104 (D) ID=12 & 6.8 		8-97125-842-0 01 1 0608- ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 01 1 0608- ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 02 1 0608- ● ●
48 02.559 CLIP; FRAME HARNESS
03.162 (D) L=140 		5-09707-031-1 01 1 0608- ● ●
48 02.559 CLIP; FRAME HARNESS
(G) ID=9 		8-97063-874-0 01 1 0608- ● ●
48 02.559 CLIP; FRAME HARNESS
(B) ID=40 L=90 		1-09701-290-0 04 1 0608- ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (C) ID=14 L=47 		5-09700-319-0 01 1 0608- ● ●
48 02.559 CLIP; FRAME HARNESS
(E) T=6.0 		5-09709-024-0 01 1 0608- ● ●
48 02.559 CLIP; FRAME HARNESS
03.115 (F) T=9 & 10.5 		8-97041-091-0 02 1 0608- ● ●
48 02.559 CLIP; FRAME HARNESS
(H) ID=42 W/STUD 		8-97363-356-0 01 1 0608- ● ●
142 02.559 CLIP; HARNESS,ENG
M/T MYY6S(RST) L=170.3 		1-09987-182-0 01 1 0608- ●
142 02.559 CLIP; HARNESS,ENG
M/T MYY5T(RSM) L=170.3 		1-09987-182-0 01 1 0608- ●
205 02.559 CLIP; BACK LAMP HARNESS
M/T MYY6S(RST) L=135 		1-09987-143-1 01 1 0608- ●
205 02.559 CLIP; BACK LAMP HARNESS
M/T MYY5T(RSM) L=135 		1-09987-143-1 01 1 0608- ●
220 02.559 CLIP; HARNESS TO CABLE
L=250 		5-09707-030-1 01 1 0608- ●
488 02.559 CLIP; CABLE,TRAILER
L=250 		5-09707-030-1 01 1 0608- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
