8-10 — WIRING HARNESS AND FUSE (#39133) — 97 parça

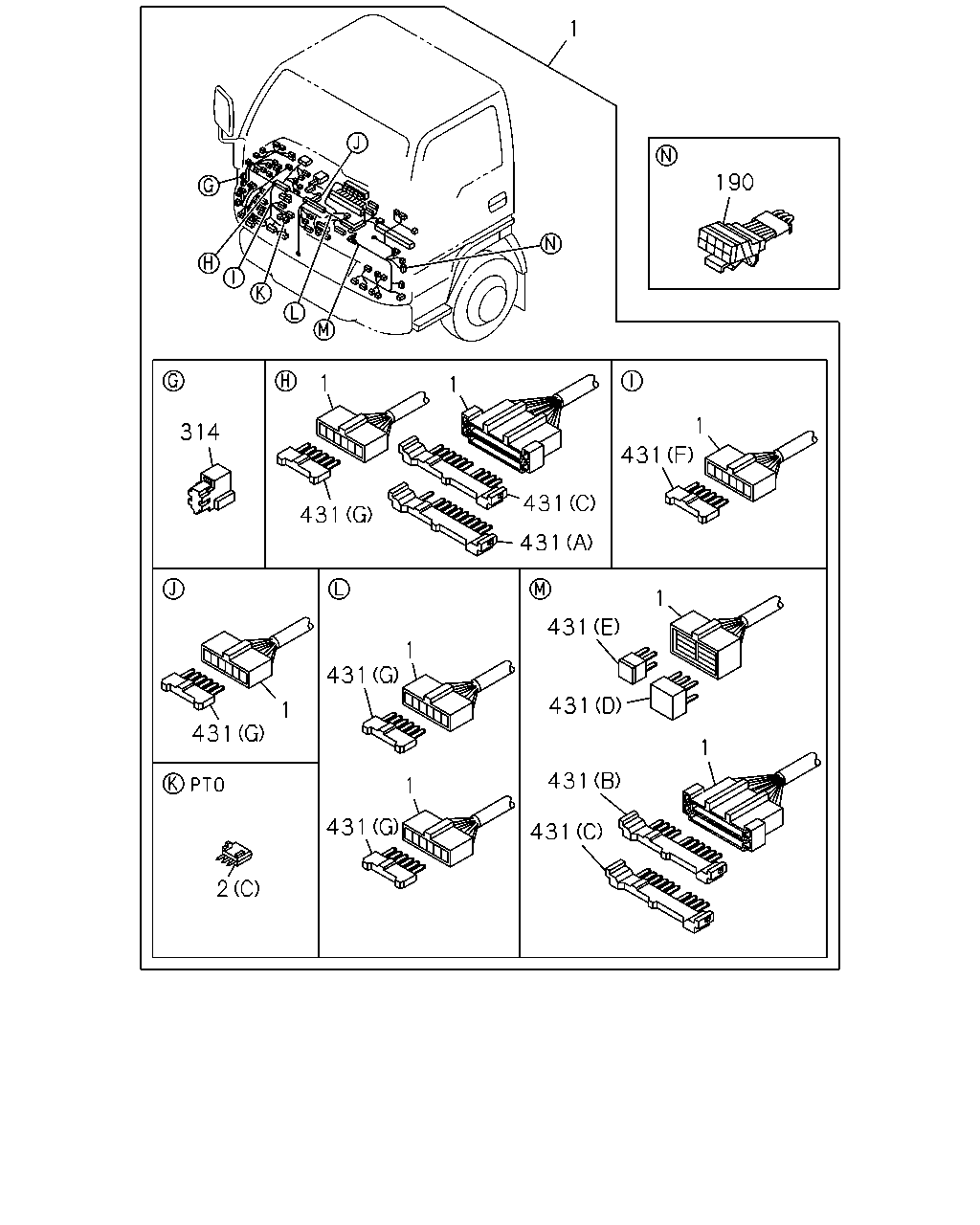

çizim 58036
1 190 1 1 1 314 431 431 431 431 1 431 1 431 431 1 431 1 431 1 431 431 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB 8-98019-362-3 01 1 0608-0610 ● ●
1 02.480 HARNESS; CAB 8-98061-122-0 01 1 0611- ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94416-438-1 01 1 0608- ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 02 1 0608- ● ●
2 02.483 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94422-640-1 01 1 0611- ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> 		8-98036-238-0 01 1 0608- ● ●
314 02.510 RESISTOR; HARNESS
BLUE 		1-82691-204-0 02 1 0608- ● ●
431 02.530 CONNECTOR; JOINT
(F) 6P 		1-82691-206-0 01 1 0608- ● ●
431 02.530 CONNECTOR; JOINT
(G) 3P & 3P 		1-82698-170-0 04 1 0608- ● ●
431 02.530 CONNECTOR; JOINT
(C) BLUE 10P 		1-82699-598-0 01 1 0608- ● ●
431 02.530 CONNECTOR; JOINT
(B) GREEN 10P 		1-82699-599-0 02 1 0608- ● ●
431 02.530 CONNECTOR; JOINT
(A) BROWN 10P 		1-82699-601-0 01 1 0608- ● ●
431 02.530 CONNECTOR; JOINT
(E) 4P 		8-97077-939-0 01 1 0608- ● ●
431 02.530 CONNECTOR; JOINT
(D) 6P 		8-97077-941-0 01 1 0608- ● ●
431 02.530 CONNECTOR; JOINT
(H) 6P 		8-97381-428-0 02 1 0608- ● ●

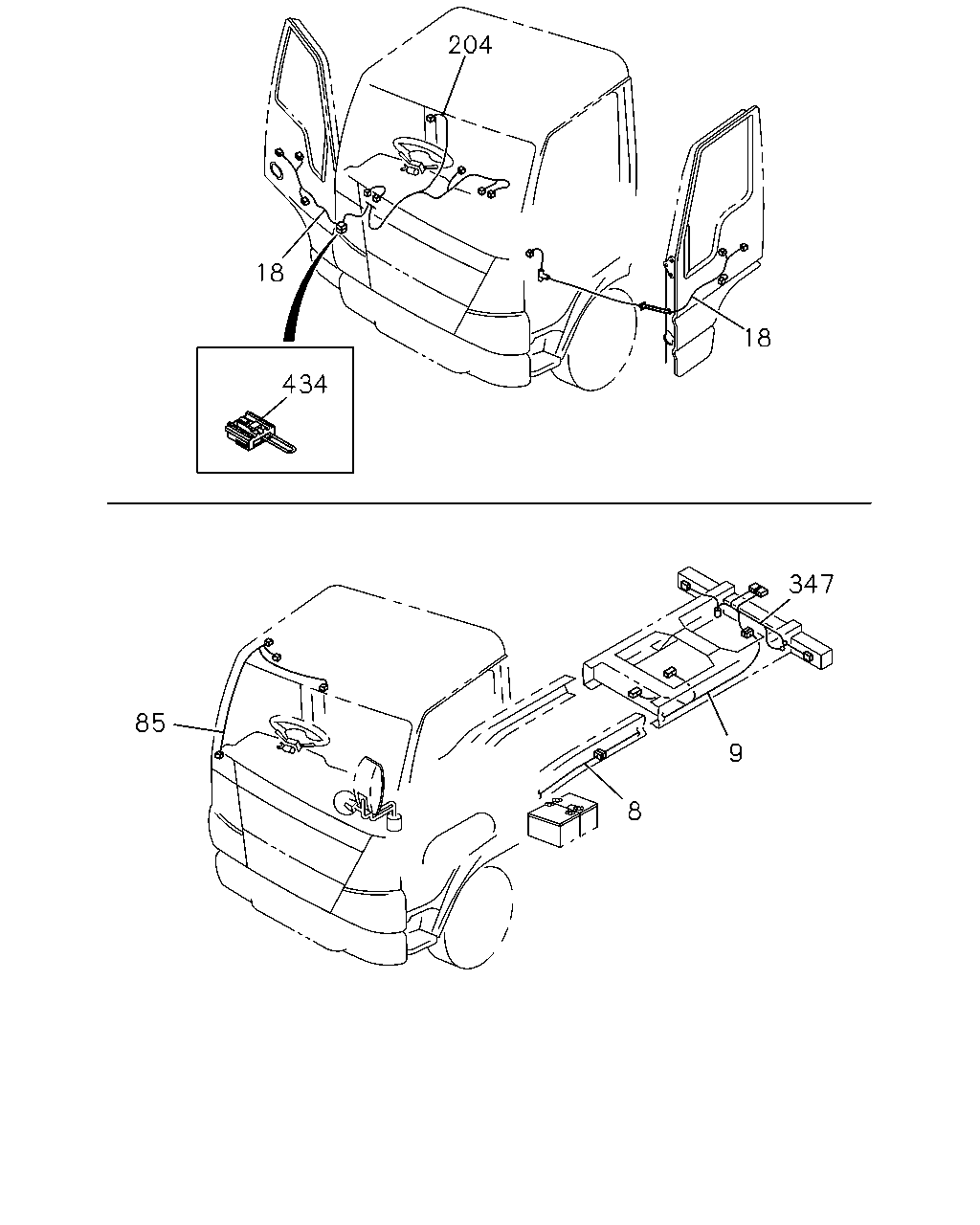

çizim 58864
204 18 18 434 347 85 9 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT 8-98019-369-6 01 1 0608- ● ●
9 02.480 HARNESS; FRAME,RR 8-97377-061-1 01 1 0608- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> 		8-97226-669-0 01 1 1011- ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97226-671-1 01 1 1011- ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> 		8-97226-671-1 01 1 1011- ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 		8-97226-671-1 01 1 1011- ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> 		8-97226-671-1 01 1 1011- ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 0608-1009 ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97226-671-1 01 1 0608-1009 ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> 		8-97226-671-1 01 1 0608-1009 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-98166-819-0 01 1 1010-1010 ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-98166-819-0 01 1 1010-1010 ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> 		8-98166-819-0 01 1 1010-1010 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-98166-819-0 01 1 1011- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97105-571-1 01 1 0608- ● ●
18 02.480 HARNESS; DOOR
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97105-571-1 01 1 0608- ● ●
18 02.480 HARNESS; DOOR
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> 		8-97105-571-1 01 1 0608- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 0608-1009 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98166-820-0 01 1 1010-1010 ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98166-820-0 01 1 1011- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97185-142-1 01 1 0608- ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-159-0 01 1 0608- ● ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MYY6S(RST) 		8-97364-140-0 01 1 0608- ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MYY5T(RSM) 		8-97364-140-0 01 1 0608- ●
347 02.480 HARNESS; CABLE,RR BODY 8-97364-152-0 01 1 0608- ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT 8-97388-448-0 01 1 0608- ● ●

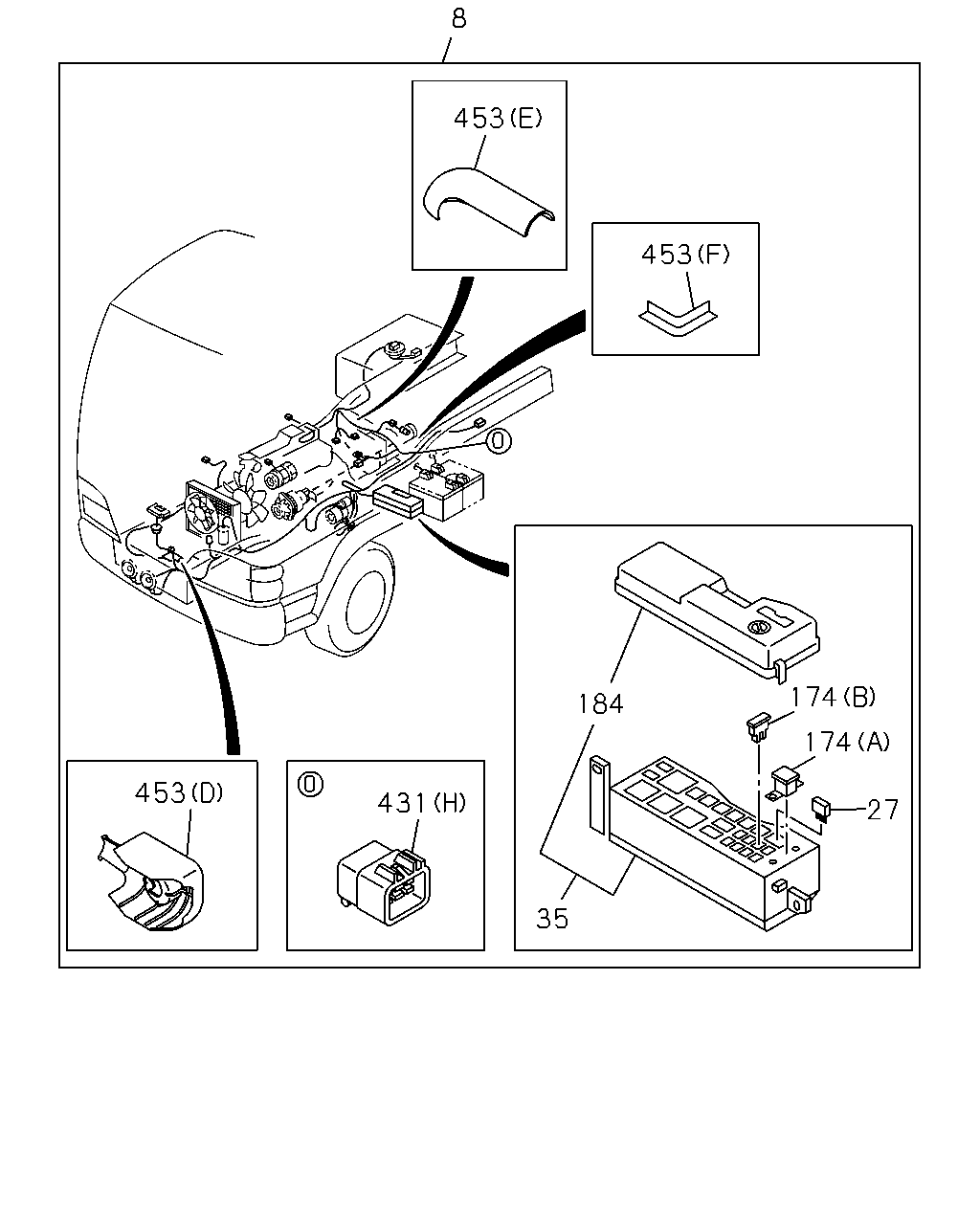

çizim 58882
8 453 453 174 184 174 453 431 27 35
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT 8-98019-369-6 01 1 0608- ● ●
27 08.965 FUSE UNIT
10A MINI RED 		8-97062-022-0 01 1 0608- ● ●
27 08.965 FUSE UNIT
15A MINI BLUE 		8-97062-023-0 02 1 0608- ● ●
35 02.530 BOX; RELAY & FUSE 8-97377-739-0 01 1 0608- ● ●
174 08.965 FUSE; SLOW BLOW
(A) 100A BLUE 		8-94388-306-1 01 1 0608- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-97183-643-0 01 1 0608- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-97183-644-0 03 1 0608- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 03 1 0608- ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97377-741-0 01 1 0608- ● ●
431 02.530 CONNECTOR; JOINT
(F) 6P 		1-82691-206-0 01 1 0608- ● ●
431 02.530 CONNECTOR; JOINT
(G) 3P & 3P 		1-82698-170-0 04 1 0608- ● ●
431 02.530 CONNECTOR; JOINT
(C) BLUE 10P 		1-82699-598-0 01 1 0608- ● ●
431 02.530 CONNECTOR; JOINT
(B) GREEN 10P 		1-82699-599-0 02 1 0608- ● ●
431 02.530 CONNECTOR; JOINT
(A) BROWN 10P 		1-82699-601-0 01 1 0608- ● ●
431 02.530 CONNECTOR; JOINT
(E) 4P 		8-97077-939-0 01 1 0608- ● ●
431 02.530 CONNECTOR; JOINT
(D) 6P 		8-97077-941-0 01 1 0608- ● ●
431 02.530 CONNECTOR; JOINT
(H) 6P 		8-97381-428-0 02 1 0608- ● ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-94417-716-0 01 1 0608- ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94482-169-0 01 1 0608- ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97062-169-0 01 1 0608- ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97088-615-0 01 1 0608- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97259-730-3 01 1 0608- ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97261-653-2 01 1 0608- ● ●

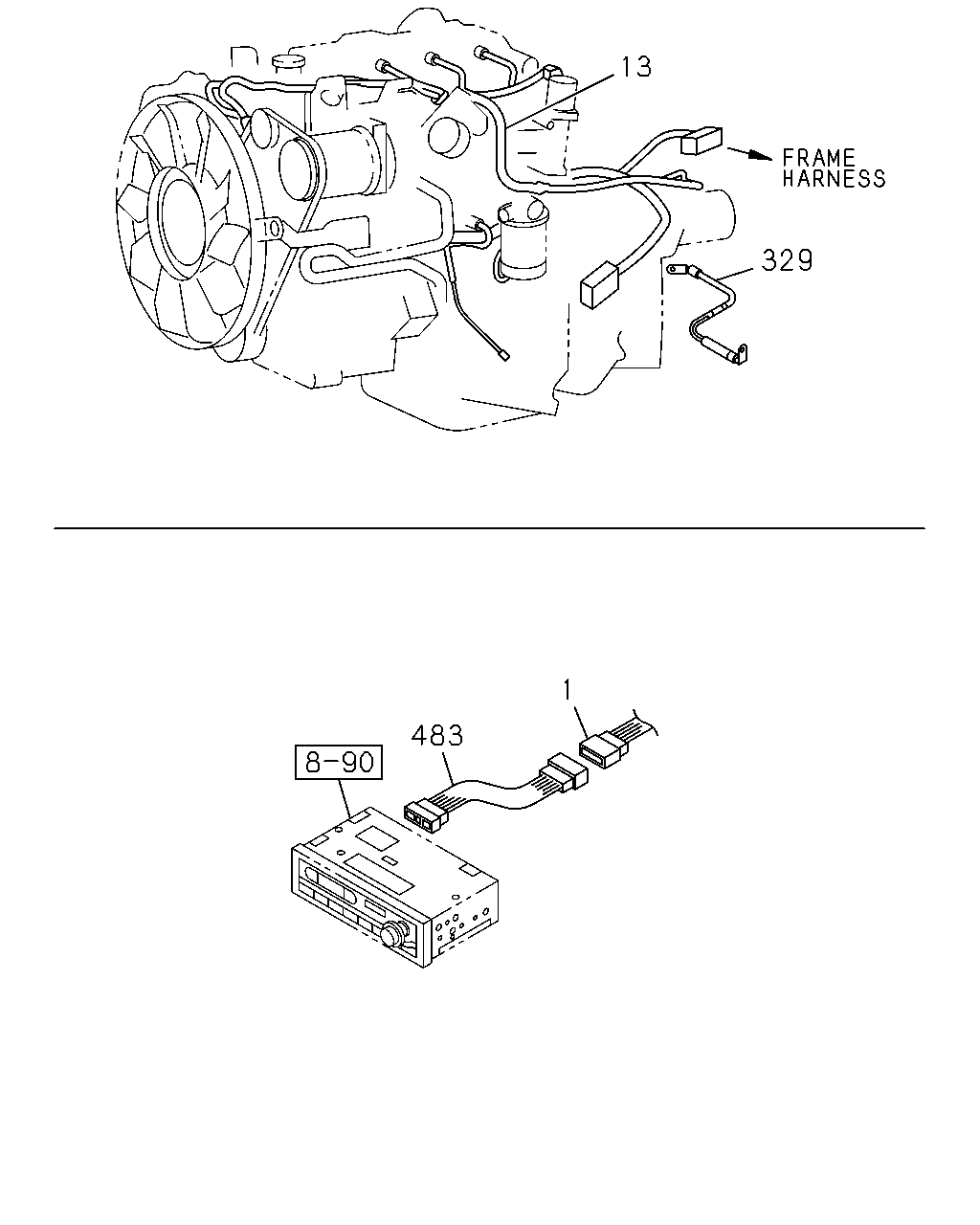

çizim 58883
13 329 1 483
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB 8-98019-362-3 01 1 0608-0610 ● ●
1 02.480 HARNESS; CAB 8-98061-122-0 01 1 0611- ● ●
13 02.525 HARNESS; ENG 8-97388-801-7 01 1 0608-0703 ● ●
13 02.525 HARNESS; ENG 8-98083-033-3 01 1 0704-1006 ● ●
13 02.525 HARNESS; ENG 8-98147-727-0 01 1 1007- ● ●
329 02.480 CABLE; ENG TO FRAME 8-98028-588-0 01 1 0608- ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 		8-97383-850-0 01 1 0608- ● ●

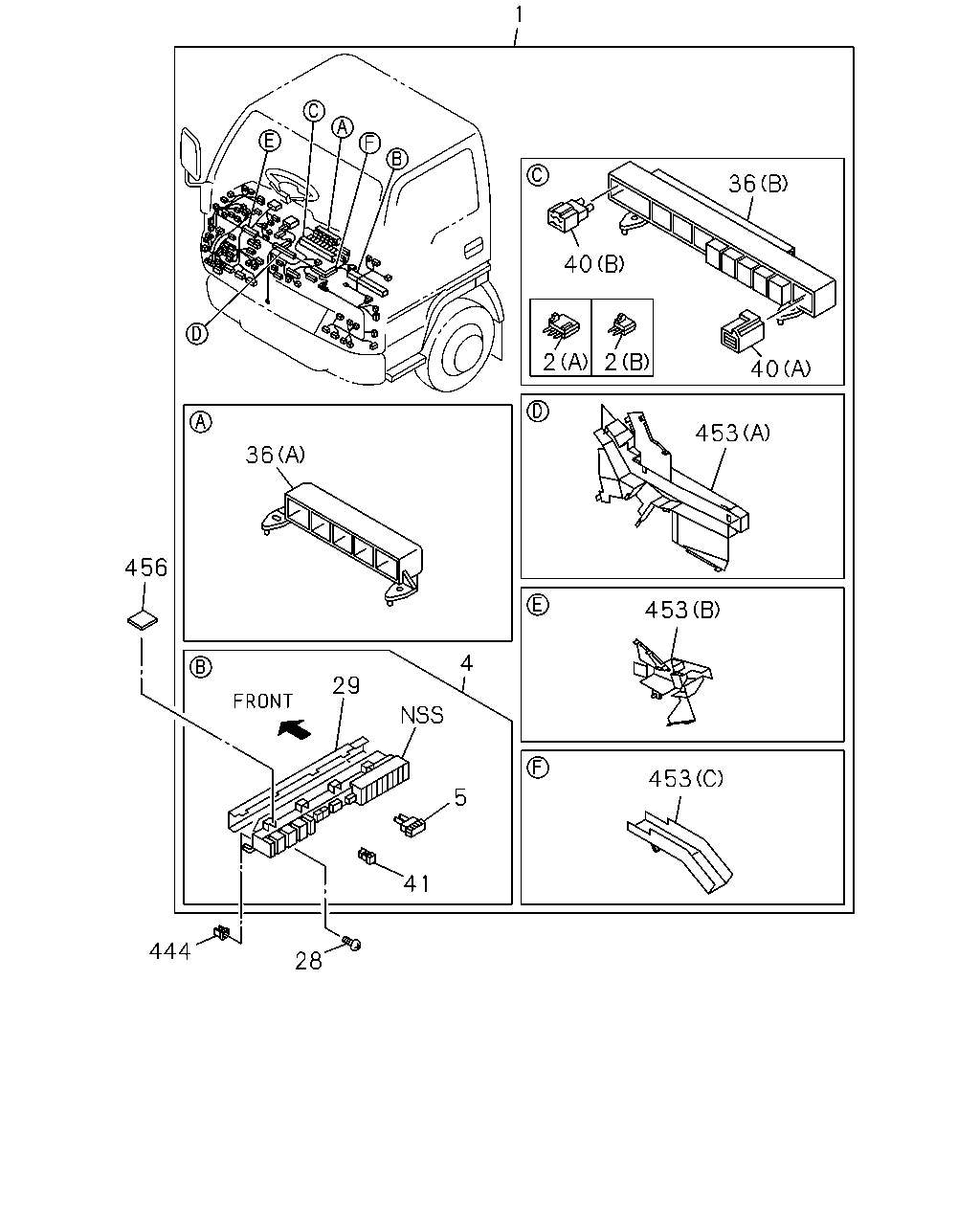

çizim 58884
1 36 40 2 2 40 453 36 456 453 4 29 453 5 41 444 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB 8-98019-362-3 01 1 0608-0610 ● ●
1 02.480 HARNESS; CAB 8-98061-122-0 01 1 0611- ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94416-438-1 01 1 0608- ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 02 1 0608- ● ●
2 02.483 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94422-640-1 01 1 0611- ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97187-921-1 01 1 0608- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 18 1 0608- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 07 1 0608- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW 		8-97062-024-0 02 1 0608- ● ●
28 02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0608-0612 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING 		0-72180-516-0 02 1 0701-1101 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102- ● ●
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 0608- ● ●
36 02.530 BOX; RELAY
(A) 		8-97087-640-2 01 1 0608- ● ●
36 02.530 BOX; RELAY
(B) 		8-97187-918-1 01 1 0608- ● ●
40 02.483 BOX; DIODE
(A) BLACK 8P 		8-97078-064-1 01 1 0608- ● ●
40 02.483 BOX; DIODE
(B) NATURAL 8P 		8-97200-753-0 01 1 0608- ● ●
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 0608- ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0608- ● ●
453 02.483 PROTECTOR; HARNESS
(F) 		8-94417-716-0 01 1 0608- ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94482-169-0 01 1 0608- ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-97062-169-0 01 1 0608- ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97088-615-0 01 1 0608- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97259-730-3 01 1 0608- ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97261-653-2 01 1 0608- ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0608- ● ●
