Isuzu WW
▶
TRUCKS
▶
NPR
▶
51124 - NPR/NQR(RHD) EURO4
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶

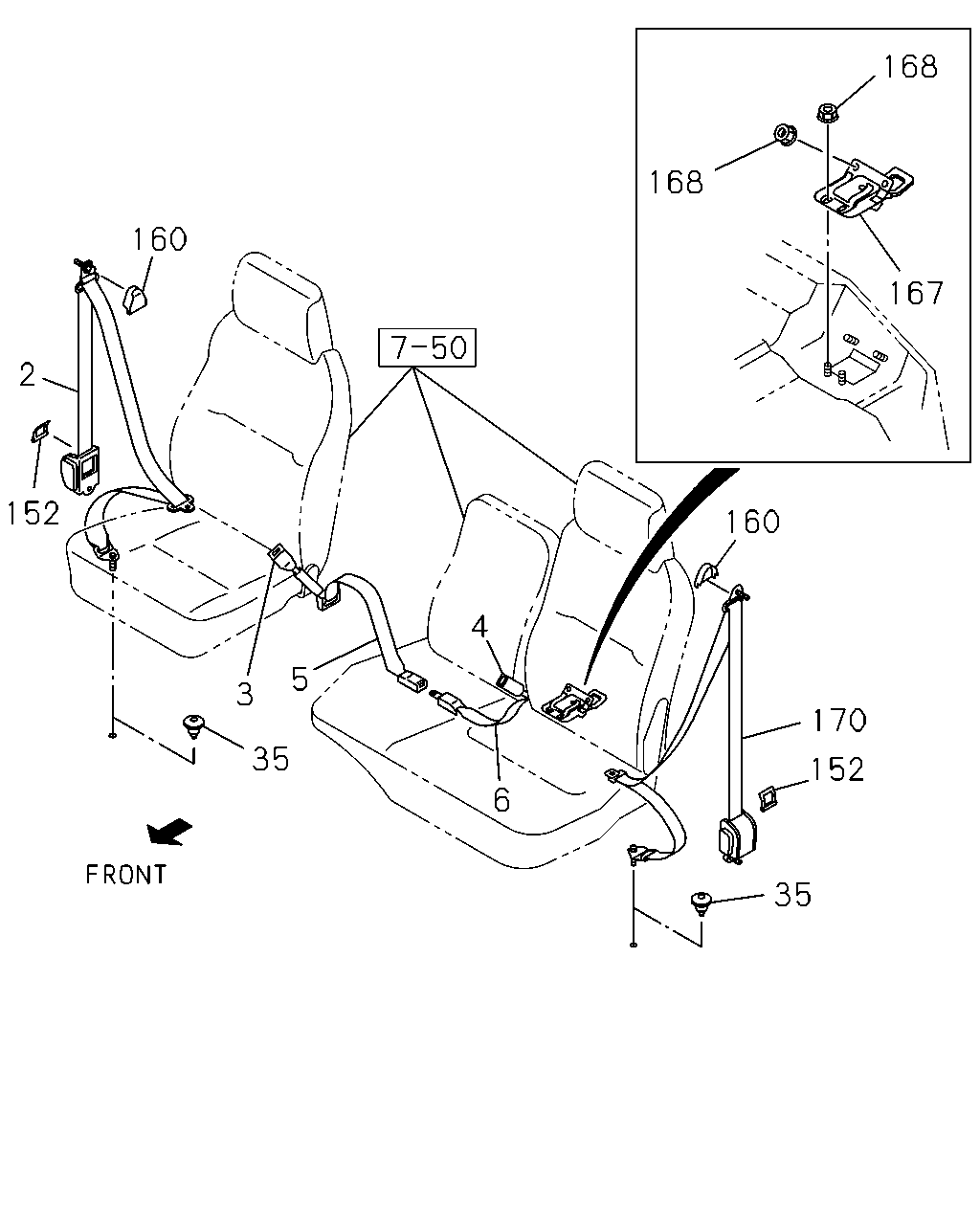

7-60 — SEAT BELT
(#39130) — 19 parça
Tümü
A - NPC5SF
B - NPN5SF
◀
[760A] SEAT BELT ANCHOR (6 parça)
[760A] BELT (13 parça)
▶
177
161
161
165
166
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
161
16.714 REINFORCEMENT; SEAT BELT ANCHOR
(B)
8-97850-329-4
01
1
0608-
●
●
161
16.714 REINFORCEMENT; SEAT BELT ANCHOR
(A)
8-97850-286-5
01
1
0608-
●
●
165
16.714 HOOK; SEAT BELT ANCHOR
8-97869-415-0
01
1
0608-
●
●
166
16.714 BOLT; SEAT BELT ANCHOR
06.216 M8X25 FLANGE
0-28650-825-0
06
1
0608-
●
●
177
16.714 NUT
07.833 M8 W/LK WASHER
8-94327-073-0
02
1
0608-0805
●
●
177
16.714 NUT
03.417 M8 W/LK WASHER
8-97581-234-0
02
1
0806-
●
●
168
168
160
167
2
152
160
4
5
3
170
35
152
6
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
16.714 BELT; SEAT,TONGUE SIDE
GRAY
8-97400-623-2
01
1
0608-
●
●
3
16.714 BELT; SEAT,BUCKLE SIDE
GRAY
8-97400-349-0
01
1
0608-
●
●
4
16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY
8-97396-952-0
01
1
0608-
●
●
4
16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY
8-97400-354-0
01
1
0608-
●
●
5
16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY
8-97404-304-0
01
1
0608-
●
●
6
16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY
8-97400-451-1
01
1
0608-
●
●
35
16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22
9-61168-535-0
01
1
0608-
●
●
152
16.714 PROTECTOR
8-97287-563-0
02
1
0608-
●
●
160
16.714 COVER; THROUGH ANCHOR
GRAY
8-97396-954-0
02
1
0608-
●
●
167
16.714 PLATE; ANCHOR
8-97869-412-2
01
1
0608-
●
●
168
16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE
5-09440-005-0
04
1
0608-0712
●
●
168
16.714 NUT; ANCHOR PLATE
01.062 M8 FLANGE
0-91180-108-0
04
1
0801-
●
●
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY
8-97397-380-2
01
1
0608-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
