Sayfa 0-11 - Isuzu EPC

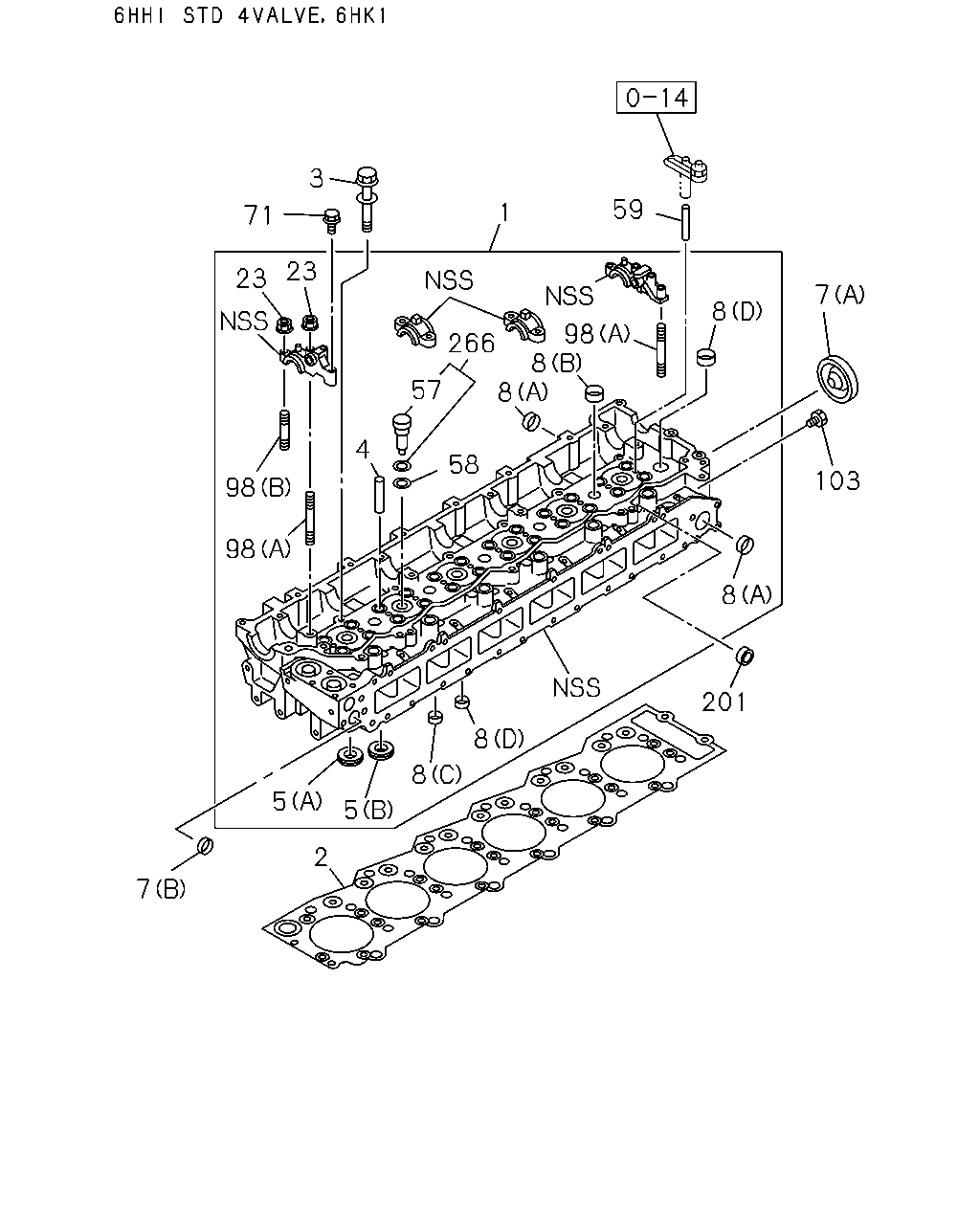

0-11 — CYLINDER HEAD (#3913) — 500 parça

1 59 7 103 8 8 201 8 8 5 5 2 7 98 98 4 57 58 266 8 98 8 23 3 71 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	HEAD ASM; CYL	8-94393-375-2	01	1	9510-9608	●
1	HEAD ASM; CYL	8-94390-082-7	01	1	9609-1012	●
1	HEAD ASM; CYL	8-98180-572-1	01	1	1101-	●
1	HEAD ASM; CYL	8-94393-807-5	01	1	9511-9608		●
1	HEAD ASM; CYL	8-94390-967-1	01	1	9609-9709		●
1	HEAD ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-94390-967-3	01	1	9710-1012		●
1	HEAD ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-98180-576-1	01	1	1101-		●
1	HEAD ASM; CYL EURO2 SPECIFICATION<THN>	8-94391-162-6	01	1	9710-1012		●
1	HEAD ASM; CYL	8-94391-162-6	01	1	9710-1012			●
1	HEAD ASM; CYL EURO2 SPECIFICATION<THN>	8-98180-577-1	01	1	1101-		●
1	HEAD ASM; CYL	8-98180-577-1	01	1	1101-			●
1	HEAD ASM; CYL	8-94392-455-9	01	1	0005-0207				●
1	HEAD ASM; CYL	8-97602-584-2	01	1	0208-0406				●
1	HEAD ASM; CYL	8-97605-007-2	01	1	0407-0507				●
1	HEAD ASM; CYL	8-97606-994-5	01	1	0508-1004				●
1	HEAD ASM; CYL	8-98170-625-0	01	1	1005-1012				●
1	HEAD ASM; CYL	8-98180-564-2	01	1	1101-1305				●
1	HEAD ASM; CYL	8-98243-818-0	01	1	1306-				●
1	HEAD ASM; CYL	8-97606-991-6	01	1	0608-1004					●
1	HEAD ASM; CYL	8-98170-622-0	01	1	1005-1012					●
1	HEAD ASM; CYL	8-98180-561-2	01	1	1101-1305					●
1	HEAD ASM; CYL	8-98243-815-0	01	1	1306-					●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-346-3	01	1	9510-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94395-447-2	01	1	9511-		●	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-787-4	01	1	0005-0407				●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97605-228-0	01	1	0408-0607				●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97605-228-0	01	1	0608-				●	●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-94396-207-3	26	1	9510-0004	●	●	●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-94396-207-3	26	1	0005-0607	●	●	●	●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-94396-207-3	26	1	0608-0901	●	●	●	●	●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-97077-638-0	26	1	0902-1407	●	●	●	●	●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-98260-005-0	26	1	1408-	●	●	●	●	●
4	GUIDE; VLV	8-94396-598-0	12	1	9510-	●	●	●
4	GUIDE; VLV L=57	8-94390-780-0	24	1	0005-0607				●
4	GUIDE; VLV L=57	8-94390-780-0	24	1	0608-0707				●	●
4	GUIDE; VLV L=57	8-97376-719-2	24	1	0708-				●	●
5	SEAT; VLV INSERT (B) OD=38	8-94395-888-2	12	1	0608-					●
5	SEAT; VLV INSERT (B) OD=52	8-94394-127-0	06	1	9510-	●
5	SEAT; VLV INSERT (A) OD=43	8-94396-172-0	06	1	9510-	●	●	●
5	SEAT; VLV INSERT (B) OD=48	8-94394-462-0	06	1	9511-		●	●
5	SEAT; VLV INSERT (B) OD=40	8-94395-624-0	12	1	0005-0106				●
5	SEAT; VLV INSERT (B) OD=40	8-97216-510-0	12	1	0107-				●
5	SEAT; VLV INSERT (A) OD=38	8-94395-625-0	12	1	0005-0106				●
5	SEAT; VLV INSERT (A) OD=38	8-97216-511-0	12	1	0107-0607				●
5	SEAT; VLV INSERT (A) OD=38	8-97216-511-0	12	1	0608-0703				●	●
5	SEAT; VLV INSERT (A) ID=31 OD=38	8-98028-875-0	12	1	0704-				●	●
7	CUP; SEALING,CYL HEAD (A) OD=51	8-94396-229-0	01	1	9510-0004	●	●	●
7	CUP; SEALING,CYL HEAD (A) OD=51	8-94396-229-0	01	1	0005-0303	●	●	●	●
7	CUP; SEALING,CYL HEAD (A) OD=51	8-97096-826-0	01	1	0304-0607	●	●	●	●
7	CUP; SEALING,CYL HEAD (A) OD=51	8-97096-826-0	01	1	0608-	●	●	●	●	●
7	CUP; SEALING,CYL HEAD EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) OD=30	8-94393-509-0	01	1	0005-				●
8	CUP; SEALING,WATER JACKET EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) OD=32	1-09600-012-1	07	1	0005-0010				●
8	CUP; SEALING,WATER JACKET EXC. EURO2 SPECIFICATION<THN> (A) OD=32	1-09600-012-2	07	1	0011-				●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	03	1	9510-9802	●	●	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	03	1	0005-	●	●	●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	06	1	9510-	●	●	●
8	CUP; SEALING,WATER JACKET EURO2 SPECIFICATION<THN> (A) OD=32	1-09600-012-2	06	1	0005-0607				●
8	CUP; SEALING,WATER JACKET EURO2 SPECIFICATION<THN> (A) OD=32	1-09600-012-2	06	1	0608-				●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-2	06	1	0608-					●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	03	1	9803-0004	●	●	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	06	1	0005-0607				●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	06	1	0608-				●	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-2	17	1	9510-	●	●	●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-1	01	1	9510-0004	●	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	01	1	0005-0012	●	●		●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	01	1	0101-0101	●	●	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	01	1	0102-0106	●
8	CUP; SEALING,WATER JACKET 14" CLUTCH(WF6) (A) OD=32	1-09600-012-1	01	1	0102-0106		●
8	CUP; SEALING,WATER JACKET HEATER & DEFROSTER(C41) EURO2 SPECIFICATION<THN> (A) OD=32	1-09600-012-1	01	1	0102-0106				●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-2	01	1	0107-0607	●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (A) OD=32	1-09600-012-2	01	1	0107-0607		●
8	CUP; SEALING,WATER JACKET EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-2	01	1	0107-0607				●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-2	01	1	0608-	●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (A) OD=32	1-09600-012-2	01	1	0608-		●
8	CUP; SEALING,WATER JACKET EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-2	01	1	0608-				●
8	CUP; SEALING,WATER JACKET HEATER & DEFROSTER(C41) (A) OD=32	1-09600-012-2	01	1	0608-					●
8	CUP; SEALING,WATER JACKET (C) OD=16	5-11129-006-0	07	1	0005-0607				●
8	CUP; SEALING,WATER JACKET (C) OD=16	5-11129-006-0	07	1	0608-				●	●
8	CUP; SEALING,WATER JACKET (D) OD=20	9-11129-128-0	11	1	0005-0607				●
8	CUP; SEALING,WATER JACKET (D) OD=20	9-11129-128-0	11	1	0608-				●	●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	14	1	9510-9608	●	●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	08	1	9609-0004	●	●	●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	08	1	0005-0602	●	●	●	●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	08	1	0603-0607	●	●	●	●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	08	1	0608-	●	●	●	●	●
57	SLEEVE; NOZZLE HOLDER	8-97600-972-0	06	1	0005-0109				●
57	SLEEVE; NOZZLE HOLDER	8-97602-301-1	06	1	0110-0507				●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27	1-09623-355-0	06	1	0005-0406				●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4	8-97604-916-0	06	1	0407-0607				●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4	8-97604-916-0	06	1	0608-				●	●
59	GUIDE; BRIDGE	8-94395-889-1	12	1	0005-0409				●
59	GUIDE; BRIDGE	8-97381-603-0	12	1	0410-0607				●
59	GUIDE; BRIDGE	8-97381-603-1	12	1	0608-				●	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28080-835-0	02	1	9510-0004	●	●	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28080-835-0	02	1	0005-0512	●	●	●	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	0601-0607	●	●	●	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	0608-	●	●	●	●	●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	12	1	9510-9608	●	●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	9609-0004	●	●	●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	0005-0607	●	●	●	●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	0608-	●	●	●	●	●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	9510-0004	●	●	●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	0005-0607	●	●	●	●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	0608-	●	●	●	●	●
103	PLUG; HD M8X6	8-94399-421-0	01	1	0005-0501				●
103	PLUG; HD M8X10	8-98003-416-0	01	1	0502-0607				●
103	PLUG; HD M8X10	8-98003-416-0	01	1	0608-				●	●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30	1-09639-034-0	06	1	0005-0607				●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30	1-09639-034-0	06	1	0608-				●	●
266	SLEEVE ASM; NOZZLE HOLDER	8-98018-462-0	06	1	0508-0607				●
266	SLEEVE ASM; NOZZLE HOLDER	8-98018-462-0	06	1	0608-				●	●

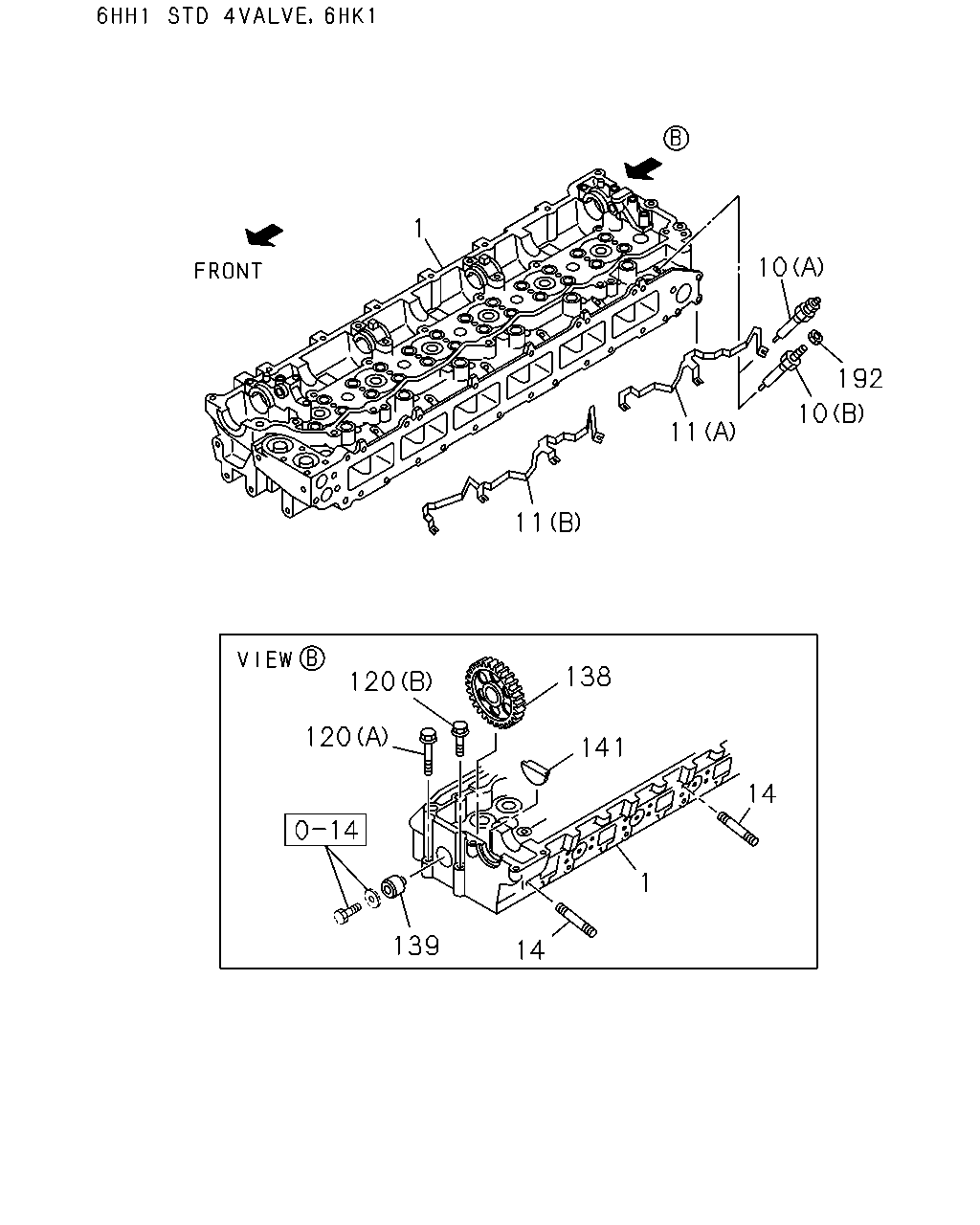

1 10 192 10 11 11 138 120 120 141 14 1 139 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	HEAD ASM; CYL	8-94393-375-2	01	1	9510-9608	●
1	HEAD ASM; CYL	8-94390-082-7	01	1	9609-1012	●
1	HEAD ASM; CYL	8-98180-572-1	01	1	1101-	●
1	HEAD ASM; CYL	8-94393-807-5	01	1	9511-9608		●
1	HEAD ASM; CYL	8-94390-967-1	01	1	9609-9709		●
1	HEAD ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-94390-967-3	01	1	9710-1012		●
1	HEAD ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-98180-576-1	01	1	1101-		●
1	HEAD ASM; CYL EURO2 SPECIFICATION<THN>	8-94391-162-6	01	1	9710-1012		●
1	HEAD ASM; CYL	8-94391-162-6	01	1	9710-1012			●
1	HEAD ASM; CYL EURO2 SPECIFICATION<THN>	8-98180-577-1	01	1	1101-		●
1	HEAD ASM; CYL	8-98180-577-1	01	1	1101-			●
1	HEAD ASM; CYL	8-94392-455-9	01	1	0005-0207				●
1	HEAD ASM; CYL	8-97602-584-2	01	1	0208-0406				●
1	HEAD ASM; CYL	8-97605-007-2	01	1	0407-0507				●
1	HEAD ASM; CYL	8-97606-994-5	01	1	0508-1004				●
1	HEAD ASM; CYL	8-98170-625-0	01	1	1005-1012				●
1	HEAD ASM; CYL	8-98180-564-2	01	1	1101-1305				●
1	HEAD ASM; CYL	8-98243-818-0	01	1	1306-				●
1	HEAD ASM; CYL	8-97606-991-6	01	1	0608-1004					●
1	HEAD ASM; CYL	8-98170-622-0	01	1	1005-1012					●
1	HEAD ASM; CYL	8-98180-561-2	01	1	1101-1305					●
1	HEAD ASM; CYL	8-98243-815-0	01	1	1306-					●
10	PLUG; GLOW (A)	9-82513-928-9	06	1	9510-9809	●	●	●
10	PLUG; GLOW (A)	1-82513-043-2	06	1	9810-	●	●	●
10	PLUG; GLOW EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A)	8-94392-815-3	06	1	0005-0607				●
10	PLUG; GLOW EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A)	8-94392-815-4	06	1	0608-				●
10	PLUG; GLOW (A)	8-94392-815-4	06	1	0608-					●
10	PLUG; GLOW EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (B) NGK	8-94390-777-6	06	1	0011-				●
11	CONNECTOR; GLOW PLUG (A)	8-94399-608-2	01	1	9510-0206	●	●	●
11	CONNECTOR; GLOW PLUG (A)	8-97136-565-0	01	1	0207-	●	●	●
11	CONNECTOR; GLOW PLUG (B)	8-94399-631-3	01	1	9510-	●	●	●
11	CONNECTOR; GLOW PLUG (A)	8-94391-925-3	01	1	0005-0607				●
11	CONNECTOR; GLOW PLUG (A)	8-94391-925-3	01	1	0608-0804				●	●
11	CONNECTOR; GLOW PLUG (B)	8-98040-648-0	01	1	0805-				●	●
11	CONNECTOR; GLOW PLUG (B)	8-94392-843-1	01	1	0005-0607				●
11	CONNECTOR; GLOW PLUG (B)	8-94392-843-1	01	1	0608-0804				●	●
11	CONNECTOR; GLOW PLUG (A)	8-98040-649-0	01	1	0805-				●	●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	9510-0004	●		●
14	STUD; EXH MANIF EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X60 L=75	8-94397-286-0	10	1	0005-0010				●
14	STUD; EXH MANIF EXC. EURO2 SPECIFICATION<THN> M10X60 L=75	8-94397-286-0	10	1	0011-				●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	01	1	9511-9709		●
14	STUD; EXH MANIF EXC. EURO2 SPECIFICATION<THN> M10X60 L=75	8-94397-286-0	01	1	9710-		●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	0005-0607	●		●
14	STUD; EXH MANIF EURO2 SPECIFICATION<THN> M10X60 L=75	8-94397-286-0	12	1	0005-0607		●		●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	0608-	●		●		●
14	STUD; EXH MANIF EURO2 SPECIFICATION<THN> M10X60 L=75	8-94397-286-0	12	1	0608-		●		●
14	STUD; EXH MANIF M10X93 L=108	8-94396-123-0	11	1	9511-9709		●
14	STUD; EXH MANIF EXC. EURO2 SPECIFICATION<THN> M10X93 L=108	8-94396-123-0	11	1	9710-		●
14	STUD; EXH MANIF EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X68 L=83	8-94392-483-0	02	1	0005-0010				●
14	STUD; EXH MANIF EXC. EURO2 SPECIFICATION<THN> M10X68 L=83	8-94392-483-0	02	1	0011-0608				●
14	STUD; EXH MANIF EXC. EURO2 SPECIFICATION<THN> M10X85 L=100	8-98037-215-0	02	1	0609-				●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	9510-0004	●	●	●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	0005-0607	●	●	●	●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	0608-	●	●	●	●	●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	9510-0004	●	●	●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	0005-0607	●	●	●	●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	0608-	●	●	●	●	●
138	GEAR; IDLE Z=41	8-97112-607-0	01	1	9510-0004	●	●	●
138	GEAR; IDLE Z=41	8-97112-607-0	01	1	0005-0607	●	●	●	●
138	GEAR; IDLE Z=41	8-97112-607-1	01	1	0608-	●	●	●	●	●
139	SHAFT; IDLE GEAR	8-97065-555-1	01	1	9510-9711	●	●	●
139	SHAFT; IDLE GEAR	8-97186-398-0	01	1	9712-0004	●	●	●
139	SHAFT; IDLE GEAR	8-97186-398-1	01	1	0005-0607	●	●	●	●
139	SHAFT; IDLE GEAR	8-97186-398-1	01	1	0608-	●	●	●	●	●
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	9510-0004	●	●	●
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	0005-0607	●	●	●	●
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	0608-1005	●	●	●	●	●
141	PLUG; RUBBER,CYL HD	8-98163-813-0	02	1	1006-	●	●	●	●	●
192	NUT; GLOW PLUG EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M4 FLANGE	8-97368-853-0	06	1	0011-				●

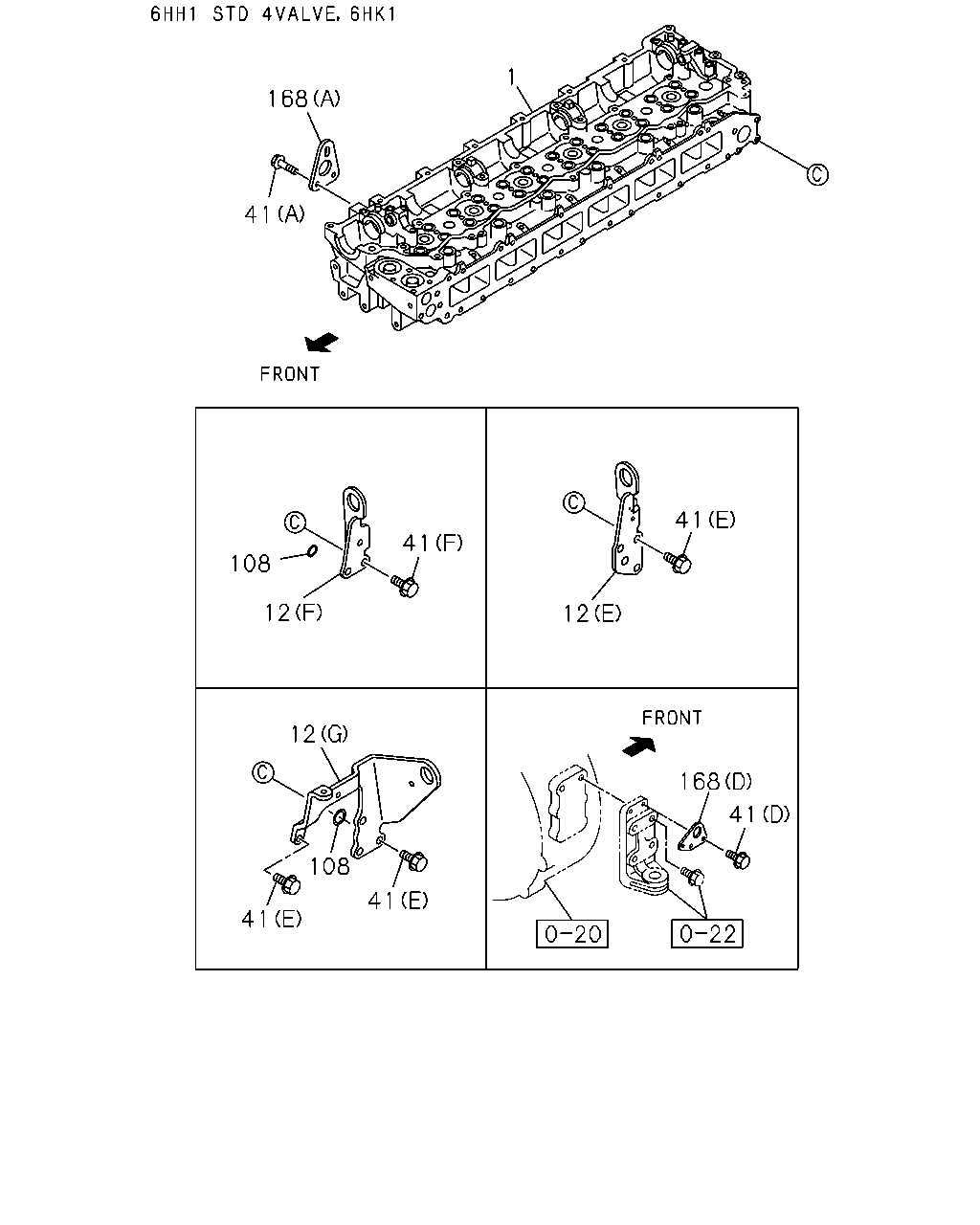

168 41 168 168 41 1 12 41 41 108 12 41 12 12 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	HEAD ASM; CYL	8-94393-375-2	01	1	9510-9608	●
1	HEAD ASM; CYL	8-94390-082-7	01	1	9609-1012	●
1	HEAD ASM; CYL	8-98180-572-1	01	1	1101-	●
1	HEAD ASM; CYL	8-94393-807-5	01	1	9511-9608		●
1	HEAD ASM; CYL	8-94390-967-1	01	1	9609-9709		●
1	HEAD ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-94390-967-3	01	1	9710-1012		●
1	HEAD ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-98180-576-1	01	1	1101-		●
1	HEAD ASM; CYL EURO2 SPECIFICATION<THN>	8-94391-162-6	01	1	9710-1012		●
1	HEAD ASM; CYL	8-94391-162-6	01	1	9710-1012			●
1	HEAD ASM; CYL EURO2 SPECIFICATION<THN>	8-98180-577-1	01	1	1101-		●
1	HEAD ASM; CYL	8-98180-577-1	01	1	1101-			●
1	HEAD ASM; CYL	8-94392-455-9	01	1	0005-0207				●
1	HEAD ASM; CYL	8-97602-584-2	01	1	0208-0406				●
1	HEAD ASM; CYL	8-97605-007-2	01	1	0407-0507				●
1	HEAD ASM; CYL	8-97606-994-5	01	1	0508-1004				●
1	HEAD ASM; CYL	8-98170-625-0	01	1	1005-1012				●
1	HEAD ASM; CYL	8-98180-564-2	01	1	1101-1305				●
1	HEAD ASM; CYL	8-98243-818-0	01	1	1306-				●
1	HEAD ASM; CYL	8-97606-991-6	01	1	0608-1004					●
1	HEAD ASM; CYL	8-98170-622-0	01	1	1005-1012					●
1	HEAD ASM; CYL	8-98180-561-2	01	1	1101-1305					●
1	HEAD ASM; CYL	8-98243-815-0	01	1	1306-					●
12	HANGER; ENG,RR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (G)	8-94391-640-2	01	1	0608-					●
12	HANGER; ENG,RR AIR COMPRESSOR HEAVY DUTY(E1Q) (G)	8-94390-417-2	01	1	0608-					●
12	HANGER; ENG,RR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-405-0	01	1	9510-	●
12	HANGER; ENG,RR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-404-3	01	1	9510-	●
12	HANGER; ENG,RR (D)	8-94394-553-1	01	1	9511-9709		●
12	HANGER; ENG,RR EXC. EURO2 SPECIFICATION<THN> (D)	8-94394-553-1	01	1	9710-		●
12	HANGER; ENG,RR EURO2 SPECIFICATION<THN> (C)	8-94394-337-1	01	1	9710-		●
12	HANGER; ENG,RR (C)	8-94394-337-1	01	1	9710-			●
12	HANGER; ENG,RR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (F)	8-94392-081-0	01	1	0005-0010				●
12	HANGER; ENG,RR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (F)	8-94392-081-0	01	1	0005-0010				●
12	HANGER; ENG,RR EXC. EURO2 SPECIFICATION<THN> (F)	8-94392-081-1	01	1	0011-				●
12	HANGER; ENG,RR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (F)	8-94392-081-1	01	1	0011-				●
12	HANGER; ENG,RR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (E)	8-94392-080-0	01	1	0005-				●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	02	1	9510-0004	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	02	1	0005-0512	●			●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-	●			●
41	BOLT; ENG HANGER (B) M12X28 FLANGE	0-28181-228-0	02	1	9510-	●
41	BOLT; ENG HANGER AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE	0-28181-222-0	01	1	9510-	●
41	BOLT; ENG HANGER (B) M10X30 FLANGE	0-28181-030-0	02	1	9511-9709		●
41	BOLT; ENG HANGER EXC. EURO2 SPECIFICATION<THN> (B) M10X30 FLANGE	0-28181-030-0	02	1	9710-0512		●
41	BOLT; ENG HANGER EXC. EURO2 SPECIFICATION<THN> (B) M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	03	1	9511-0512		●	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28151-020-0	03	1	0601-0607		●	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28151-020-0	03	1	0608-		●	●		●
41	BOLT; ENG HANGER (E) M12X22 FLANGE	0-28181-222-0	03	1	9511-0004		●	●
41	BOLT; ENG HANGER (E) M12X22 FLANGE	0-28181-222-0	03	1	0005-0607		●	●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (E) M12X22 FLANGE	0-28181-222-0	03	1	0005-0607				●
41	BOLT; ENG HANGER (E) M12X22 FLANGE	0-28181-222-0	03	1	0608-		●	●		●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (E) M12X22 FLANGE	0-28181-222-0	03	1	0608-				●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<THN> (D) M10X25 FLANGE	0-28781-025-0	02	1	9710-0512		●
41	BOLT; ENG HANGER (D) M10X25 FLANGE	0-28781-025-0	02	1	9710-0512			●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<THN> (D) M10X25 FLANGE	0-28751-025-0	02	1	0601-0607		●
41	BOLT; ENG HANGER (D) M10X25 FLANGE	0-28751-025-0	02	1	0601-0607			●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<THN> (D) M10X25 FLANGE	0-28751-025-0	02	1	0608-		●
41	BOLT; ENG HANGER (D) M10X25 FLANGE	0-28751-025-0	02	1	0608-			●		●
41	BOLT; ENG HANGER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D) M12X50 FLANGE	0-28181-250-0	02	1	0005-0512				●
41	BOLT; ENG HANGER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D) M12X50 FLANGE	0-28151-250-0	02	1	0601-				●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (F) M12X22 FLANGE	0-28181-222-0	02	1	0005-0010				●
41	BOLT; ENG HANGER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (F) M12X22 FLANGE	0-28181-222-0	02	1	0011-				●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (F) M12X22 FLANGE	0-28181-222-0	02	1	0011-				●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	9510-0004	●	●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0005-0106	●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> ID=35.2	1-09623-375-0	01	1	0005-0106		●
108	GASKET; HANGER,RR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0005-0106				●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0107-0208	●	●
108	GASKET; HANGER,RR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0107-0208				●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0209-0607	●
108	GASKET; HANGER,RR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0209-0607				●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0608-0711	●				●
108	GASKET; HANGER,RR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0608-0711				●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0712-	●				●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> ID=35.2	1-09623-375-0	01	1	0712-		●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> ID=35.2	1-09623-375-0	01	1	0712-				●
168	HANGER; ENG,FRT (D)	8-94392-799-0	01	1	0608-					●
168	HANGER; ENG,FRT (A)	8-94399-403-0	01	1	9510-0004	●
168	HANGER; ENG,FRT (A)	8-94399-403-1	01	1	0005-0607	●			●
168	HANGER; ENG,FRT (A)	8-94399-403-1	01	1	0608-	●			●	●
168	HANGER; ENG,FRT (B)	8-94394-071-1	01	1	9511-9709		●
168	HANGER; ENG,FRT EXC. EURO2 SPECIFICATION<THN> (B)	8-94394-071-2	01	1	9710-		●
168	HANGER; ENG,FRT (C)	8-94394-398-0	01	1	9511-9709		●
168	HANGER; ENG,FRT (C)	8-94394-398-1	01	1	9710-		●	●
168	HANGER; ENG,FRT EURO2 SPECIFICATION<THN> (B)	8-94391-505-0	01	1	9710-		●
168	HANGER; ENG,FRT (B)	8-94391-505-0	01	1	9710-			●

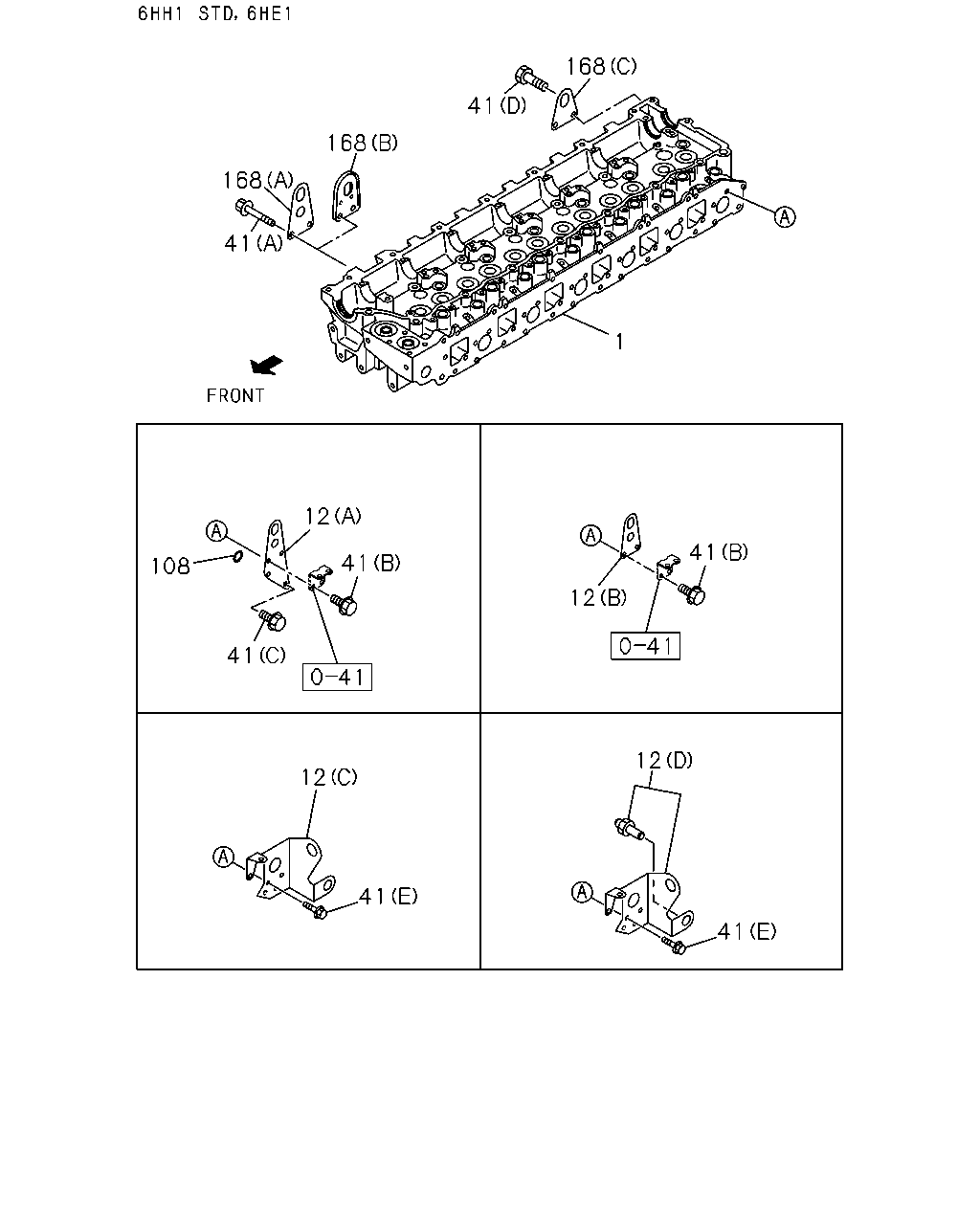

1 168 41 41 41 108 12 12 12 168 41 108 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	HEAD ASM; CYL	8-94393-375-2	01	1	9510-9608	●
1	HEAD ASM; CYL	8-94390-082-7	01	1	9609-1012	●
1	HEAD ASM; CYL	8-98180-572-1	01	1	1101-	●
1	HEAD ASM; CYL	8-94393-807-5	01	1	9511-9608		●
1	HEAD ASM; CYL	8-94390-967-1	01	1	9609-9709		●
1	HEAD ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-94390-967-3	01	1	9710-1012		●
1	HEAD ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-98180-576-1	01	1	1101-		●
1	HEAD ASM; CYL EURO2 SPECIFICATION<THN>	8-94391-162-6	01	1	9710-1012		●
1	HEAD ASM; CYL	8-94391-162-6	01	1	9710-1012			●
1	HEAD ASM; CYL EURO2 SPECIFICATION<THN>	8-98180-577-1	01	1	1101-		●
1	HEAD ASM; CYL	8-98180-577-1	01	1	1101-			●
1	HEAD ASM; CYL	8-94392-455-9	01	1	0005-0207				●
1	HEAD ASM; CYL	8-97602-584-2	01	1	0208-0406				●
1	HEAD ASM; CYL	8-97605-007-2	01	1	0407-0507				●
1	HEAD ASM; CYL	8-97606-994-5	01	1	0508-1004				●
1	HEAD ASM; CYL	8-98170-625-0	01	1	1005-1012				●
1	HEAD ASM; CYL	8-98180-564-2	01	1	1101-1305				●
1	HEAD ASM; CYL	8-98243-818-0	01	1	1306-				●
1	HEAD ASM; CYL	8-97606-991-6	01	1	0608-1004					●
1	HEAD ASM; CYL	8-98170-622-0	01	1	1005-1012					●
1	HEAD ASM; CYL	8-98180-561-2	01	1	1101-1305					●
1	HEAD ASM; CYL	8-98243-815-0	01	1	1306-					●
12	HANGER; ENG,RR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (G)	8-94391-640-2	01	1	0608-					●
12	HANGER; ENG,RR AIR COMPRESSOR HEAVY DUTY(E1Q) (G)	8-94390-417-2	01	1	0608-					●
12	HANGER; ENG,RR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94399-405-0	01	1	9510-	●
12	HANGER; ENG,RR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94399-404-3	01	1	9510-	●
12	HANGER; ENG,RR (D)	8-94394-553-1	01	1	9511-9709		●
12	HANGER; ENG,RR EXC. EURO2 SPECIFICATION<THN> (D)	8-94394-553-1	01	1	9710-		●
12	HANGER; ENG,RR EURO2 SPECIFICATION<THN> (C)	8-94394-337-1	01	1	9710-		●
12	HANGER; ENG,RR (C)	8-94394-337-1	01	1	9710-			●
12	HANGER; ENG,RR EMISSION SYSTEM ECE REQUIREMENTS<SFV> (F)	8-94392-081-0	01	1	0005-0010				●
12	HANGER; ENG,RR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (F)	8-94392-081-0	01	1	0005-0010				●
12	HANGER; ENG,RR EXC. EURO2 SPECIFICATION<THN> (F)	8-94392-081-1	01	1	0011-				●
12	HANGER; ENG,RR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (F)	8-94392-081-1	01	1	0011-				●
12	HANGER; ENG,RR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (E)	8-94392-080-0	01	1	0005-				●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	02	1	9510-0004	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	02	1	0005-0512	●			●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-	●			●
41	BOLT; ENG HANGER (B) M12X28 FLANGE	0-28181-228-0	02	1	9510-	●
41	BOLT; ENG HANGER AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE	0-28181-222-0	01	1	9510-	●
41	BOLT; ENG HANGER (B) M10X30 FLANGE	0-28181-030-0	02	1	9511-9709		●
41	BOLT; ENG HANGER EXC. EURO2 SPECIFICATION<THN> (B) M10X30 FLANGE	0-28181-030-0	02	1	9710-0512		●
41	BOLT; ENG HANGER EXC. EURO2 SPECIFICATION<THN> (B) M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28181-020-0	03	1	9511-0512		●	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28151-020-0	03	1	0601-0607		●	●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28151-020-0	03	1	0608-		●	●		●
41	BOLT; ENG HANGER (E) M12X22 FLANGE	0-28181-222-0	03	1	9511-0004		●	●
41	BOLT; ENG HANGER (E) M12X22 FLANGE	0-28181-222-0	03	1	0005-0607		●	●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (E) M12X22 FLANGE	0-28181-222-0	03	1	0005-0607				●
41	BOLT; ENG HANGER (E) M12X22 FLANGE	0-28181-222-0	03	1	0608-		●	●		●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (E) M12X22 FLANGE	0-28181-222-0	03	1	0608-				●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<THN> (D) M10X25 FLANGE	0-28781-025-0	02	1	9710-0512		●
41	BOLT; ENG HANGER (D) M10X25 FLANGE	0-28781-025-0	02	1	9710-0512			●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<THN> (D) M10X25 FLANGE	0-28751-025-0	02	1	0601-0607		●
41	BOLT; ENG HANGER (D) M10X25 FLANGE	0-28751-025-0	02	1	0601-0607			●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<THN> (D) M10X25 FLANGE	0-28751-025-0	02	1	0608-		●
41	BOLT; ENG HANGER (D) M10X25 FLANGE	0-28751-025-0	02	1	0608-			●		●
41	BOLT; ENG HANGER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D) M12X50 FLANGE	0-28181-250-0	02	1	0005-0512				●
41	BOLT; ENG HANGER EMISSION SYSTEM ECE REQUIREMENTS<SFV> (D) M12X50 FLANGE	0-28151-250-0	02	1	0601-				●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (F) M12X22 FLANGE	0-28181-222-0	02	1	0005-0010				●
41	BOLT; ENG HANGER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (F) M12X22 FLANGE	0-28181-222-0	02	1	0011-				●
41	BOLT; ENG HANGER EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (F) M12X22 FLANGE	0-28181-222-0	02	1	0011-				●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	9510-0004	●	●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0005-0106	●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> ID=35.2	1-09623-375-0	01	1	0005-0106		●
108	GASKET; HANGER,RR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0005-0106				●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0107-0208	●	●
108	GASKET; HANGER,RR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0107-0208				●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0209-0607	●
108	GASKET; HANGER,RR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0209-0607				●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0608-0711	●				●
108	GASKET; HANGER,RR EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0608-0711				●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2	1-09623-375-0	01	1	0712-	●				●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> ID=35.2	1-09623-375-0	01	1	0712-		●
108	GASKET; HANGER,RR AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> ID=35.2	1-09623-375-0	01	1	0712-				●
168	HANGER; ENG,FRT (D)	8-94392-799-0	01	1	0608-					●
168	HANGER; ENG,FRT (A)	8-94399-403-0	01	1	9510-0004	●
168	HANGER; ENG,FRT (A)	8-94399-403-1	01	1	0005-0607	●			●
168	HANGER; ENG,FRT (A)	8-94399-403-1	01	1	0608-	●			●	●
168	HANGER; ENG,FRT (B)	8-94394-071-1	01	1	9511-9709		●
168	HANGER; ENG,FRT EXC. EURO2 SPECIFICATION<THN> (B)	8-94394-071-2	01	1	9710-		●
168	HANGER; ENG,FRT (C)	8-94394-398-0	01	1	9511-9709		●
168	HANGER; ENG,FRT (C)	8-94394-398-1	01	1	9710-		●	●
168	HANGER; ENG,FRT EURO2 SPECIFICATION<THN> (B)	8-94391-505-0	01	1	9710-		●
168	HANGER; ENG,FRT (B)	8-94391-505-0	01	1	9710-			●

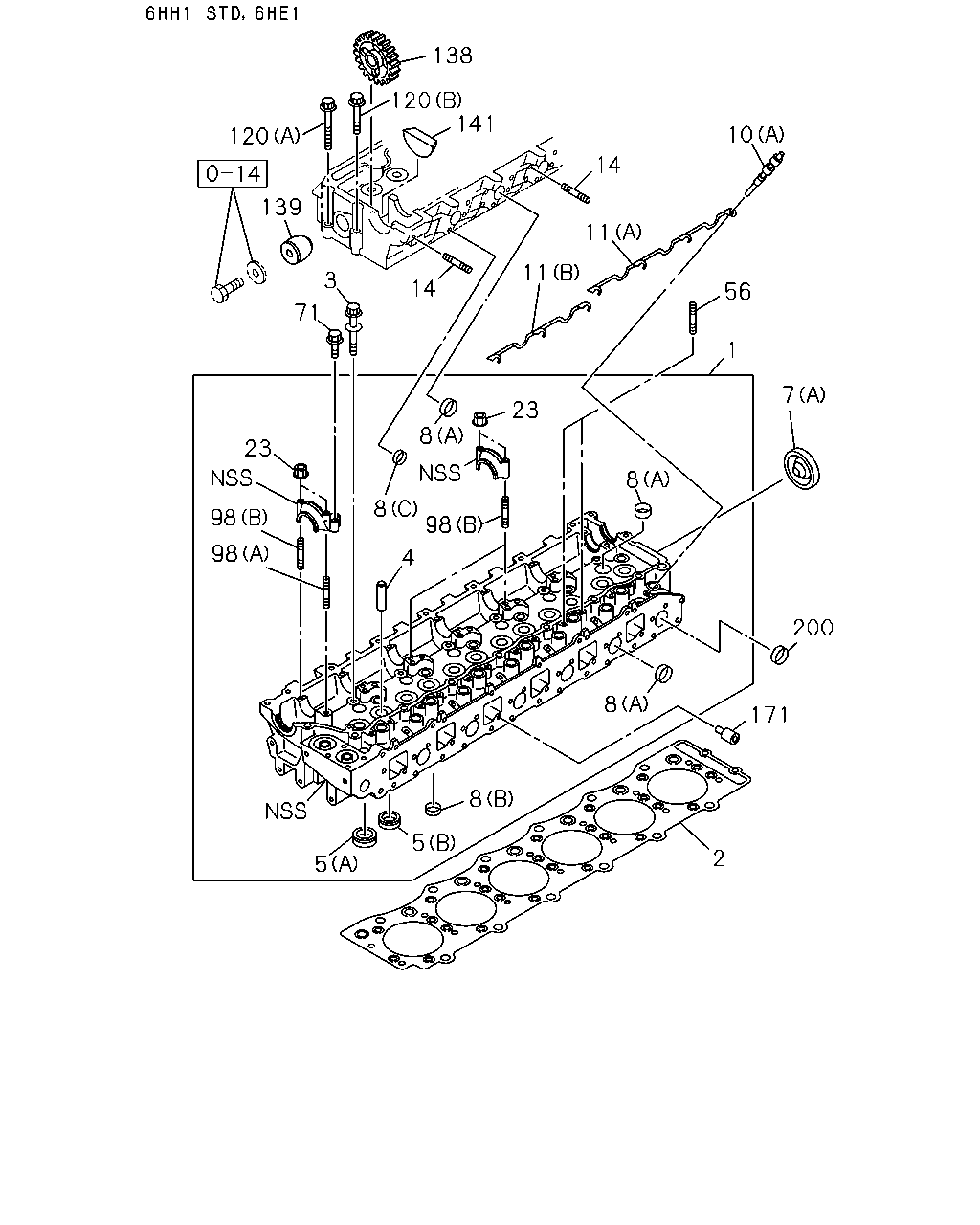

138 120 141 10 120 14 139 11 11 3 14 56 71 1 7 23 8 23 8 8 98 98 98 4 200 8 171 8 5 2 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	HEAD ASM; CYL	8-94393-375-2	01	1	9510-9608	●
1	HEAD ASM; CYL	8-94390-082-7	01	1	9609-1012	●
1	HEAD ASM; CYL	8-98180-572-1	01	1	1101-	●
1	HEAD ASM; CYL	8-94393-807-5	01	1	9511-9608		●
1	HEAD ASM; CYL	8-94390-967-1	01	1	9609-9709		●
1	HEAD ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-94390-967-3	01	1	9710-1012		●
1	HEAD ASM; CYL EXC. EURO2 SPECIFICATION<THN>	8-98180-576-1	01	1	1101-		●
1	HEAD ASM; CYL EURO2 SPECIFICATION<THN>	8-94391-162-6	01	1	9710-1012		●
1	HEAD ASM; CYL	8-94391-162-6	01	1	9710-1012			●
1	HEAD ASM; CYL EURO2 SPECIFICATION<THN>	8-98180-577-1	01	1	1101-		●
1	HEAD ASM; CYL	8-98180-577-1	01	1	1101-			●
1	HEAD ASM; CYL	8-94392-455-9	01	1	0005-0207				●
1	HEAD ASM; CYL	8-97602-584-2	01	1	0208-0406				●
1	HEAD ASM; CYL	8-97605-007-2	01	1	0407-0507				●
1	HEAD ASM; CYL	8-97606-994-5	01	1	0508-1004				●
1	HEAD ASM; CYL	8-98170-625-0	01	1	1005-1012				●
1	HEAD ASM; CYL	8-98180-564-2	01	1	1101-1305				●
1	HEAD ASM; CYL	8-98243-818-0	01	1	1306-				●
1	HEAD ASM; CYL	8-97606-991-6	01	1	0608-1004					●
1	HEAD ASM; CYL	8-98170-622-0	01	1	1005-1012					●
1	HEAD ASM; CYL	8-98180-561-2	01	1	1101-1305					●
1	HEAD ASM; CYL	8-98243-815-0	01	1	1306-					●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-346-3	01	1	9510-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94395-447-2	01	1	9511-		●	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-787-4	01	1	0005-0407				●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97605-228-0	01	1	0408-0607				●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97605-228-0	01	1	0608-				●	●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-94396-207-3	26	1	9510-0004	●	●	●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-94396-207-3	26	1	0005-0607	●	●	●	●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-94396-207-3	26	1	0608-0901	●	●	●	●	●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-97077-638-0	26	1	0902-1407	●	●	●	●	●
3	BOLT; CYL HD TO BLOCK M14X115 W/FLANGE	8-98260-005-0	26	1	1408-	●	●	●	●	●
4	GUIDE; VLV	8-94396-598-0	12	1	9510-	●	●	●
4	GUIDE; VLV L=57	8-94390-780-0	24	1	0005-0607				●
4	GUIDE; VLV L=57	8-94390-780-0	24	1	0608-0707				●	●
4	GUIDE; VLV L=57	8-97376-719-2	24	1	0708-				●	●
5	SEAT; VLV INSERT (B) OD=38	8-94395-888-2	12	1	0608-					●
5	SEAT; VLV INSERT (B) OD=52	8-94394-127-0	06	1	9510-	●
5	SEAT; VLV INSERT (A) OD=43	8-94396-172-0	06	1	9510-	●	●	●
5	SEAT; VLV INSERT (B) OD=48	8-94394-462-0	06	1	9511-		●	●
5	SEAT; VLV INSERT (B) OD=40	8-94395-624-0	12	1	0005-0106				●
5	SEAT; VLV INSERT (B) OD=40	8-97216-510-0	12	1	0107-				●
5	SEAT; VLV INSERT (A) OD=38	8-94395-625-0	12	1	0005-0106				●
5	SEAT; VLV INSERT (A) OD=38	8-97216-511-0	12	1	0107-0607				●
5	SEAT; VLV INSERT (A) OD=38	8-97216-511-0	12	1	0608-0703				●	●
5	SEAT; VLV INSERT (A) ID=31 OD=38	8-98028-875-0	12	1	0704-				●	●
7	CUP; SEALING,CYL HEAD (A) OD=51	8-94396-229-0	01	1	9510-0004	●	●	●
7	CUP; SEALING,CYL HEAD (A) OD=51	8-94396-229-0	01	1	0005-0303	●	●	●	●
7	CUP; SEALING,CYL HEAD (A) OD=51	8-97096-826-0	01	1	0304-0607	●	●	●	●
7	CUP; SEALING,CYL HEAD (A) OD=51	8-97096-826-0	01	1	0608-	●	●	●	●	●
7	CUP; SEALING,CYL HEAD EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) OD=30	8-94393-509-0	01	1	0005-				●
8	CUP; SEALING,WATER JACKET EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) OD=32	1-09600-012-1	07	1	0005-0010				●
8	CUP; SEALING,WATER JACKET EXC. EURO2 SPECIFICATION<THN> (A) OD=32	1-09600-012-2	07	1	0011-				●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	03	1	9510-9802	●	●	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	03	1	0005-	●	●	●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	06	1	9510-	●	●	●
8	CUP; SEALING,WATER JACKET EURO2 SPECIFICATION<THN> (A) OD=32	1-09600-012-2	06	1	0005-0607				●
8	CUP; SEALING,WATER JACKET EURO2 SPECIFICATION<THN> (A) OD=32	1-09600-012-2	06	1	0608-				●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-2	06	1	0608-					●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	03	1	9803-0004	●	●	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	06	1	0005-0607				●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	06	1	0608-				●	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-2	17	1	9510-	●	●	●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-1	01	1	9510-0004	●	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	01	1	0005-0012	●	●		●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	01	1	0101-0101	●	●	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	01	1	0102-0106	●
8	CUP; SEALING,WATER JACKET 14" CLUTCH(WF6) (A) OD=32	1-09600-012-1	01	1	0102-0106		●
8	CUP; SEALING,WATER JACKET HEATER & DEFROSTER(C41) EURO2 SPECIFICATION<THN> (A) OD=32	1-09600-012-1	01	1	0102-0106				●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-2	01	1	0107-0607	●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (A) OD=32	1-09600-012-2	01	1	0107-0607		●
8	CUP; SEALING,WATER JACKET EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-2	01	1	0107-0607				●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-2	01	1	0608-	●
8	CUP; SEALING,WATER JACKET EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EURO2 SPECIFICATION<THN> (A) OD=32	1-09600-012-2	01	1	0608-		●
8	CUP; SEALING,WATER JACKET EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32	1-09600-012-2	01	1	0608-				●
8	CUP; SEALING,WATER JACKET HEATER & DEFROSTER(C41) (A) OD=32	1-09600-012-2	01	1	0608-					●
8	CUP; SEALING,WATER JACKET (C) OD=16	5-11129-006-0	07	1	0005-0607				●
8	CUP; SEALING,WATER JACKET (C) OD=16	5-11129-006-0	07	1	0608-				●	●
8	CUP; SEALING,WATER JACKET (D) OD=20	9-11129-128-0	11	1	0005-0607				●
8	CUP; SEALING,WATER JACKET (D) OD=20	9-11129-128-0	11	1	0608-				●	●
10	PLUG; GLOW (A)	9-82513-928-9	06	1	9510-9809	●	●	●
10	PLUG; GLOW (A)	1-82513-043-2	06	1	9810-	●	●	●
10	PLUG; GLOW EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A)	8-94392-815-3	06	1	0005-0607				●
10	PLUG; GLOW EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A)	8-94392-815-4	06	1	0608-				●
10	PLUG; GLOW (A)	8-94392-815-4	06	1	0608-					●
10	PLUG; GLOW EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (B) NGK	8-94390-777-6	06	1	0011-				●
11	CONNECTOR; GLOW PLUG (A)	8-94399-608-2	01	1	9510-0206	●	●	●
11	CONNECTOR; GLOW PLUG (A)	8-97136-565-0	01	1	0207-	●	●	●
11	CONNECTOR; GLOW PLUG (B)	8-94399-631-3	01	1	9510-	●	●	●
11	CONNECTOR; GLOW PLUG (A)	8-94391-925-3	01	1	0005-0607				●
11	CONNECTOR; GLOW PLUG (A)	8-94391-925-3	01	1	0608-0804				●	●
11	CONNECTOR; GLOW PLUG (B)	8-98040-648-0	01	1	0805-				●	●
11	CONNECTOR; GLOW PLUG (B)	8-94392-843-1	01	1	0005-0607				●
11	CONNECTOR; GLOW PLUG (B)	8-94392-843-1	01	1	0608-0804				●	●
11	CONNECTOR; GLOW PLUG (A)	8-98040-649-0	01	1	0805-				●	●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	9510-0004	●		●
14	STUD; EXH MANIF EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X60 L=75	8-94397-286-0	10	1	0005-0010				●
14	STUD; EXH MANIF EXC. EURO2 SPECIFICATION<THN> M10X60 L=75	8-94397-286-0	10	1	0011-				●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	01	1	9511-9709		●
14	STUD; EXH MANIF EXC. EURO2 SPECIFICATION<THN> M10X60 L=75	8-94397-286-0	01	1	9710-		●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	0005-0607	●		●
14	STUD; EXH MANIF EURO2 SPECIFICATION<THN> M10X60 L=75	8-94397-286-0	12	1	0005-0607		●		●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	0608-	●		●		●
14	STUD; EXH MANIF EURO2 SPECIFICATION<THN> M10X60 L=75	8-94397-286-0	12	1	0608-		●		●
14	STUD; EXH MANIF M10X93 L=108	8-94396-123-0	11	1	9511-9709		●
14	STUD; EXH MANIF EXC. EURO2 SPECIFICATION<THN> M10X93 L=108	8-94396-123-0	11	1	9710-		●
14	STUD; EXH MANIF EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X68 L=83	8-94392-483-0	02	1	0005-0010				●
14	STUD; EXH MANIF EXC. EURO2 SPECIFICATION<THN> M10X68 L=83	8-94392-483-0	02	1	0011-0608				●
14	STUD; EXH MANIF EXC. EURO2 SPECIFICATION<THN> M10X85 L=100	8-98037-215-0	02	1	0609-				●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	14	1	9510-9608	●	●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	08	1	9609-0004	●	●	●
23	NUT; CAM BRKT M8 FLANGE	0-91150-208-0	08	1	0005-0602	●	●	●	●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	08	1	0603-0607	●	●	●	●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	08	1	0608-	●	●	●	●	●
56	STUD; NOZZLE HOLDER M8X66 L=90	1-09300-014-0	12	1	9511-		●	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28080-835-0	02	1	9510-0004	●	●	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28080-835-0	02	1	0005-0512	●	●	●	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	0601-0607	●	●	●	●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	0608-	●	●	●	●	●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	12	1	9510-9608	●	●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	9609-0004	●	●	●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	0005-0607	●	●	●	●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	0608-	●	●	●	●	●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	9510-0004	●	●	●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	0005-0607	●	●	●	●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	0608-	●	●	●	●	●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	9510-0004	●	●	●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	0005-0607	●	●	●	●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	0608-	●	●	●	●	●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	9510-0004	●	●	●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	0005-0607	●	●	●	●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	0608-	●	●	●	●	●
138	GEAR; IDLE Z=41	8-97112-607-0	01	1	9510-0004	●	●	●
138	GEAR; IDLE Z=41	8-97112-607-0	01	1	0005-0607	●	●	●	●
138	GEAR; IDLE Z=41	8-97112-607-1	01	1	0608-	●	●	●	●	●
139	SHAFT; IDLE GEAR	8-97065-555-1	01	1	9510-9711	●	●	●
139	SHAFT; IDLE GEAR	8-97186-398-0	01	1	9712-0004	●	●	●
139	SHAFT; IDLE GEAR	8-97186-398-1	01	1	0005-0607	●	●	●	●
139	SHAFT; IDLE GEAR	8-97186-398-1	01	1	0608-	●	●	●	●	●
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	9510-0004	●	●	●
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	0005-0607	●	●	●	●
141	PLUG; RUBBER,CYL HD	8-94399-605-0	02	1	0608-1005	●	●	●	●	●
141	PLUG; RUBBER,CYL HD	8-98163-813-0	02	1	1006-	●	●	●	●	●
171	SEAT; VLV	8-94395-571-1	06	1	9510-0004	●	●
171	SEAT; VLV	8-94395-571-1	06	1	0005-	●
171	SEAT; VLV EXC. EURO2 SPECIFICATION<THN>	8-94395-571-1	06	1	0005-		●
171	SEAT; VLV EURO2 SPECIFICATION<THN>	8-94394-678-1	06	1	9710-		●
171	SEAT; VLV	8-94394-678-1	06	1	9710-			●
200	CUP; SEALING,INLET MANIFOLD EURO2 SPECIFICATION<THN> OD=32	1-09600-012-2	01	1	9710-		●
200	CUP; SEALING,INLET MANIFOLD OD=32	1-09600-012-2	01	1	9710-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
