◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51124 - NPR/NQR(RHD) EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#39129) — 77 parça
çizim 56533
1 18 228 24 2 16 19 99 17 12 13 15 69 382 63 67 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-674-3 01 1 0608- ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-474-3 01 1 0608- ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97397-955-3 01 1 0608- ● ●
1 16.720 BACK ASM; SEAT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-371-3 01 1 0608- ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-480-3 01 1 0608- ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-680-3 01 1 0608- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-675-2 01 1 0608- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-475-2 01 1 0608- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97397-965-2 01 1 0608- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-372-2 01 1 0608- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-481-2 01 1 0608- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-681-2 01 1 0608- ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-488-1 01 1 0608- ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97397-972-1 01 1 0608- ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97397-970-1 01 1 0608- ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97397-976-1 01 1 0608- ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97397-978-1 01 1 0608- ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-682-1 01 1 0608- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-489-1 01 1 0608- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97397-982-1 01 1 0608- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97397-980-1 01 1 0608- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97397-986-1 01 1 0608- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97397-988-1 01 1 0608- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-683-1 01 1 0608- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> 		8-97854-055-1 01 1 0608- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> 		8-97854-055-1 01 1 0608- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> 		8-97854-986-1 01 1 0608- ● ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-3 01 1 0608- ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 0608- ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-274-3 01 1 0608- ● ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0608- ● ●
18 16.682 COVER; RECLINING
GRAY 		8-97398-249-0 01 1 0608- ● ●
19 16.686 SCREW; COVER
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0608- ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97398-250-0 01 1 0608-0804 ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97415-445-0 01 1 0805- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 		8-97869-043-0 01 1 0608- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> 		8-97854-059-3 01 1 0608- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 0608- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SEAT CLOTH<7FL> 		8-97854-059-3 01 1 0608- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0608-0611 ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.679 M8X20 W/PL WASHER 		8-98031-841-0 01 1 0612-0612 ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0701- ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 0608- ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0608- ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0608- ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0608- ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 01 1 0608- ● ●

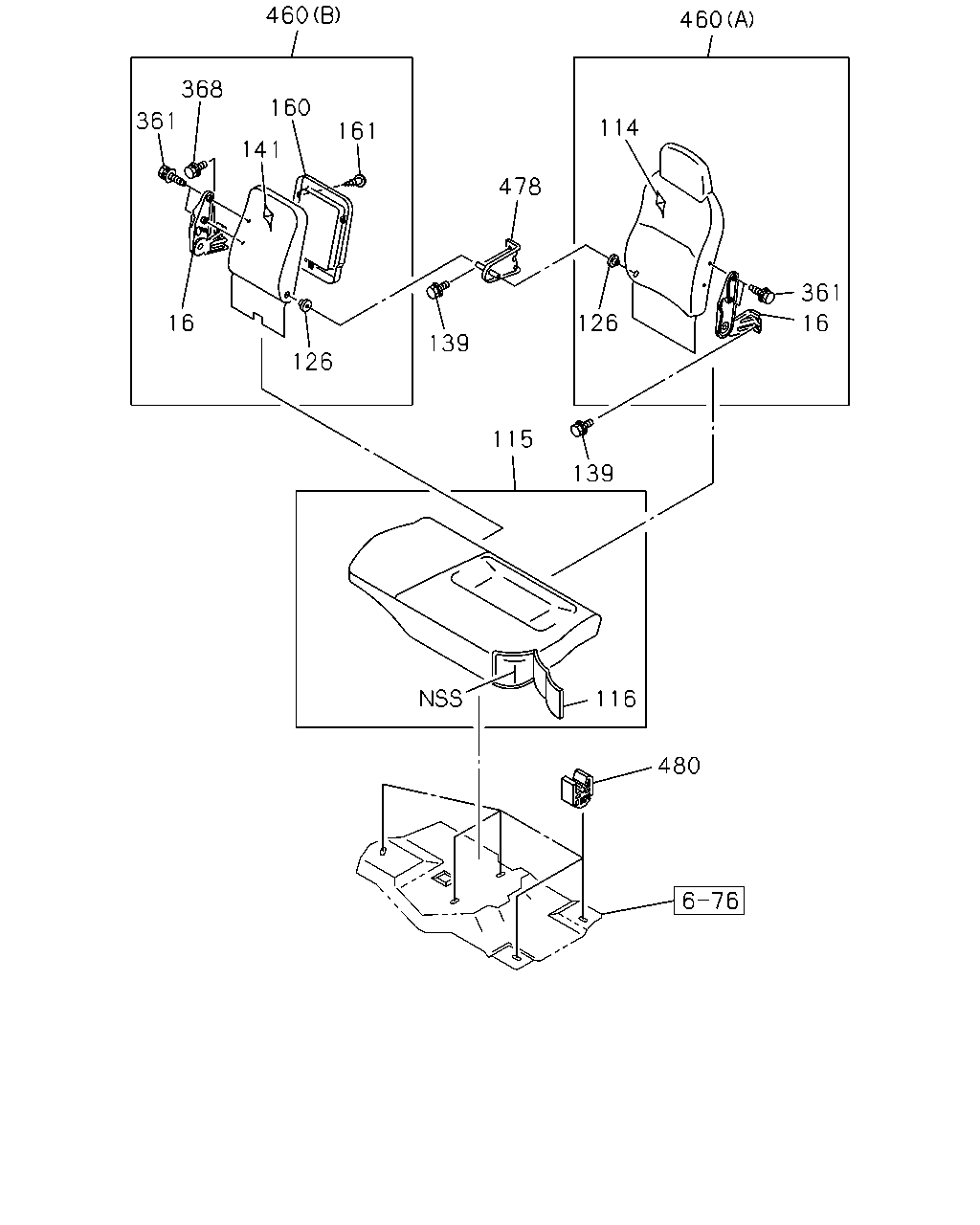

çizim 58852
460 460 368 160 361 114 161 141 478 361 16 126 16 139 126 115 139 116 480
BalonParca AdiParca NoAdetTipApplied Date A B
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-3 01 1 0608- ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 0608- ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-274-3 01 1 0608- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97400-690-2 01 1 0608- ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97397-998-2 01 1 0608- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97400-660-2 01 1 0608- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-661-2 01 1 0608- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY 		8-97400-700-1 01 1 0608- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-701-1 01 1 0608- ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 0608-0804 ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 0608-0804 ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 01 1 0805- ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 01 1 0805- ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0608-0611 ● ●
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 04 1 0612-0612 ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0701- ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97400-697-2 01 1 0608- ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97398-005-2 01 1 0608- ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
GRAY 		8-97398-252-1 01 1 0608- ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 0608- ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0608- ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0608- ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0608- ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0608- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97400-651-2 01 1 0608- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK GRAY 		8-97400-657-3 01 1 0608- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97396-972-3 01 1 0608- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (B) DARK GRAY 		8-97397-446-3 01 1 0608- ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-184-0 01 1 0608- ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0608- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
