Sayfa 7-41 - Isuzu EPC

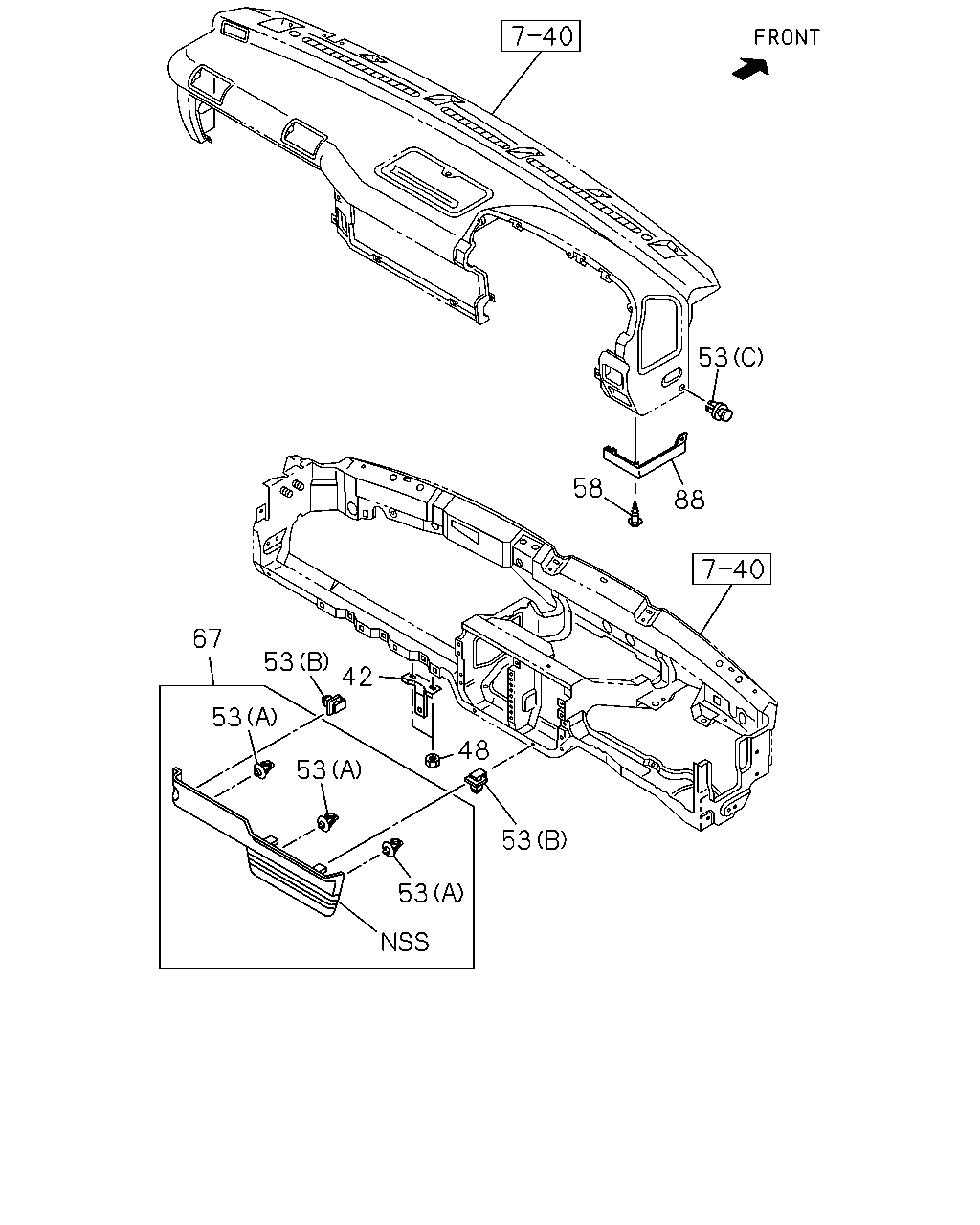

7-41 — UNDER COVER; INSTRUMENT (#39125) — 9 parça

53 58 88 67 53 42 53 48 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	16.110 BRACKET; UNDER COVER	8-97217-299-1	01	1	0608-	●	●
48	16.081 NUT; UNDER COVER 01.062 M6 FLANGE	0-91180-106-0	02	1	0608-	●	●
53	16.085 CLIP; UNDER COVER 06.521 (C) DARK GRAY	8-97582-246-0	01	1	0608-	●	●
53	16.085 CLIP; UNDER COVER 16.100 (A)	8-97853-169-0	04	1	0608-	●	●
53	16.085 CLIP; UNDER COVER (B)	8-97853-249-5	03	1	0608-	●	●
58	09.264 SCREW; UNDER COVER 16.067 M5X14	8-94279-325-0	02	1	0608-0612	●	●
58	09.264 SCREW; UNDER COVER 09.655 M5X14 TAPPING W/TORQUES	8-98061-856-0	02	1	0701-	●	●
67	16.081 COVER; UNDER,INST PNL	8-97856-661-6	01	1	0608-	●	●
88	16.081 COVER; UNDER,INST PNL SIDE DARK GRAY	8-97582-201-2	01	1	0608-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
