7-20 — MIRROR AND MIRROR STAY (#39122) — 107 parça

4 162 2 159 3 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97582-241-1	01	1	0608-0610	●	●
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> DARK GRAY	8-97406-215-1	01	1	0611-	●	●
1	16.068 MIRROR; ROOM EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97582-242-2	01	1	0608-	●	●
2	16.069 SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	0608-0612	●	●
2	16.069 SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> 09.647 M5X20 TAPPING	0-72180-520-0	02	1	0701-0702	●	●
2	16.069 SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	0703-	●	●
2	16.069 SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> 16.263 M5X16	8-94279-341-0	02	1	0608-0612	●	●
2	16.069 SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> M5X16 W/TORQUES	8-98061-741-0	02	1	0701-0702	●	●
2	16.069 SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> 16.263 M5X16	8-94279-341-0	02	1	0703-	●	●
3	16.069 STOPPER; RR VIEW MIRROR TRAY ROOF HEAD<7EJ> WINDSHIELD WEATHERSTRIP TYPE<7EL> L=35	8-97867-849-0	01	1	0608-	●	●
3	16.069 STOPPER; RR VIEW MIRROR TRAY ROOF HEAD<7EJ> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=26	8-97853-263-1	01	1	0608-	●	●
3	16.069 STOPPER; RR VIEW MIRROR EXC. TRAY ROOF HEAD<7EJ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31	8-97859-098-2	01	1	0608-	●	●
3	16.069 STOPPER; RR VIEW MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. TRAY ROOF HEAD<7EJ> L=40	8-94273-036-3	01	1	0608-	●	●
4	16.069 GROMMET; SCREW,ROOM MIRROR TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	01	1	0608-	●	●
158	16.495 LENS; ROOM LAMP 16.068	5-73117-108-1	01	1	0608-	●	●
159	08.991 BULB; ROOM LAMP 24V 10W	5-82194-030-0	01	1	0608-	●	●
162	16.069 SEAL; ROOM LAMP TRAY ROOF HEAD<7EJ>	8-97856-532-0	01	1	0608-	●	●

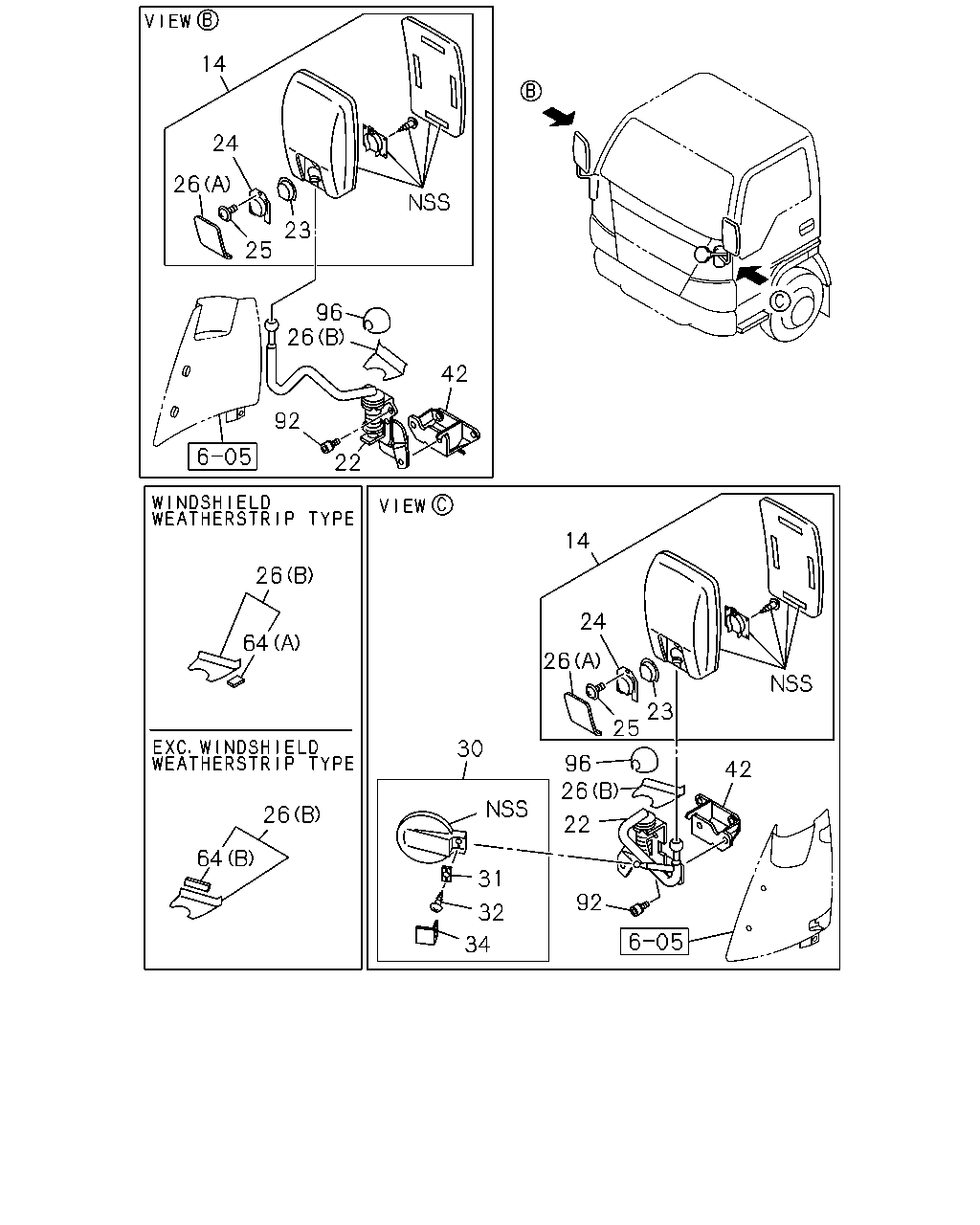

14 24 26 23 25 96 26 42 92 22 14 26 24 64 26 23 25 30 96 26 42 26 22 64 31 92 32 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	16.068 MIRROR ASM; OUTSIDE	8-94262-543-3	01	1	0608-	●	●
14	16.068 MIRROR ASM; OUTSIDE	8-94262-543-3	01	1	0608-	●	●
22	16.069 STAY; OUTSIDE MIRROR	8-97581-747-5	01	1	0608-0701	●	●
22	16.069 STAY; OUTSIDE MIRROR	8-98039-581-1	01	1	0702-	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97581-745-5	01	1	0608-0701	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-98039-579-1	01	1	0702-	●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>	8-97583-376-3	01	1	0608-0701	●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> 06.069	8-98039-586-1	01	1	0702-	●	●
23	16.069 WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	01	1	0608-	●	●
23	16.069 WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	01	1	0608-	●	●
24	16.069 HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	01	1	0608-	●	●
24	16.069 HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	01	1	0608-	●	●
25	16.069 SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	01	1	0608-	●	●
25	16.069 SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	01	1	0608-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97589-159-1	02	1	0608-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97589-166-0	02	1	0608-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-161-1	02	1	0608-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-168-0	02	1	0608-	●	●
26	16.069 COVER; OUTSIDE MIRROR (A) T=2.3	8-94262-547-2	01	1	0608-	●	●
26	16.069 COVER; OUTSIDE MIRROR (A) T=2.3	8-94262-547-2	01	1	0608-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-840-4	01	1	0608-0807	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-840-4	01	1	0808-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-831-5	01	1	0608-0807	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-831-5	01	1	0808-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-844-4	01	1	0608-0807	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-844-4	01	1	0808-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-835-5	01	1	0608-0807	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-835-5	01	1	0808-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97589-167-0	01	1	0608-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97589-160-1	01	1	0608-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97582-842-4	01	1	0608-0807	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97582-842-4	01	1	0808-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97582-833-5	01	1	0608-0807	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97582-833-5	01	1	0808-	●	●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9>	8-94262-625-2	01	1	0608-	●	●
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9>	8-94262-631-0	01	1	0608-	●	●
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> M5X18	8-94279-372-0	02	1	0608-	●	●
34	16.069 CAP; MIRROR UNDER MIRROR<RR9>	8-94262-629-0	01	1	0608-	●	●
42	16.069 ATTACHMENT; OUTSIDE MIRROR	8-97581-755-2	01	1	0608-	●	●
42	16.069 ATTACHMENT; OUTSIDE MIRROR	8-97581-625-2	01	1	0608-	●	●
64	16.069 SEAL; MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-98015-058-0	04	1	0608-	●	●
64	16.069 SEAL; MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-98015-057-0	02	1	0608-0809	●	●
64	16.069 SEAL; MIRROR EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98015-057-0	02	1	0810-	●	●
64	16.069 SEAL; MIRROR KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-98015-057-0	02	1	0810-	●	●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	10	1	0608-0611	●	●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-98020-347-0	10	1	0612-	●	●
96	16.069 CAP; MIRROR STAY	8-97581-631-2	02	1	0608-	●	●

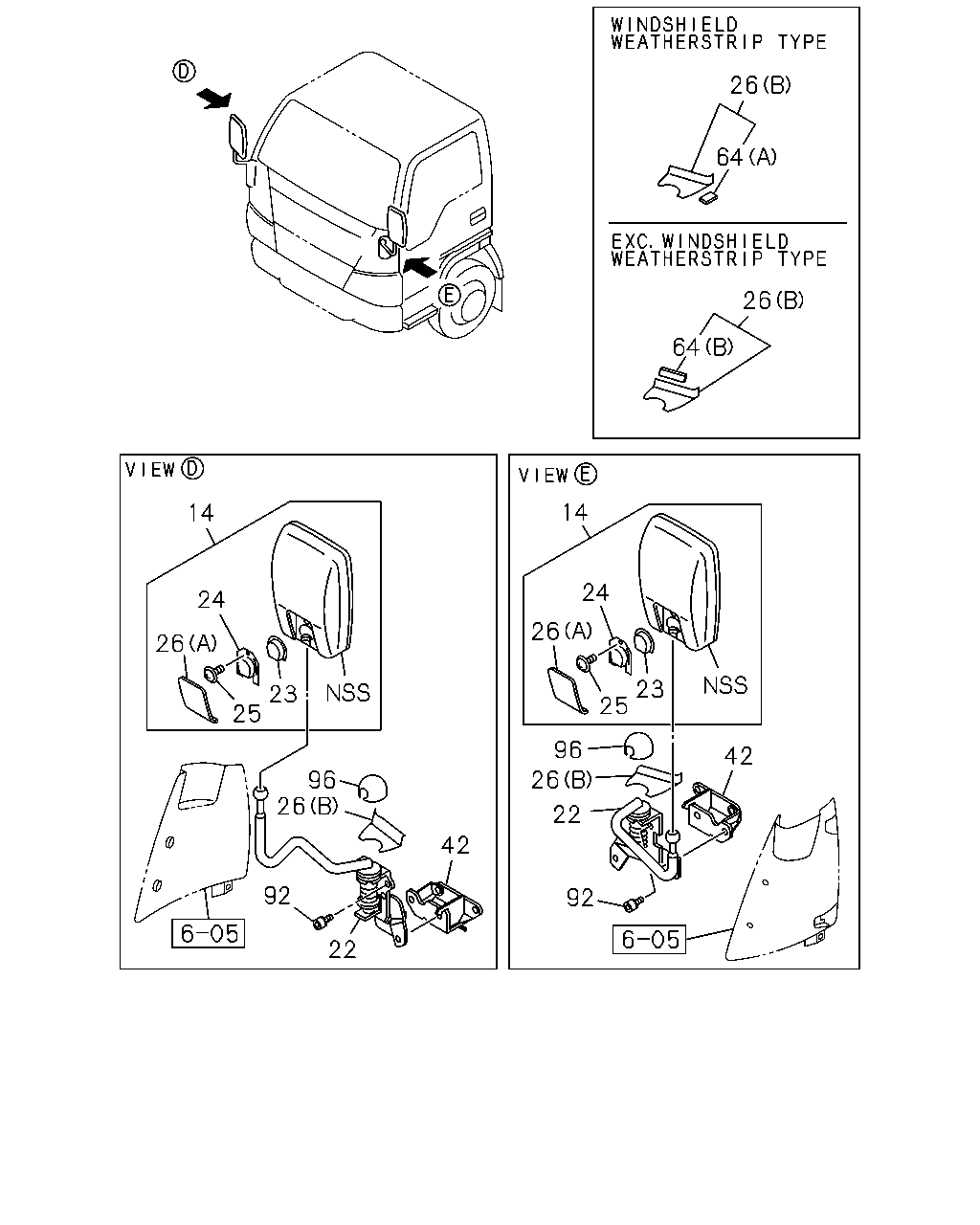

26 64 26 64 14 14 24 24 26 26 23 25 23 25 96 42 26 96 26 22 42 92 92 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	16.068 MIRROR ASM; OUTSIDE	8-94262-543-3	01	1	0608-	●	●
14	16.068 MIRROR ASM; OUTSIDE	8-94262-543-3	01	1	0608-	●	●
22	16.069 STAY; OUTSIDE MIRROR	8-97581-747-5	01	1	0608-0701	●	●
22	16.069 STAY; OUTSIDE MIRROR	8-98039-581-1	01	1	0702-	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-97581-745-5	01	1	0608-0701	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9>	8-98039-579-1	01	1	0702-	●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9>	8-97583-376-3	01	1	0608-0701	●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. UNDER MIRROR<RR9> 06.069	8-98039-586-1	01	1	0702-	●	●
23	16.069 WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	01	1	0608-	●	●
23	16.069 WASHER; OUTSIDE MIRROR T=2.0	8-94262-545-0	01	1	0608-	●	●
24	16.069 HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	01	1	0608-	●	●
24	16.069 HOLDER; OUTSIDE MIRROR T=1.6	8-94262-546-1	01	1	0608-	●	●
25	16.069 SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	01	1	0608-	●	●
25	16.069 SCREW; OUTSIDE MIRROR M6X30	8-94279-365-0	01	1	0608-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97589-159-1	02	1	0608-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97589-166-0	02	1	0608-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-161-1	02	1	0608-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97589-168-0	02	1	0608-	●	●
26	16.069 COVER; OUTSIDE MIRROR (A) T=2.3	8-94262-547-2	01	1	0608-	●	●
26	16.069 COVER; OUTSIDE MIRROR (A) T=2.3	8-94262-547-2	01	1	0608-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-840-4	01	1	0608-0807	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-840-4	01	1	0808-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-831-5	01	1	0608-0807	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-831-5	01	1	0808-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-844-4	01	1	0608-0807	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-844-4	01	1	0808-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-835-5	01	1	0608-0807	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-835-5	01	1	0808-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97589-167-0	01	1	0608-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97589-160-1	01	1	0608-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97582-842-4	01	1	0608-0807	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97582-842-4	01	1	0808-	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97582-833-5	01	1	0608-0807	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97582-833-5	01	1	0808-	●	●
42	16.069 ATTACHMENT; OUTSIDE MIRROR	8-97581-755-2	01	1	0608-	●	●
42	16.069 ATTACHMENT; OUTSIDE MIRROR	8-97581-625-2	01	1	0608-	●	●
64	16.069 SEAL; MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-98015-058-0	04	1	0608-	●	●
64	16.069 SEAL; MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-98015-057-0	02	1	0608-0809	●	●
64	16.069 SEAL; MIRROR EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98015-057-0	02	1	0810-	●	●
64	16.069 SEAL; MIRROR KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-98015-057-0	02	1	0810-	●	●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	10	1	0608-0611	●	●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-98020-347-0	10	1	0612-	●	●
96	16.069 CAP; MIRROR STAY	8-97581-631-2	02	1	0608-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
