◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51124 - NPR/NQR(RHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#39114) — 30 parça

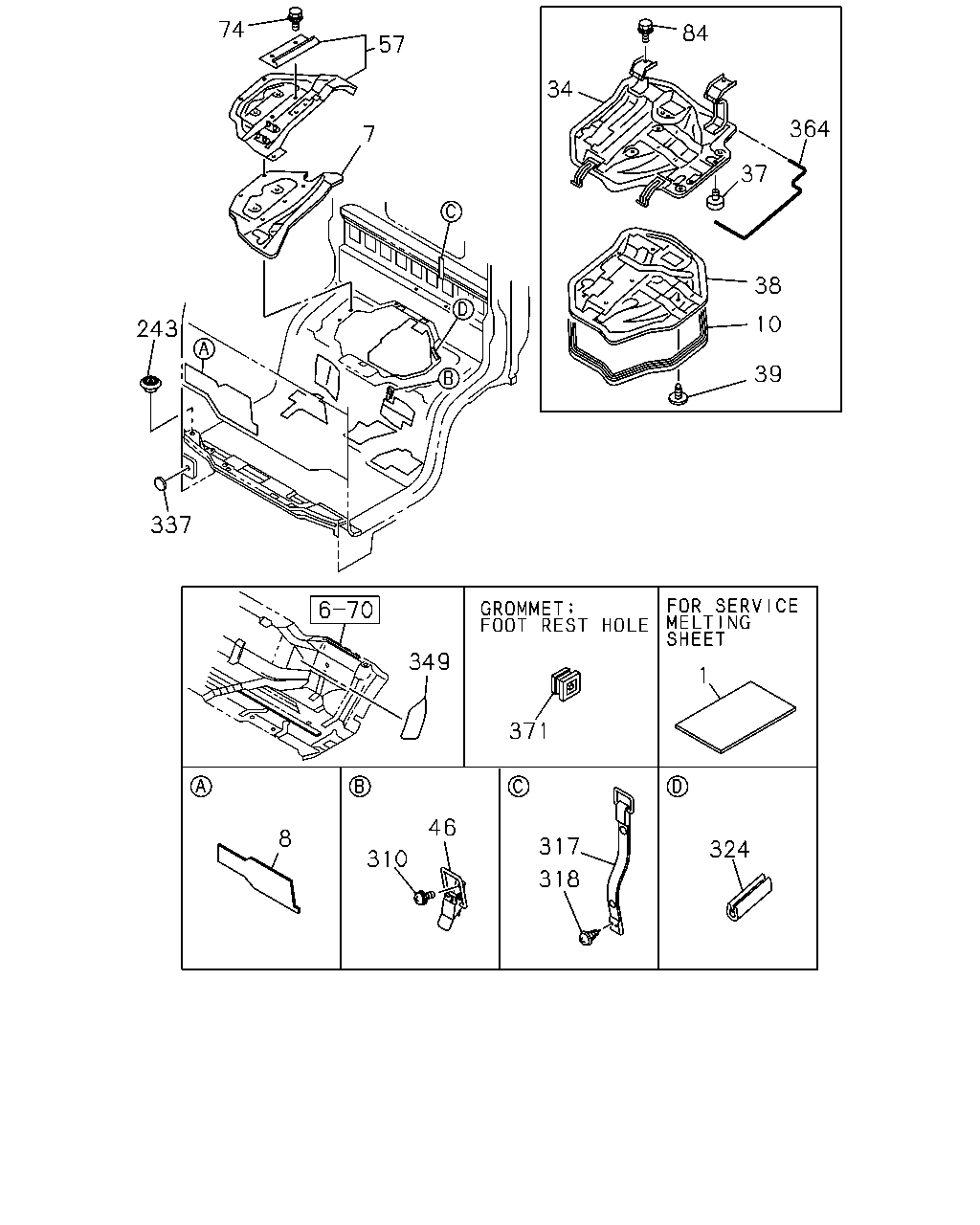

çizim 57979
74 84 57 34 364 7 37 38 10 243 39 337 349 1 371 46 8 317 324 310 318
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0608- ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97853-629-2 01 1 0608- ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97581-661-3 01 1 0608- ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97581-660-3 01 1 0608- ● ●
10 16.549 SEAL; ENG COVER 8-97581-109-1 01 1 0608- ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97898-132-1 01 1 0608- ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0608- ● ●
38 16.549 INSULATOR; ENG COVER 8-97898-101-0 01 1 0608- ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0608- ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 08 1 0608- ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0608- ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97866-684-2 01 1 0608- ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 05 1 0608- ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0608- ● ●
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0608- ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0608- ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0608-0612 ● ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ● ●
310 16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0608- ● ●
318 16.549 SCREW; BAND
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0608-0612 ● ●
318 16.549 SCREW; BAND
16.570 M5X16 HEX SOCKET 		0-72380-516-0 02 1 0701- ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0608- ● ●
337 16.545 SEAL; CLIP HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0608- ● ●
349 16.549 PROTECTOR 8-98039-389-1 01 1 0608-0705 ● ●
349 16.549 PROTECTOR 8-98090-192-1 01 1 0706- ● ●
349 16.549 PROTECTOR 8-98039-388-1 01 1 0608-0705 ● ●
349 16.549 PROTECTOR 8-98090-191-1 01 1 0706- ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0608- ● ●
371 16.549 GROMMET; LOCATION HOLE
16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 0608- ● ●
