Sayfa 6-70 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51124 - NPR/NQR(RHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶

6-70 — FLOOR PANEL (#39112) — 38 parça

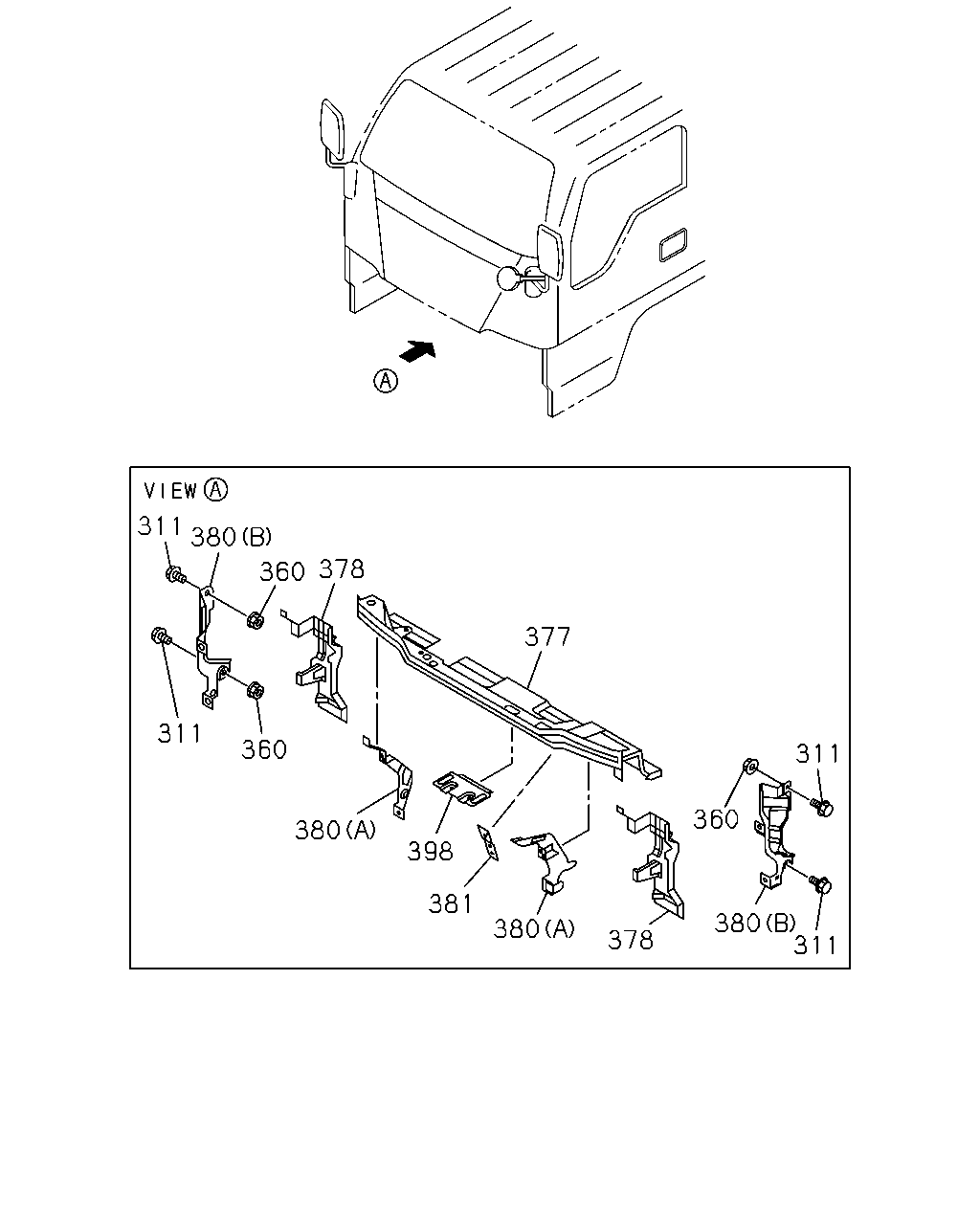

311 380 378 360 377 311 360 311 360 380 398 381 380 311 380 378

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
311	16.545 BOLT; BRKT 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0608-0804	●	●
311	16.545 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0805-	●	●
360	16.545 NUT; BRKT 16.570 M6 POP NUT	8-94279-537-0	02	1	0608-0805	●	●
360	16.545 NUT; BRKT 09.786 M6 POP NUT	8-98013-752-0	02	1	0806-	●	●
377	16.545 RAIL ASM; MTG,FRT MANUAL TILT CAB<RWZ>	8-97997-638-0	01	1	0608-	●	●
378	16.545 GASSET; LWR MANUAL TILT CAB<RWZ>	8-97581-828-2	01	1	0608-	●	●
378	16.545 GASSET; LWR MANUAL TILT CAB<RWZ>	8-97581-827-2	01	1	0608-	●	●
380	16.545 BRACKET; HEAD LAMP 02.726 (B)	8-98006-088-0	01	1	0608-	●	●
380	16.545 BRACKET; HEAD LAMP 02.726 (B)	8-98006-087-0	01	1	0608-	●	●
380	16.545 BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> (A)	8-97850-705-0	01	1	0608-	●	●
380	16.545 BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> (A)	8-97850-090-2	01	1	0608-	●	●
381	16.545 BRACKET; AIR INTAKE DUCT,FRT MANUAL TILT CAB<RWZ>	8-97850-221-5	01	1	0608-	●	●
398	16.545 BRACKET; PIPE SUPPORT MANUAL TILT CAB<RWZ>	8-97850-318-1	01	1	0608-	●	●

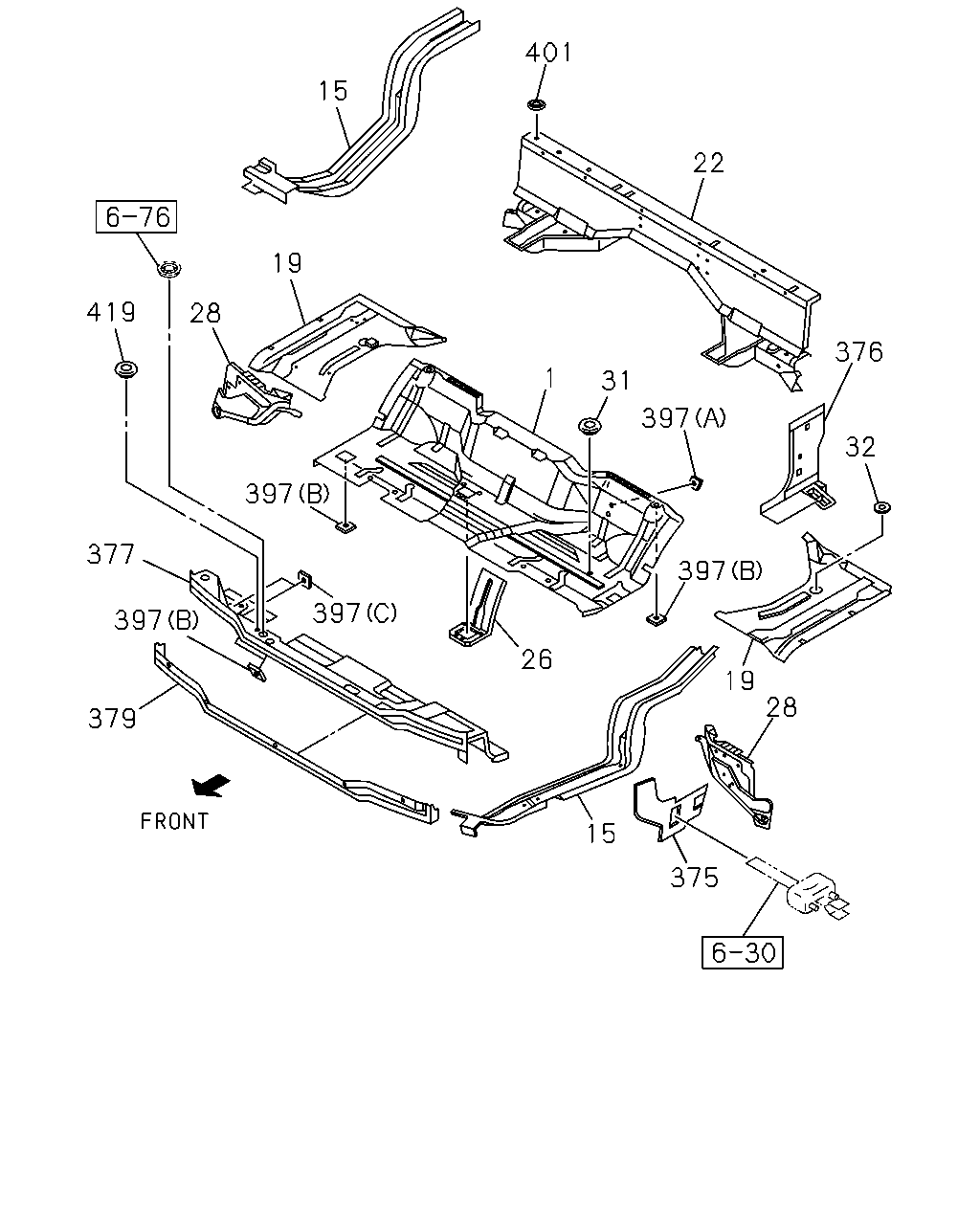

401 15 22 19 419 28 376 1 31 397 32 397 377 397 397 397 26 19 28 379 15 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.545 PANEL; FLOOR MANUAL TILT CAB<RWZ>	8-97581-801-0	01	1	0608-	●	●
15	16.545 FRAME; UNDER MANUAL TILT CAB<RWZ>	8-97850-060-9	01	1	0608-	●	●
15	16.545 FRAME; UNDER MANUAL TILT CAB<RWZ>	8-98013-405-0	01	1	0608-	●	●
19	16.545 PANEL; FLOOR SIDE,REAR MANUAL TILT CAB<RWZ>	8-97850-008-5	01	1	0608-	●	●
19	16.545 PANEL; FLOOR SIDE,REAR MANUAL TILT CAB<RWZ>	8-97850-118-7	01	1	0608-	●	●
22	16.545 FRAME; FLOOR REAR MANUAL TILT CAB<RWZ>	8-97850-657-8	01	1	0608-	●	●
26	16.545 PANEL; GEAR CONT REINF MANUAL TILT CAB<RWZ>	8-97850-140-3	01	1	0608-	●	●
28	16.545 GUSSET; FLOOR PANEL SIDE MANUAL TILT CAB<RWZ>	8-97850-017-7	01	1	0608-1106	●	●
28	16.545 GUSSET; FLOOR PANEL SIDE MANUAL TILT CAB<RWZ>	8-98170-771-0	01	1	1107-	●	●
28	16.545 GUSSET; FLOOR PANEL SIDE MANUAL TILT CAB<RWZ>	8-97850-338-5	01	1	0608-1106	●	●
28	16.545 GUSSET; FLOOR PANEL SIDE MANUAL TILT CAB<RWZ>	8-98170-770-0	01	1	1107-	●	●
31	16.547 GROMMET; LOCATION HOLE,CAB FLOOR 08.155 OD=28.5	8-94279-711-0	02	1	0608-	●	●
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO 08.131 OD=53.5	8-94356-253-0	02	1	0608-	●	●
375	16.545 CLOSING; PILLAR MANUAL TILT CAB<RWZ>	8-97850-087-4	01	1	0608-	●	●
375	16.545 CLOSING; PILLAR MANUAL TILT CAB<RWZ>	8-97850-086-5	01	1	0608-	●	●
376	16.545 CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ>	8-97850-923-1	01	1	0608-	●	●
376	16.545 CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ>	8-97850-320-6	01	1	0608-	●	●
377	16.545 RAIL ASM; MTG,FRT MANUAL TILT CAB<RWZ>	8-97997-638-0	01	1	0608-	●	●
379	16.545 PANEL MANUAL TILT CAB<RWZ>	8-97581-640-0	01	1	0608-	●	●
397	16.545 NUT; PIERCE MANUAL TILT CAB<RWZ> (C) M10	9-09114-030-0	03	1	0608-	●	●
397	16.545 NUT; PIERCE MANUAL TILT CAB<RWZ> (A) M6	9-09114-046-0	04	1	0608-	●	●
397	16.545 NUT; PIERCE MANUAL TILT CAB<RWZ> 16.588 (B) M8	9-09114-048-0	04	1	0608-	●	●
397	16.545 NUT; PIERCE MANUAL TILT CAB<RWZ> 16.588 (B) M8	9-09114-048-0	06	1	0608-	●	●
401	16.545 GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	0608-	●	●
419	04.012 GROMMET; CONT SHAFT,FLOOR PANEL EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36	1-09983-092-0	01	1	0608-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
