Isuzu WW
▶
TRUCKS
▶
NPR
▶
51124 - NPR/NQR(RHD) EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

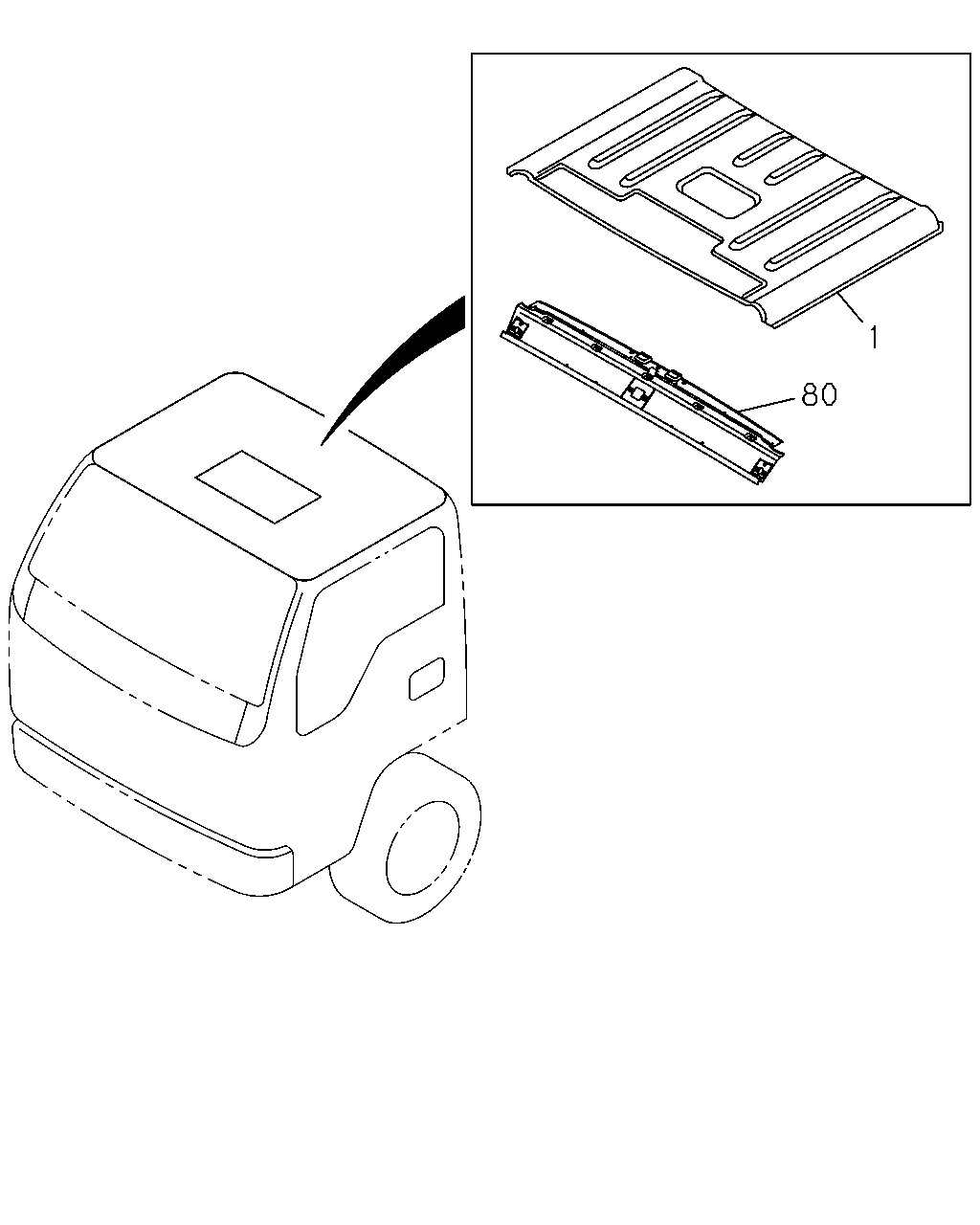

6-60 — ROOF PANEL
(#39109) — 7 parça
Tümü
A - NPC5SF
B - NPN5SF
1
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ>
8-97851-402-1
01
1
0608-
●
●
1
16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>
8-97851-488-1
01
1
0608-
●
●
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT>
8-97851-098-1
01
1
0608-
●
●
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT>
8-97892-869-0
01
1
0608-
●
●
1
16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ>
8-97892-872-0
01
1
0608-
●
●
1
16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,IDENTIFICATION LABEL FOR KD<6UT>
8-97892-870-0
01
1
0608-
●
●
80
16.585 PANEL; HEADER,ROOF
8-97583-507-0
01
1
0608-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
