Isuzu WW
▶
TRUCKS
▶
NPR
▶
51124 - NPR/NQR(RHD) EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-43 - SIDE TRIM
▶

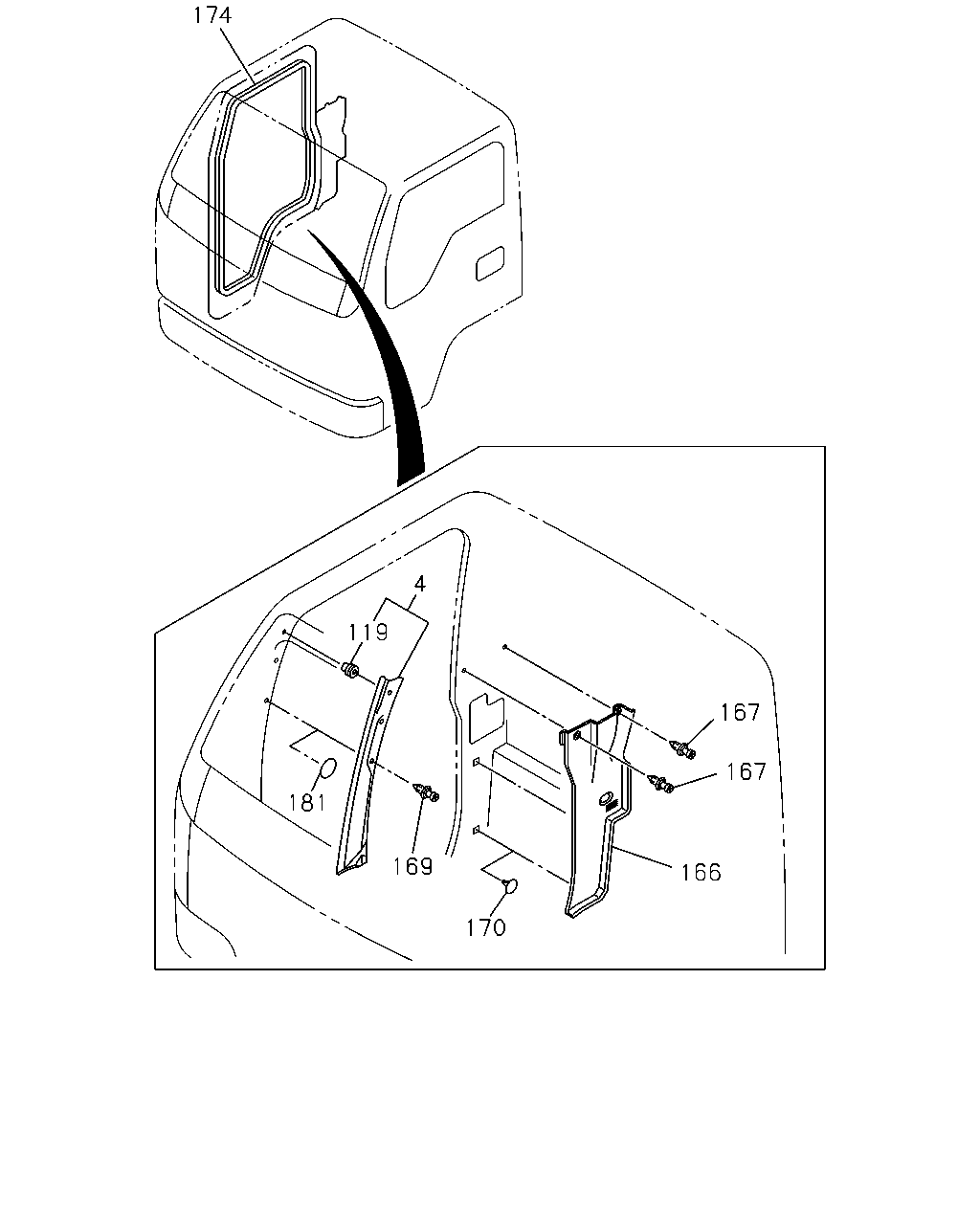

6-43 — SIDE TRIM
(#39107) — 14 parça
Tümü
A - NPC5SF
B - NPN5SF
174
119
167
167
181
169
166
170
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
4
16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> GRAY
8-97582-198-3
01
1
0608-
●
●
4
16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> GRAY
8-97582-197-3
01
1
0608-
●
●
119
16.165 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> 16.742
1-73318-278-0
02
1
0608-
●
●
166
16.578 TRIM; RR PILLAR
GRAY
8-97582-260-5
01
1
0608-
●
●
166
16.578 TRIM; RR PILLAR
GRAY
8-97582-262-3
01
1
0608-
●
●
167
16.578 CLIP; TRIM,RR PILLAR
GRAY
8-97582-265-0
04
1
0608-0610
●
●
167
16.578 CLIP; TRIM,RR PILLAR
GRAY
8-97406-439-0
04
1
0611-
●
●
169
16.578 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X16 PUSH RIVET
8-97582-245-0
02
1
0608-
●
●
170
16.578 CLIP; HOLE
EXC. TRAY ROOF HEAD<7EJ> 03.602
8-94244-922-0
02
1
0608-
●
●
174
16.507 FINISHER; BODY SIDE
L=2982 GRAY
8-97582-256-5
01
1
0608-
●
●
174
16.507 FINISHER; BODY SIDE
L=2982 GRAY
8-97582-255-5
01
1
0608-
●
●
181
16.165 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE
8-97856-832-2
02
1
0608-0610
●
●
181
16.165 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE
8-98059-421-0
02
1
0611-
●
●
181
16.165 SEAL; FRT PILLAR
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK
5-76777-036-0
02
1
0608-
●
●
